WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

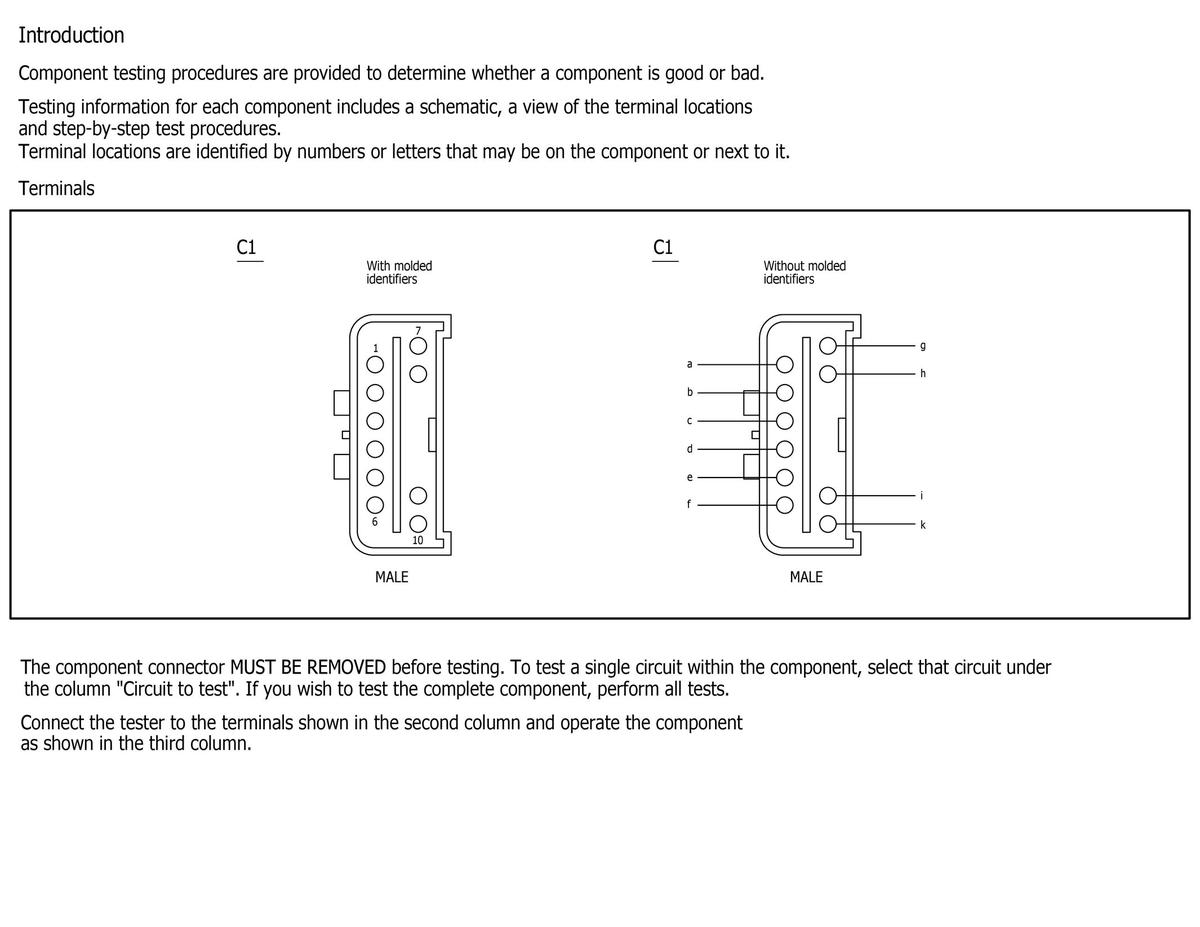

Fig 1: Introduction - Component Testing
Courtesy of FORD MOTOR COMPANY

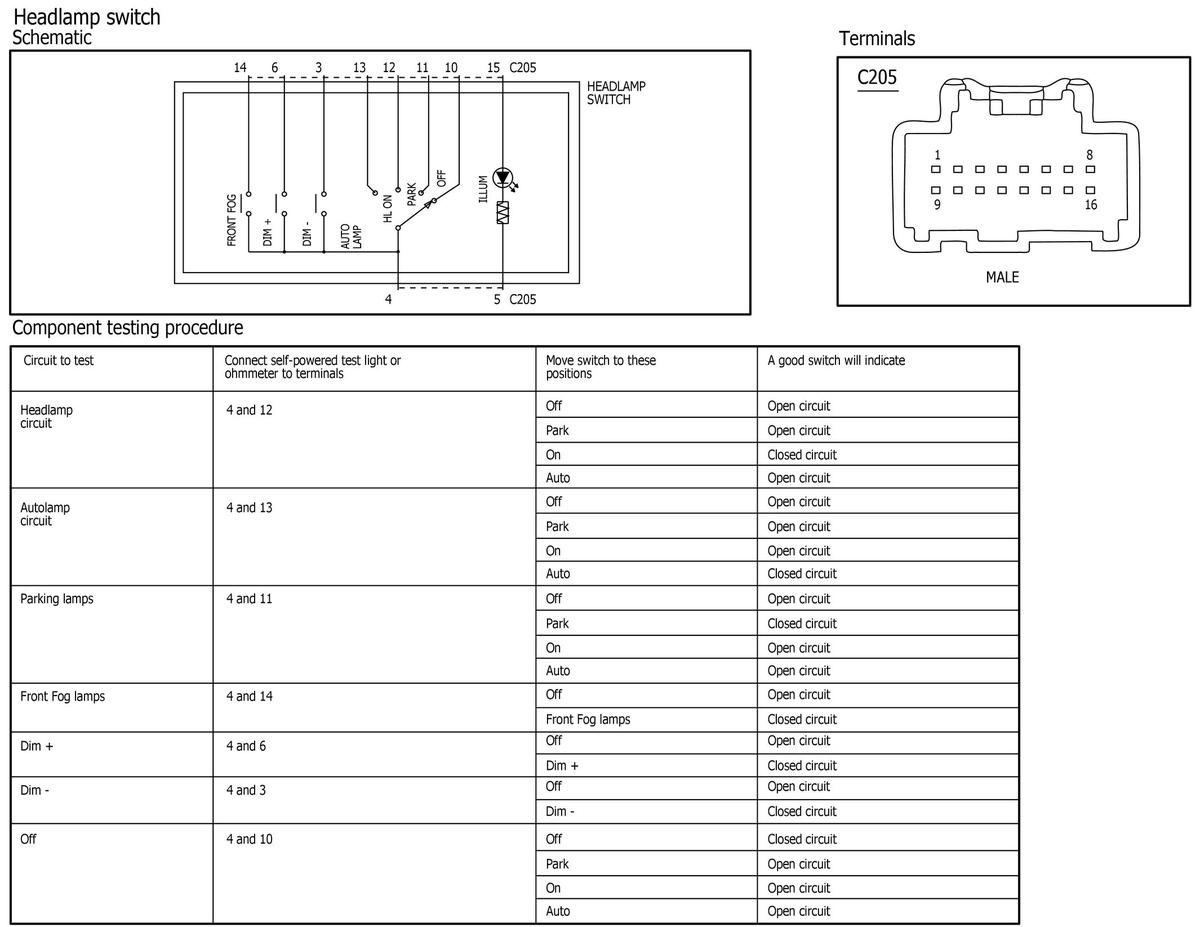

Fig 2: Headlamp Switch - Component Testing
Courtesy of FORD MOTOR COMPANY

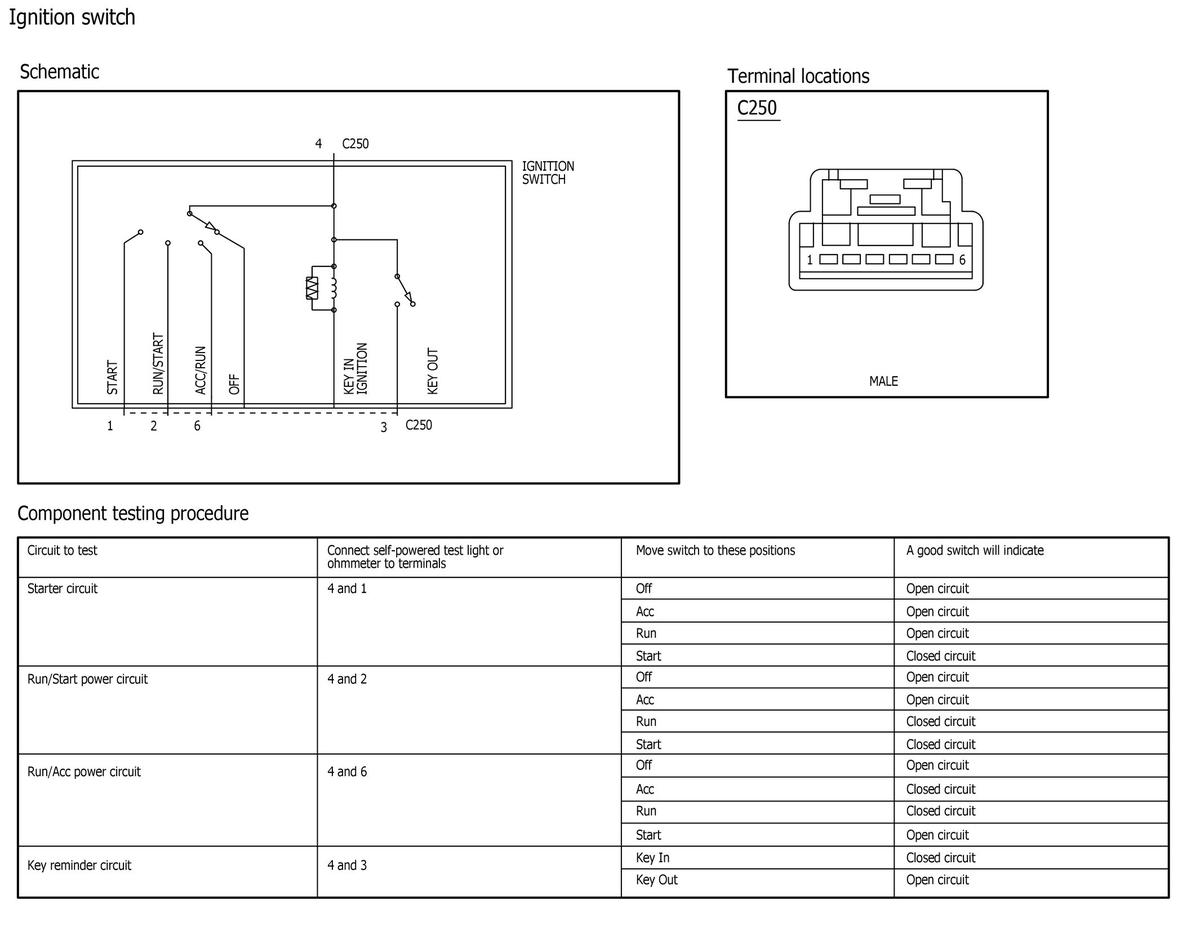

Fig 3: Ignition Switch - Component Testing
Courtesy of FORD MOTOR COMPANY

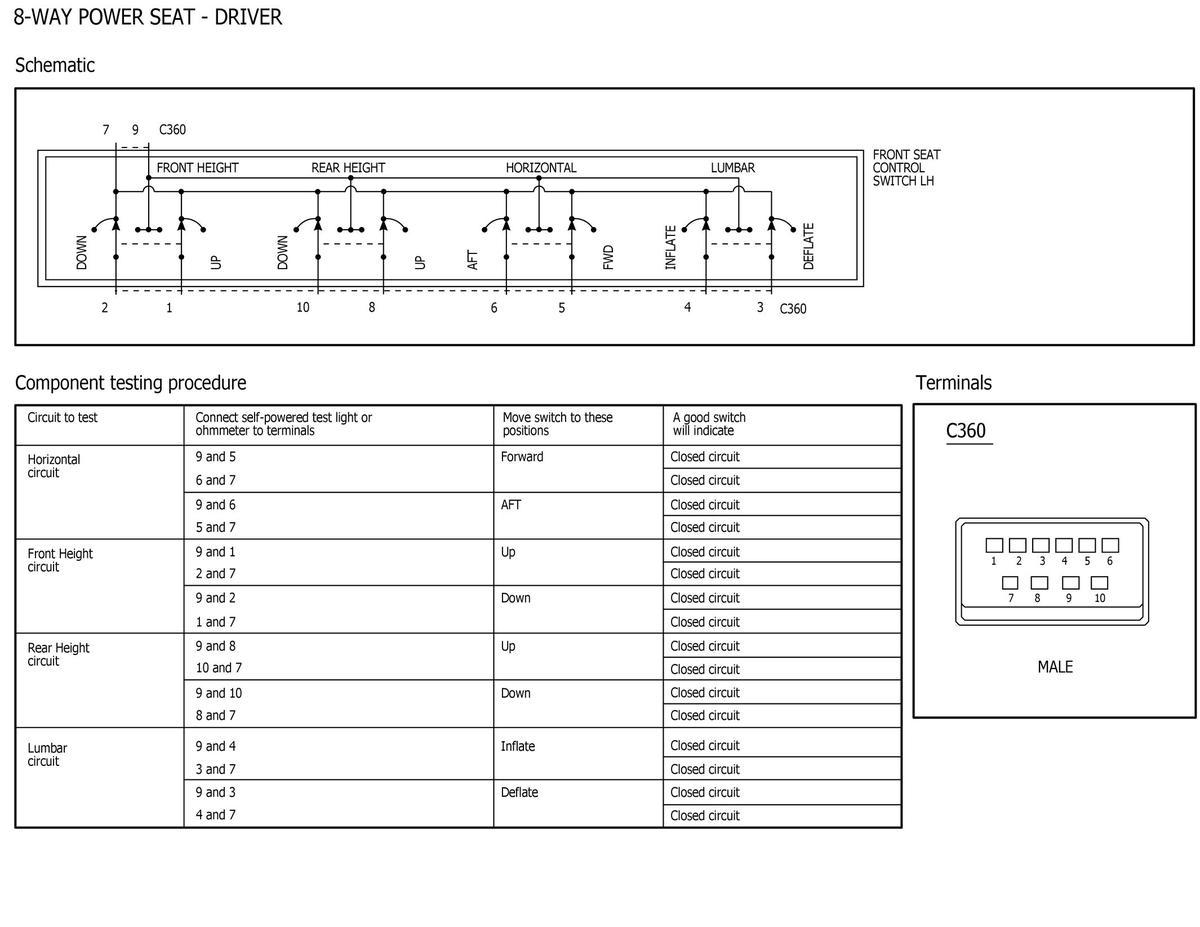

Fig 4: 8-Way Power Seat - Driver - Component Testing
Courtesy of FORD MOTOR COMPANY

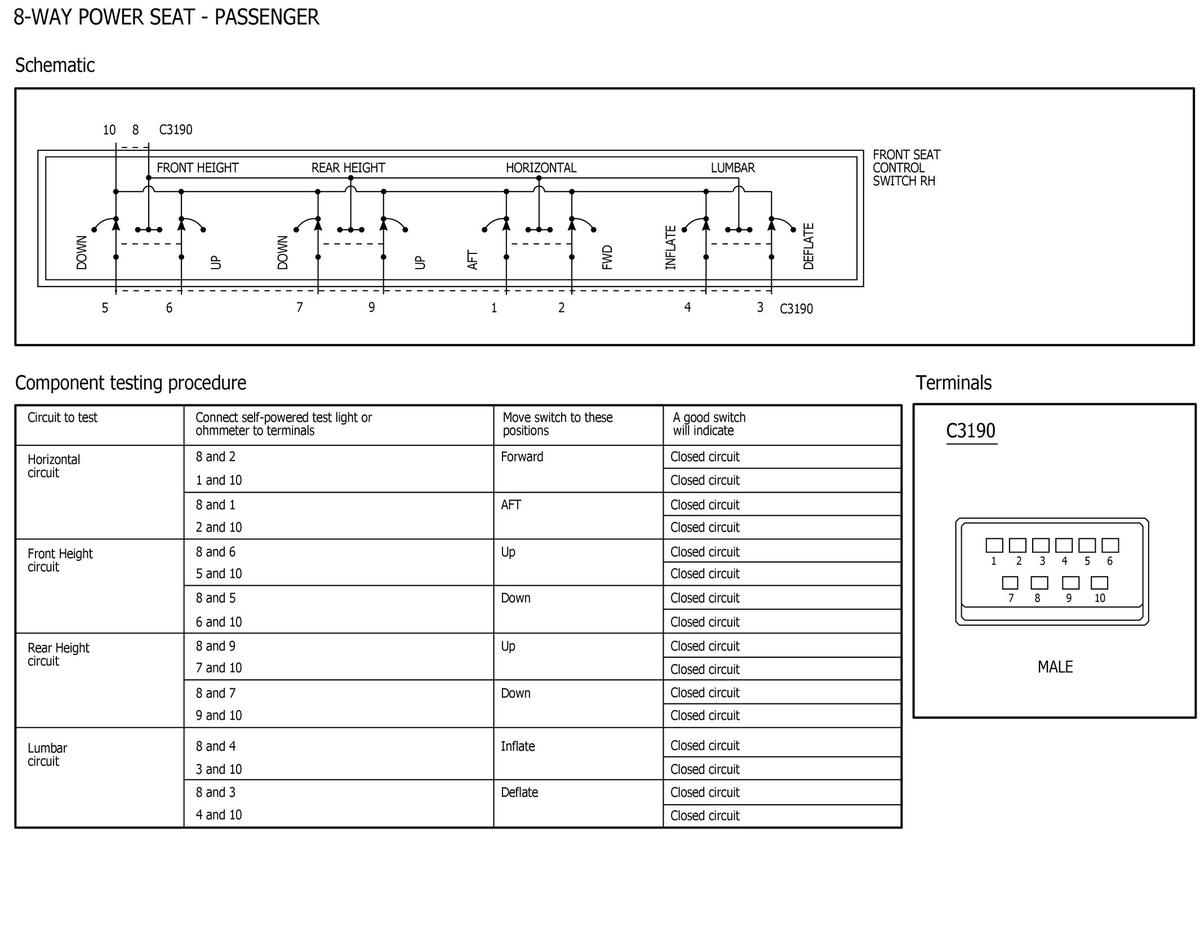

Fig 5: 8-Way Power Seat - Passenger - Component Testing
Courtesy of FORD MOTOR COMPANY

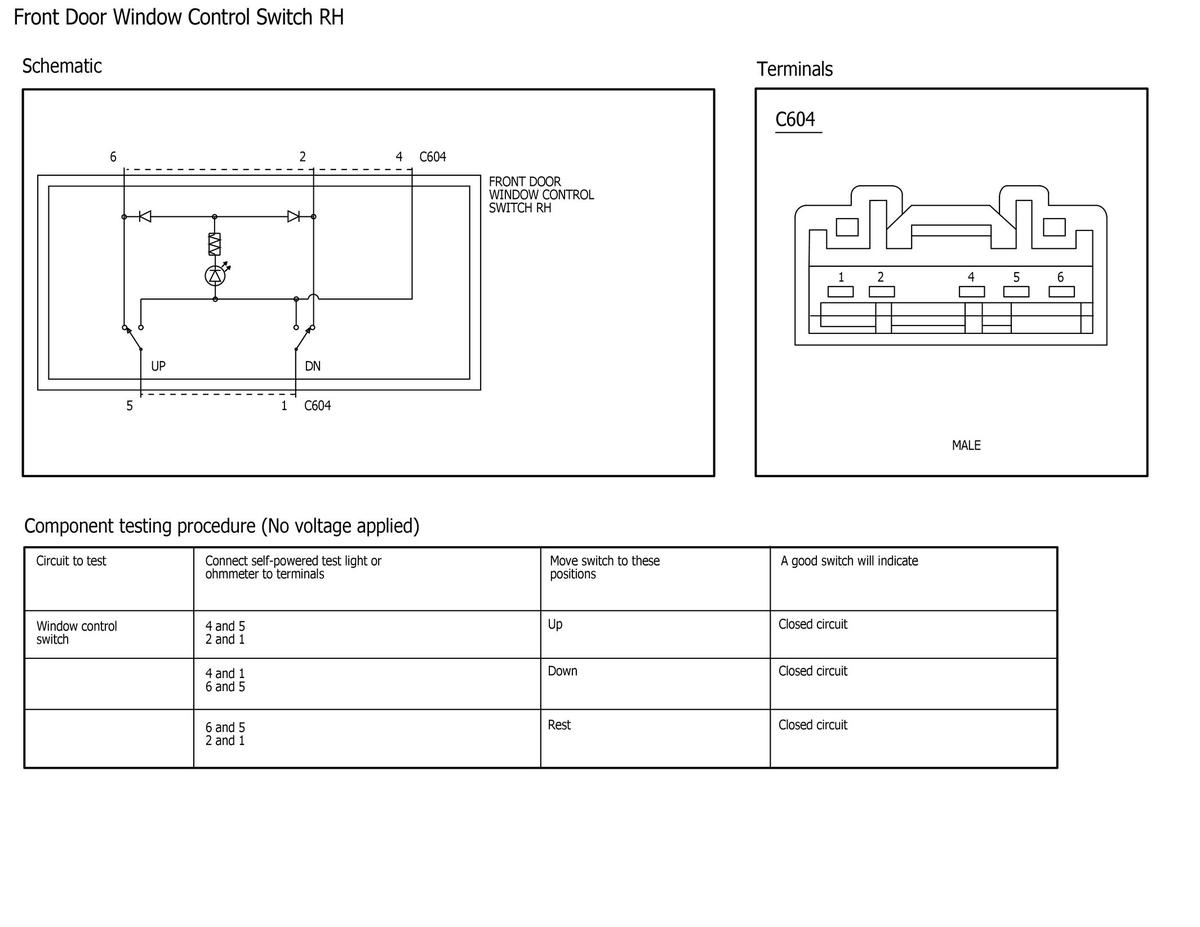

Fig 6: Front Door Window Control Switch - RH - Component Testing
Courtesy of FORD MOTOR COMPANY

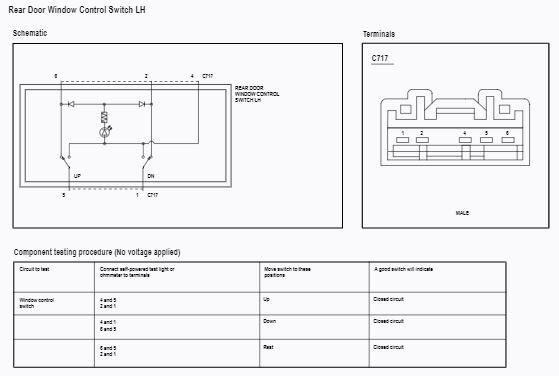

Fig 7: Rear Door Window Control Switch - LH - Component Testing
Courtesy of FORD MOTOR COMPANY
Fig 8: Rear Door Window Control Switch - RH - Component Testing
Courtesy of FORD MOTOR COMPANY

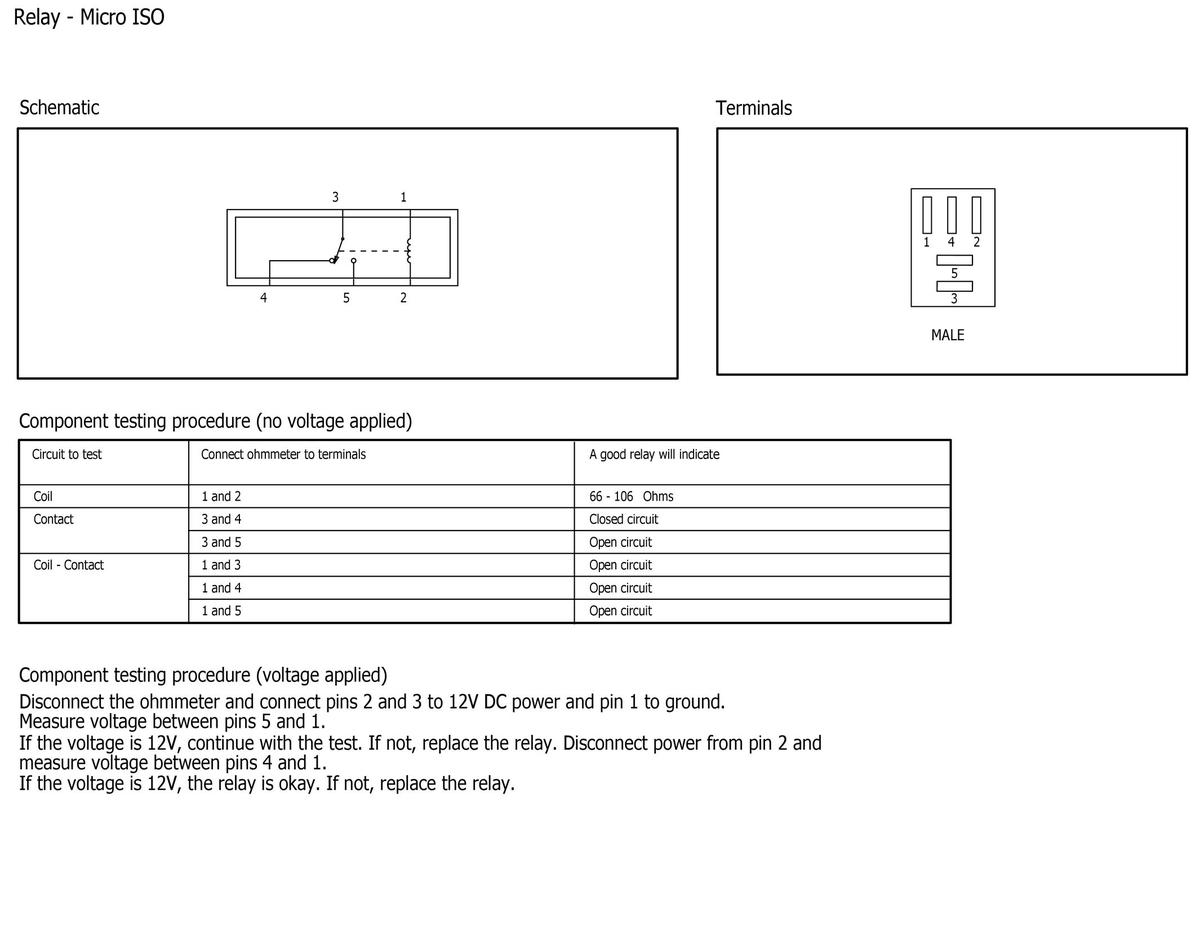

Fig 9: Relay - Micro ISO - Component Testing
Courtesy of FORD MOTOR COMPANY

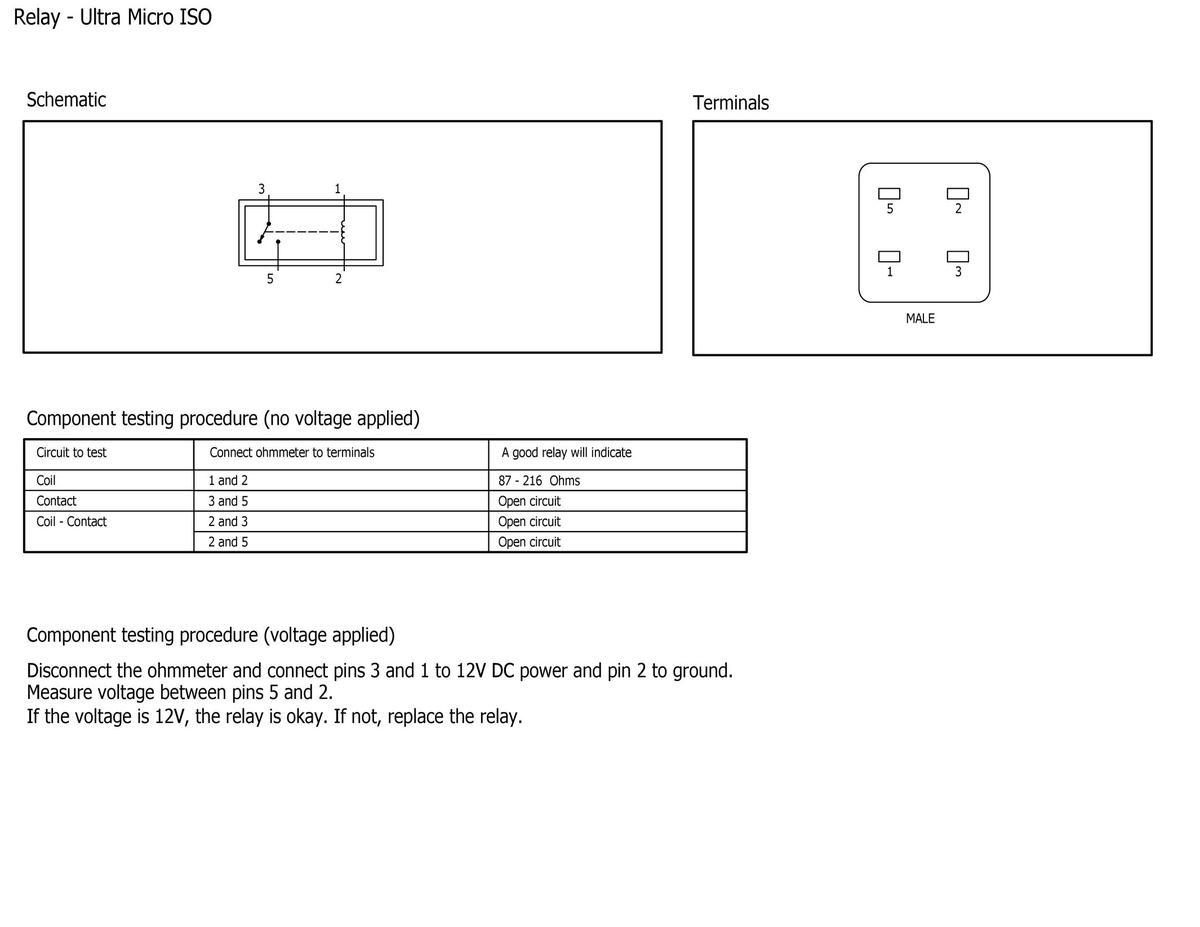

Fig 10: Relay - Ultra Micro ISO - Component Testing
