Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the wheel and tire. Refer to: Wheel and Tire .

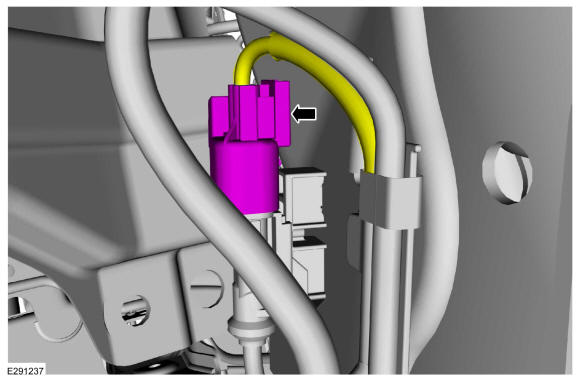

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

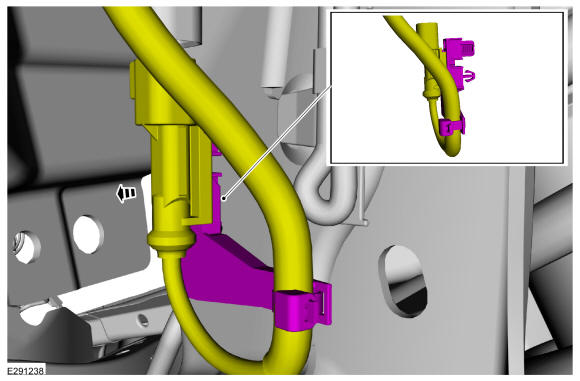

Detach the electrical connector bracket.

Courtesy of FORD MOTOR COMPANY

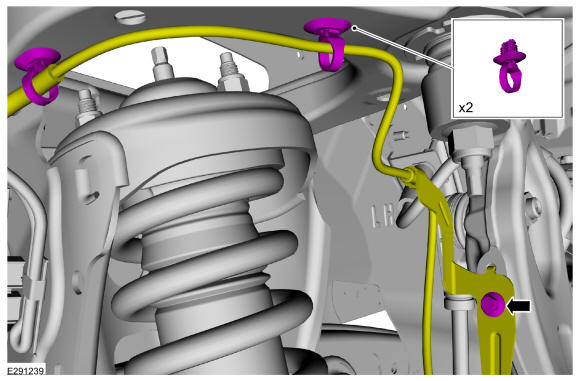

Detach the harness pin-type retainers and remove the harness routing bracket bolt.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

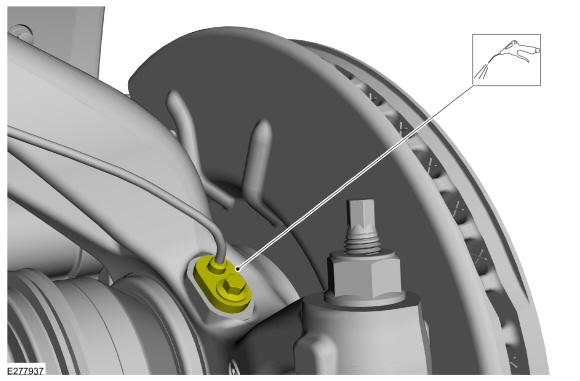

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

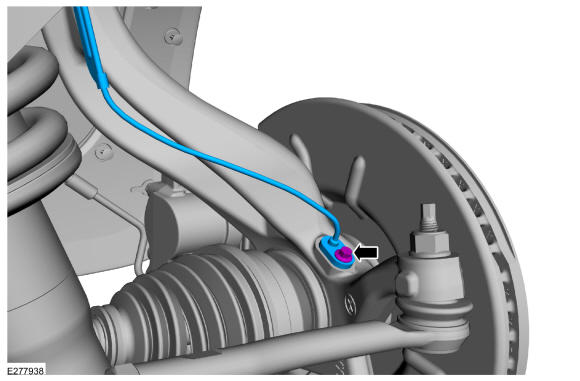

Remove the bolt and the front wheel speed sensor.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
