Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Cruise control module (CCM)

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Using a diagnostic scan tool, begin the PMI process for the CCM following the on-screen instructions.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Remove the front bumper valence cover.
1. Disconnect the electrical connector, the retainer and position the wiring harness aside.
2. Remove the push pins and the bolts.
  Torque

  : 36 lb.in (4.1 Nm)
3. NOTE: Use a suitable tool to prevent damage to the component during removal.

  Remove and discard the clips. Remove the front bumper valence cover.
Courtesy of FORD MOTOR COMPANY

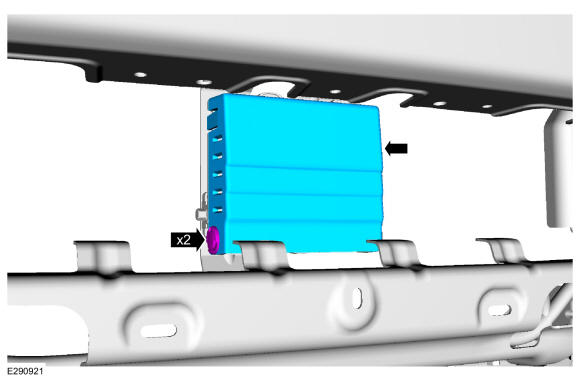

Remove the retainers and the CCM cover.

Courtesy of FORD MOTOR COMPANY

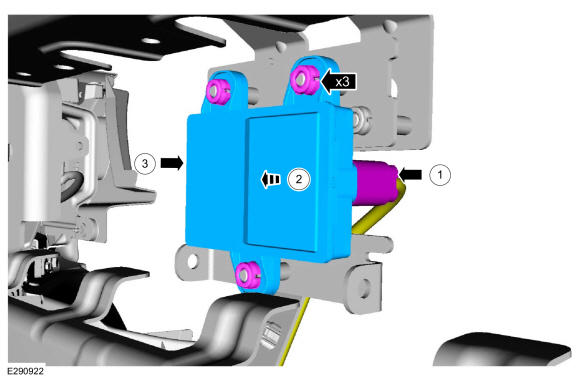

1. Disconnect the CCM electrical connector.
2. Detach the CCM grommets from the CCM bracket studs by pulling outward.
3. Remove the CCM.
Courtesy of FORD MOTOR COMPANY
NOTE: Replace any damaged CCM grommets.

Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

CCM bracket

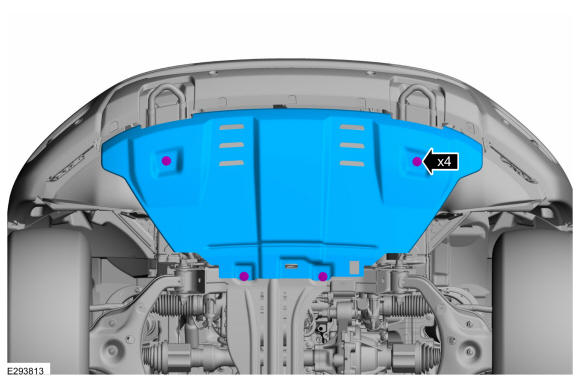

If equipped. Remove the bolts and the skid plate.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

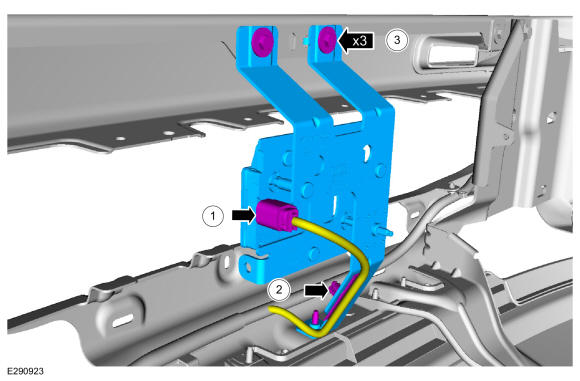

1. Disconnect the CCM electrical connector.
2. Detach the wiring harness retainer from the CCM bracket.
3. Remove the bracket bolts and the CCM and bracket.
  Torque

  : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
