Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

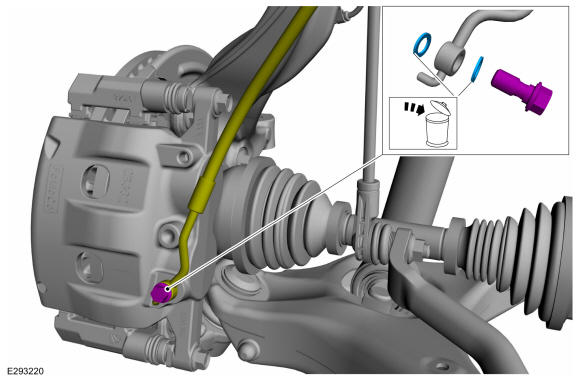

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

Seal all the openings with clean blanking caps.

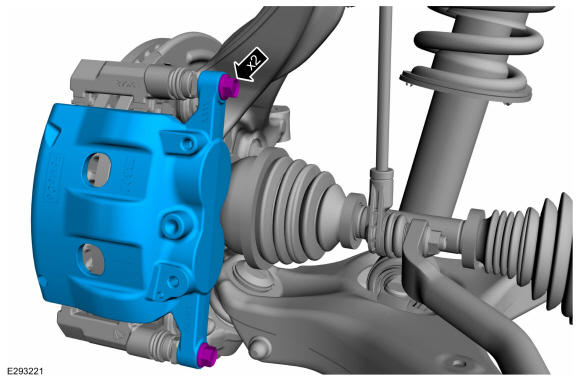

Remove the bolts and the brake caliper.
Torque: 48 lb.ft (65 Nm)

Courtesy of FORD MOTOR COMPANY
