Front Brake Pads: Removal
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

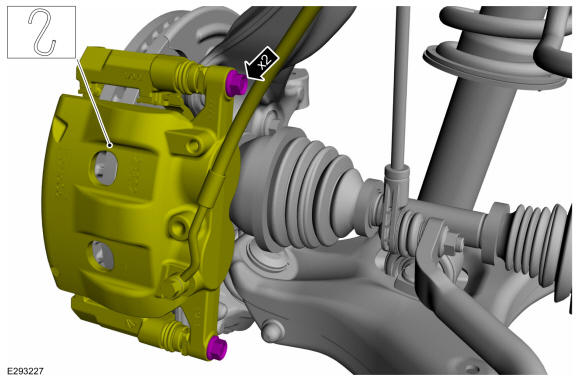

Remove the lower caliper bolt and position the brake caliper aside.
Torque: 48 lb.ft (65 Nm)
-
NOTE: Make sure the brake pads are installed in the correct position. The inner brake pads are not interchangeable from right-to-left. The outboard brake pads can be installed on either side of the vehicle. Failure to install the brake pads in the correct position may result in damage to the brake components.

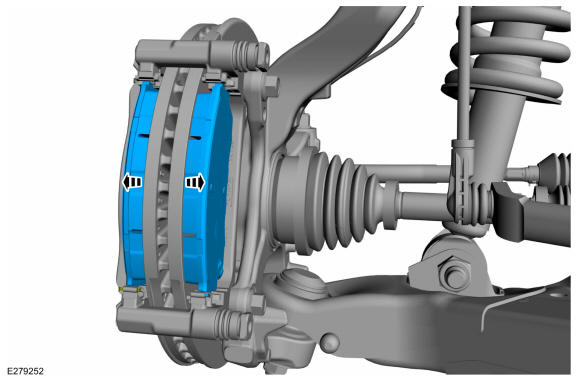

Remove the brake pads.
-
NOTE: If installing new brake pads, make sure to install all new hardware supplied with the brake pad kit.

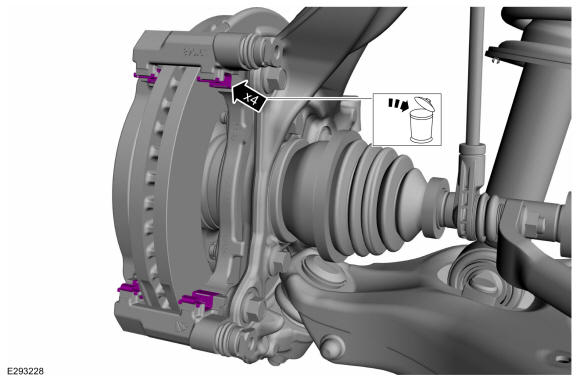

Remove and discard the brake pad clips.
-
NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

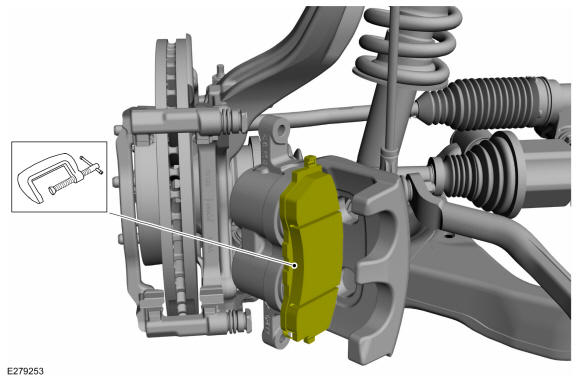

If installing new brake pads. Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.
