Brake Shift Interlock Actuator Manual Override

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Interior Trim Remover

Activation

Apply the parking brake.

Courtesy of FORD MOTOR COMPANY

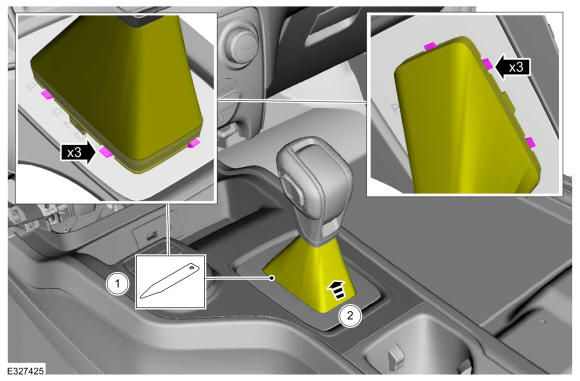

1. Insert a trim tool between the selector lever boot and the trim ring to release the retainer tabs from the trim ring. Use the General Equipment: Interior Trim Remover
2. lift the selector lever boot upwards.
Courtesy of FORD MOTOR COMPANY

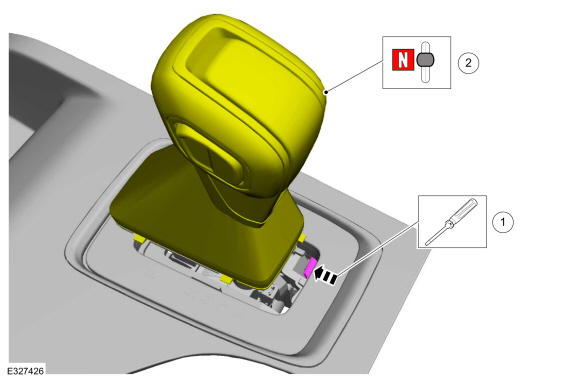

1. Move the brake shift interlock actuator release forward.
2. Position the selector lever in N.
Courtesy of FORD MOTOR COMPANY

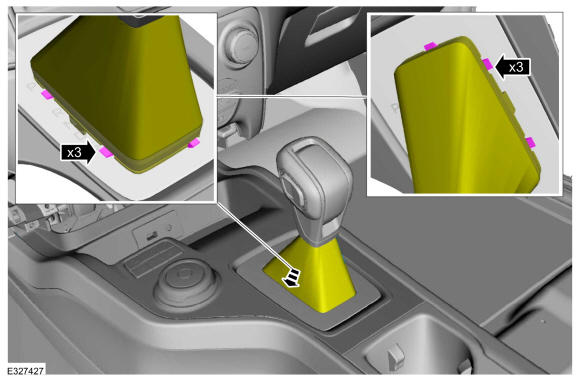

Attach the selector lever boot retainer tabs to the trim ring.

Courtesy of FORD MOTOR COMPANY
