Selector Lever Knob: Installation

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

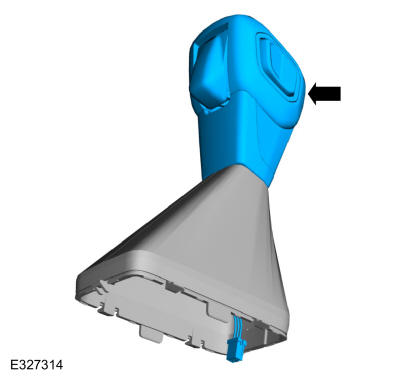

Install the selector lever knob into the boot.

Courtesy of FORD MOTOR COMPANY

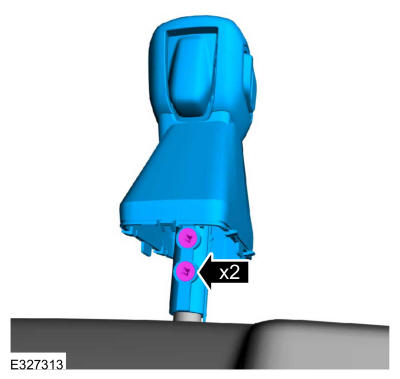

Install the selector lever knob, boot and the screws.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

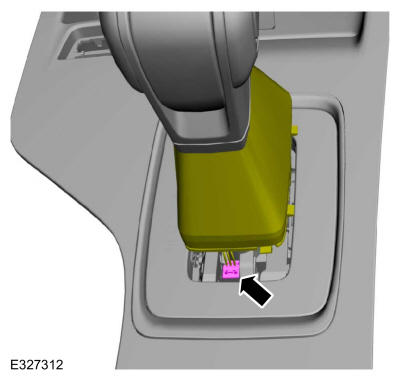

Connect the selector lever knob electrical connector.

Courtesy of FORD MOTOR COMPANY

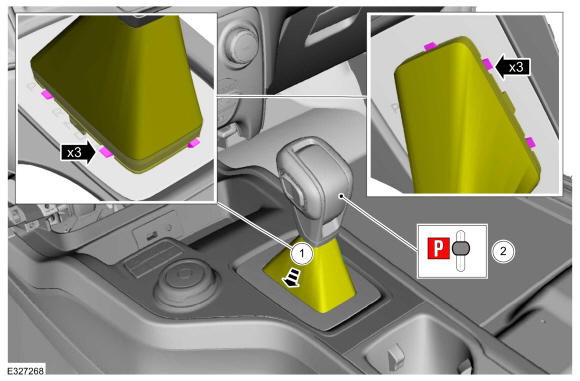

1. Attach the selector lever boot retainer tabs to the trim ring.
2. Position the selector lever in P.
- Release the parking brake.

Courtesy of FORD MOTOR COMPANY
