Audio System/Navigation - Am/Fm/Cd/Sync

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

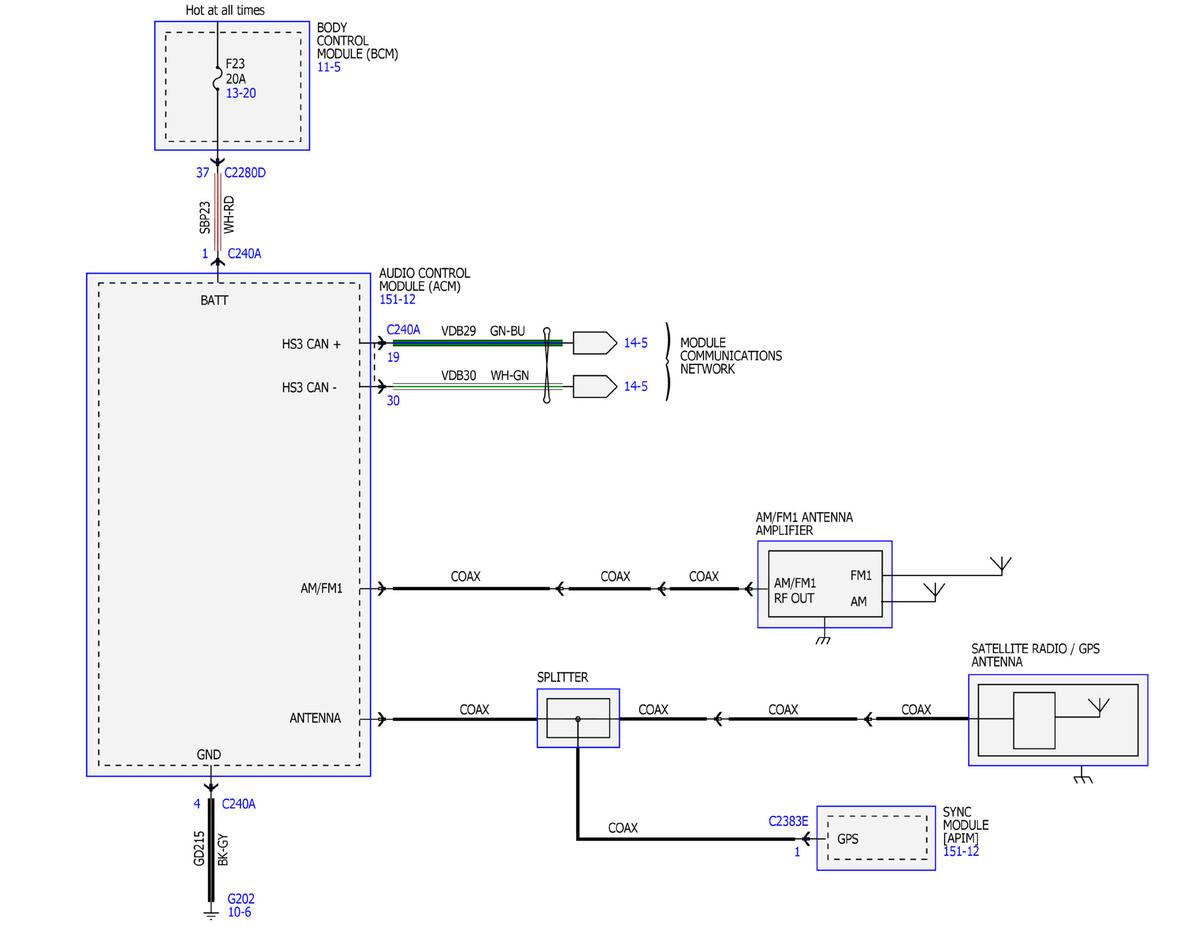

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (1 Of 11)
GFDWR175122Courtesy of FORD MOTOR COMPANY

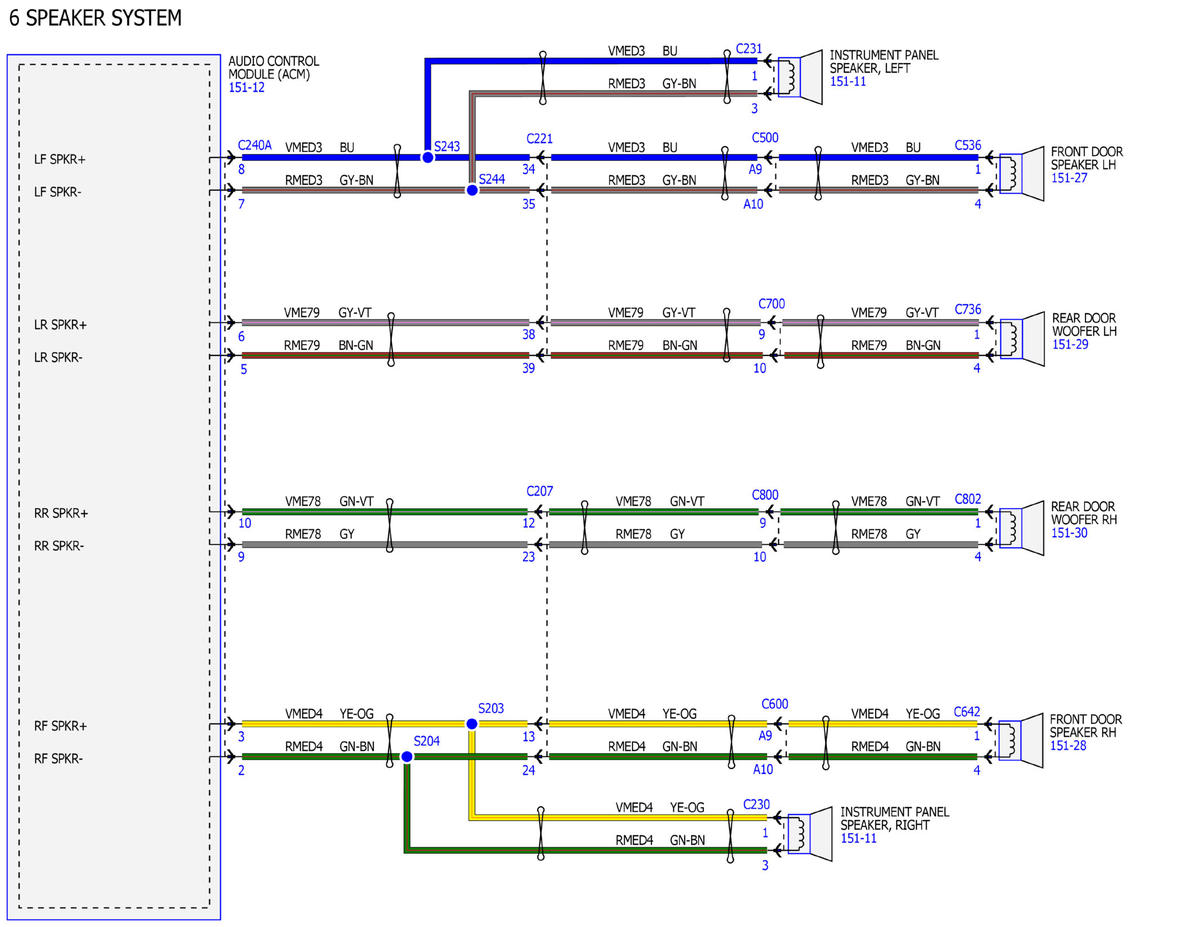

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (2 Of 11)
GFDWR175125Courtesy of FORD MOTOR COMPANY

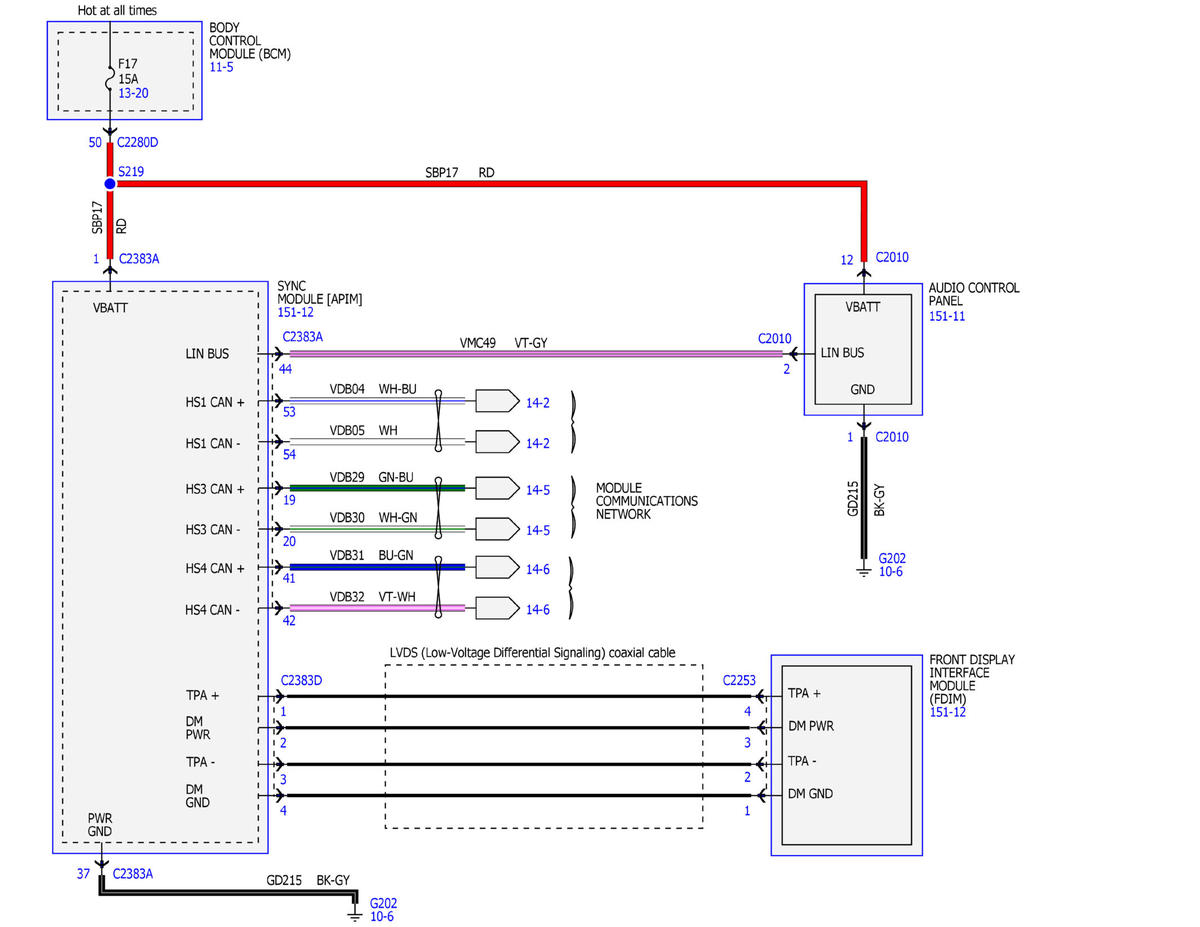

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (3 Of 11)
GFDWR175126Courtesy of FORD MOTOR COMPANY

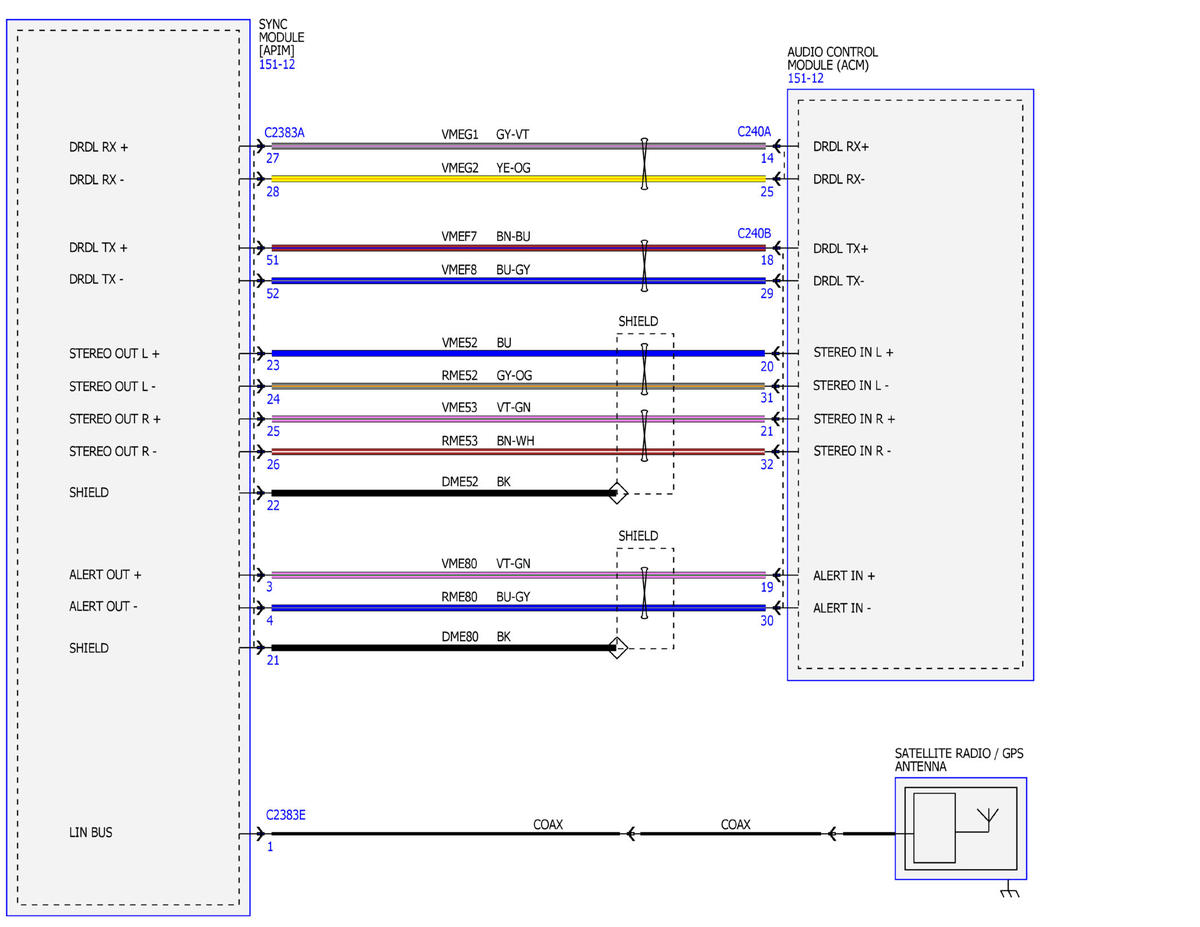

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (4 Of 11)
GFDWR175127Courtesy of FORD MOTOR COMPANY

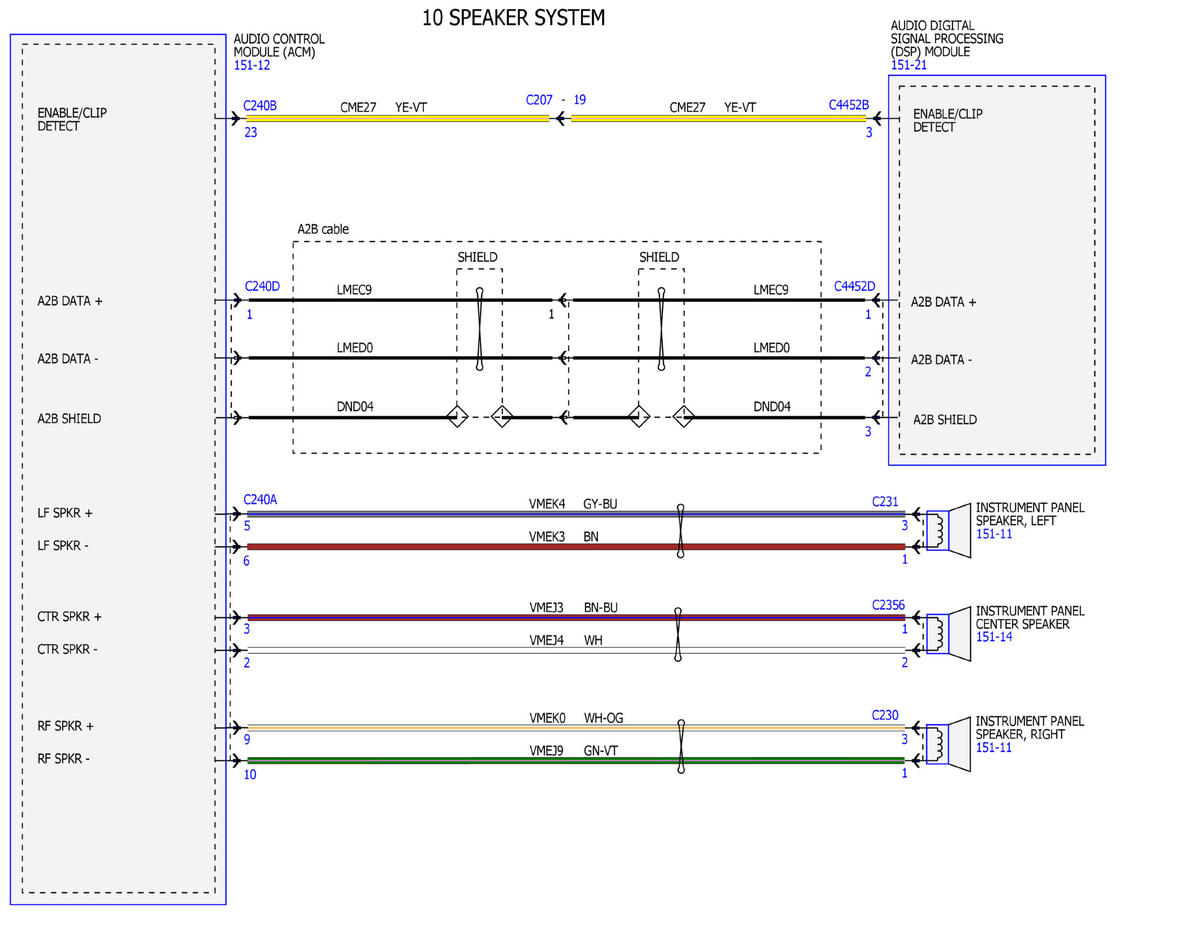

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (5 Of 11)
GFDWR175128Courtesy of FORD MOTOR COMPANY

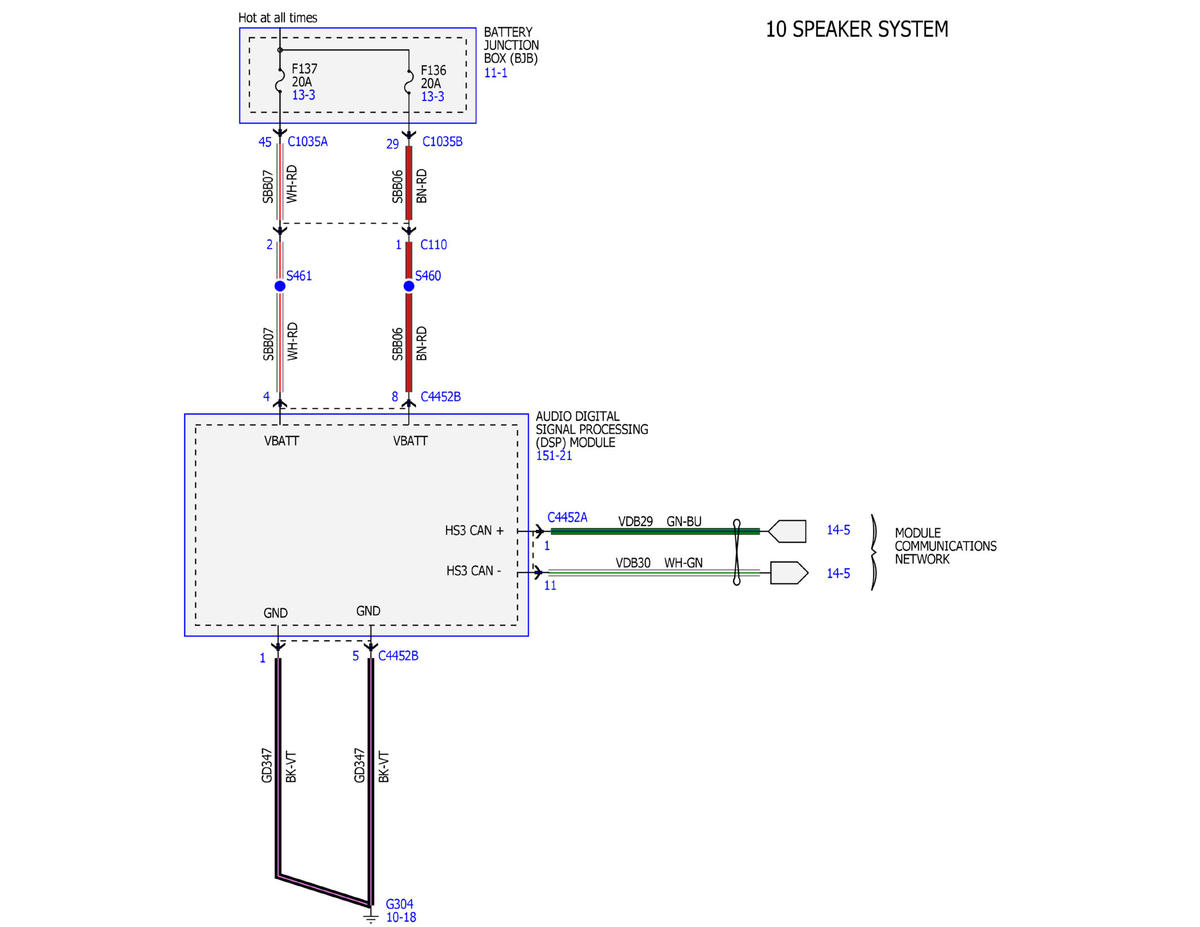

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (6 Of 11)
GFDWR175129Courtesy of FORD MOTOR COMPANY

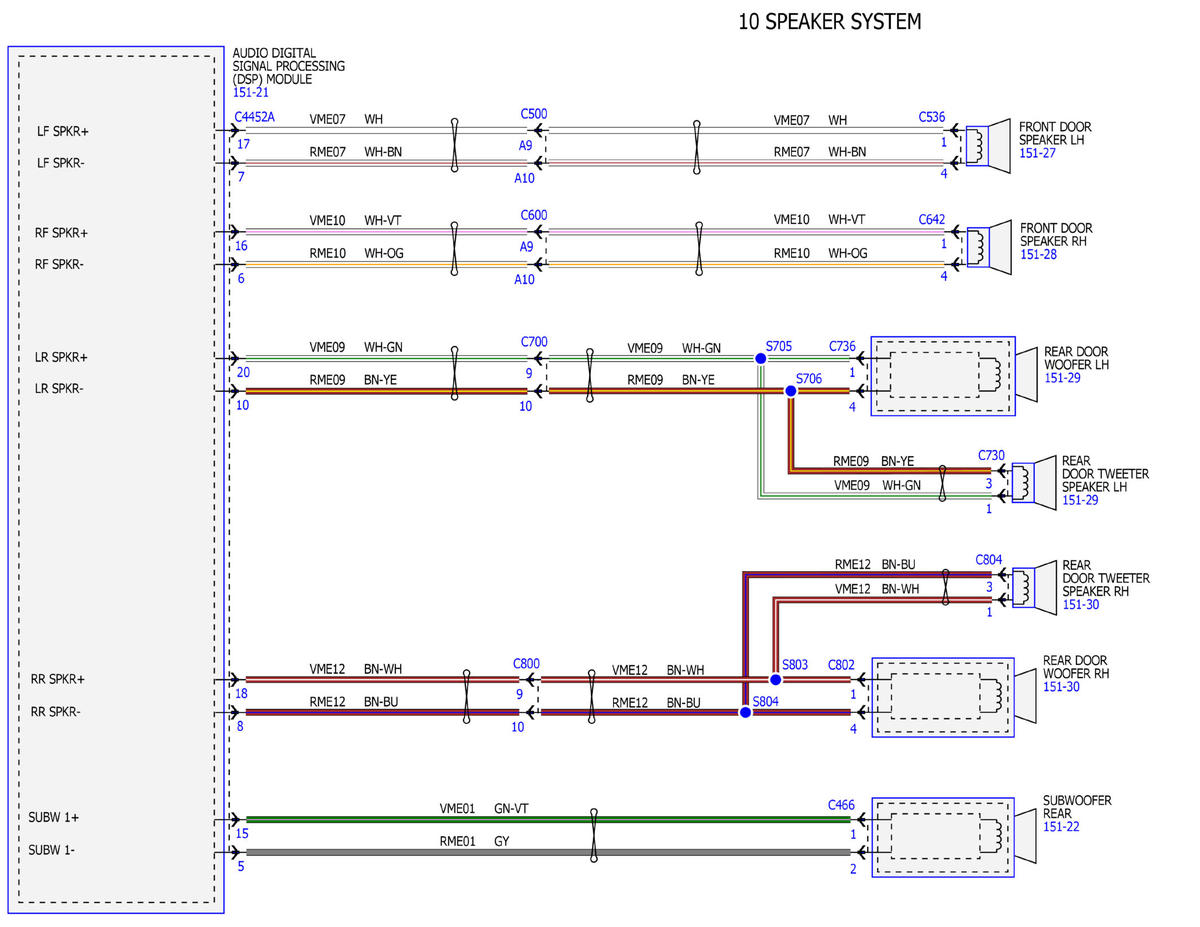

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (7 Of 11)
GFDWR175130Courtesy of FORD MOTOR COMPANY

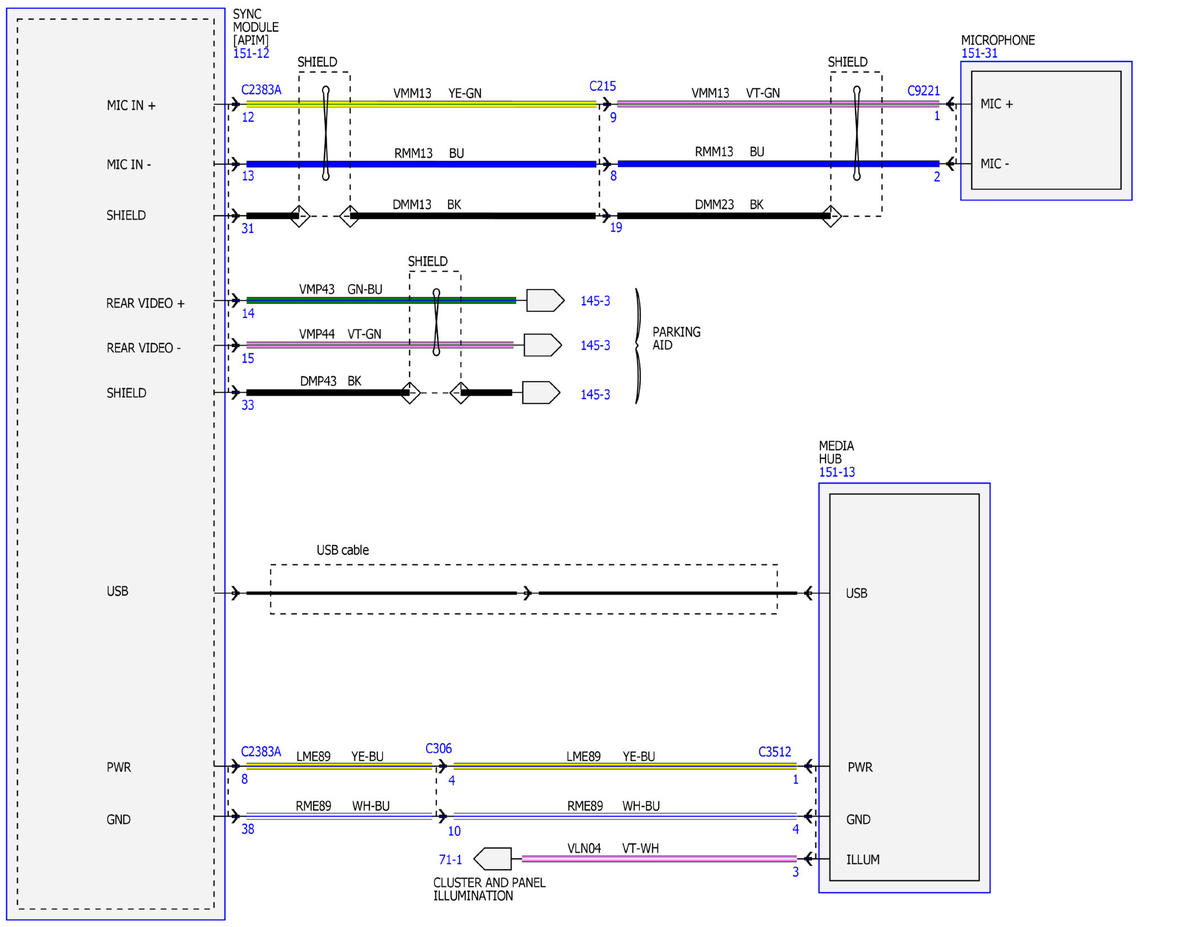

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (8 Of 11)
GFDWR175131Courtesy of FORD MOTOR COMPANY

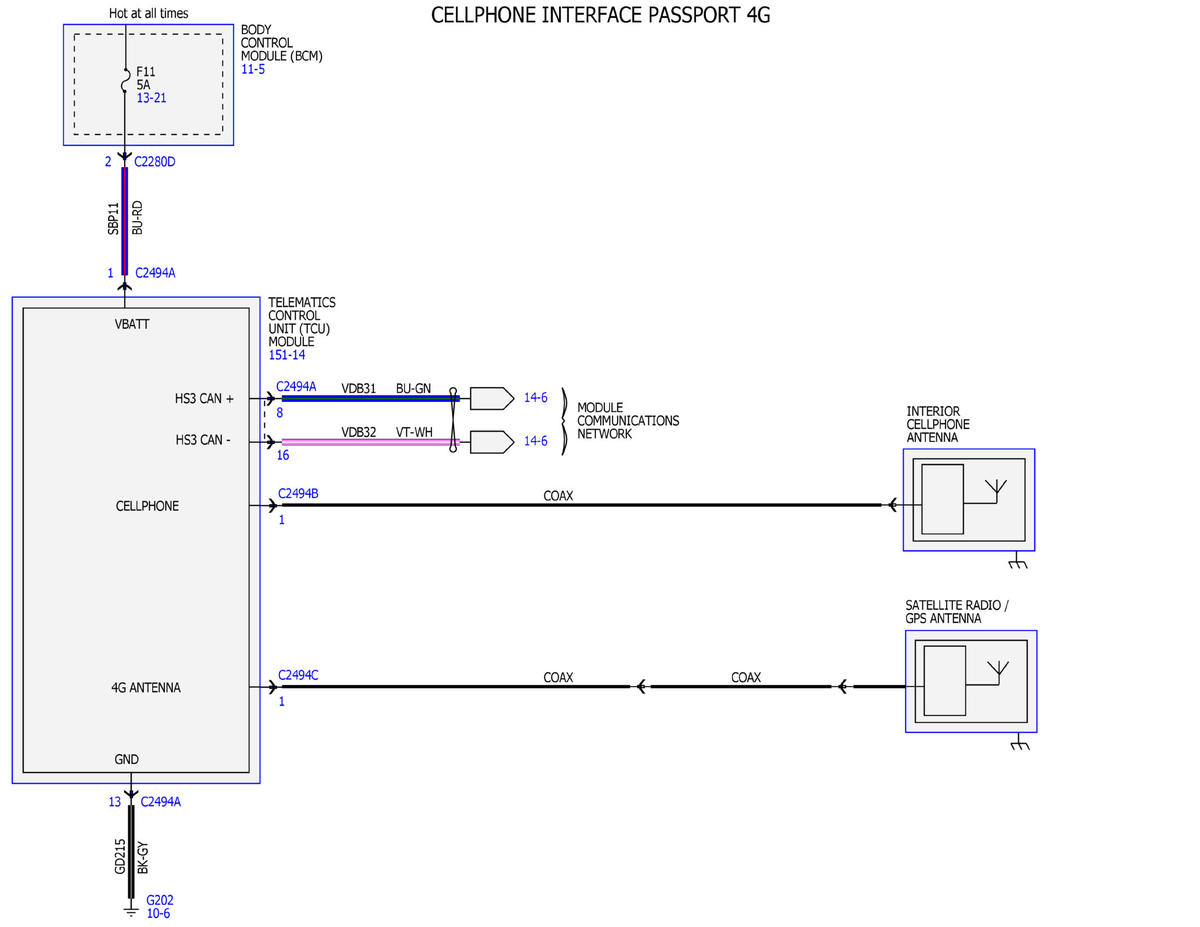

Fig 9: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (9 Of 11)
GFDWR175132Courtesy of FORD MOTOR COMPANY

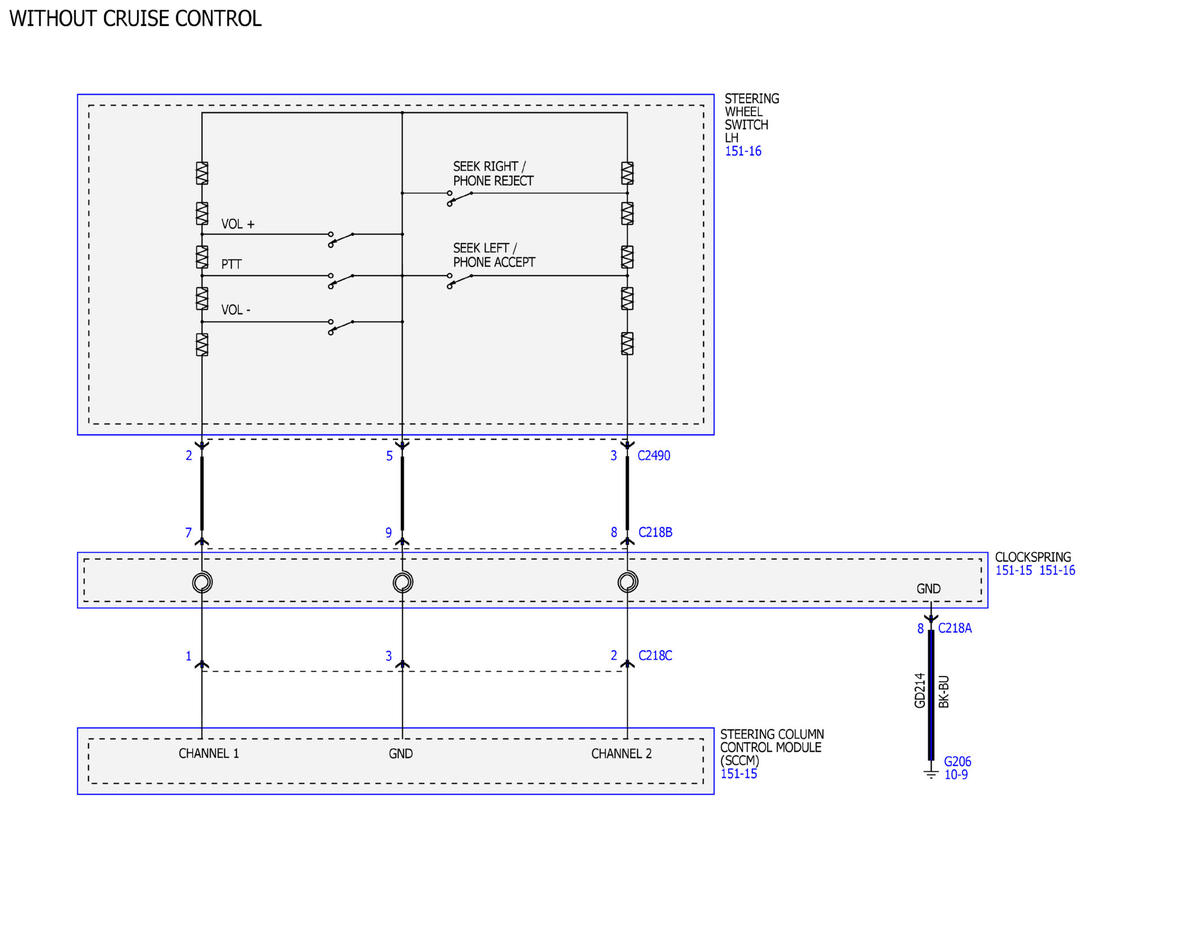

Fig 10: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (10 Of 11)
GFDWR175123Courtesy of FORD MOTOR COMPANY

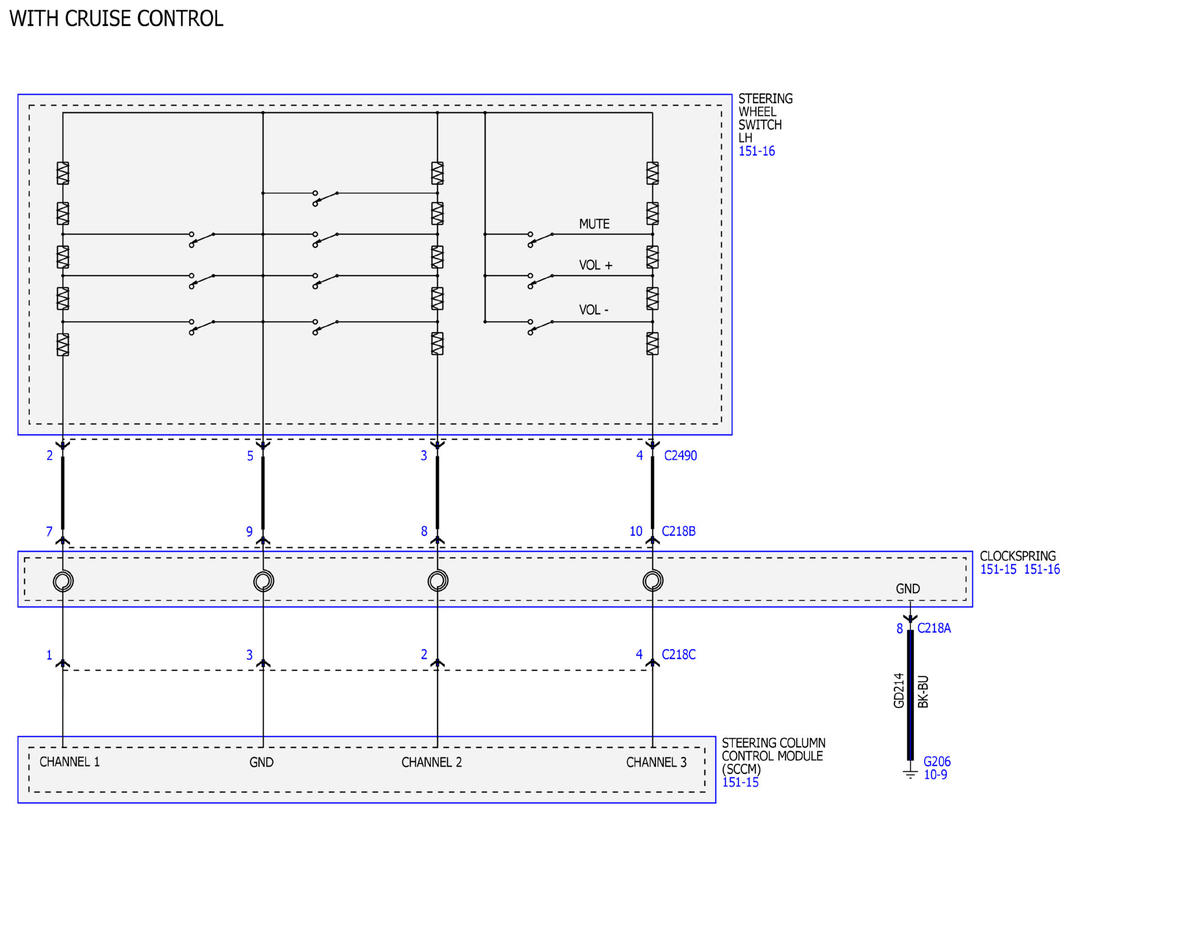

Fig 11: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (11 Of 11)
GFDWR175124Courtesy of FORD MOTOR COMPANY
