Cruise Control

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

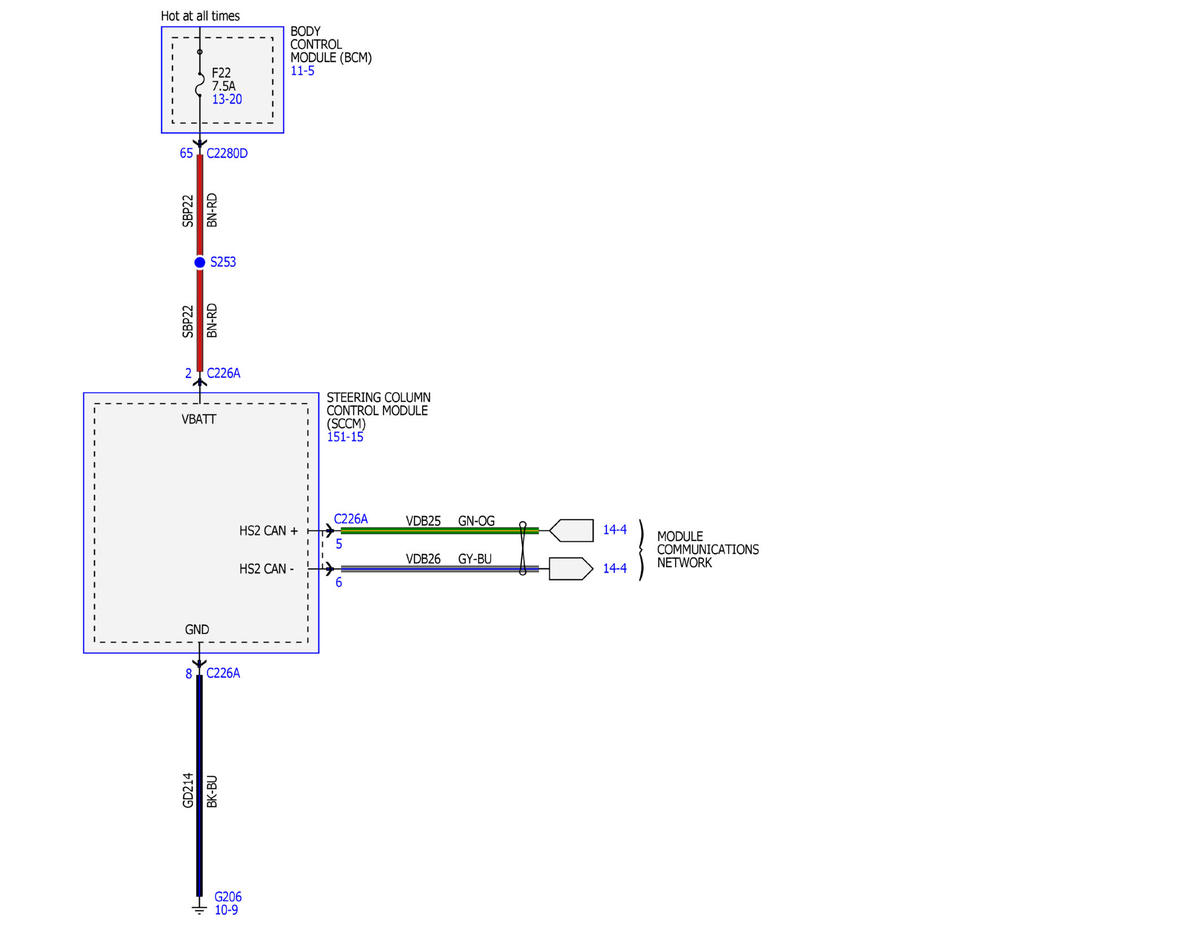

Fig 1: Cruise Control Wiring Diagram (1 Of 8)
GFDWR175151Courtesy of FORD MOTOR COMPANY

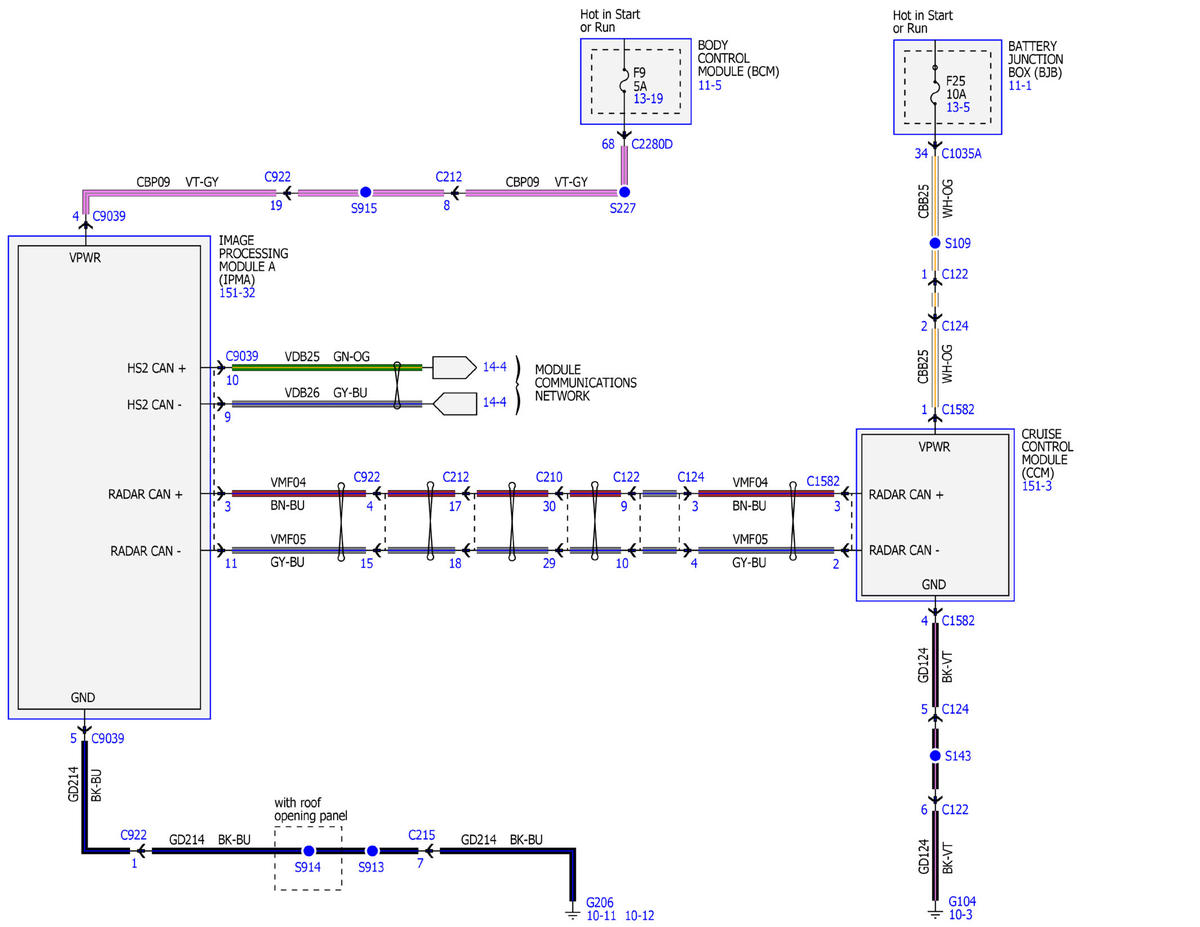

Fig 2: Cruise Control Wiring Diagram (2 Of 8)
GFDWR175152Courtesy of FORD MOTOR COMPANY

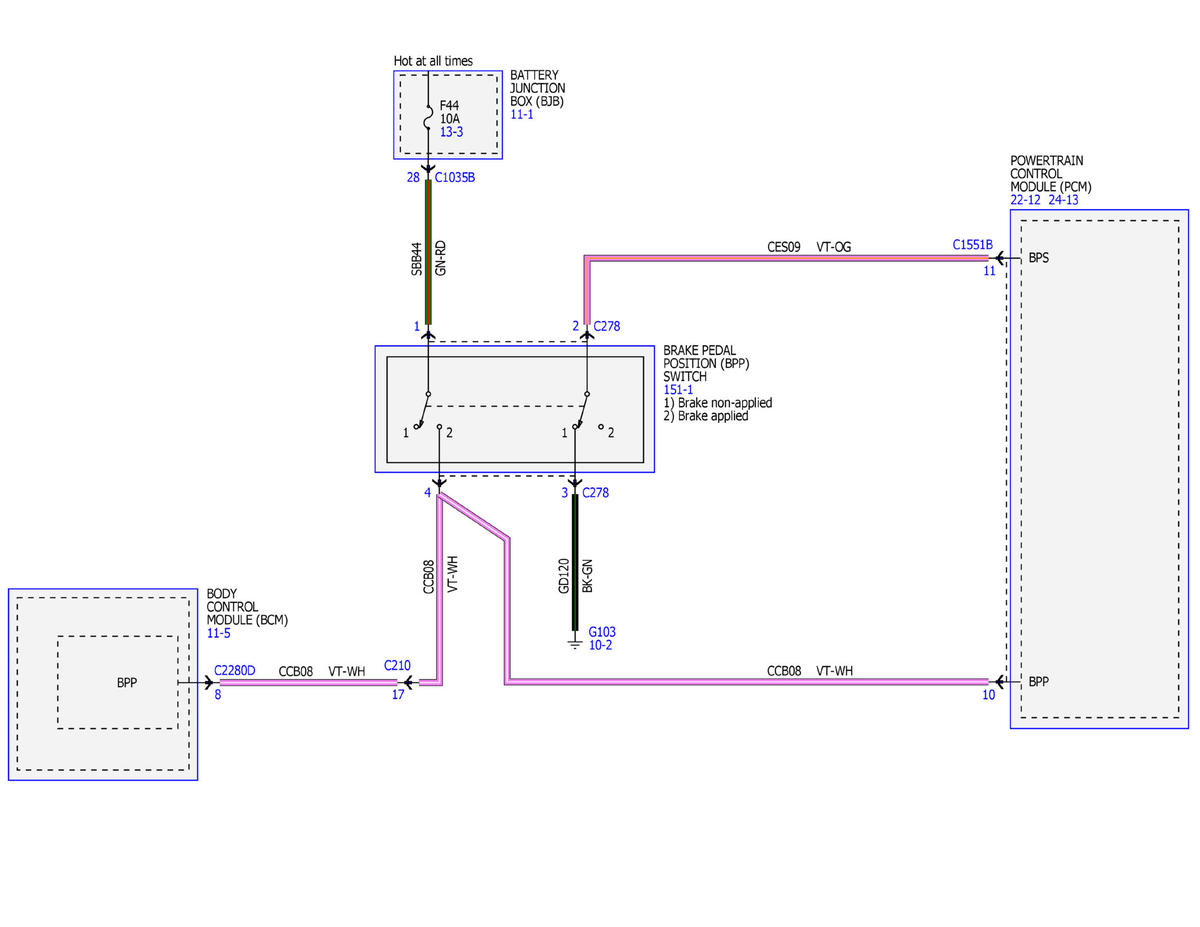

Fig 3: Cruise Control Wiring Diagram (3 Of 8)
GFDWR175153Courtesy of FORD MOTOR COMPANY

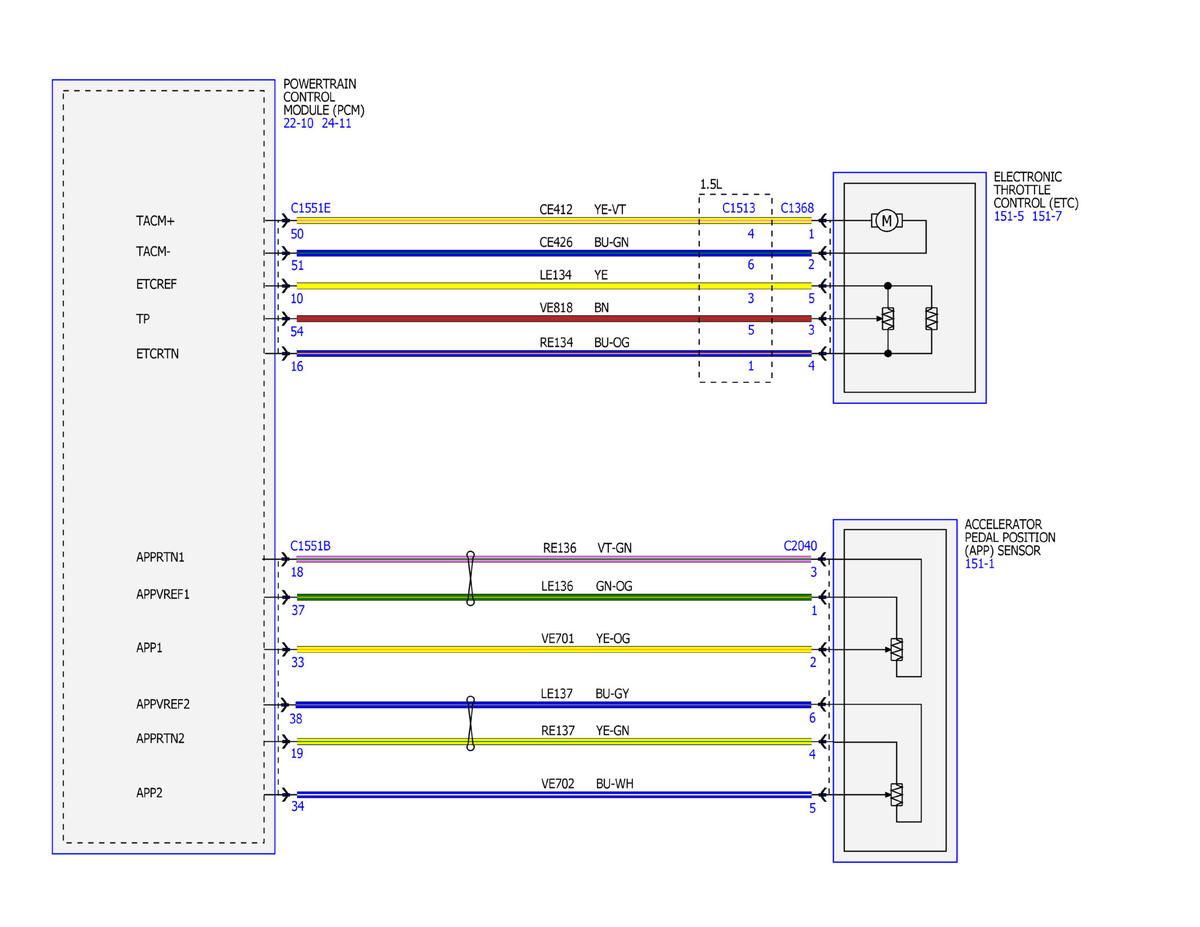

Fig 4: Cruise Control Wiring Diagram (4 Of 8)
GFDWR175154Courtesy of FORD MOTOR COMPANY

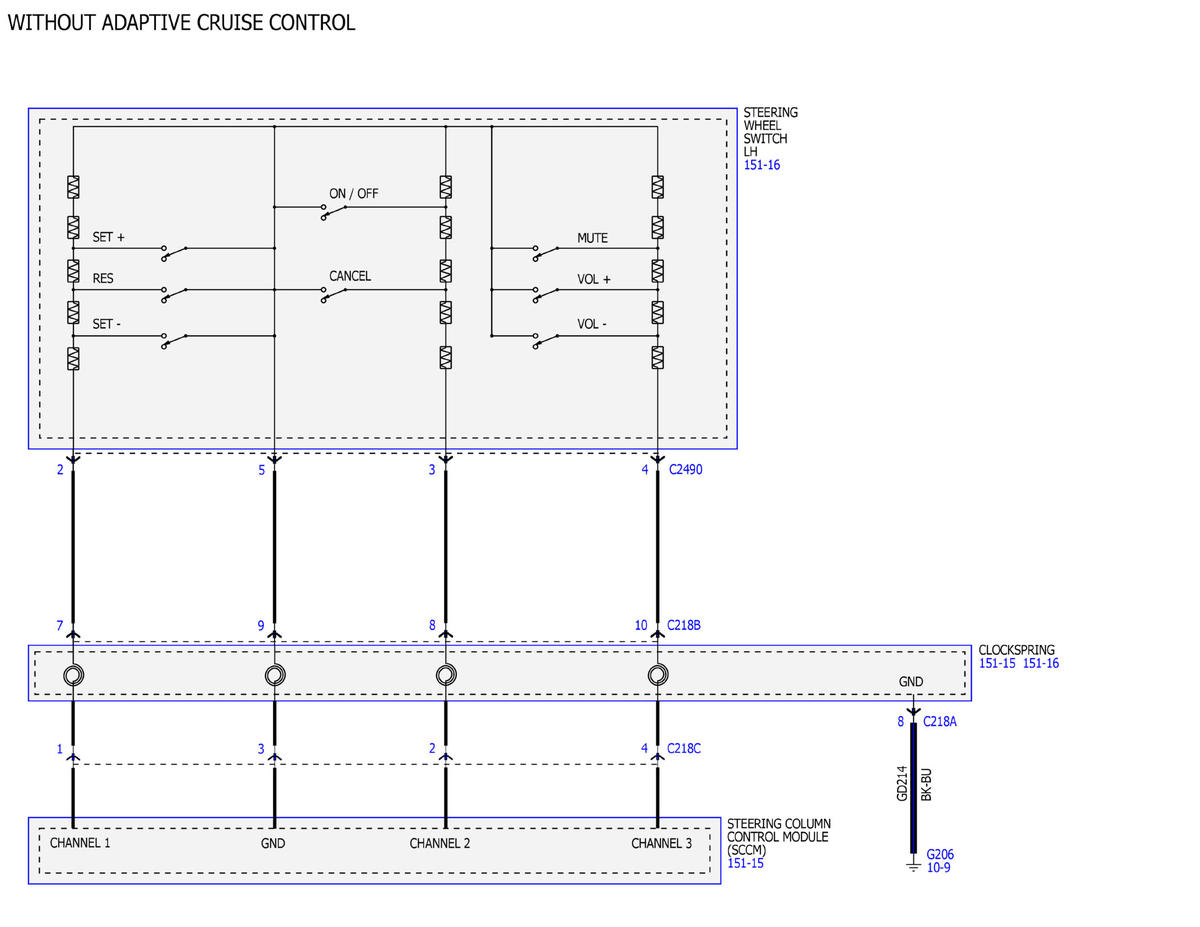

Fig 5: Cruise Control Wiring Diagram (5 Of 8)
GFDWR175155Courtesy of FORD MOTOR COMPANY

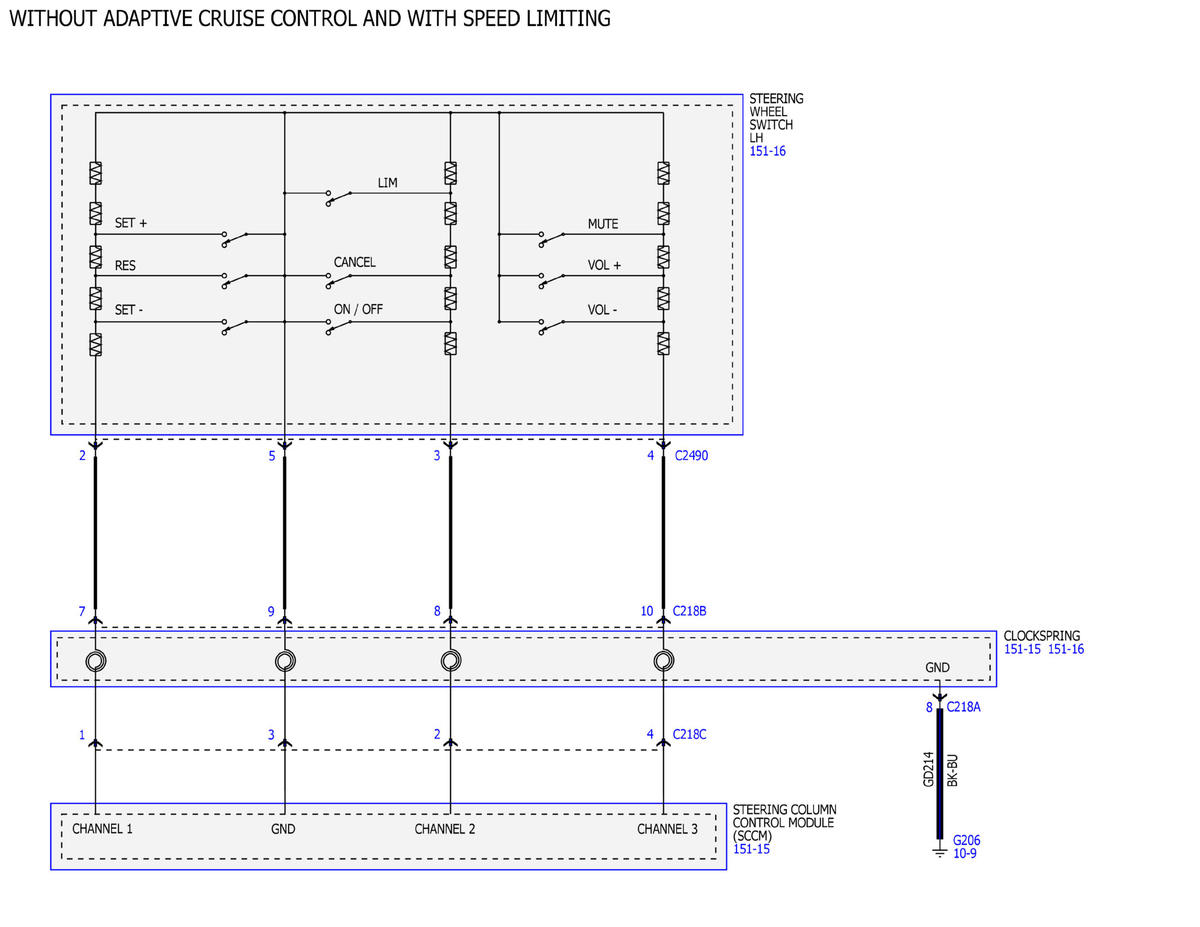

Fig 6: Cruise Control Wiring Diagram (6 Of 8)
GFDWR175156Courtesy of FORD MOTOR COMPANY

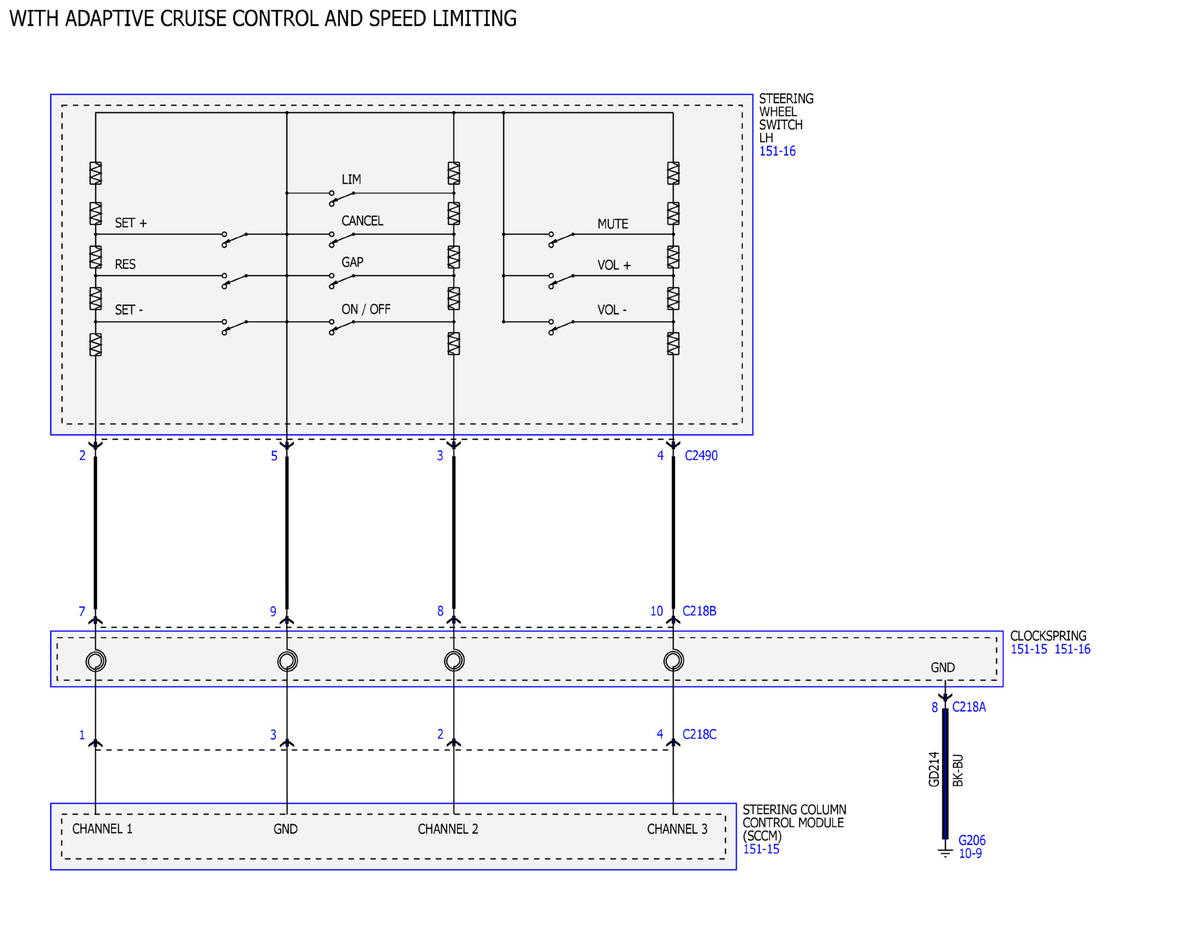

Fig 7: Cruise Control Wiring Diagram (7 Of 8)
GFDWR175157Courtesy of FORD MOTOR COMPANY

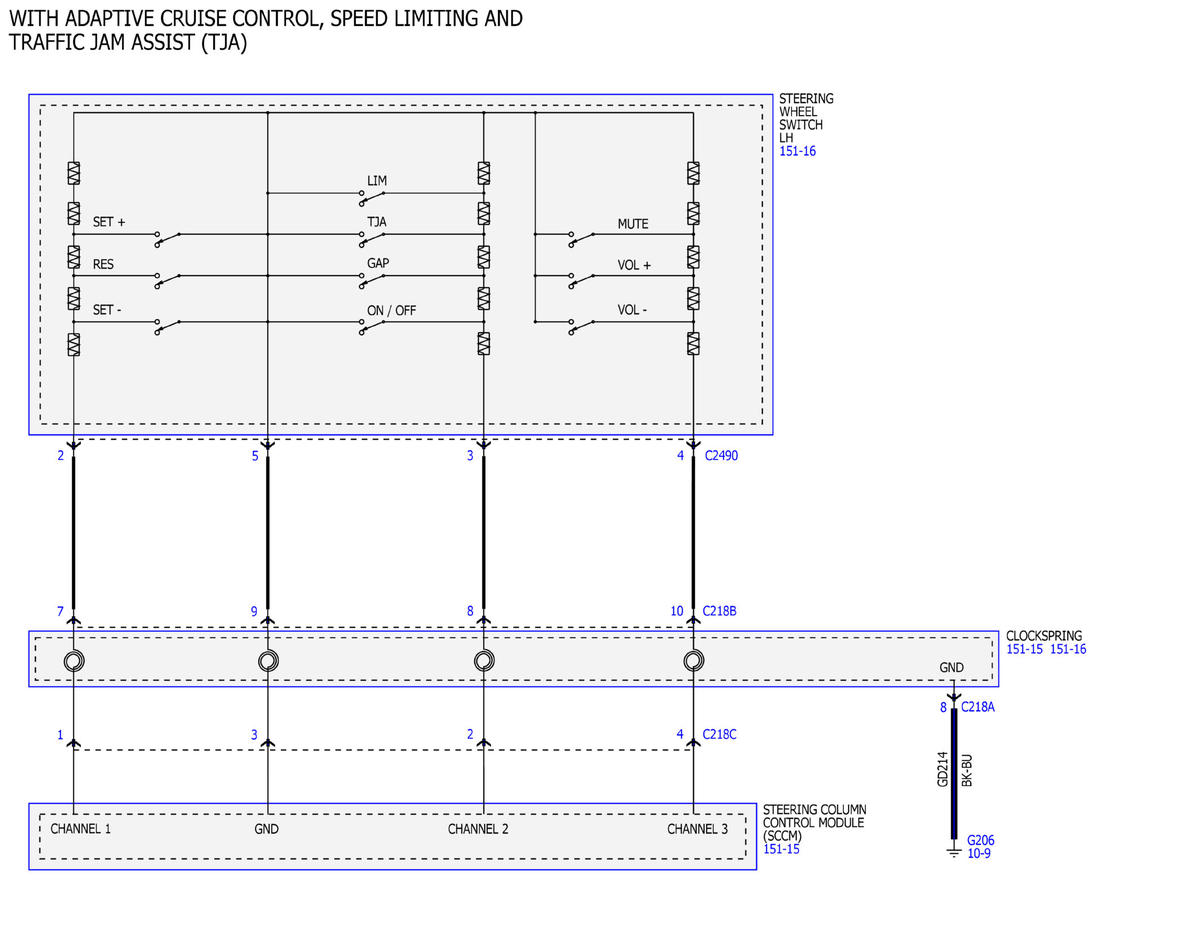

Fig 8: Cruise Control Wiring Diagram (8 Of 8)
GFDWR175158Courtesy of FORD MOTOR COMPANY
