WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

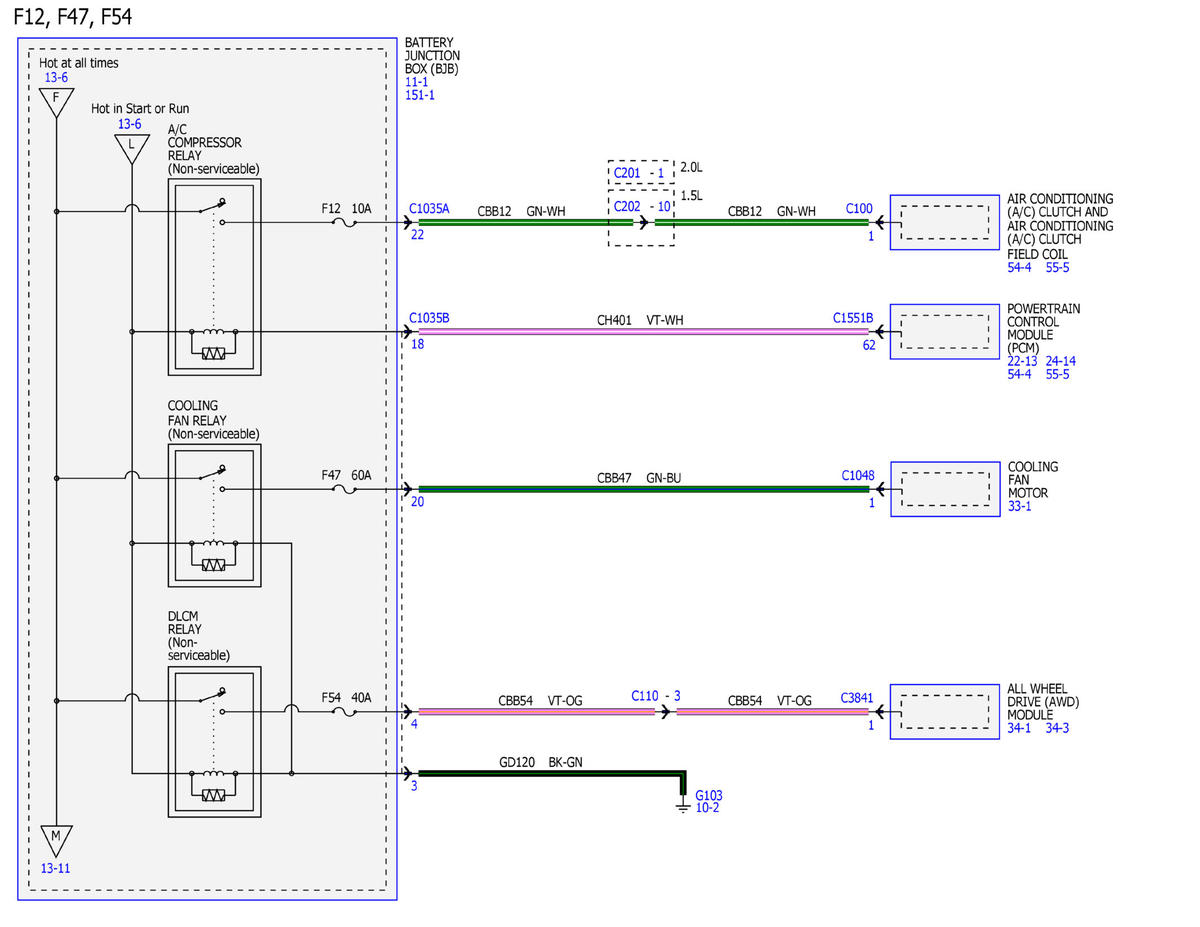

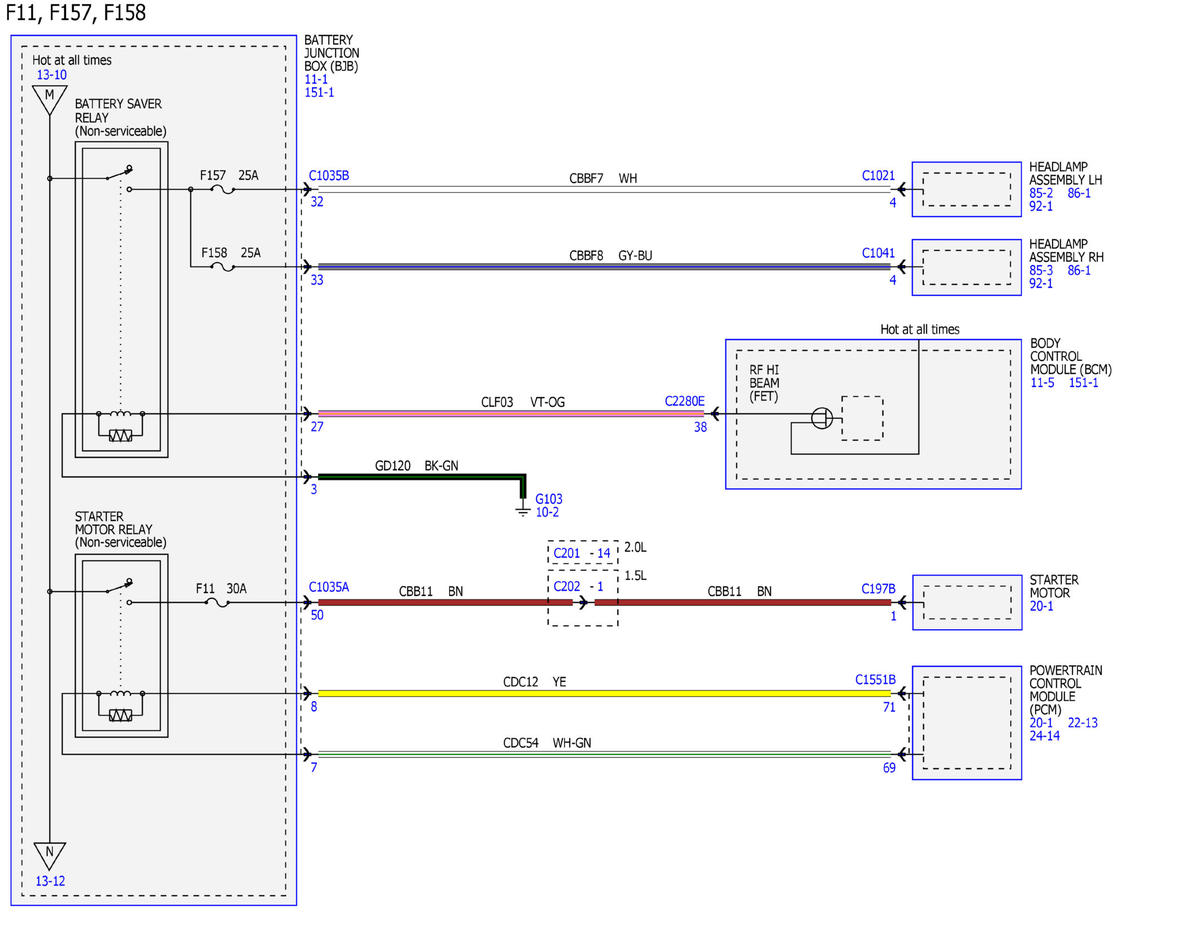

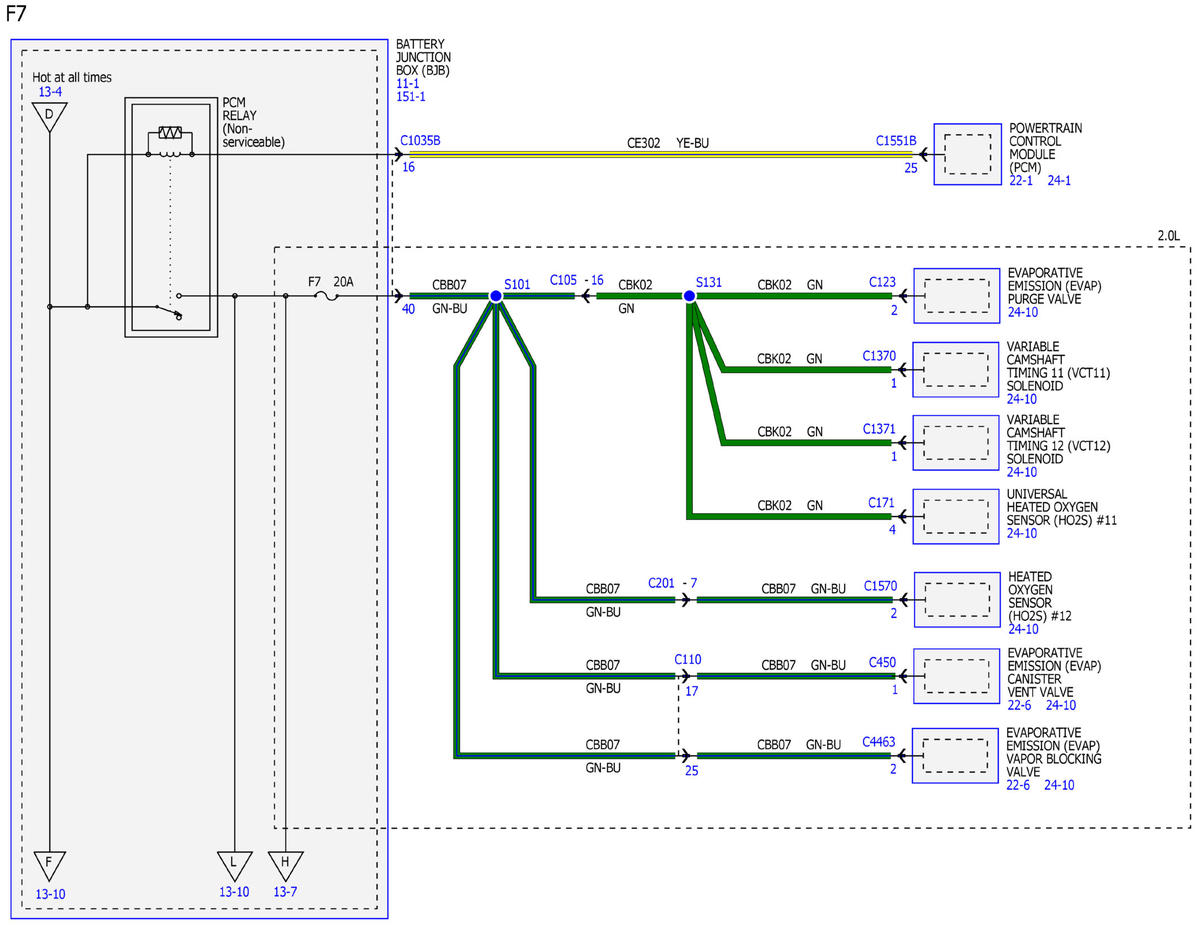

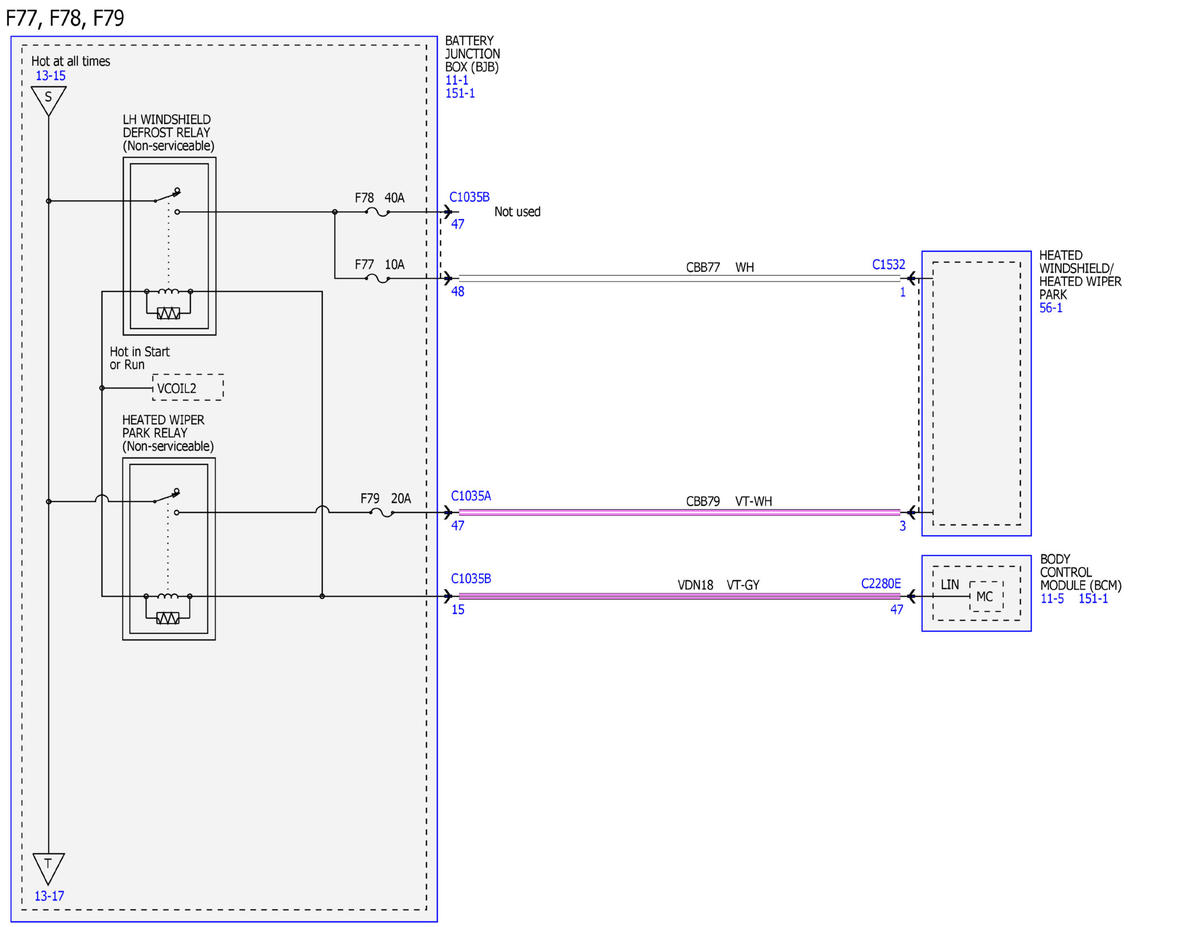

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 31)
Courtesy of FORD MOTOR COMPANY

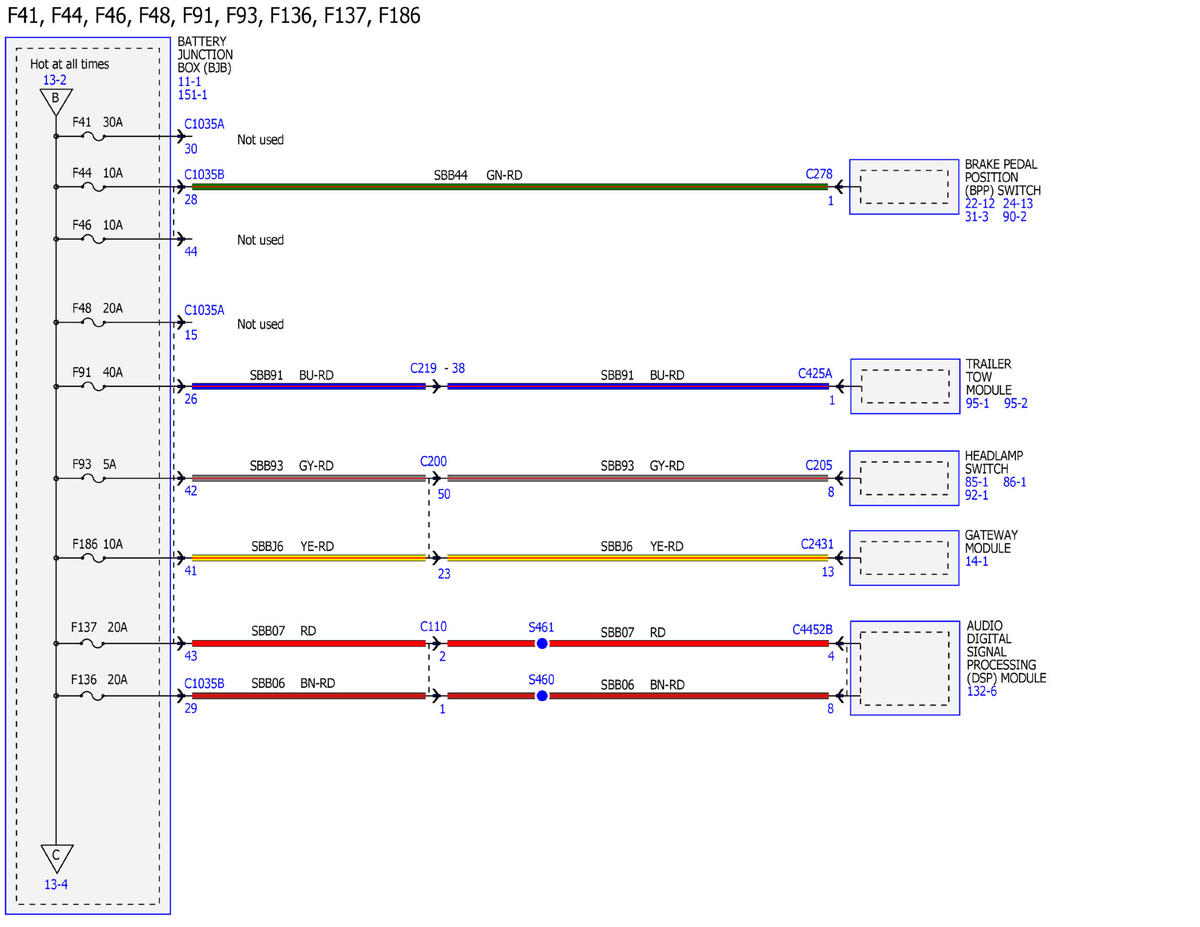

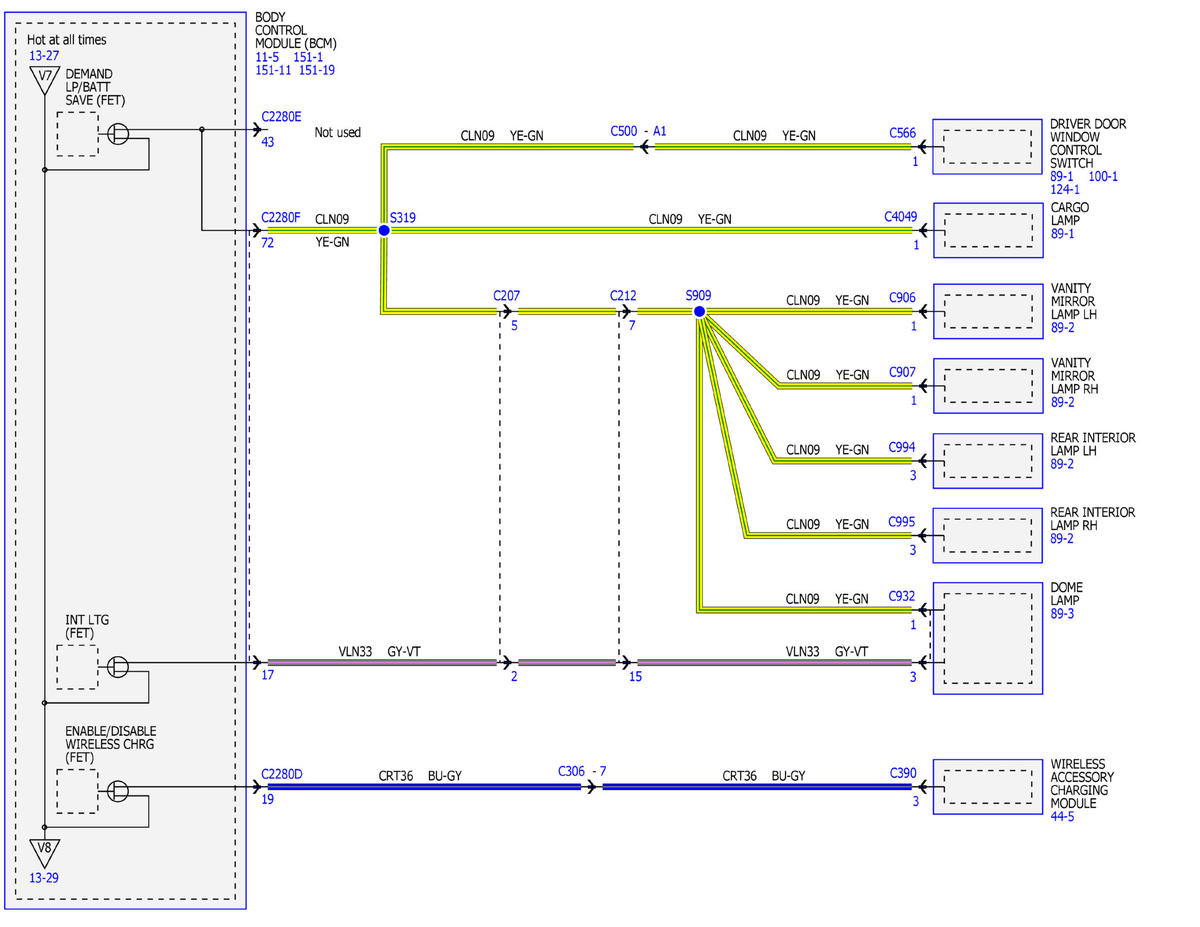

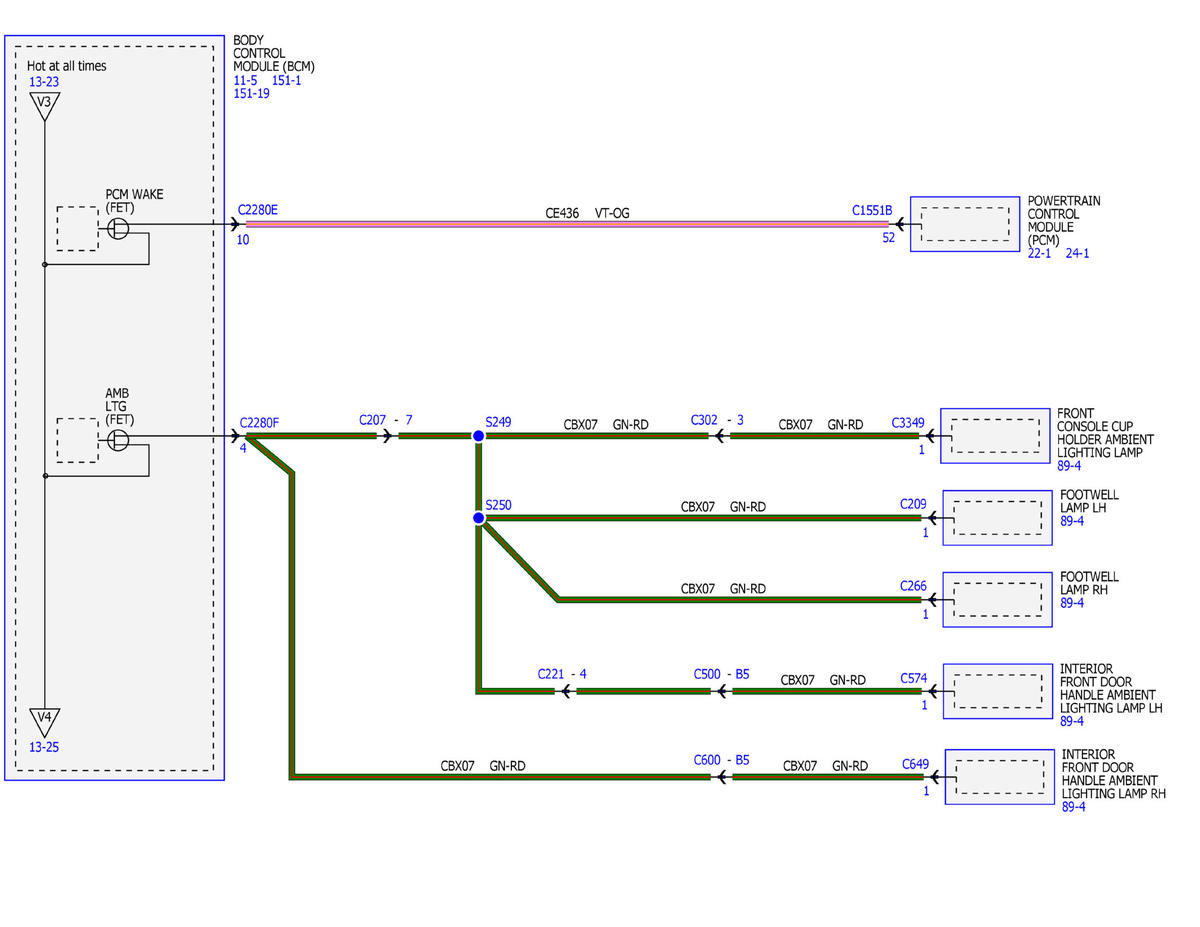

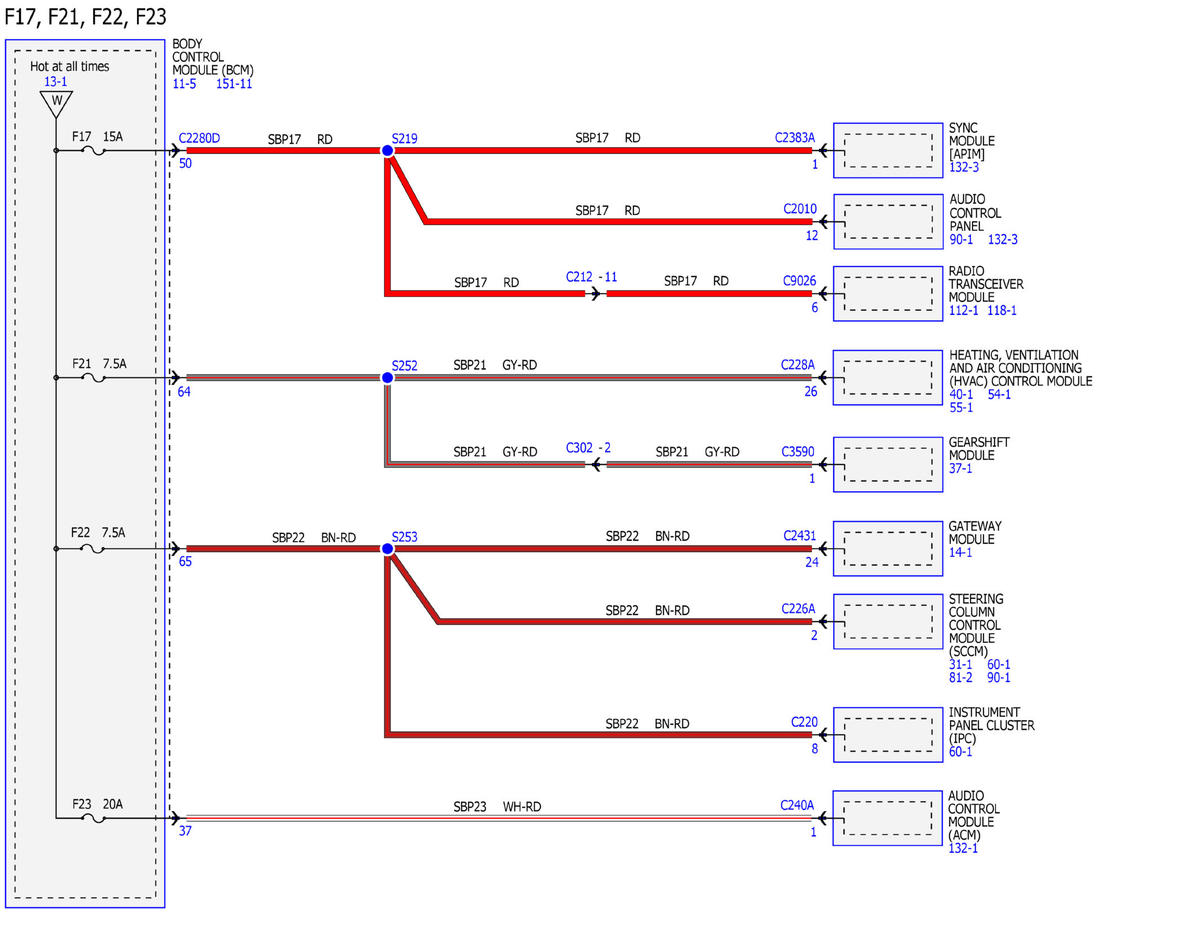

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 31)
Courtesy of FORD MOTOR COMPANY

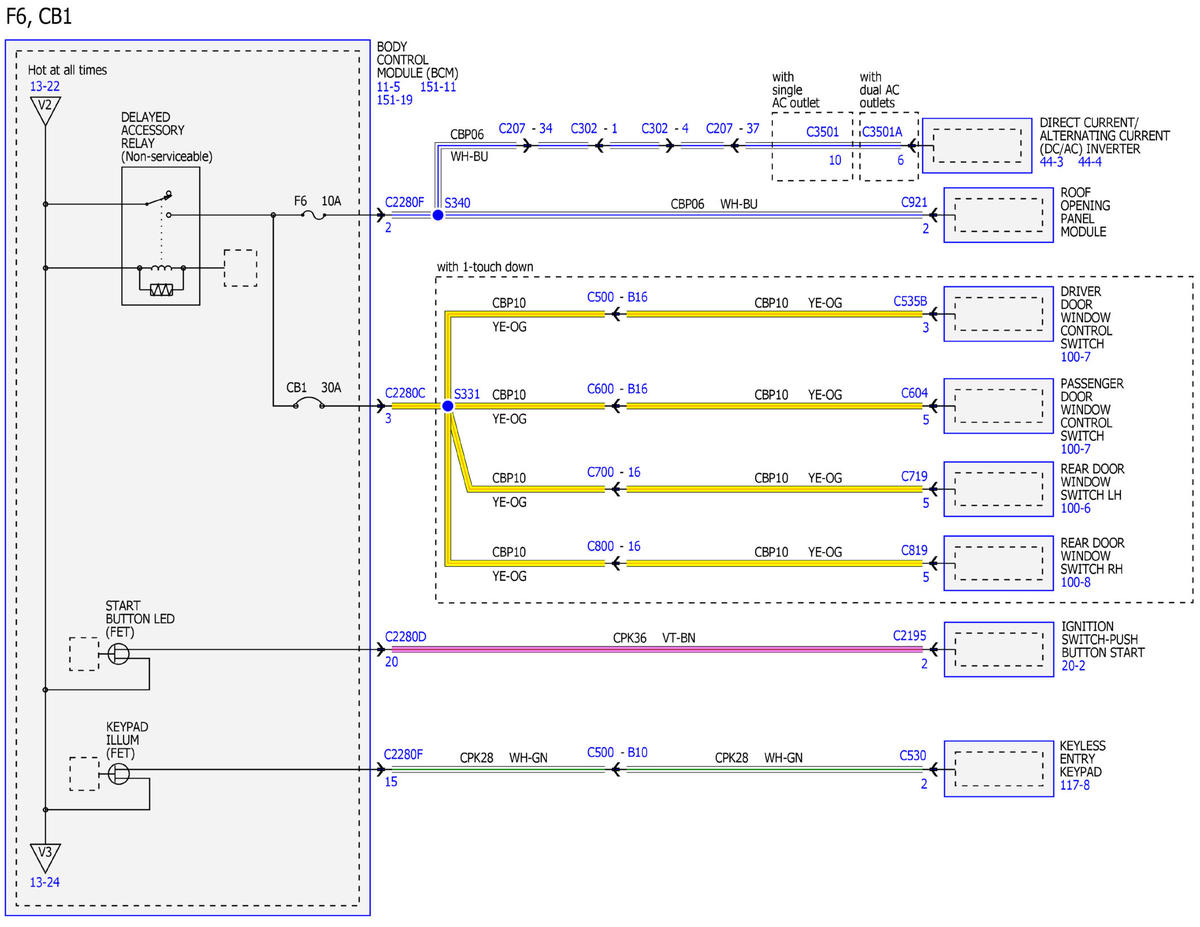

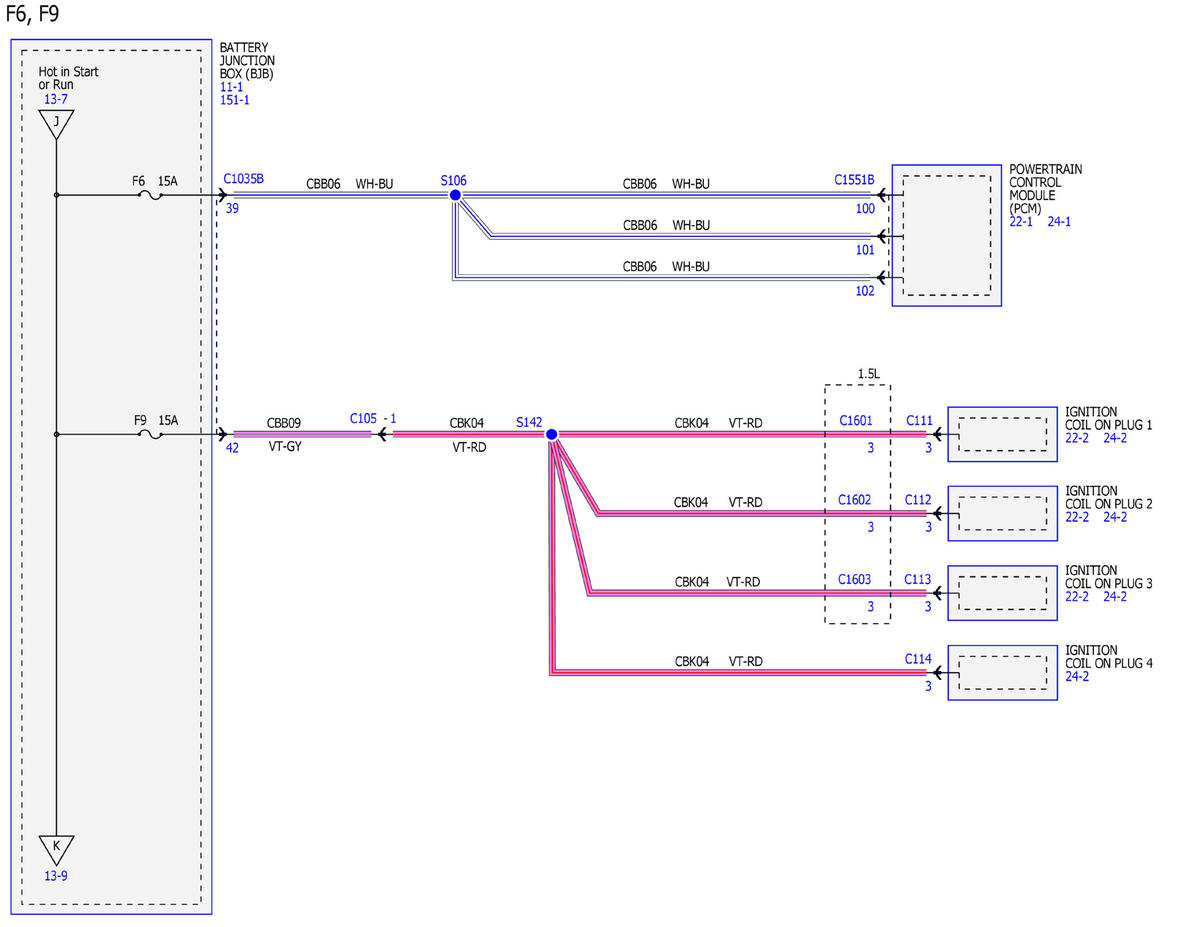

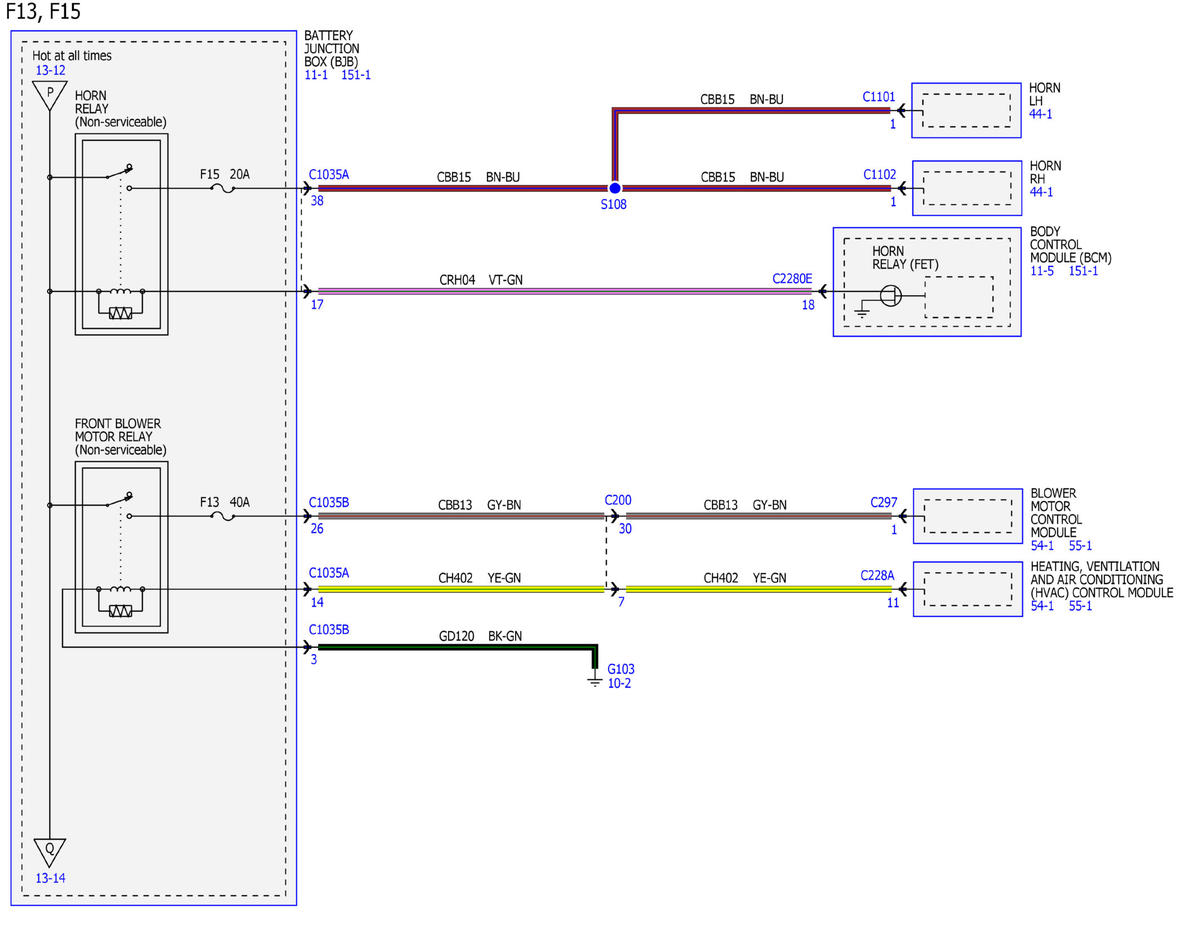

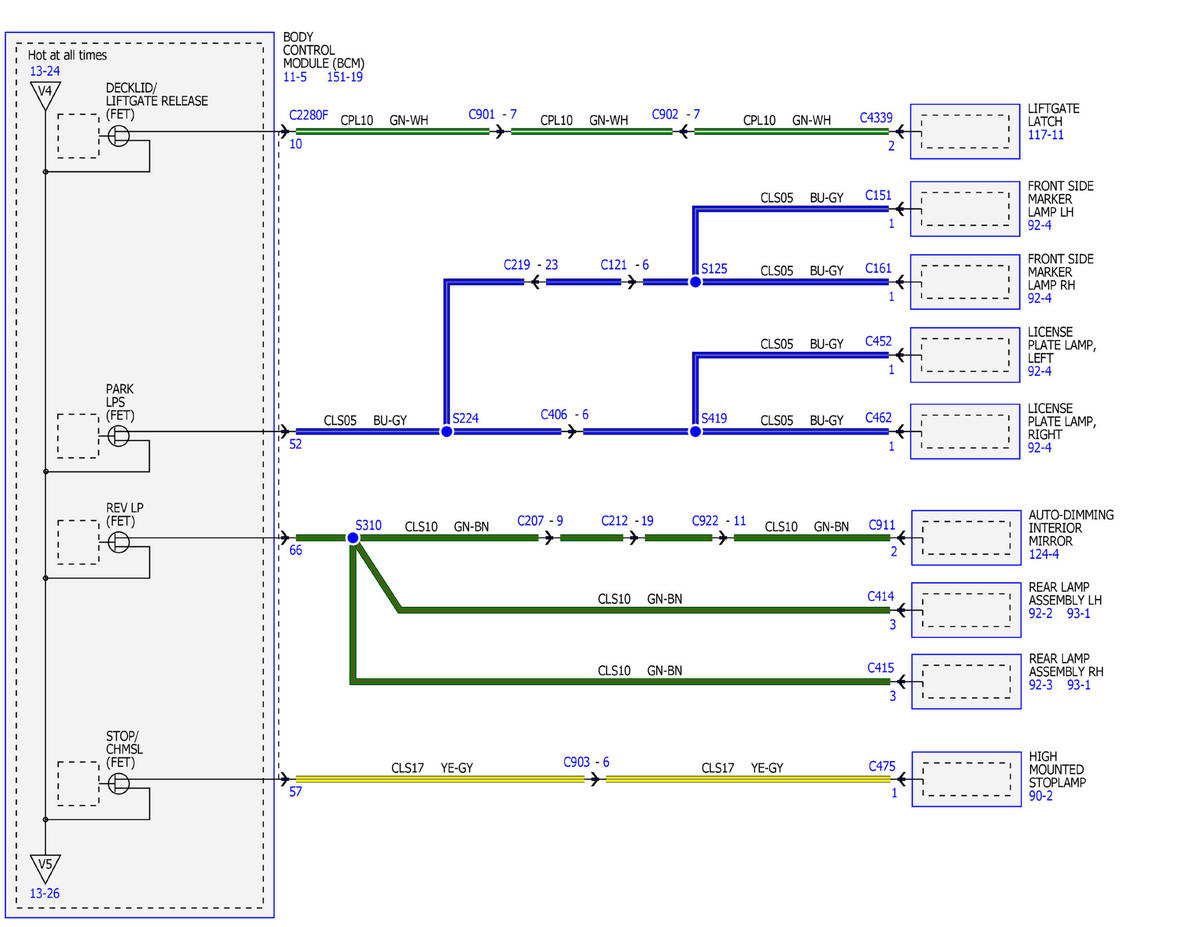

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 31)
Courtesy of FORD MOTOR COMPANY

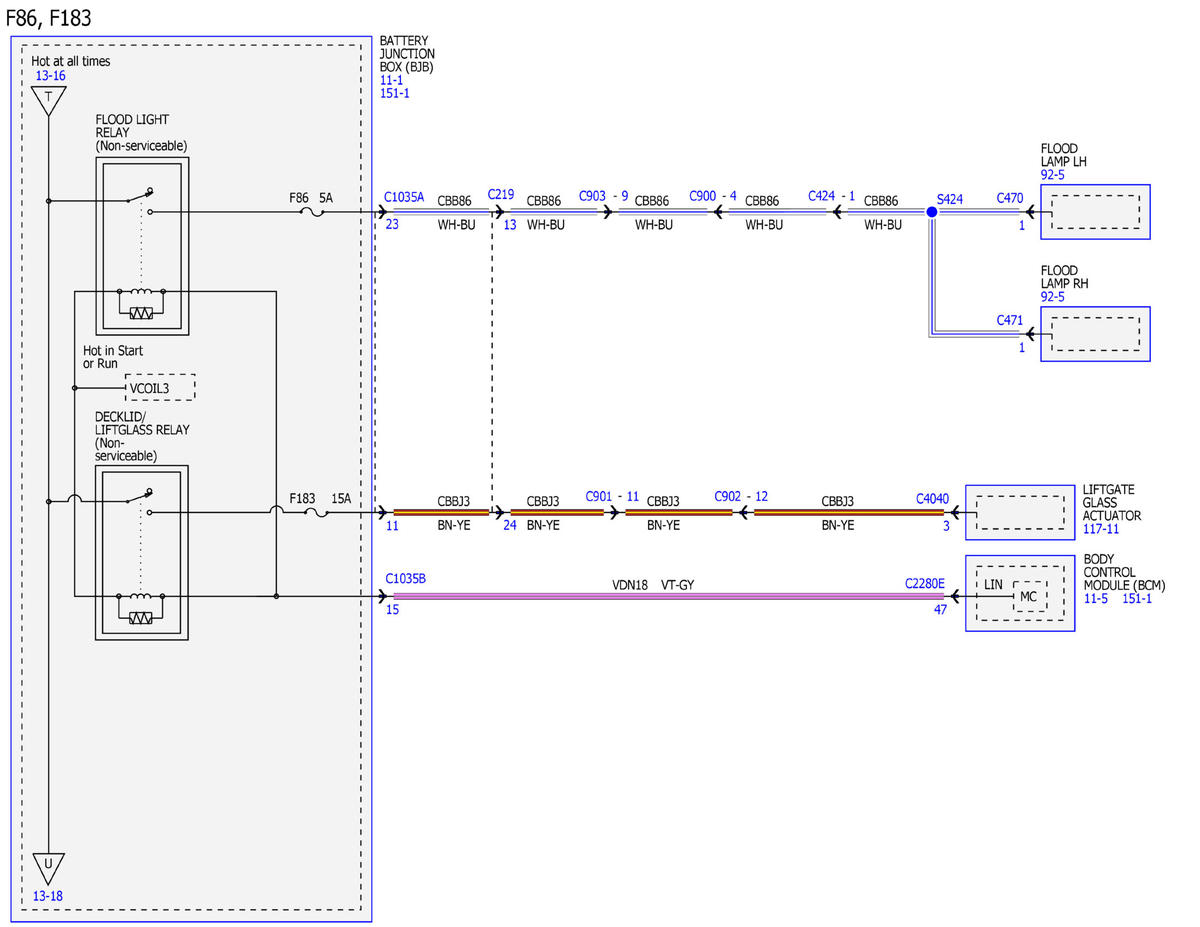

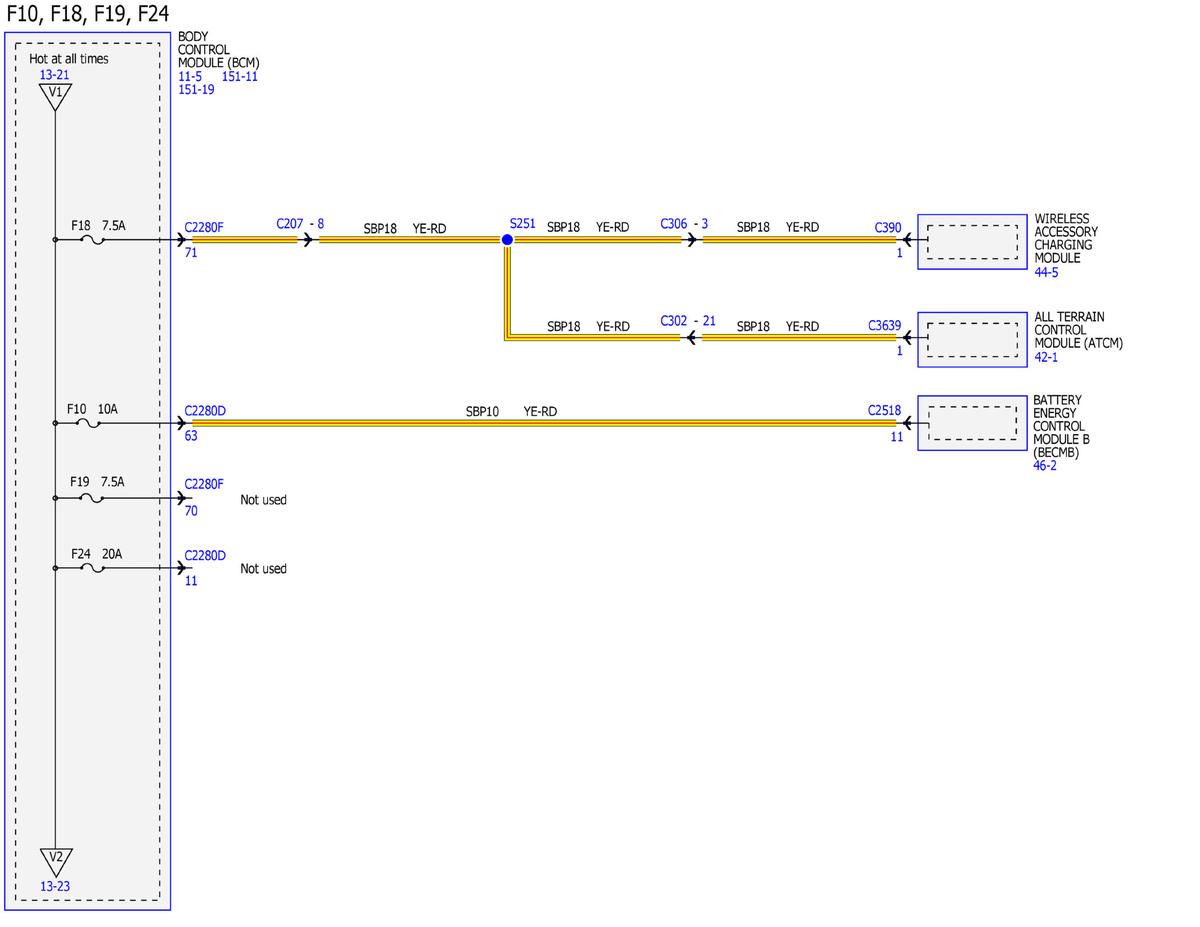

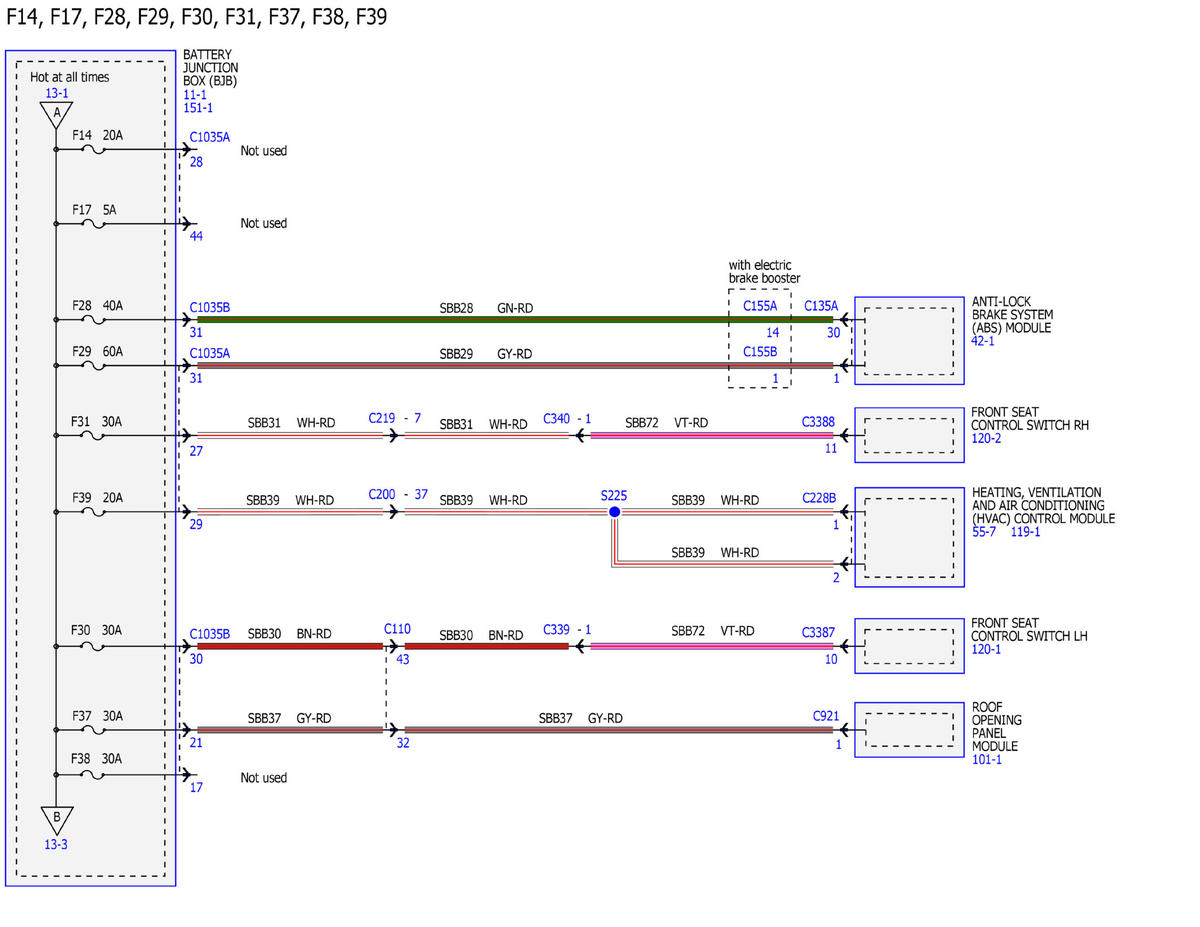

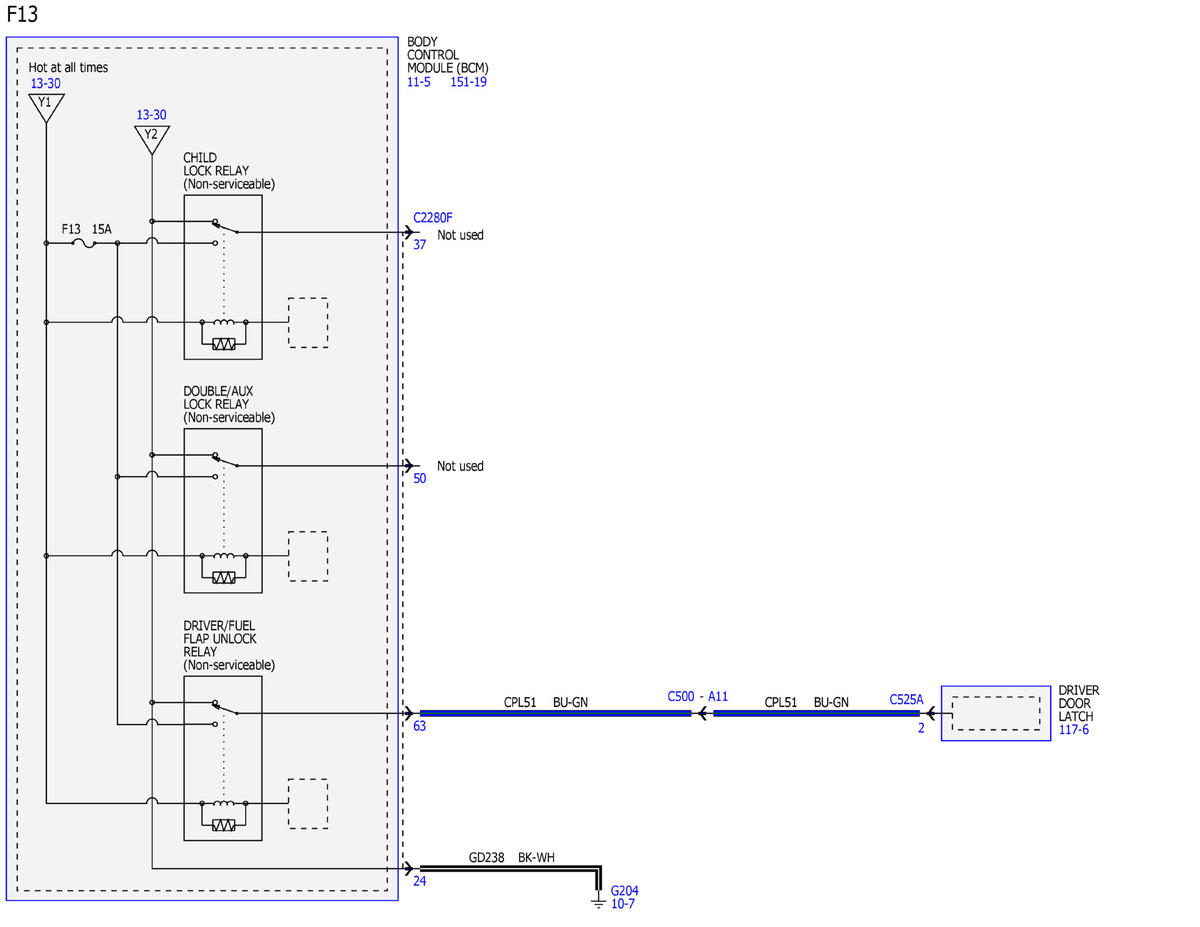

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 31)
Courtesy of FORD MOTOR COMPANY

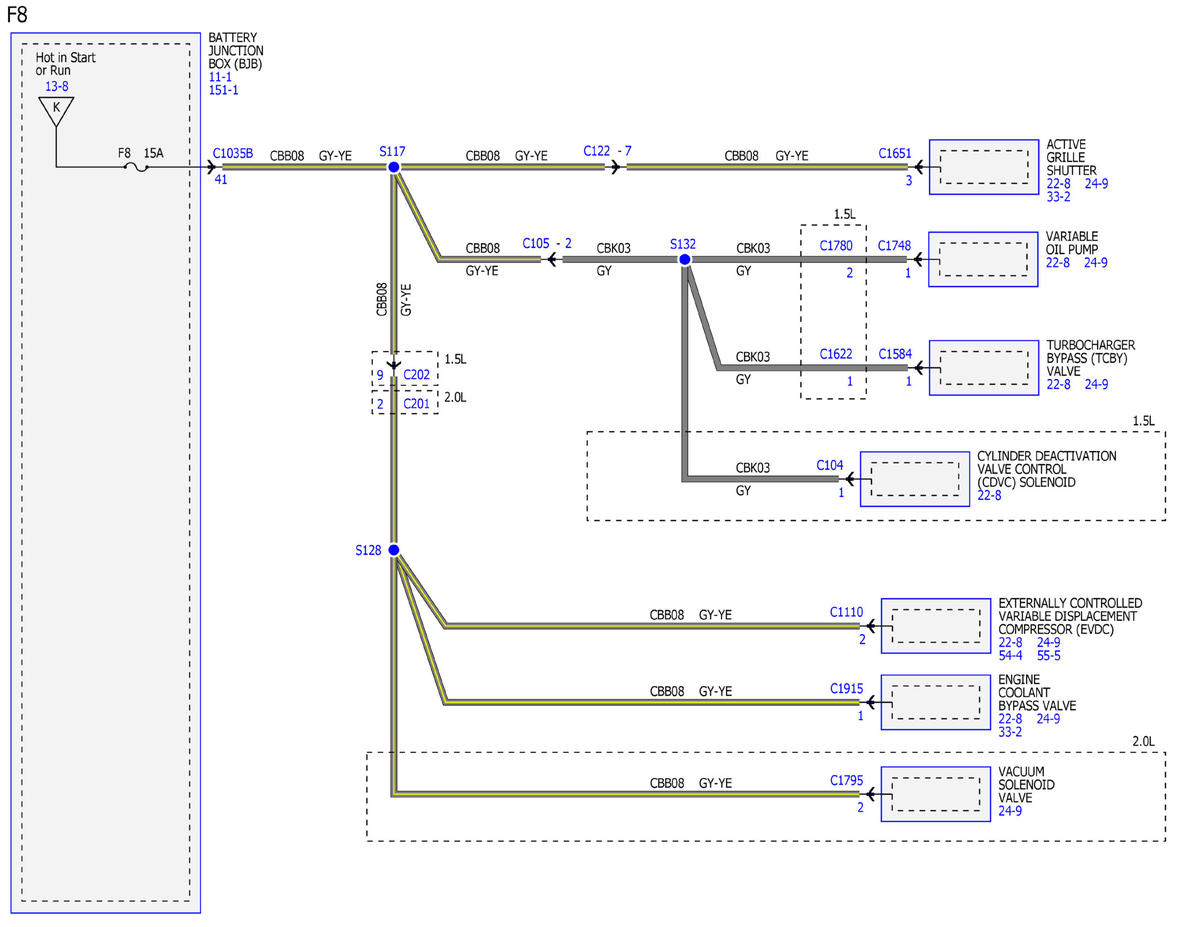

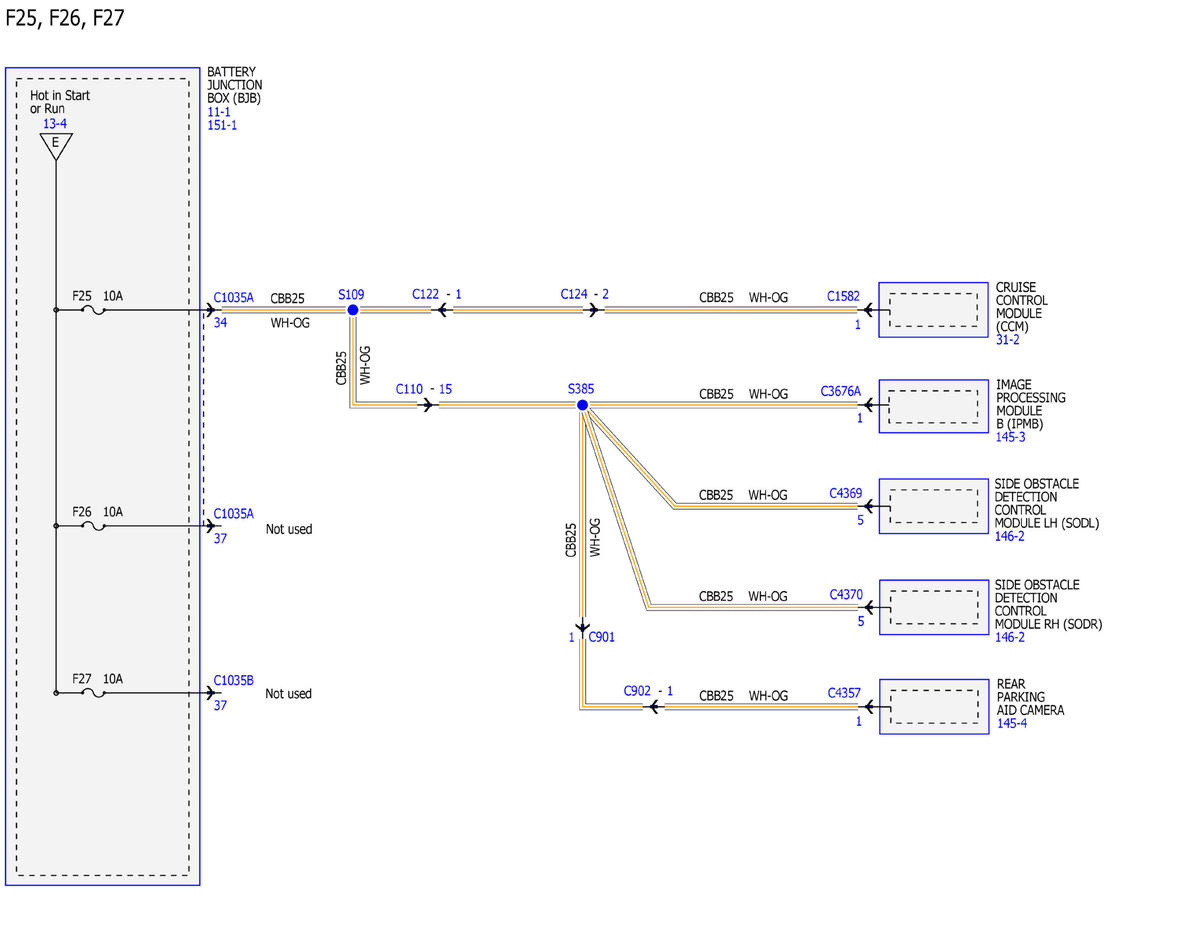

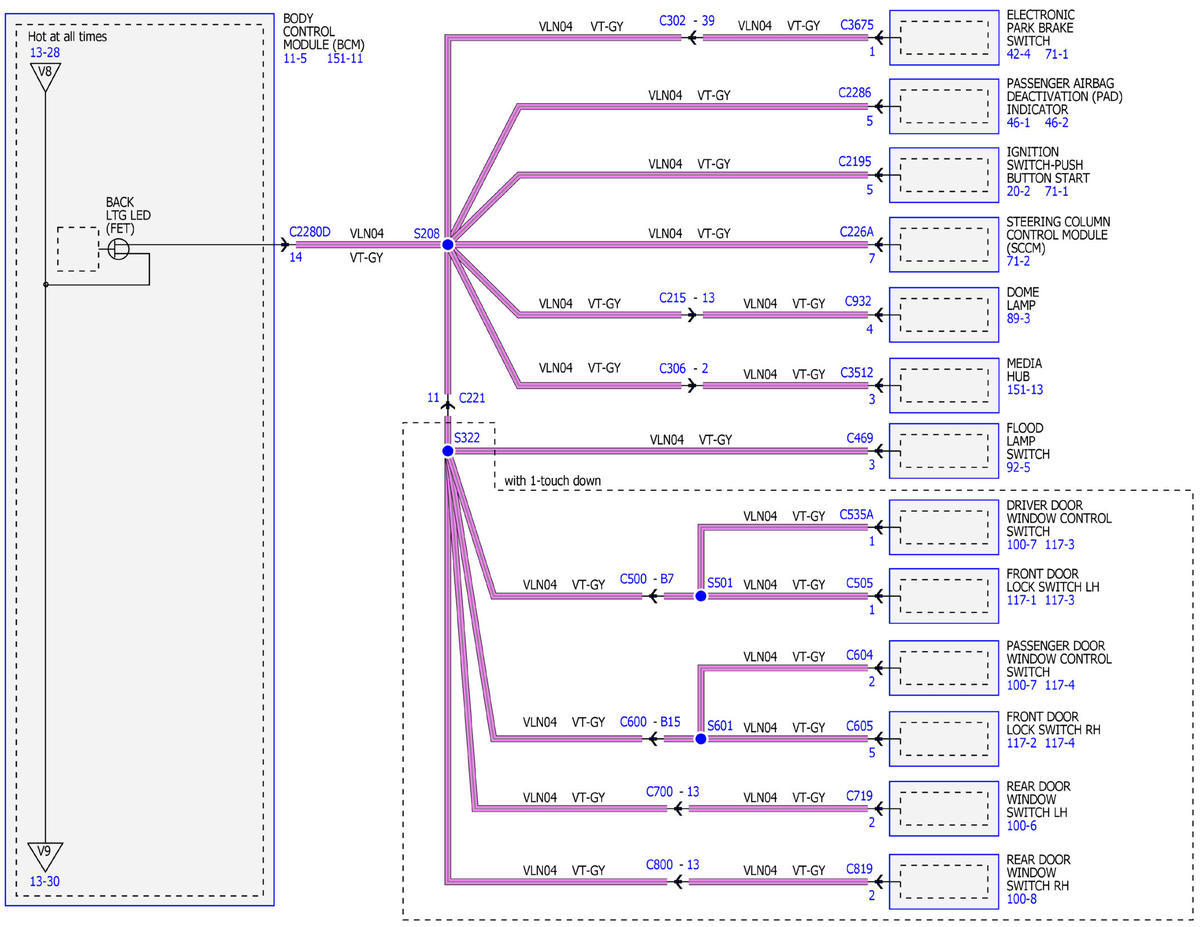

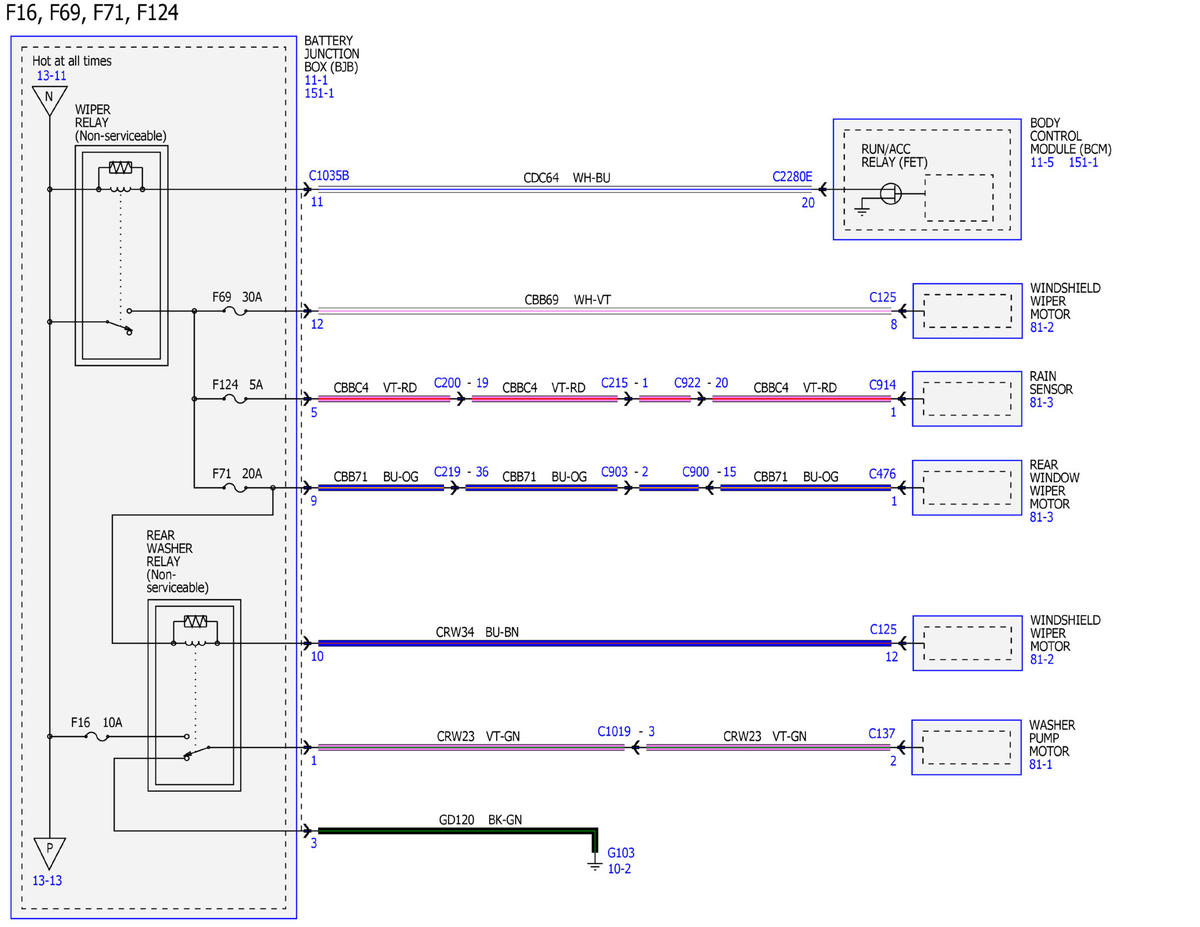

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 31)
Courtesy of FORD MOTOR COMPANY

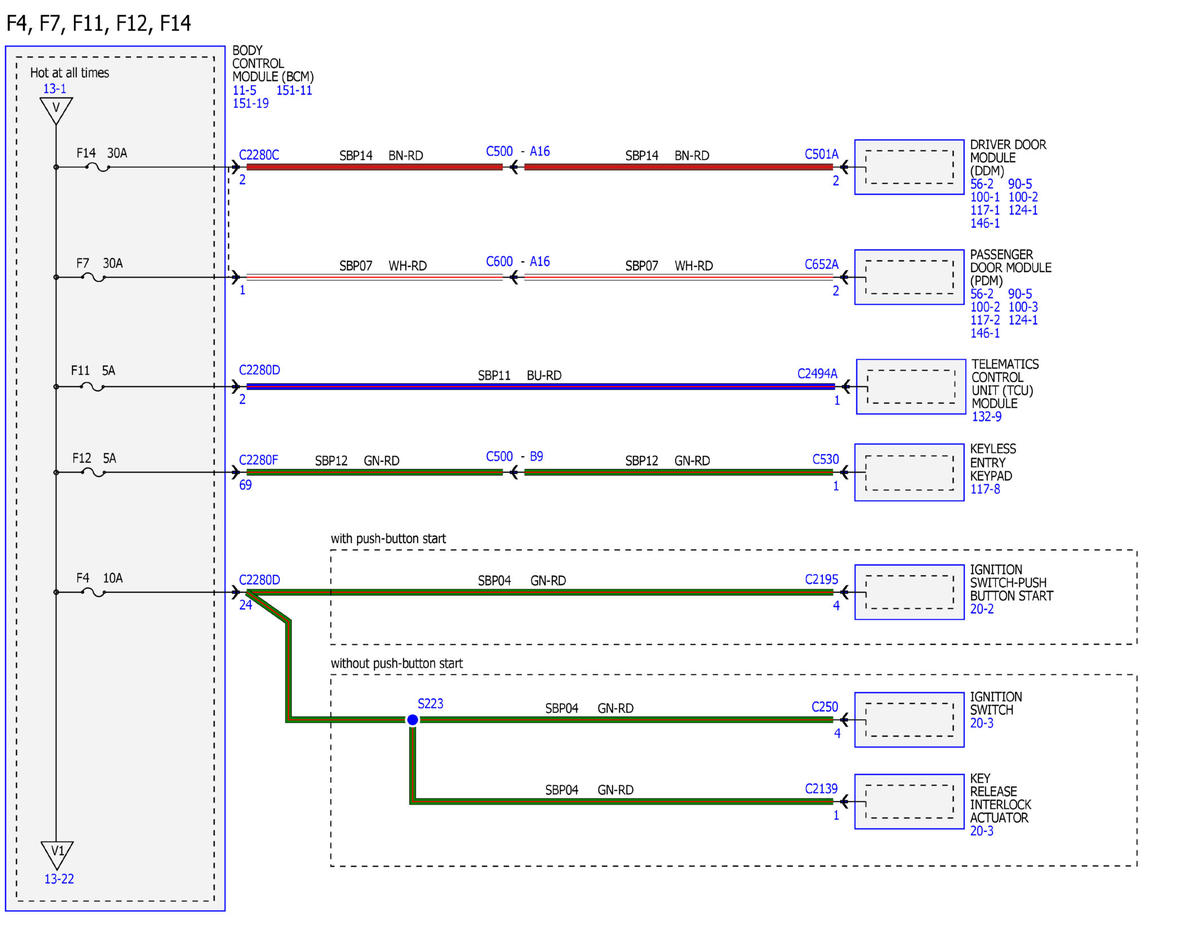

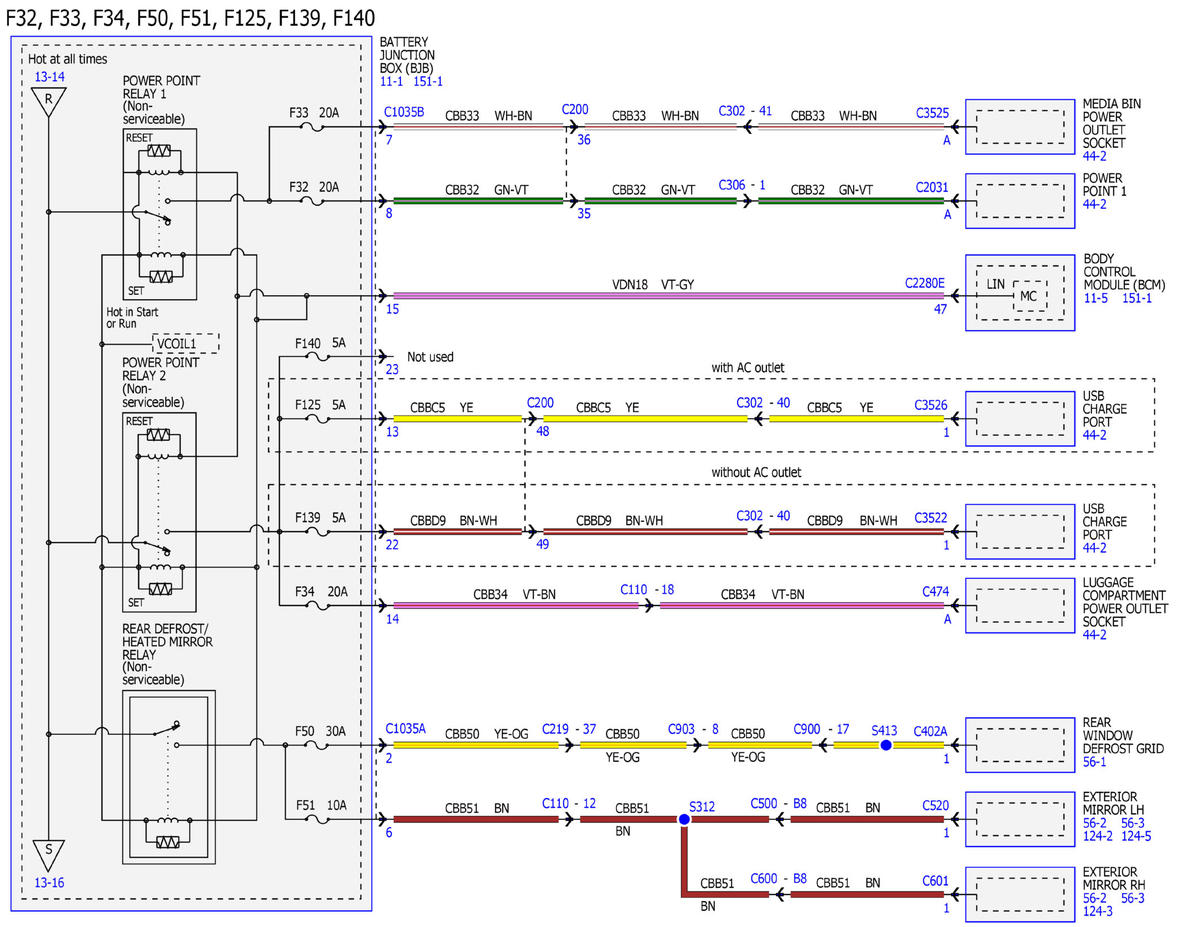

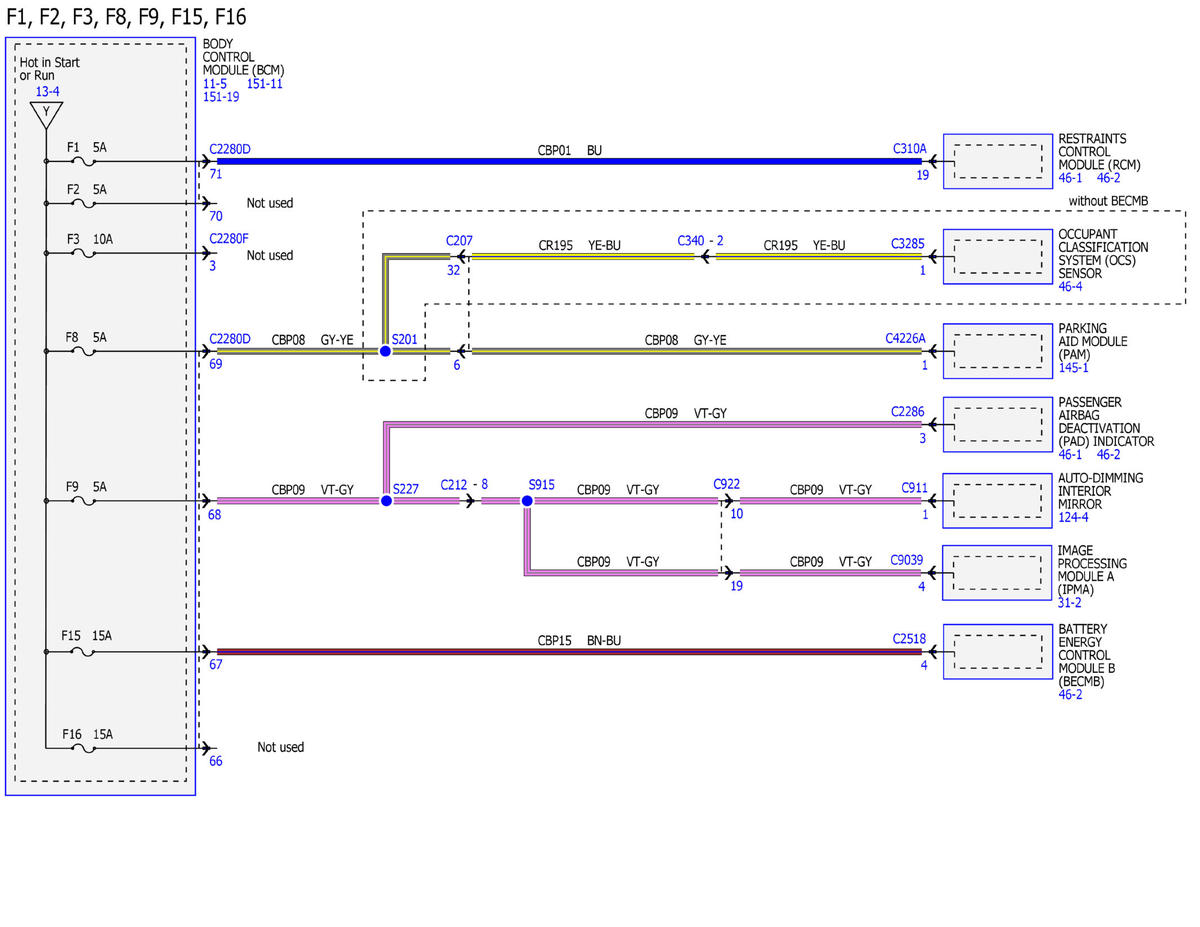

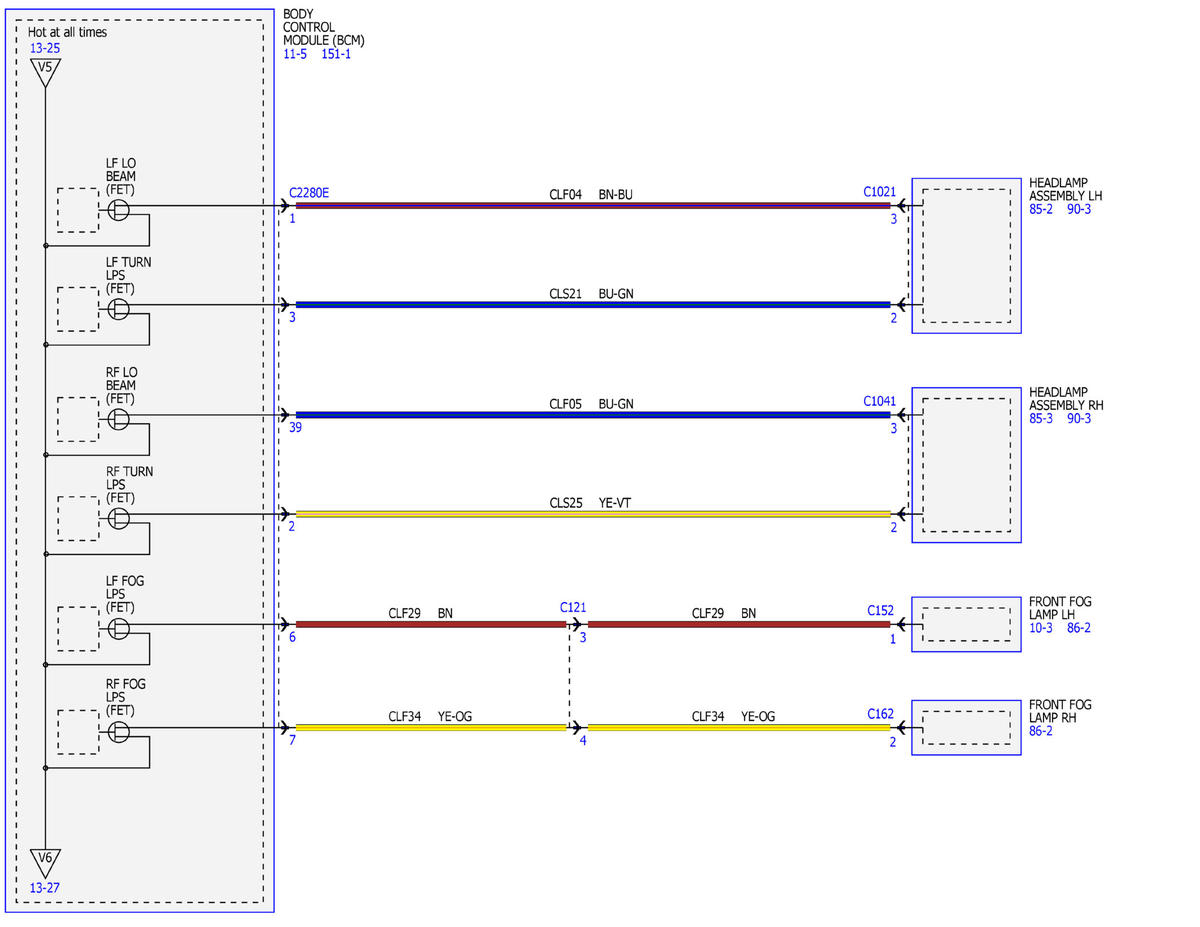

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 31)
Courtesy of FORD MOTOR COMPANY

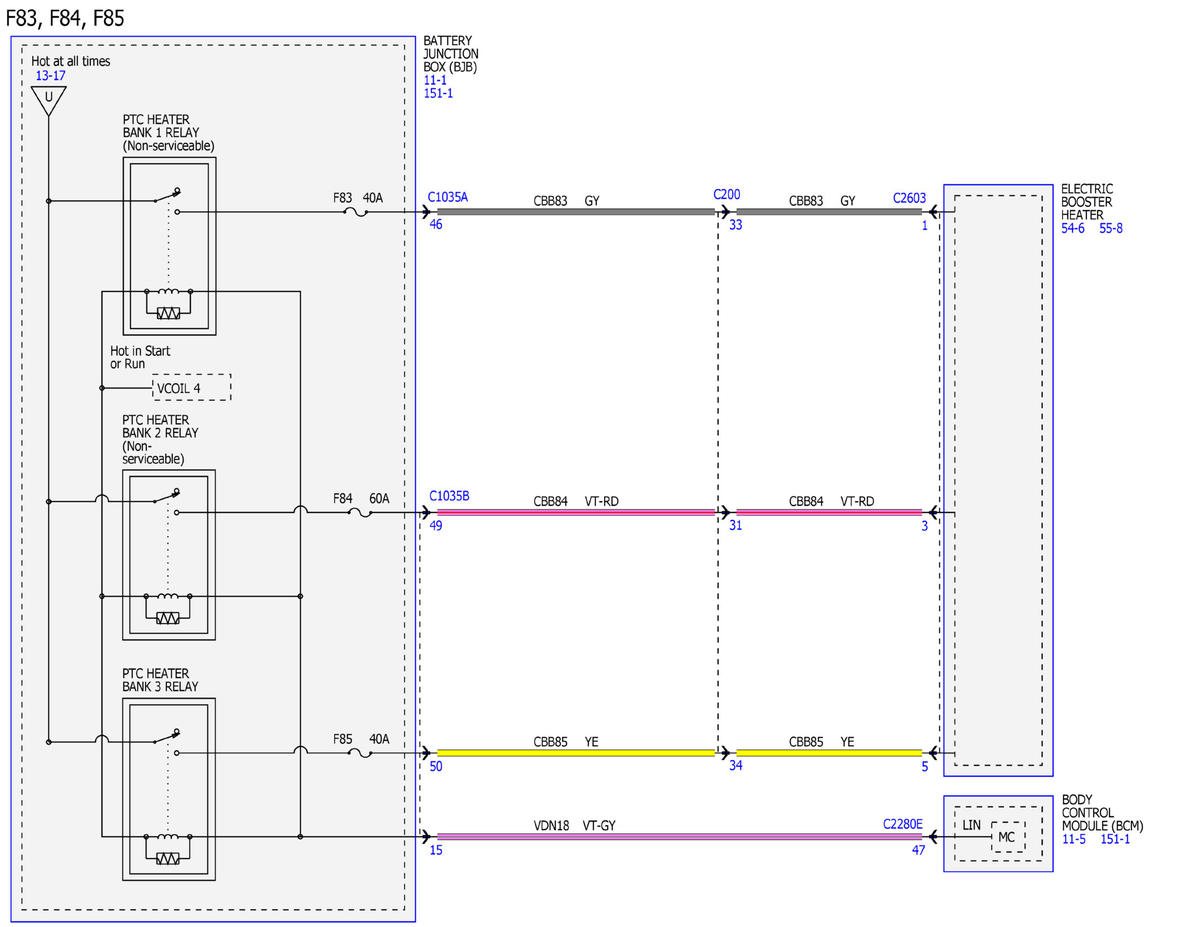

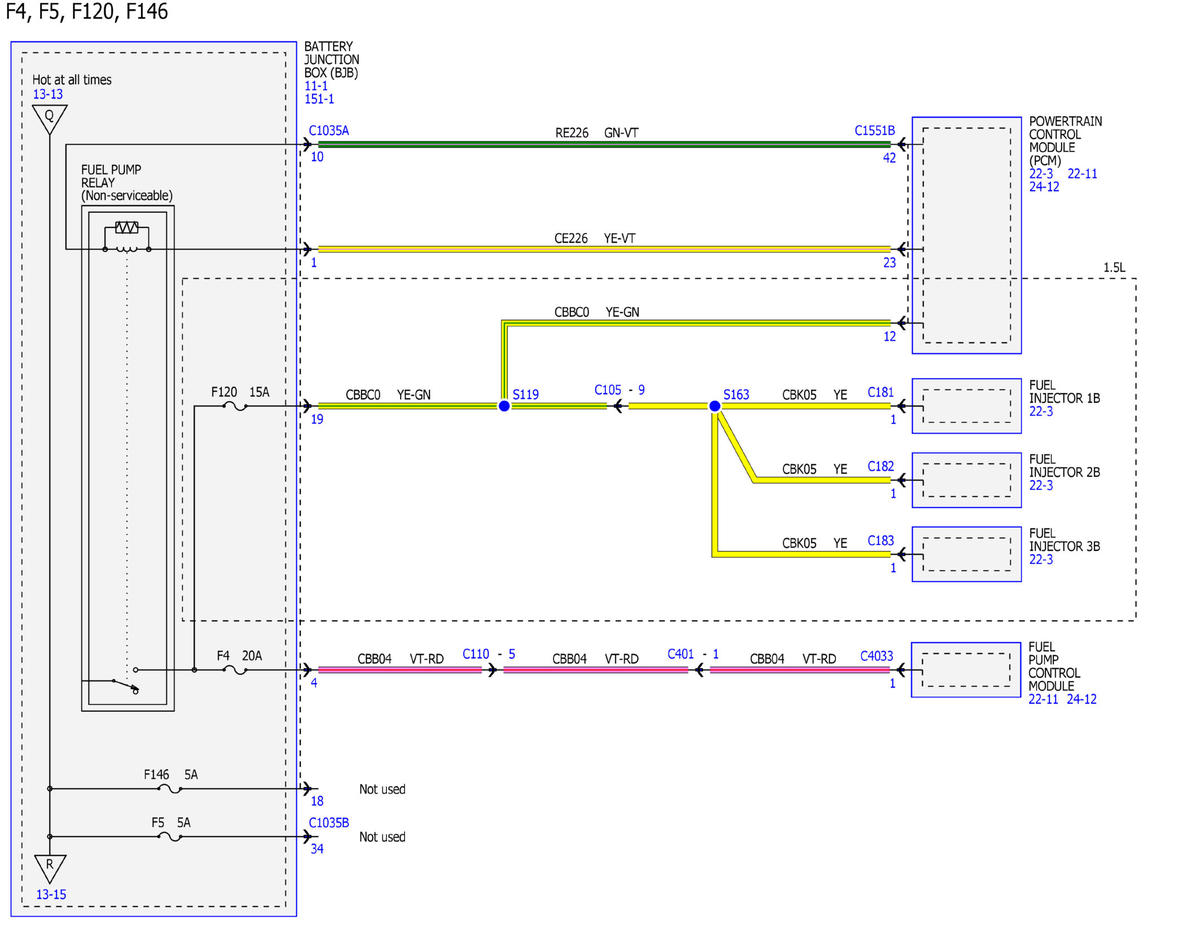

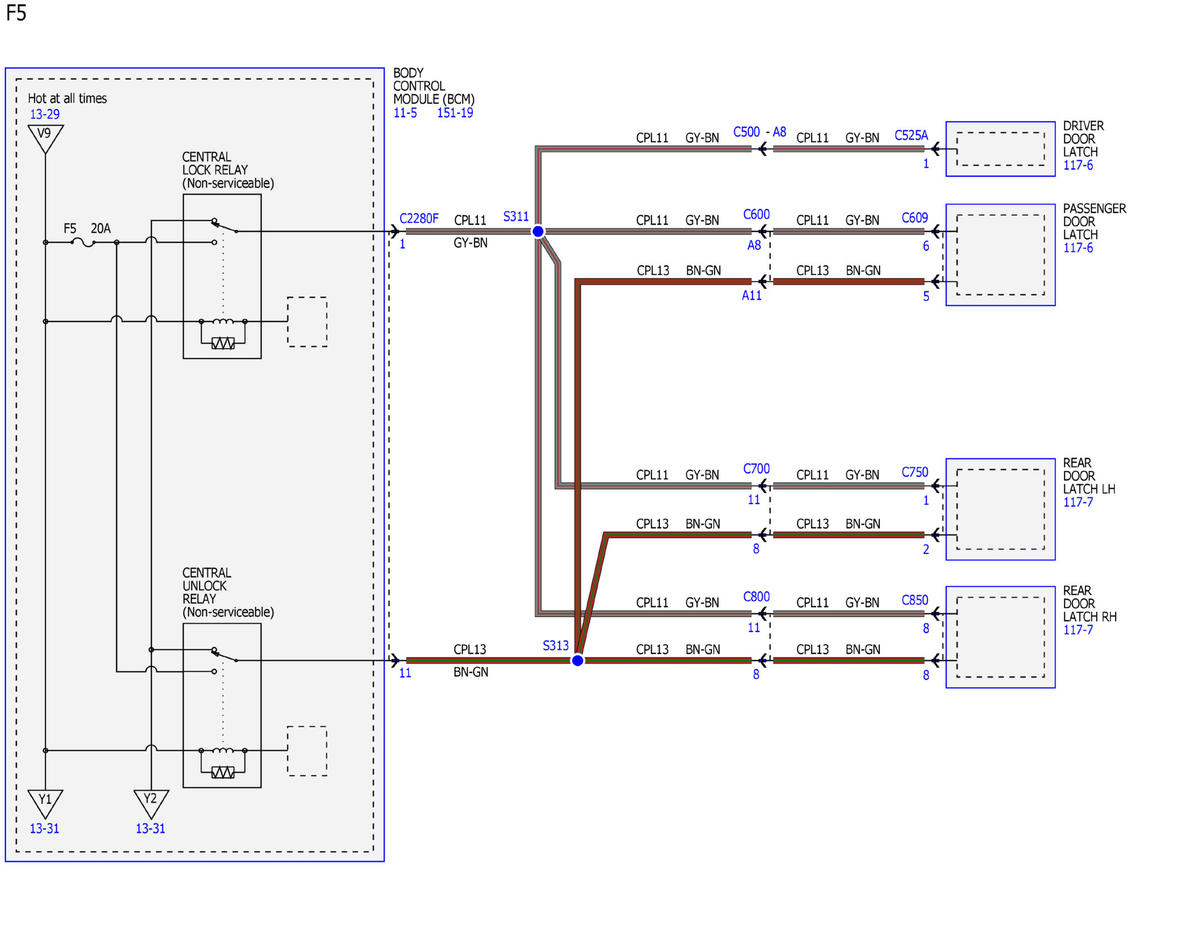

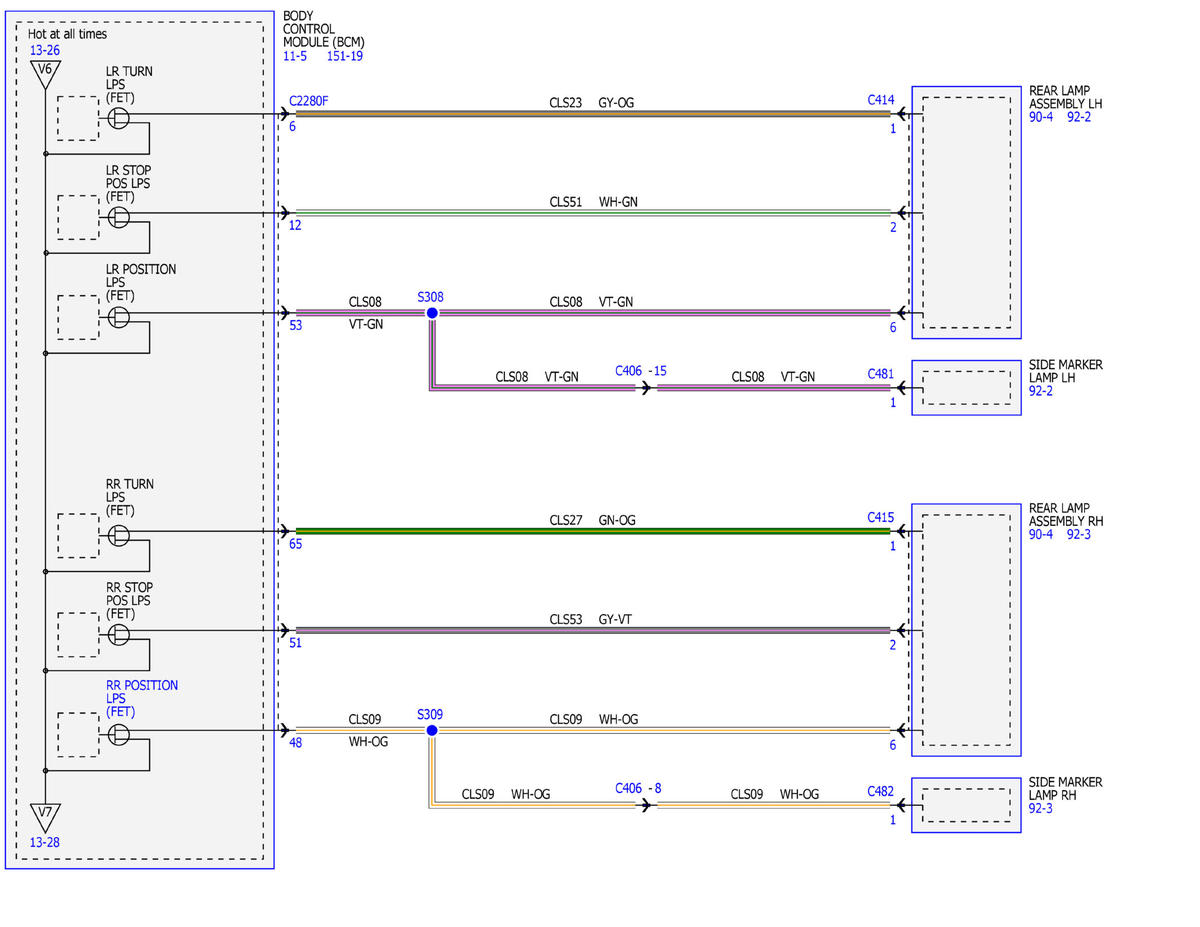

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 31)
Courtesy of FORD MOTOR COMPANY

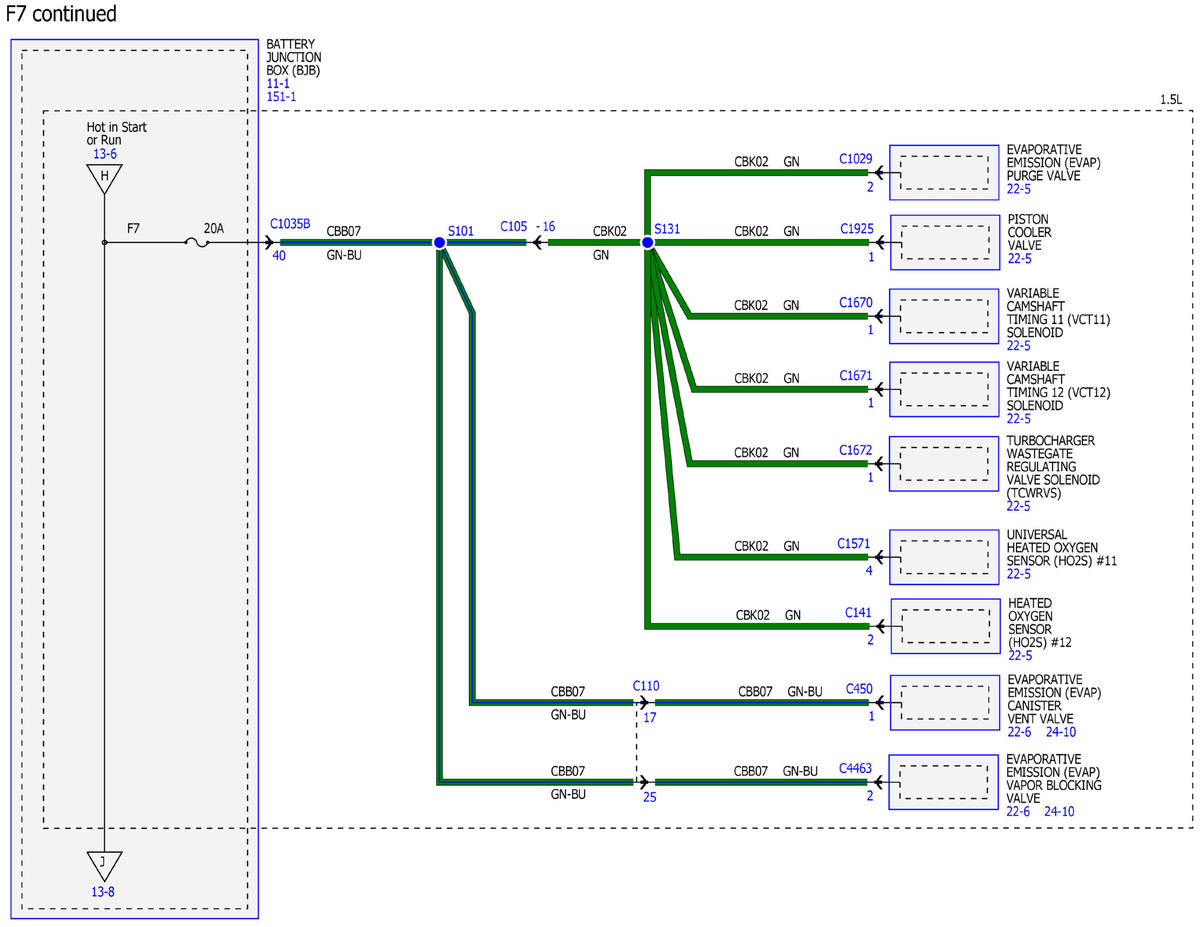

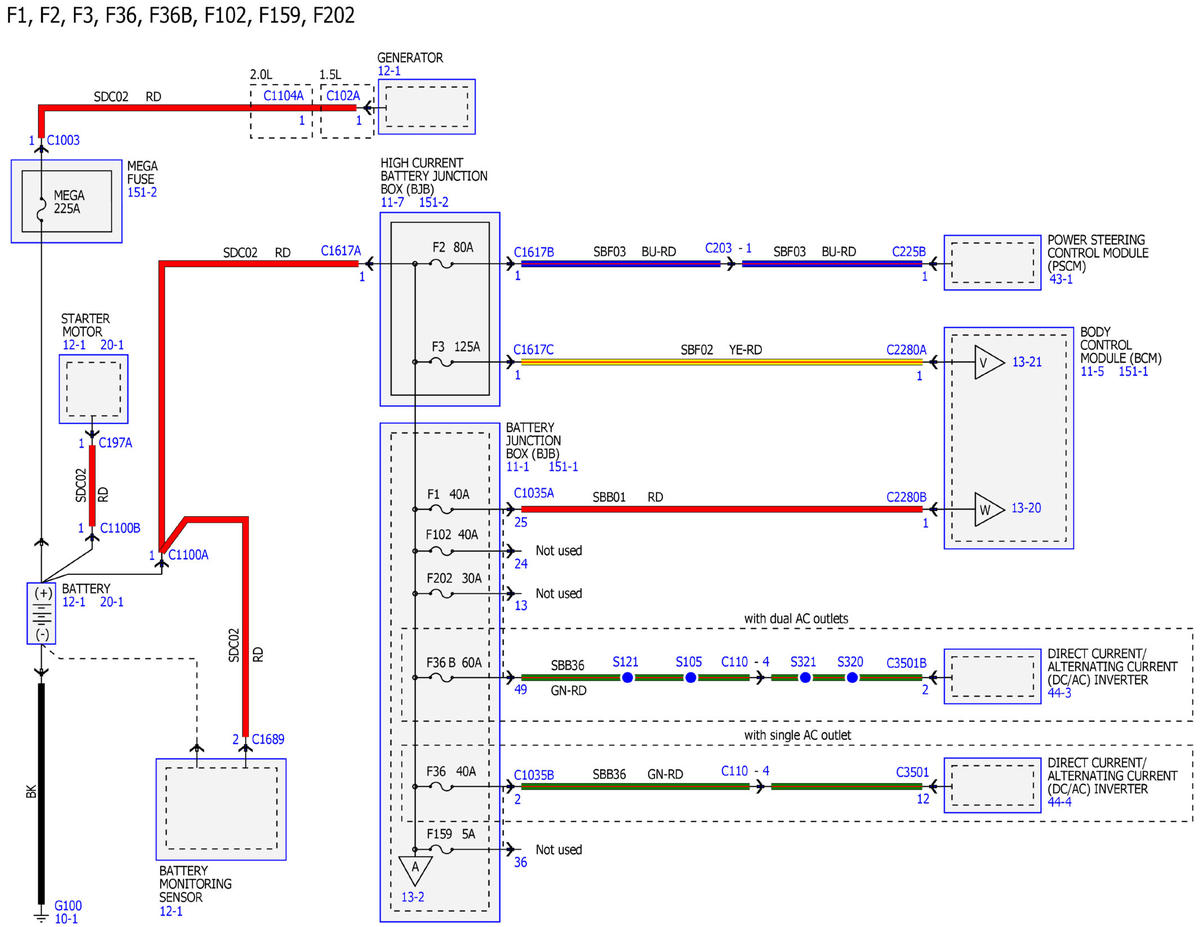

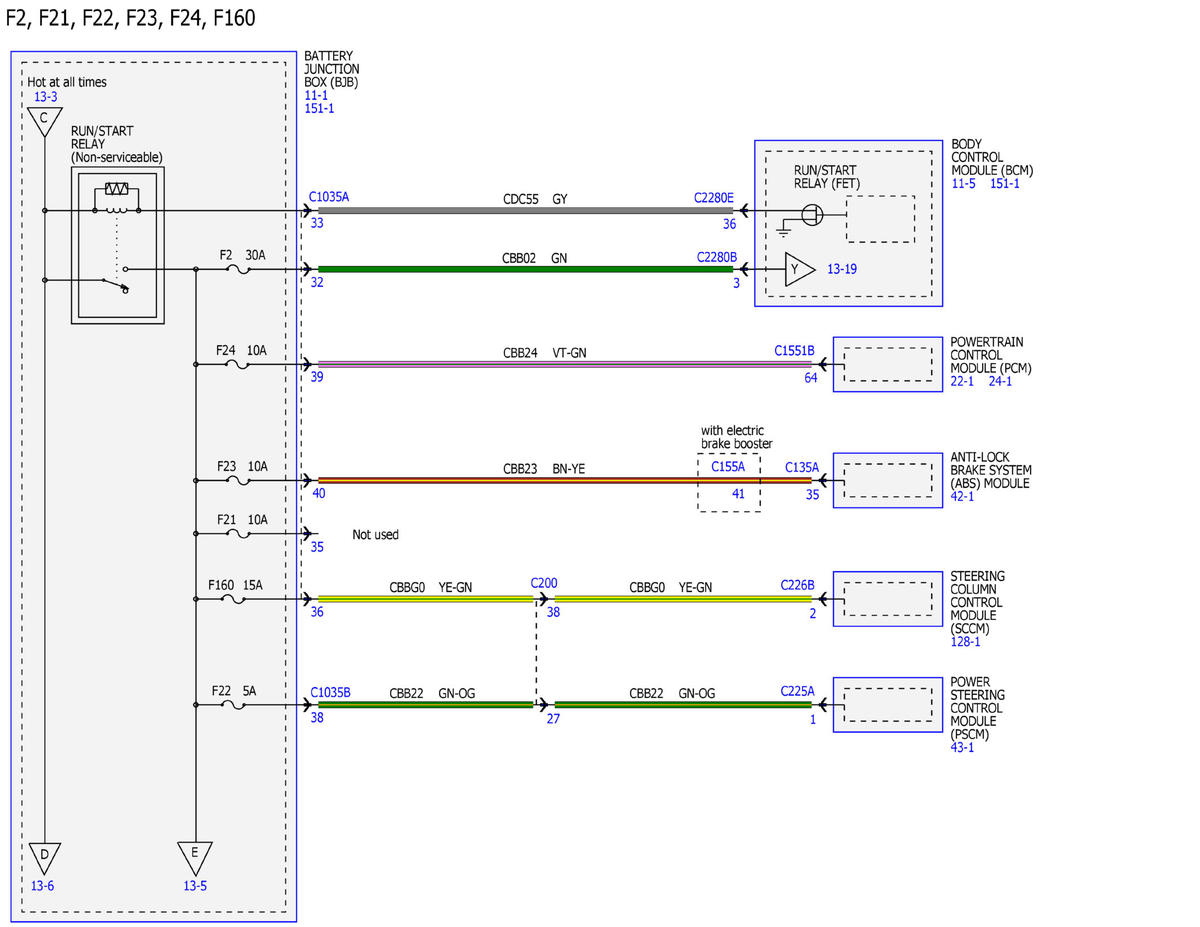

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM Wiring Diagram (27 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM Wiring Diagram (28 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM Wiring Diagram (29 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM Wiring Diagram (30 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM Wiring Diagram (31 Of 31)
