Power Windows

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

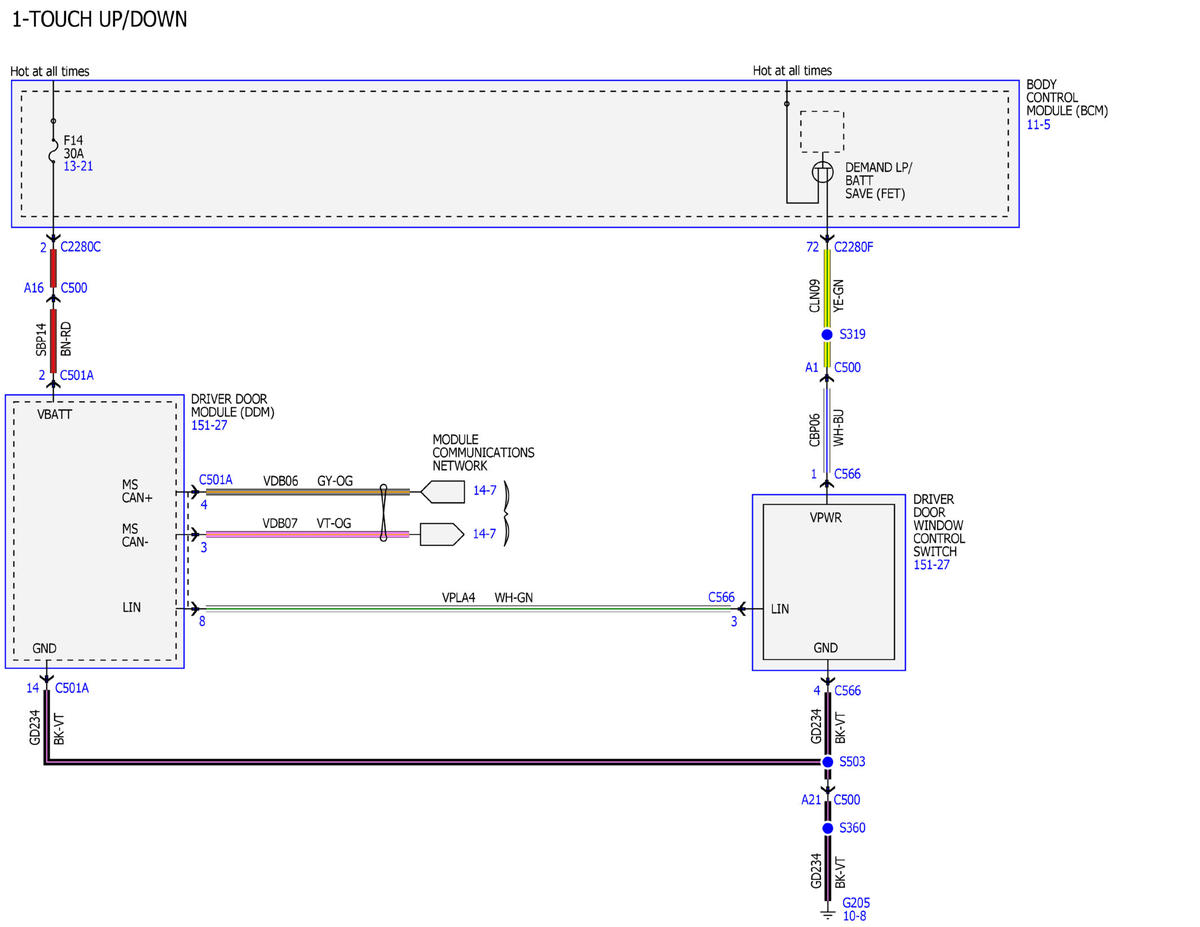

Fig 1: Power Windows Wiring Diagram (1 Of 9)
GFDWR175278Courtesy of FORD MOTOR COMPANY

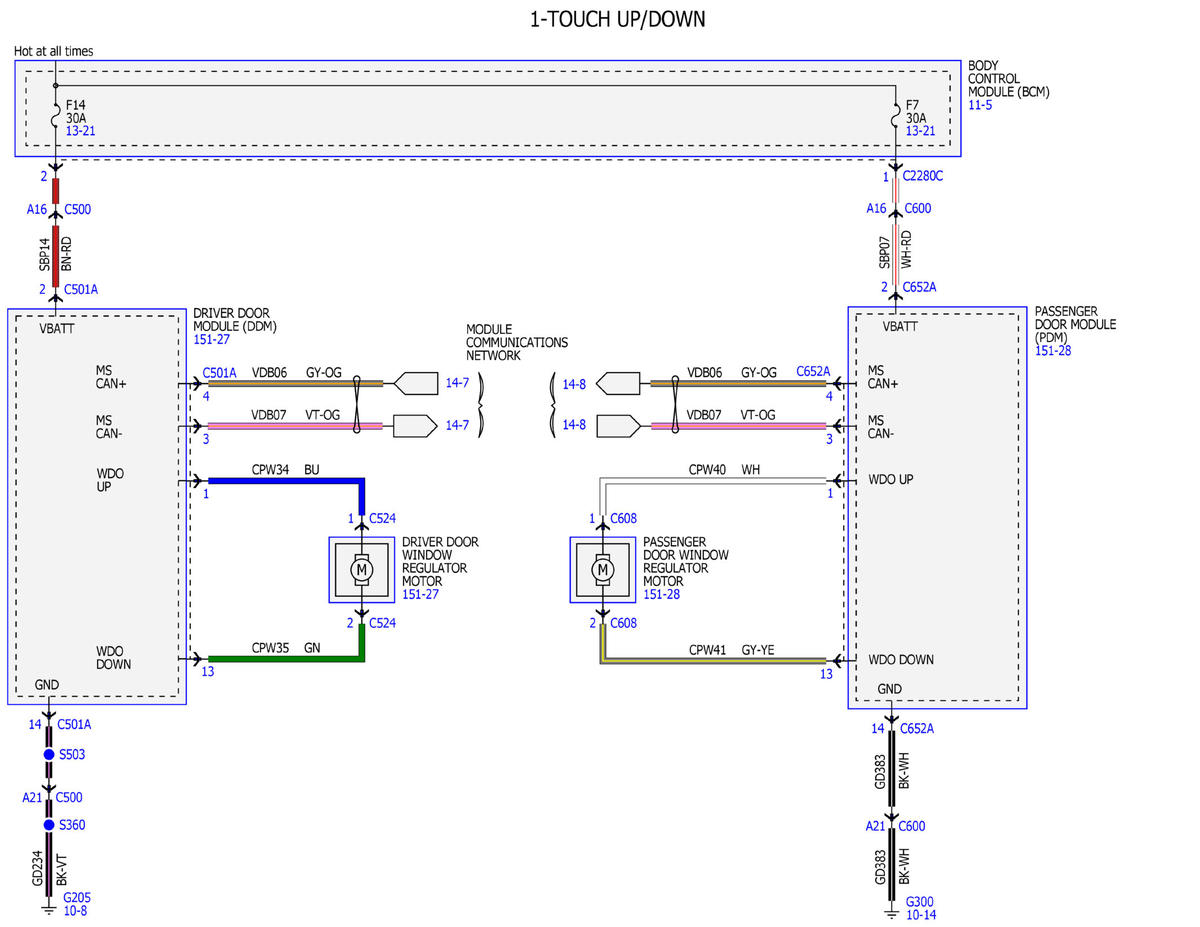

Fig 2: Power Windows Wiring Diagram (2 Of 9)
GFDWR175279Courtesy of FORD MOTOR COMPANY

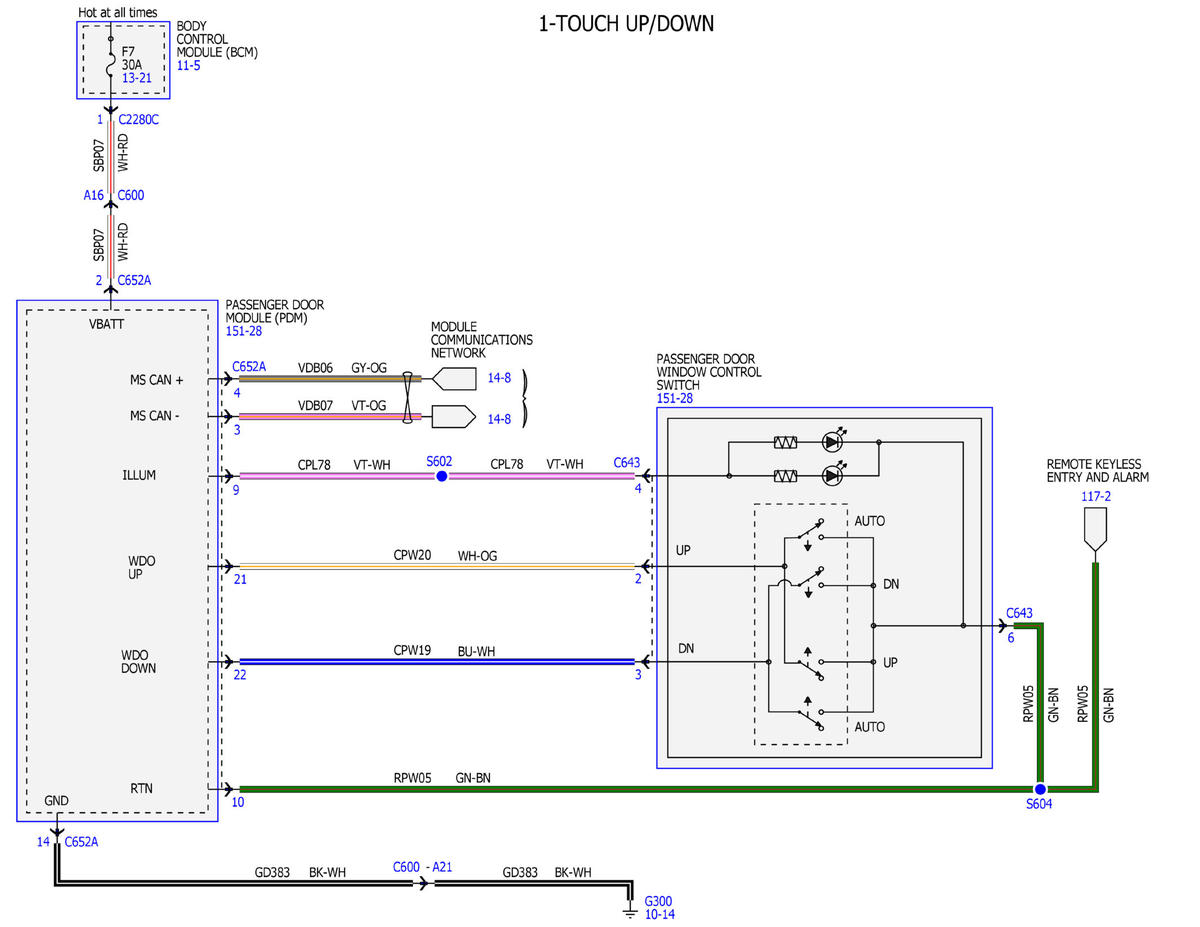

Fig 3: Power Windows Wiring Diagram (3 Of 9)
GFDWR175280Courtesy of FORD MOTOR COMPANY

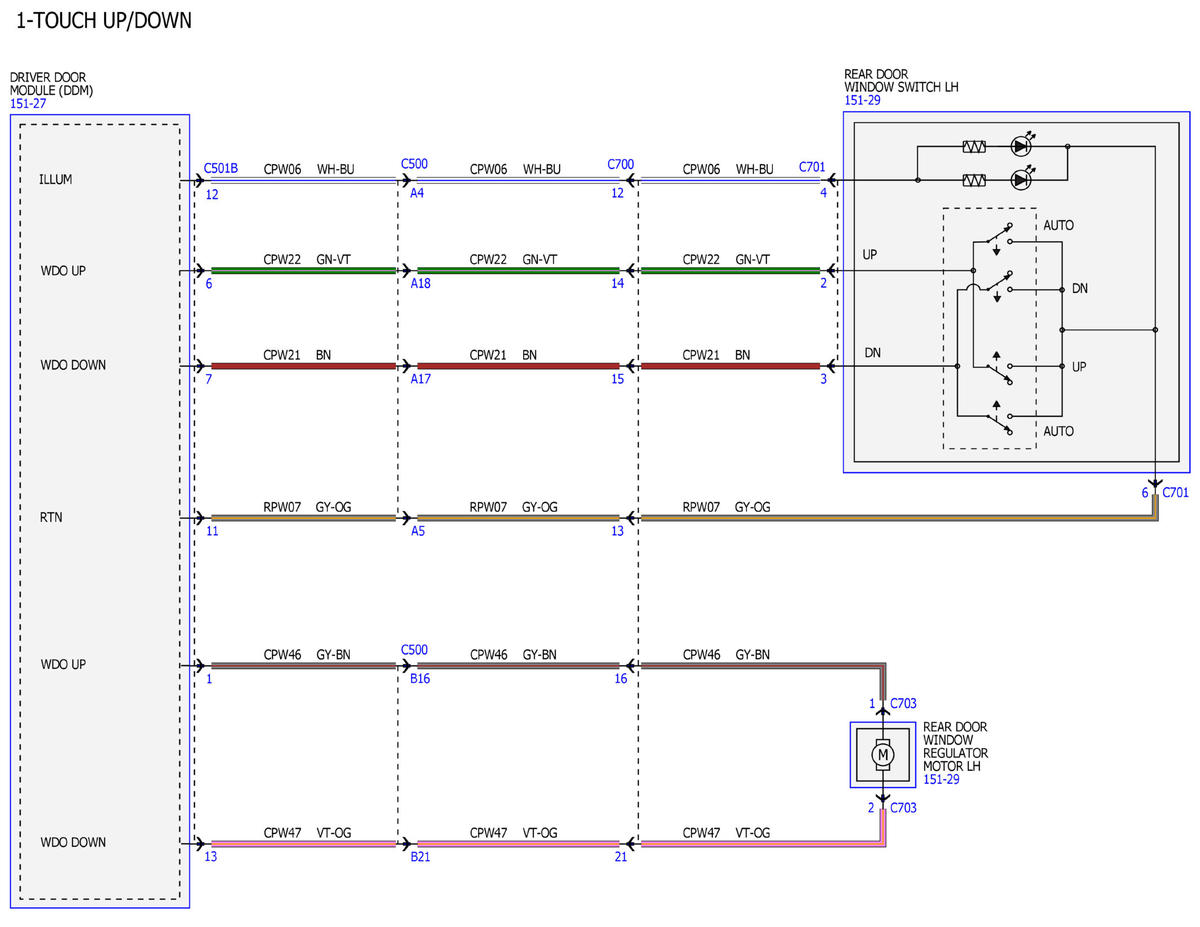

Fig 4: Power Windows Wiring Diagram (4 Of 9)
GFDWR175281Courtesy of FORD MOTOR COMPANY

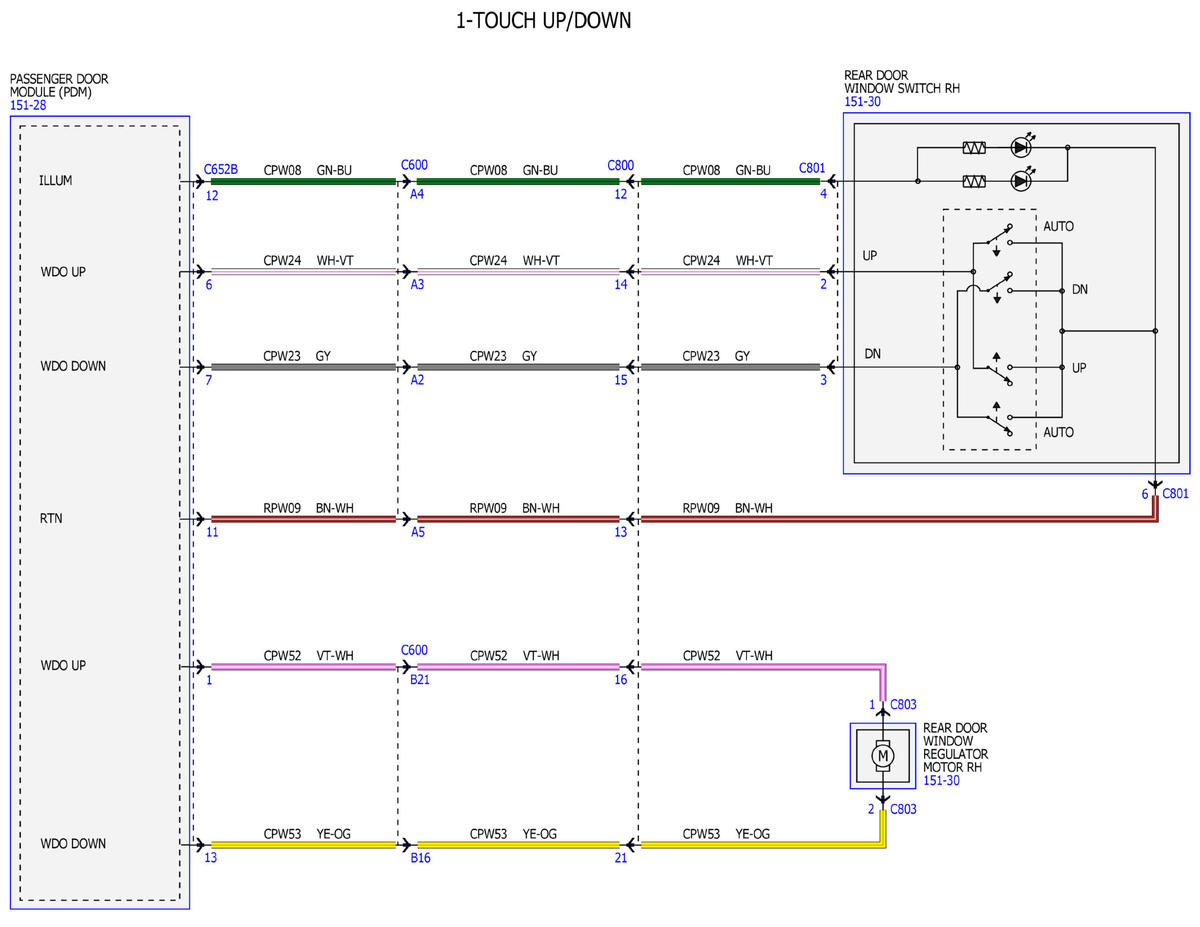

Fig 5: Power Windows Wiring Diagram (5 Of 9)
GFDWR175282Courtesy of FORD MOTOR COMPANY

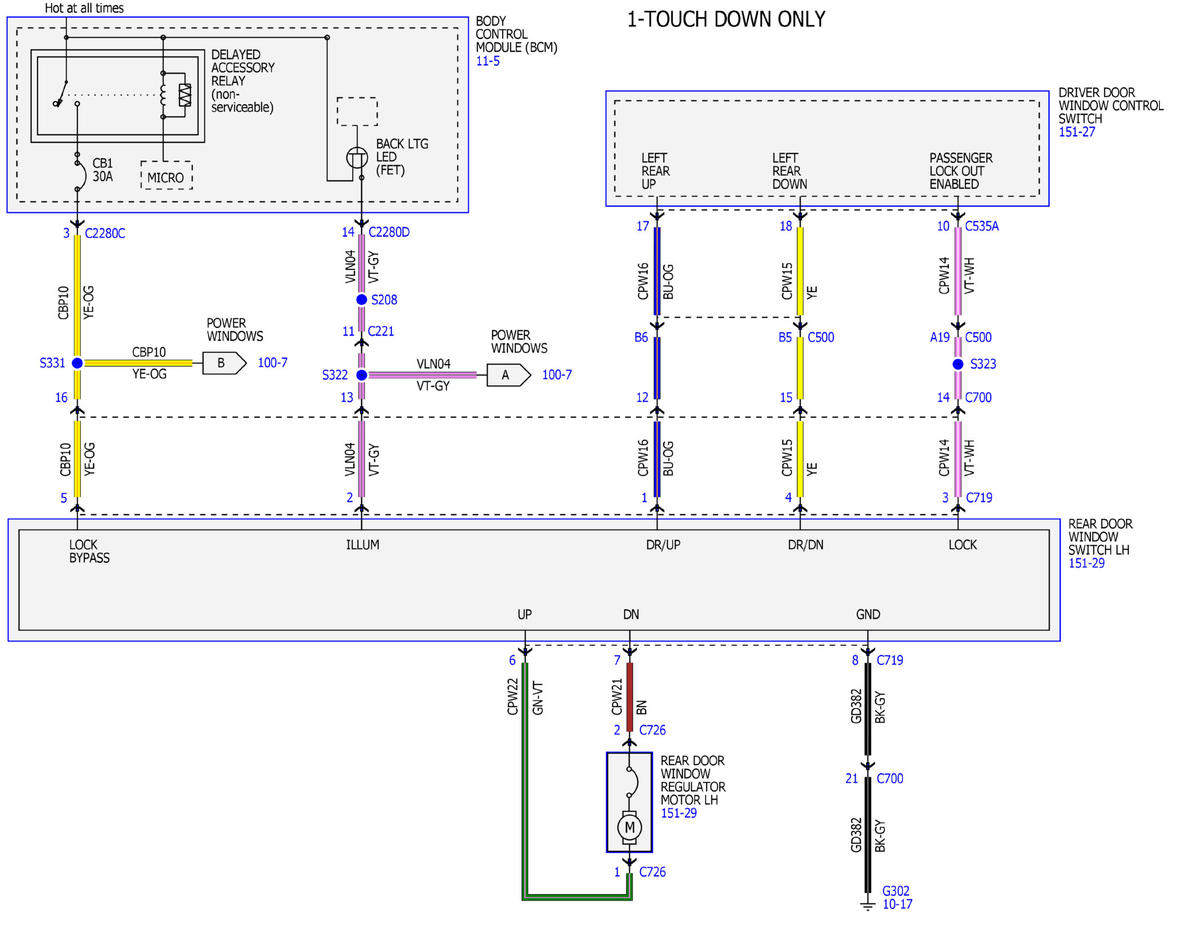

Fig 6: Power Windows Wiring Diagram (6 Of 9)
GFDWR175283Courtesy of FORD MOTOR COMPANY

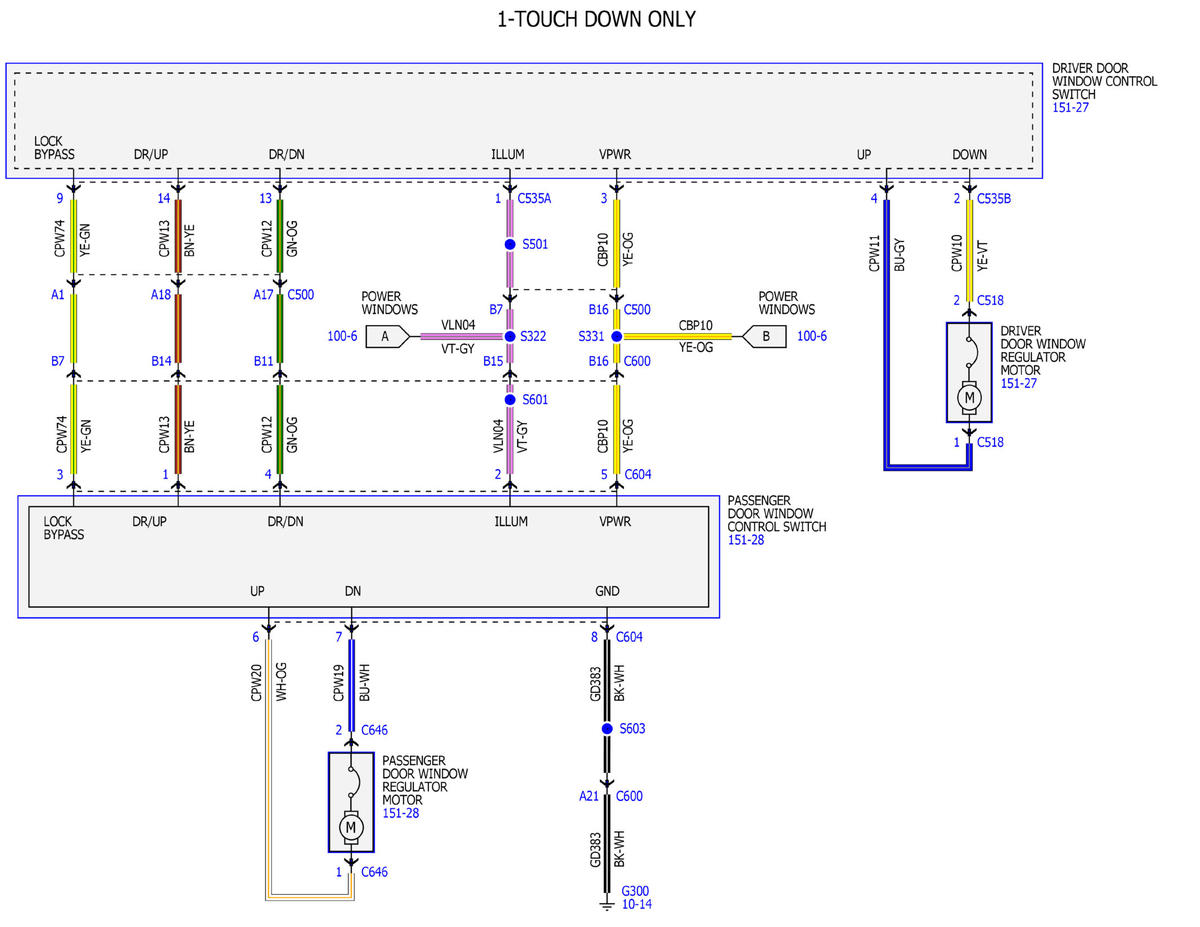

Fig 7: Power Windows Wiring Diagram (7 Of 9)
GFDWR175284Courtesy of FORD MOTOR COMPANY

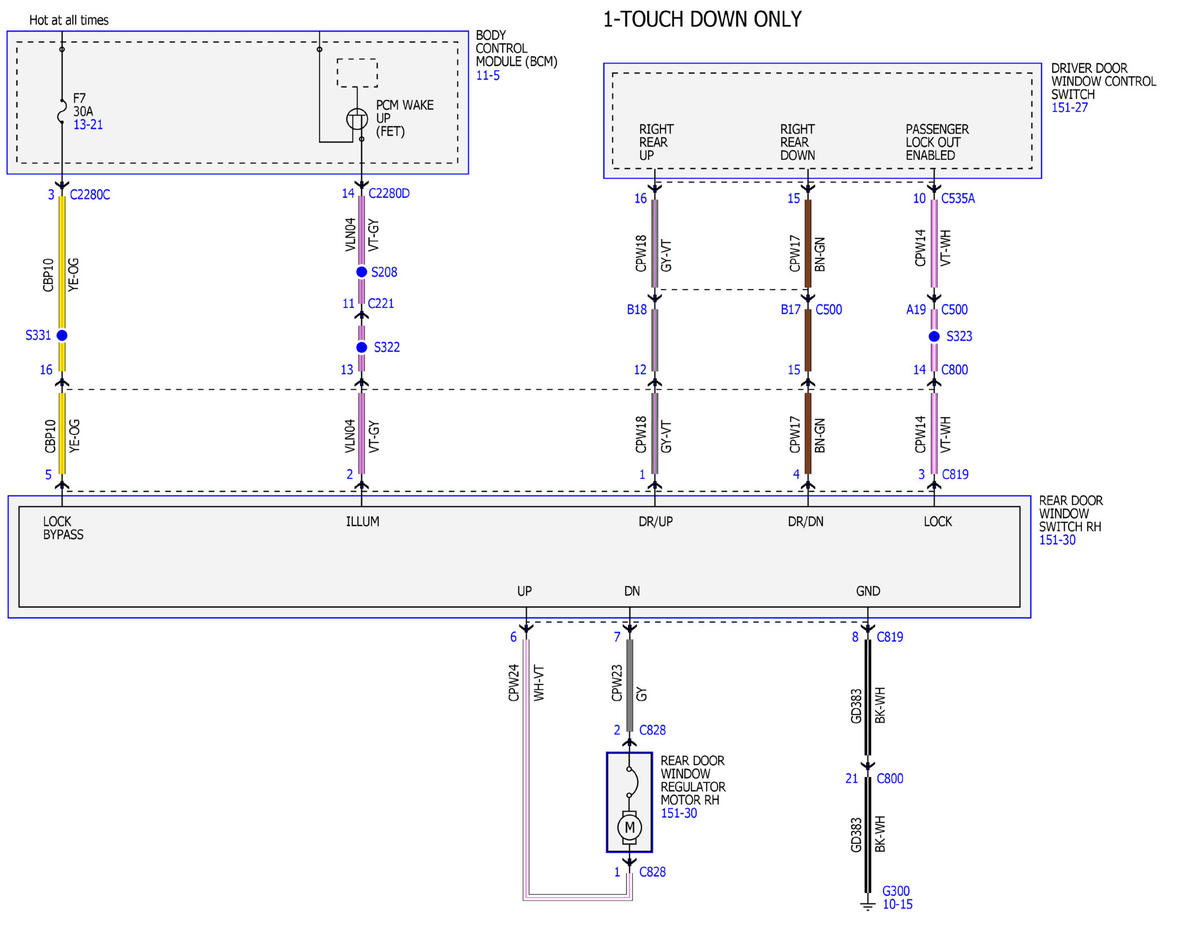

Fig 8: Power Windows Wiring Diagram (8 Of 9)
GFDWR175285Courtesy of FORD MOTOR COMPANY

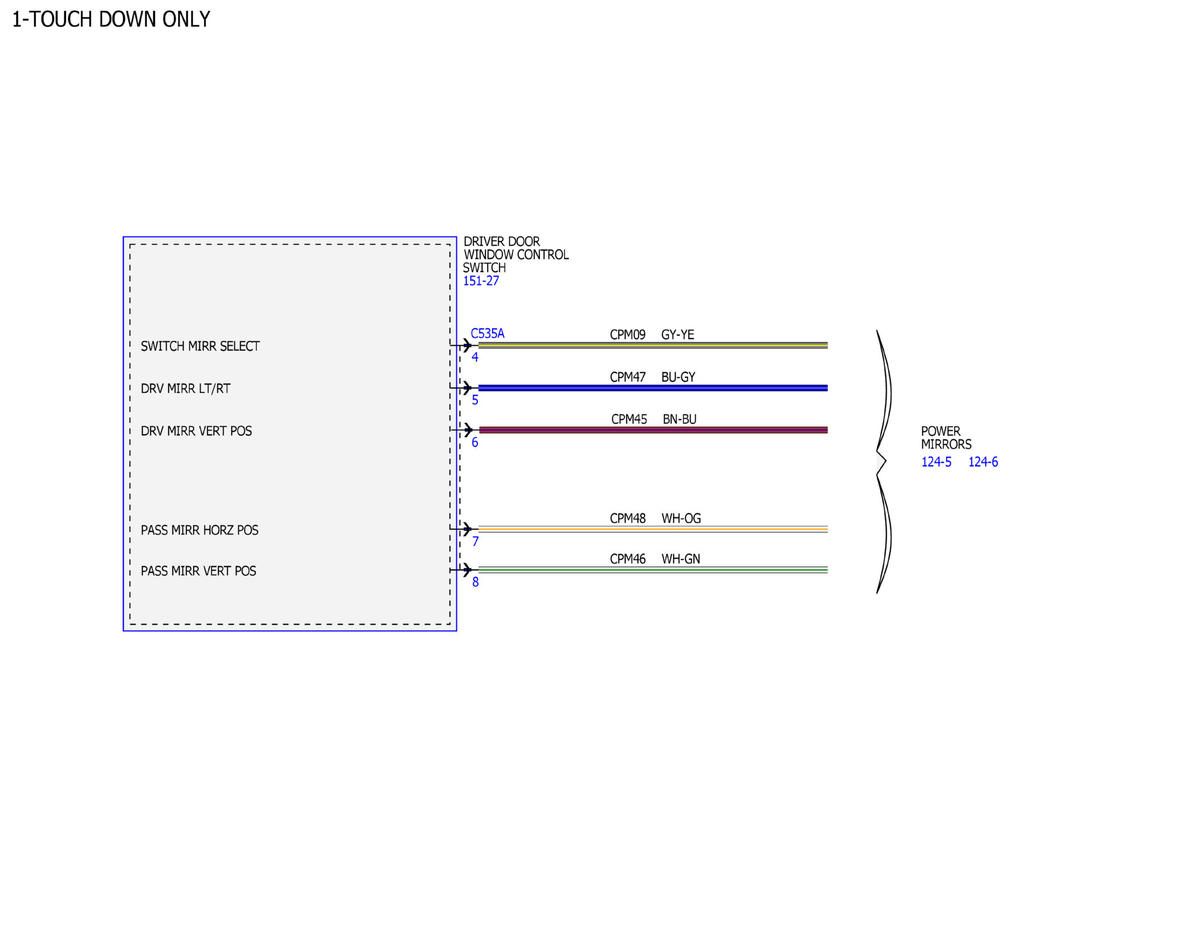

Fig 9: Power Windows Wiring Diagram (9 Of 9)
GFDWR175286Courtesy of FORD MOTOR COMPANY
