Component Testing

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

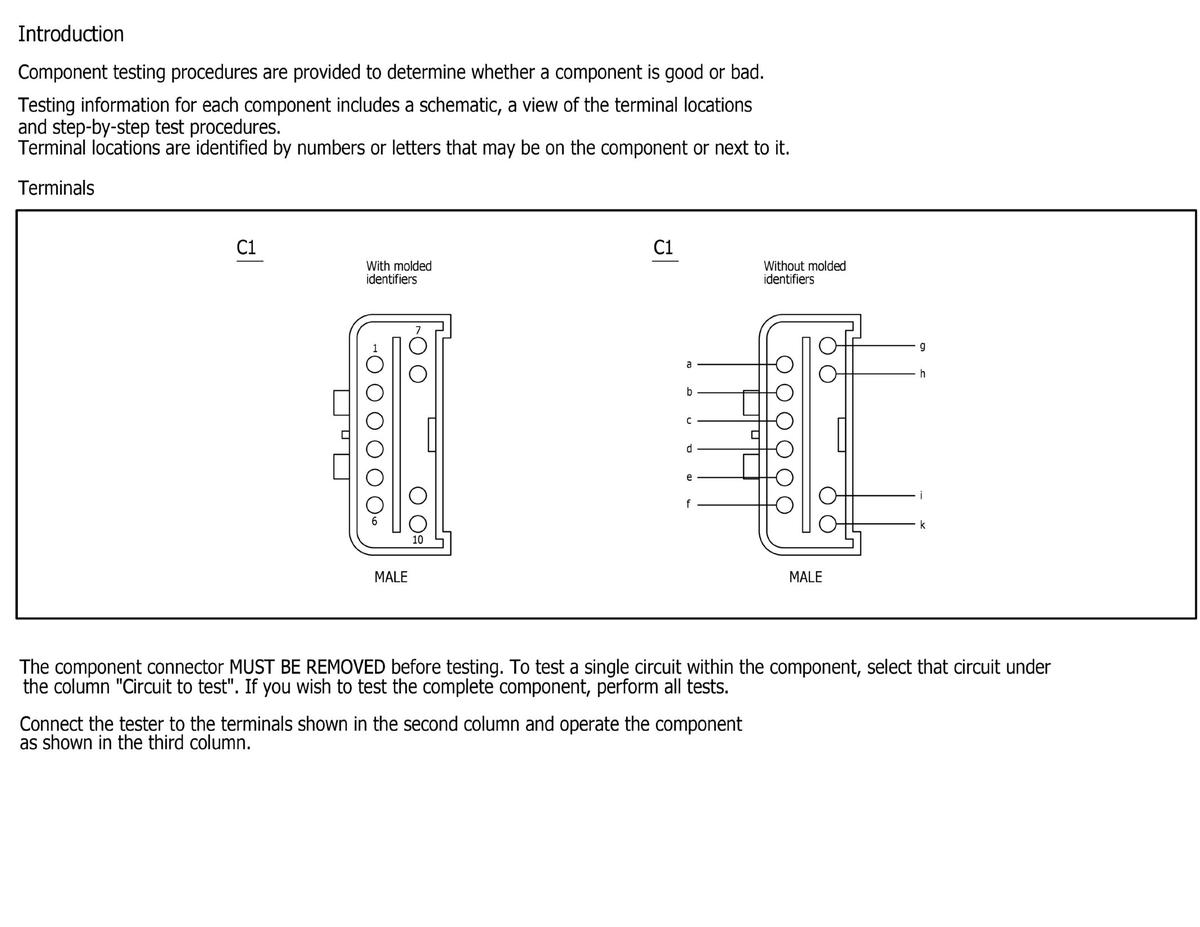

Fig 1: Introduction

Courtesy of FORD MOTOR COMPANY

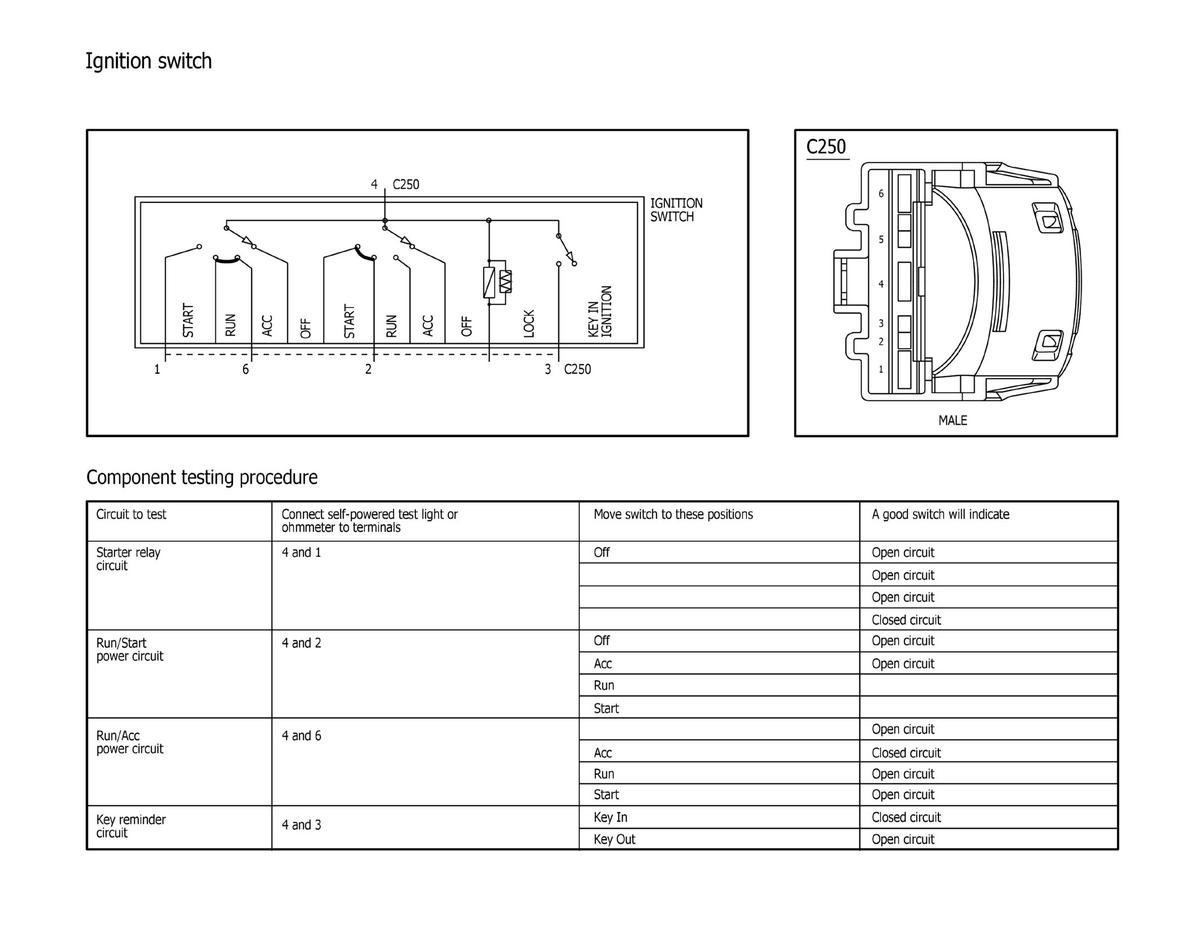

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

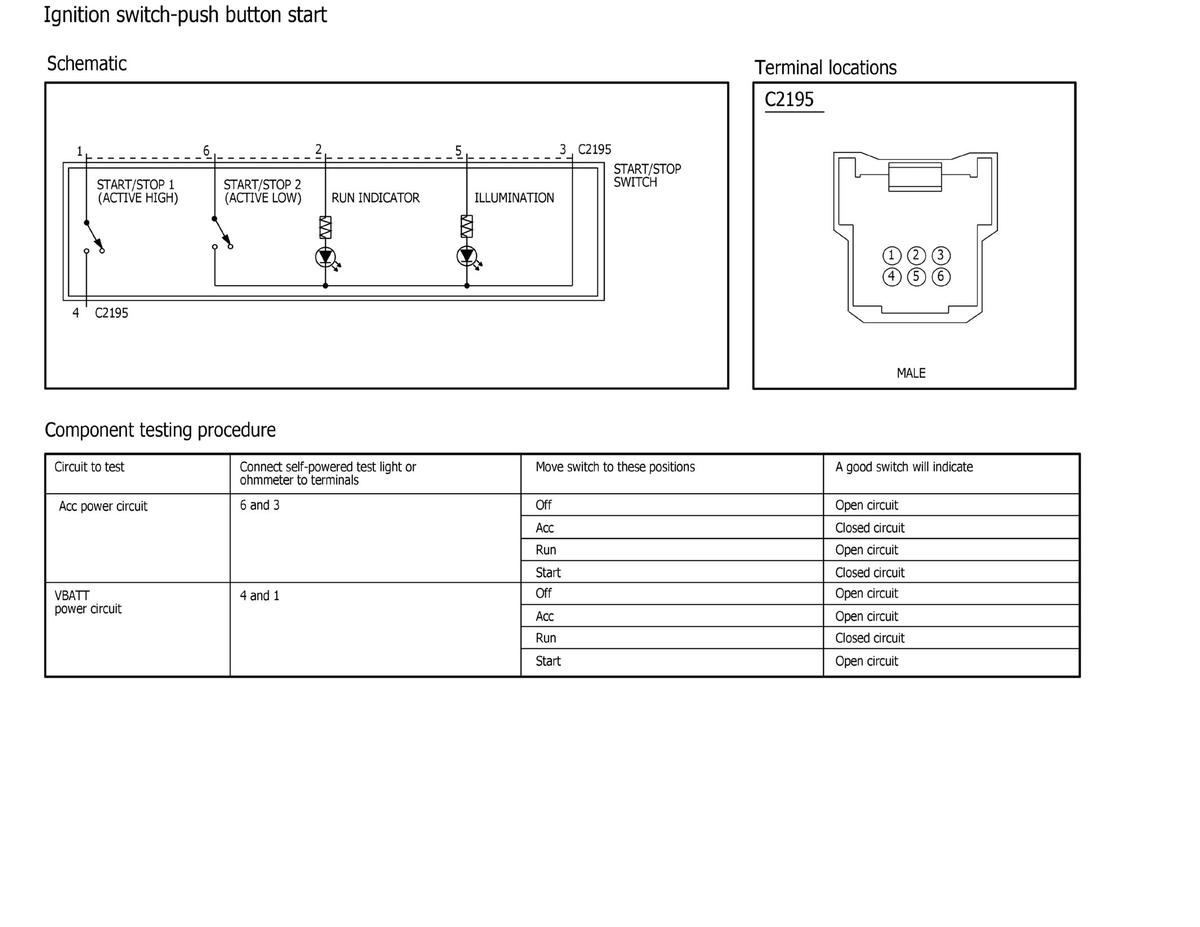

Fig 3: Ignition Switch Push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

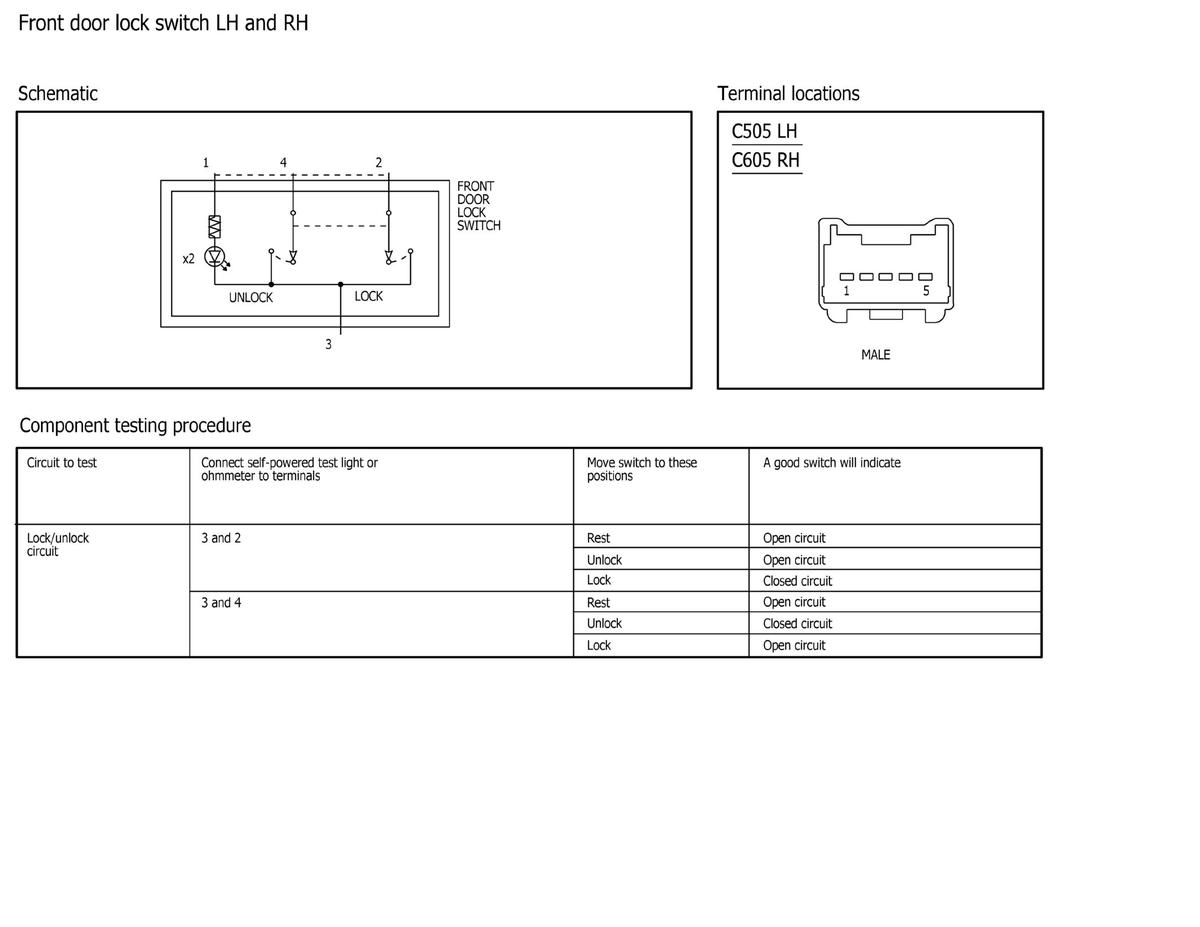

Fig 4: Front Door Lock Switch LH and RH Component Testing

Courtesy of FORD MOTOR COMPANY

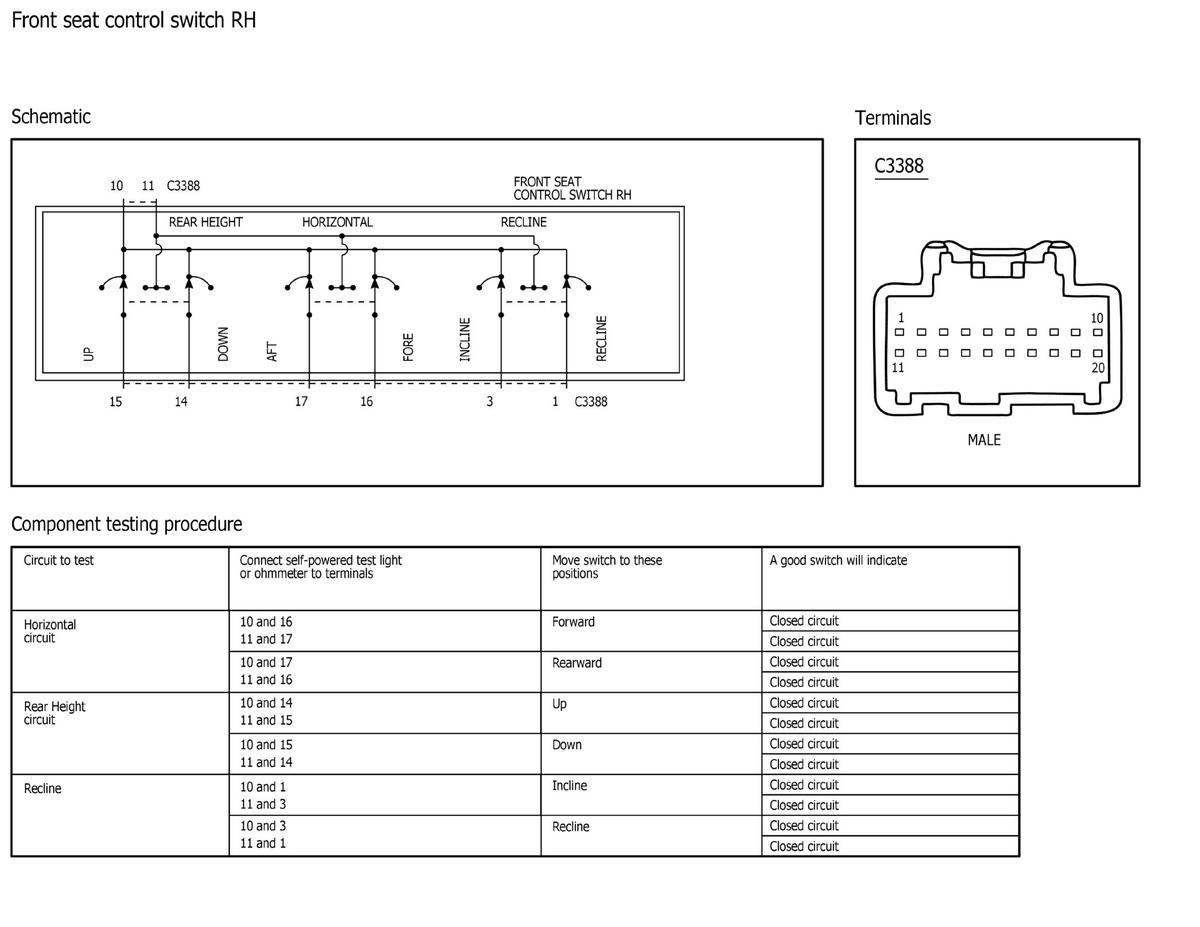

Fig 5: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY
