Brake Shift Interlock Actuator Manual Override

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

NOTE: If it is necessary to use the brake shift interlock actuator override procedure to move the selector lever out of the P position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify the brake lights are working.

This vehicle is equipped with a brake shift interlock actuator feature that prevents the selector lever from being moved out of the P position when the ignition is in the ON position until the brake pedal is applied. If the selector lever cannot be moved out of the P position when the ignition is in the ON position and the brake pedal is applied:

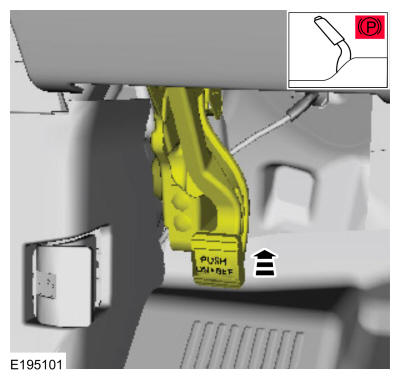

  1. Fully apply the parking brake.
    GFD205048Courtesy of FORD MOTOR COMPANY

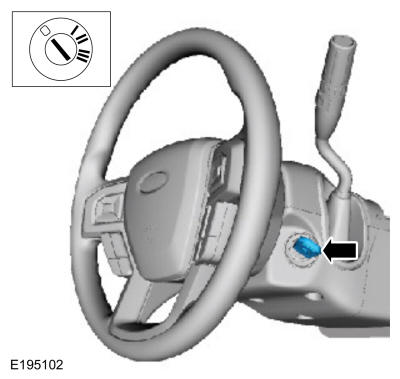

  2. Set the ignition switch to the 0 position (ignition off) and remove the key.
    GFD205049Courtesy of FORD MOTOR COMPANY

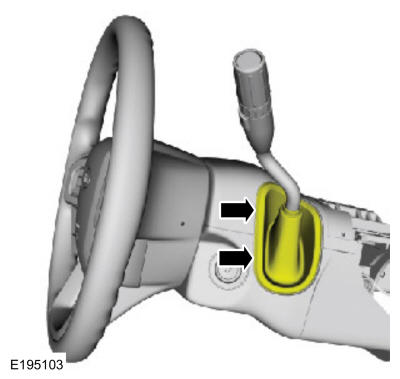

  3. NOTE: Make sure to use extra care when detaching the selector lever boot clips from steering column shrouds or damage to the selector lever boot may occur causing replacement of the selector lever assembly. The selector lever boot is not serviceable separately.

    Push forward on the selector lever boot at the areas indicated, remove the boot from the upper and lower steering column shrouds and position the boot aside.

    GFD205050Courtesy of FORD MOTOR COMPANY

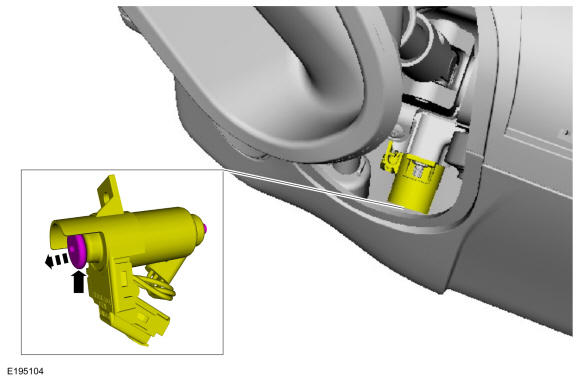

  4. NOTE: The brake shift interlock actuator spindle can be accessed through the selector lever boot opening.

    Move the brake shift interlock actuator spindle outward, apply the brake pedal and position the selector lever into N.

    GFD205051Courtesy of FORD MOTOR COMPANY

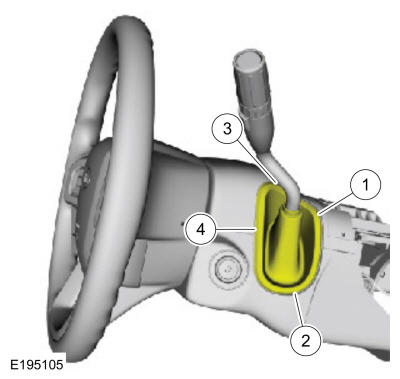

  5. NOTE: Make sure to use extra care and follow the installation sequence when installing the selector lever boot to the steering column shrouds or damage to the boot may occur causing replacement of the selector lever assembly. the selector lever boot is not serviceable separately.

    Install the selector lever boot in the sequence shown.

    1. Install the front of the selector lever boot.
    2. Install the bottom of the selector lever boot.
    3. Install the top of the selector lever boot.
    4. Install the back of the selector lever boot.

    GFD205052Courtesy of FORD MOTOR COMPANY
  6. Start the vehicle.
