Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Adjustment

Measurement

  1. Measure the roof opening panel movable glass height/flushness.

    • Measure the roof opening panel sliding glass front edge-to-header panel height/flushness. Refer to the specifications as shown in illustration.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel height/flushness. Refer to the specifications as shown in illustration.

    GFD693128Courtesy of FORD MOTOR COMPANY

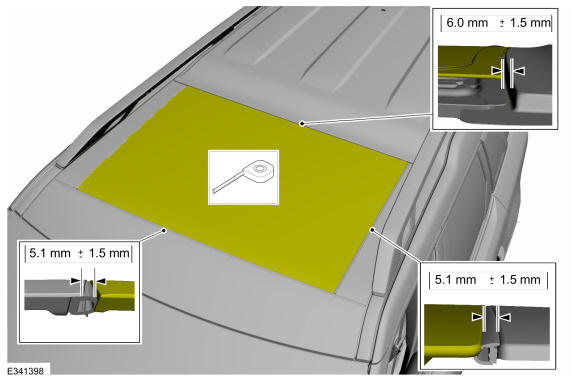

    • Measure the roof opening panel sliding glass front edge-to-header panel margins. Refer to the specifications as shown in illustration.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel margins. Refer to the specifications as shown in illustration.

    GFD693129Courtesy of FORD MOTOR COMPANY

    Alignment

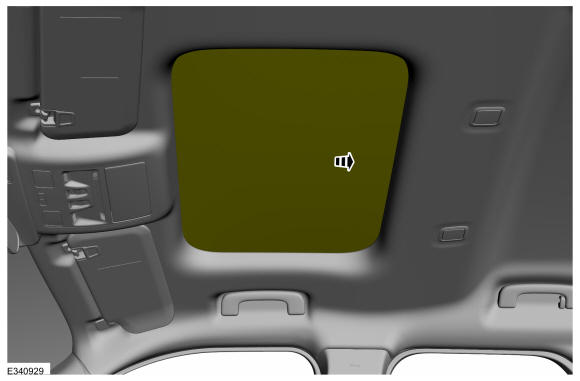

  3. If closed, open the roof opening panel shield.
    GFD693130Courtesy of FORD MOTOR COMPANY

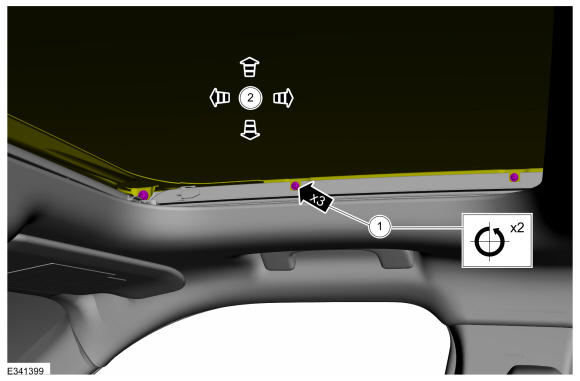

  4. NOTE: RH side shown in illustration, LH side similar.

    1. On both sides. Loosen the screws.
    2. Adjust the glass to specifications shown in illustration in measurement steps.

    GFD693131Courtesy of FORD MOTOR COMPANY

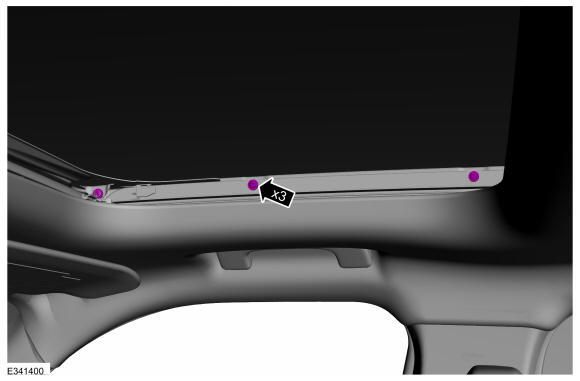

  5. On both sides. Tighten the screws.

    Torque: 49 lb.in (5.5 Nm)

    GFD693132Courtesy of FORD MOTOR COMPANY

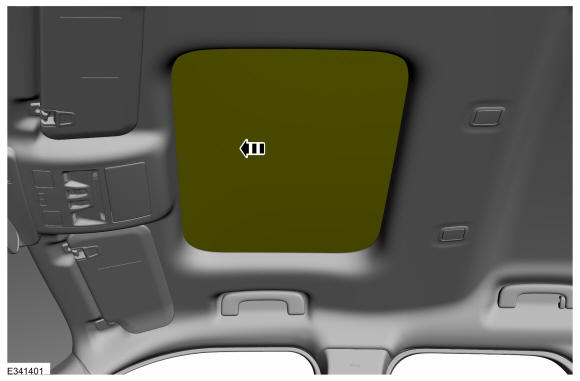

  6. Close the roof opening panel shield.
GFD693133Courtesy of FORD MOTOR COMPANY
