Front Seat Control Swtich RH Component Testing
Front Seat Control Swtich RH Component Testing
WARNING:
This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

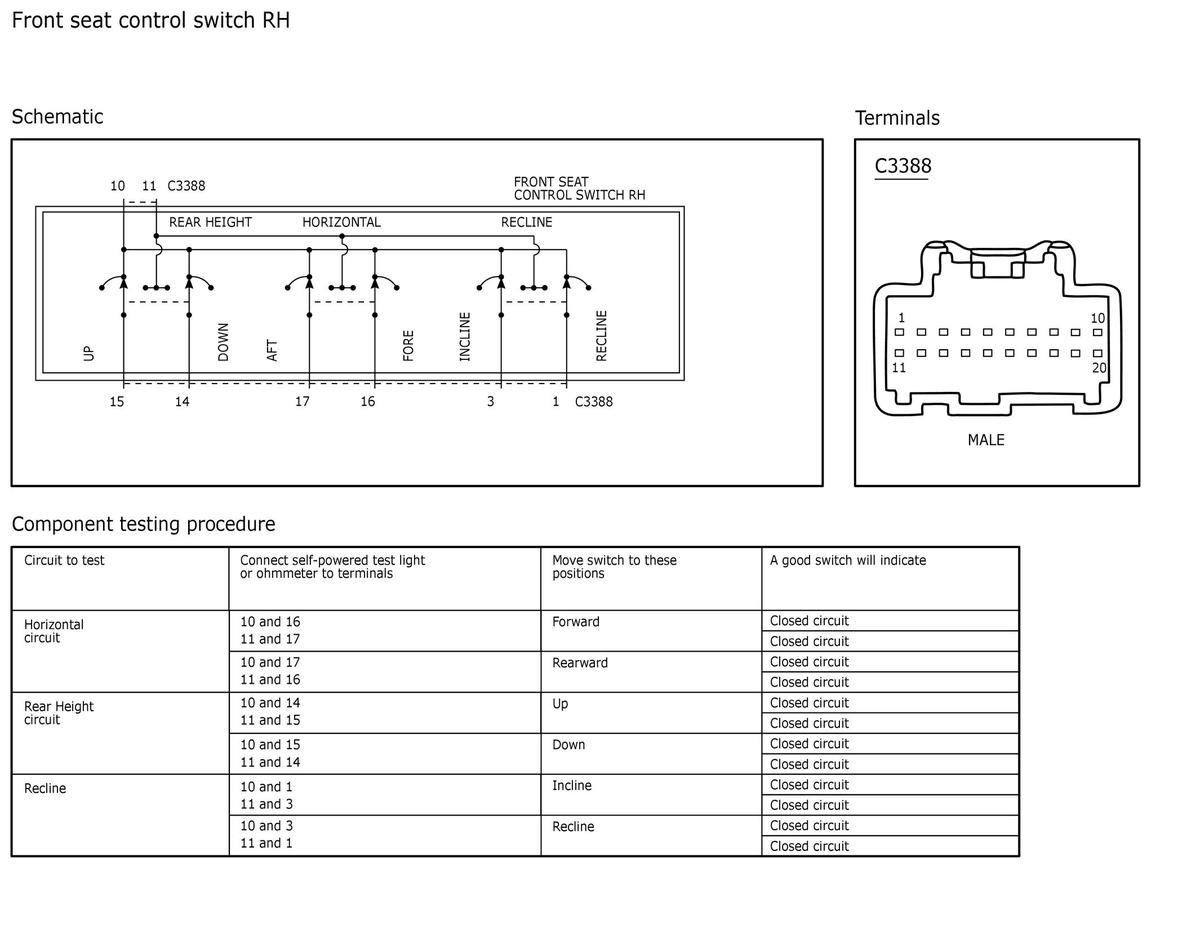

Fig 1: Front Seat Control Swtich RH Component Testing
Courtesy of FORD MOTOR COMPANY
