Ignition Switch Component Testing

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

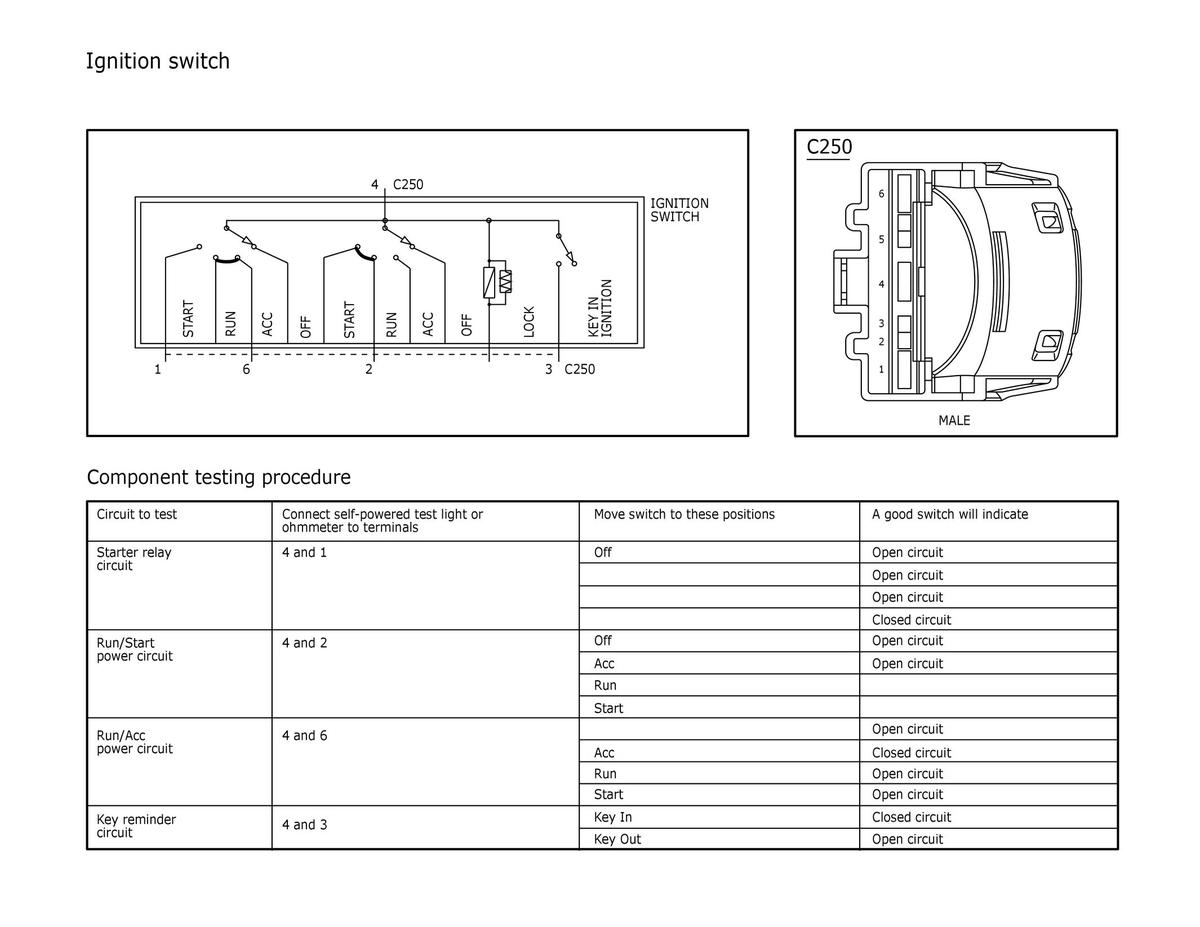

Fig 1: Ignition Switch Component Testing
GFDWR195916Courtesy of FORD MOTOR COMPANY

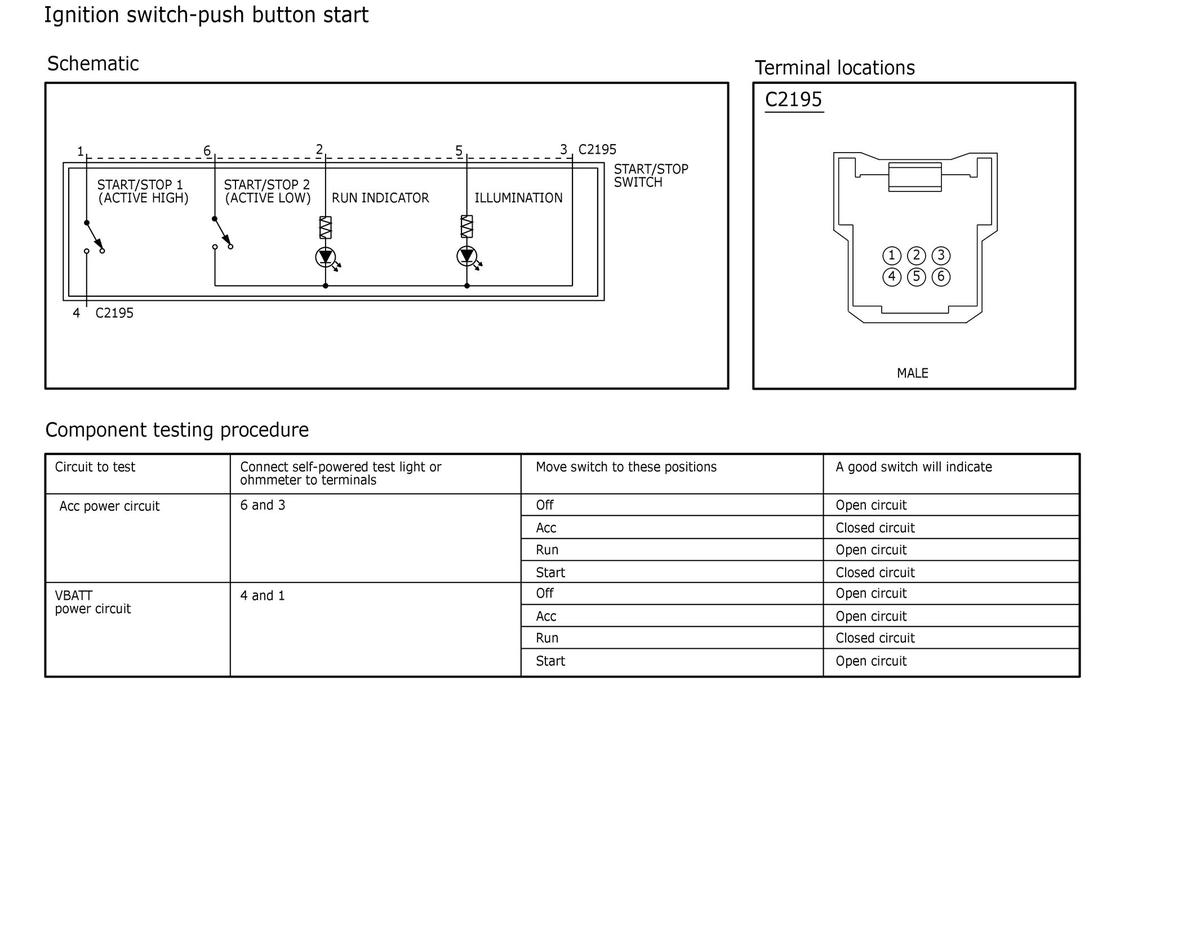

Fig 2: Ignition Switch Push Button Start Component Testing
GFDWR195917Courtesy of FORD MOTOR COMPANY
