Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

Measurement

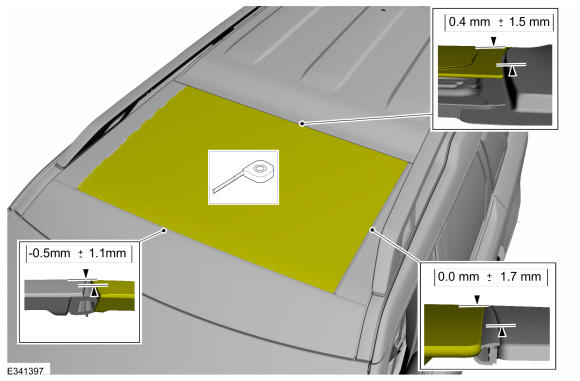

  1. Measure the roof opening panel movable glass height/flushness.

    • Measure the roof opening panel sliding glass front edge-to-header panel height/flushness. Refer to SPECIFICATIONS

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel height/flushness. Refer to SPECIFICATIONS

    GFD747711Courtesy of FORD MOTOR COMPANY
    • Measure the roof opening panel sliding glass front edge-to-header panel margins. Refer to SPECIFICATIONS

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel margins. Refer to SPECIFICATIONS

    GFD747712Courtesy of FORD MOTOR COMPANY

    Alignment

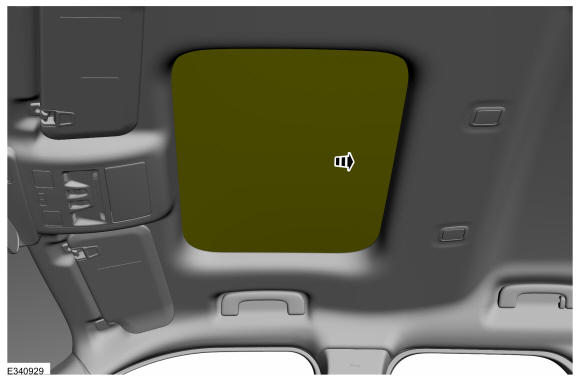

  3. If closed, open the roof opening panel shield.
    GFD747713Courtesy of FORD MOTOR COMPANY
  4. NOTE: RH side shown, LH side similar.

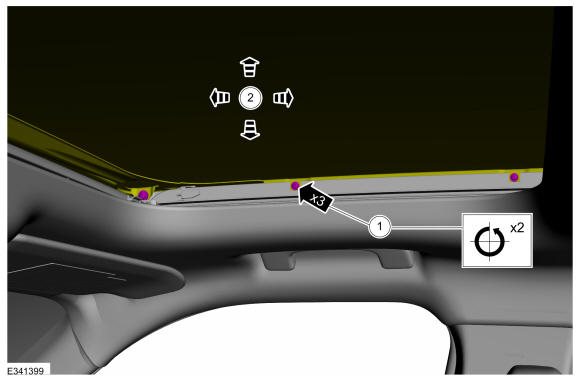

    1. On both sides.Loosen the screws.
    2. Adjust the glass to specifications shown in measurement steps.

    GFD747714Courtesy of FORD MOTOR COMPANY

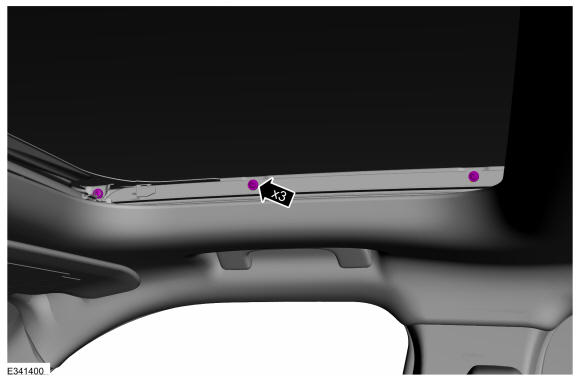

  5. On both sides.Tighten the screws.

    Torque: 49 lb.in (5.5 Nm)

    GFD747715Courtesy of FORD MOTOR COMPANY

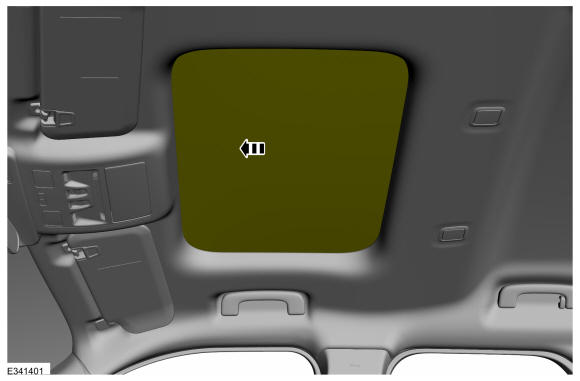

  6. Close the roof opening panel shield.
GFD747716Courtesy of FORD MOTOR COMPANY
