Removal And Installation: Spring: Removal
WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the lower arm. Refer to: Lower Arm .

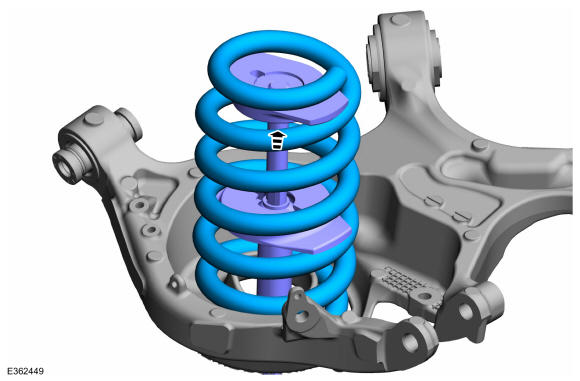

- Separate the spring and lower arm.
Use the General Equipment: Vise
Use the General Equipment: Spring Compressor
- Remove the spring compressor and separate the spring.
