Occupant Classification System (OCS) Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS (occupant classification system) reset when a front passenger seat cushion is disassembled, a new trim cover or heater mat is installed or an OCS (occupant classification system) service kit is installed. Use a diagnostic scan tool to carry out the OCS (occupant classification system) reset command.
NOTE: OCS (occupant classification system) components (seat cushion foam, bladder with OCSM (occupant classification system module)) are calibrated to each other and are serviced as an assembly with an OCS (occupant classification system) service kit. If a new OCS (occupant classification system) or seat cushion foam are needed, a new OCS (occupant classification system) service kit must be installed. The heater mat can be serviced separately.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: Pyrotechnic Device Health and Safety Precautions .

  2. Remove the front passenger seat. Refer to: Front Seat .

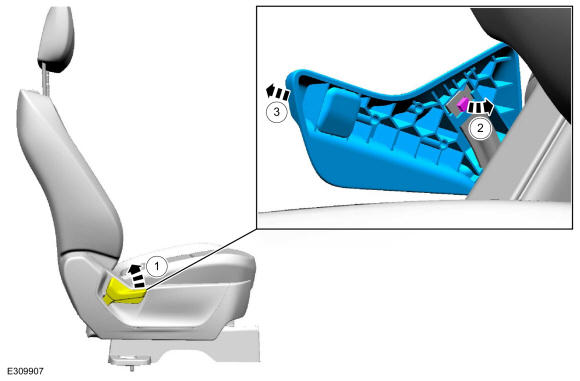

  3. If equipped with manual recline. Remove the front recline handle cover.

    1. Lift the recline handle.
    2. Release the tab.
    3. Remove the recline handle cover.

    GFD653665Courtesy of FORD MOTOR COMPANY

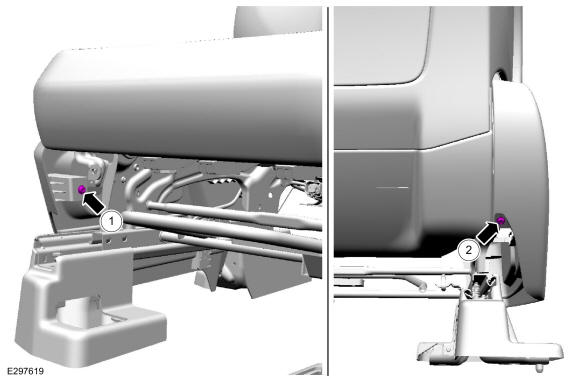

    1. Remove the front seat side shield front screw.
    2. Remove the front seat side shield rear screw.
    GFD654187Courtesy of FORD MOTOR COMPANY

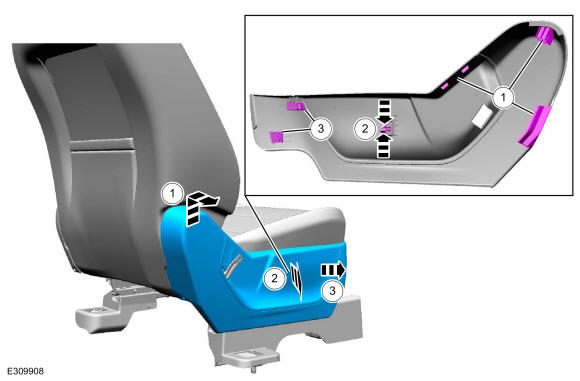

  5. If equipped with a manual seat track.

    1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
    2. From underneath the seat, squeeze the retainers together and pull out on the front seat side shield.
    3. Slide the front seat side shield forward and remove the front seat side shield.

    GFD653666Courtesy of FORD MOTOR COMPANY

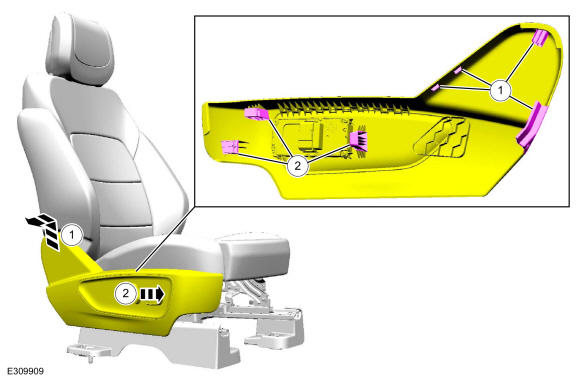

  6. If equipped with a power seat track.

    1. Lift up and out, separating the front seat side shield from the recliner bracket.
    2. Slide the front seat side shield forward and separate the front seat side shield from the seat.

    GFD654188Courtesy of FORD MOTOR COMPANY

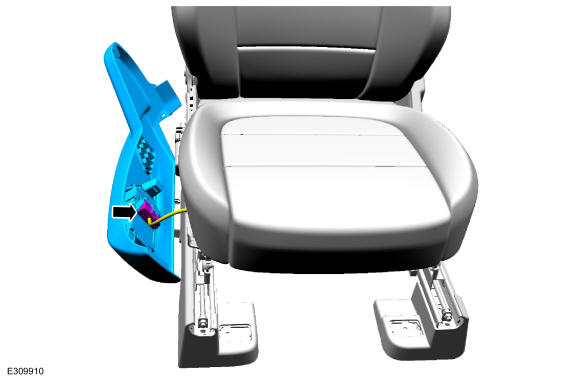

  7. If equipped with a power seat track. Disconnect the seat control switch electrical connector and remove the front seat side shield.
    GFD654189Courtesy of FORD MOTOR COMPANY

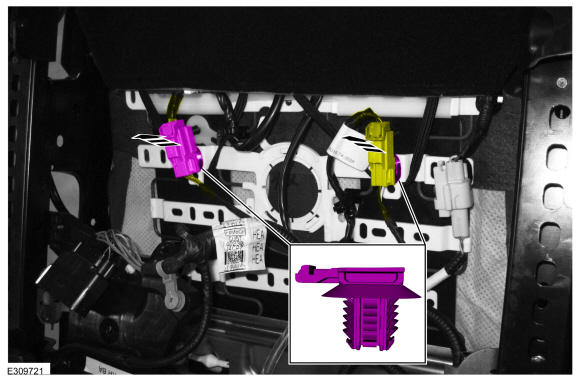

  8. If equipped with heated seats. Detach the electrical connector retainers, disconnect the front seat cushion heater mat electrical connector and position the wiring harnesses aside.
    GFD654190Courtesy of FORD MOTOR COMPANY

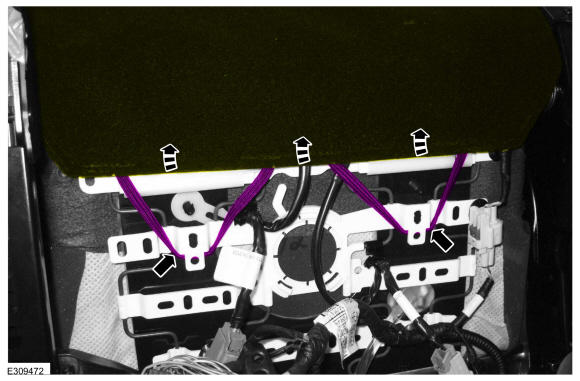

  9. Detach the front seat backrest cover straps and position the backrest cover aside.
    GFD654191Courtesy of FORD MOTOR COMPANY

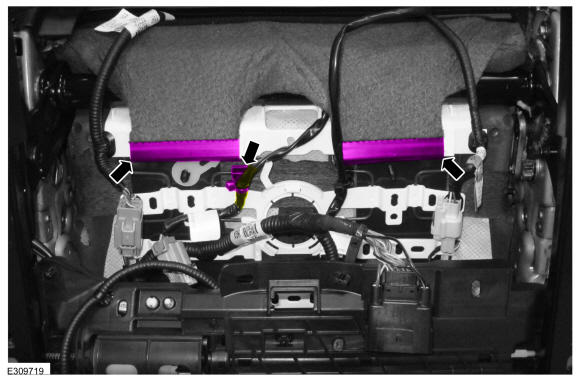

    • If equipped with heated seat. Detach the front seat cushion heater mat wiring harness retainer and position aside.

    • Detach the front seat cushion cover rear J-clips and position the cover aside.

    GFD654192Courtesy of FORD MOTOR COMPANY

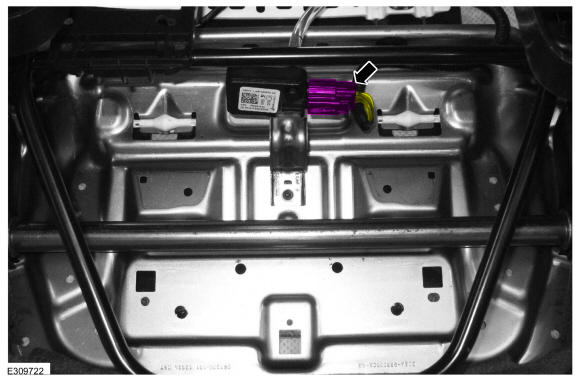

  11. Disconnect the OCSM and position the wiring harness aside.
    GFD654193Courtesy of FORD MOTOR COMPANY

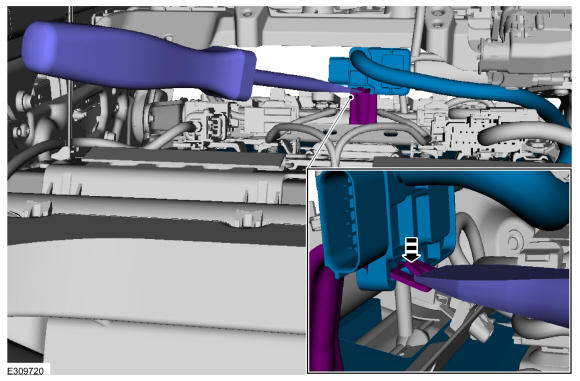

  12. NOTE: Using excessive force when bending the bracket tab can damage the OCSM (occupant classification system module) housing.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

    Bend the bracket tab and remove the OCSM from the bracket. Use the General Equipment: Flat Headed Screw Driver

    GFD654194Courtesy of FORD MOTOR COMPANY

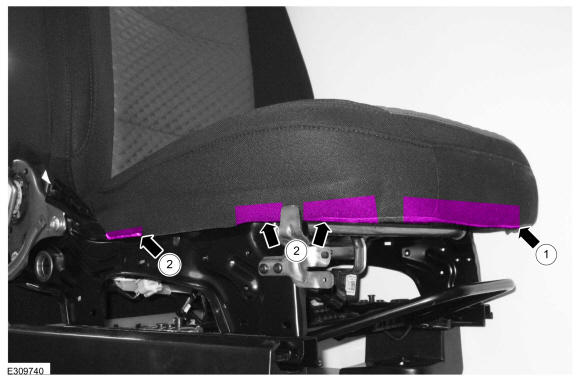

    1. Detach the front seat cushion cover J-clip.
    2. On both sides. Detach the front seat cushion cover J-clips.
    GFD654195Courtesy of FORD MOTOR COMPANY

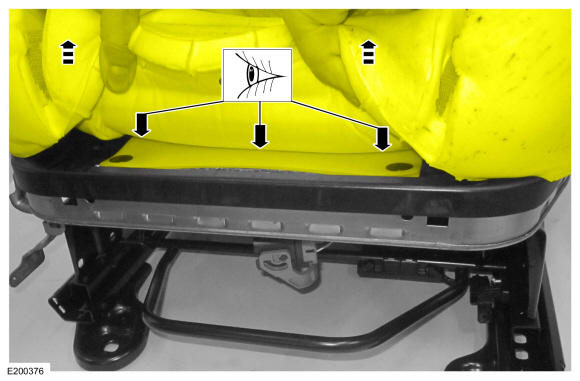

  14. NOTE: Typical seat shown in illustration.

    Lift the front seat cushion foam. If the cushion foam, and the OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is OE (original equipment).

    GFD654196Courtesy of FORD MOTOR COMPANY

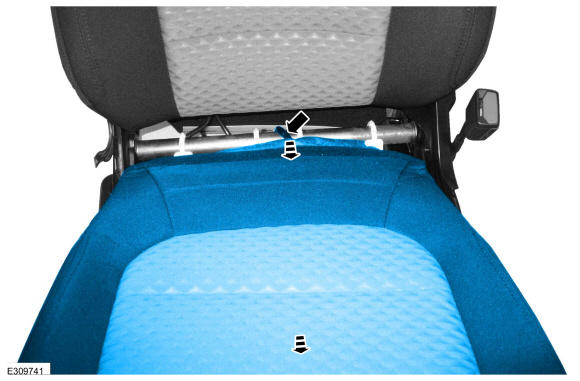

  15. If equipped with OE (original equipment) OCS, remove the cushion foam and cover as an assembly.

    • If equipped with heated seat. Route out the front seat cushion heater mat wiring harness pigtail.

    GFD654197Courtesy of FORD MOTOR COMPANY

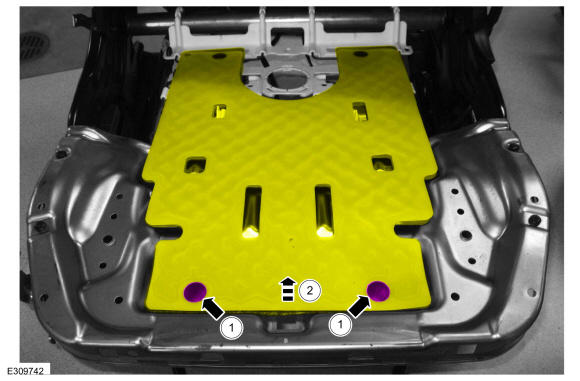

  16. NOTE: OE (original equipment) OCS (occupant classification system) shown in illustration, service kit similar.

    1. Detach the OCS pin-type retainers..
    2. Lift the OCS off the seat track.

    GFD654198Courtesy of FORD MOTOR COMPANY

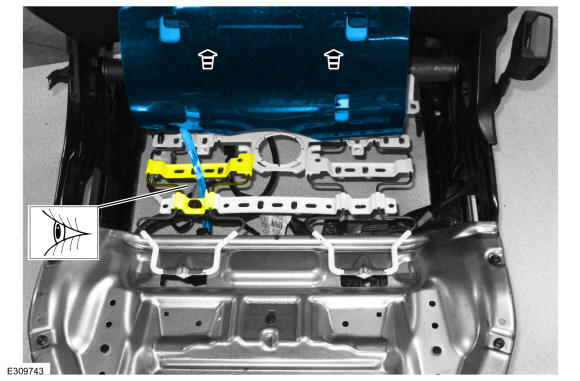

  17. NOTE: Note the location of the OCS (occupant classification system) hose as it passes through the seat springs for proper installation.

    Route out the OCS hose and sensor from between the front seat cushion support wires and remove the OCS.

    GFD654199Courtesy of FORD MOTOR COMPANY

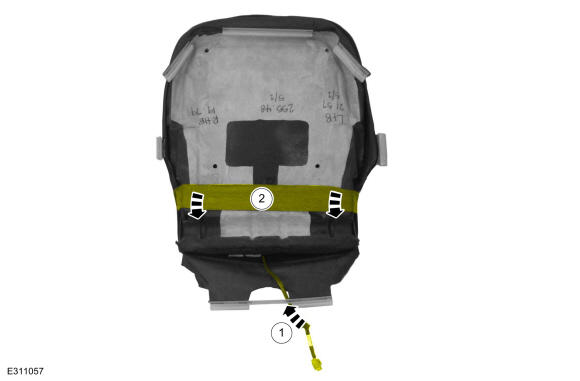

  18. NOTE: This step is only necessary when installing a new OCS (occupant classification system).

    1. Route the front seat cushion heater mat wiring harness through the cushion cover
    2. Position the rear portion of the front seat cushion cover from the foam.

    GFD653685Courtesy of FORD MOTOR COMPANY

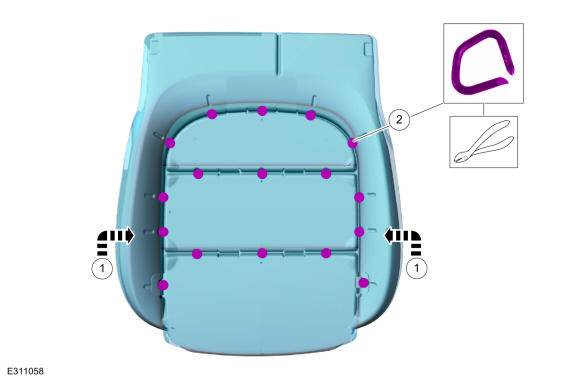

  19. NOTE: This step is only necessary when installing a new OCS (occupant classification system).
    NOTE: Follow the unique instructions or graphic for this step in the installation.

    Remove the front seat cushion cover.

    1. Invert the cushion cover.
    2. Remove the hog rings.

GFD654200Courtesy of FORD MOTOR COMPANY
