Quick Release Coupling

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

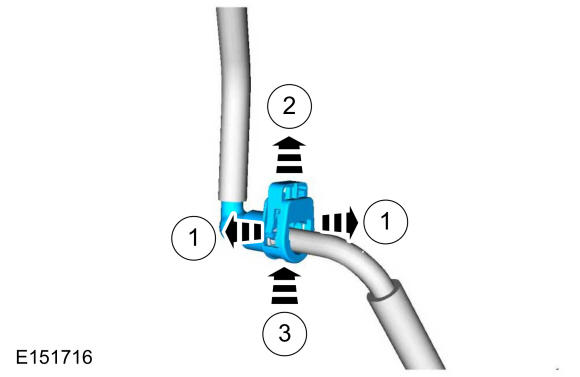

GFD409623Courtesy of FORD MOTOR COMPANY
GFD409624Courtesy of FORD MOTOR COMPANY

Connect

  1. Push the quick release coupling onto the tube.
    GFD409625Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

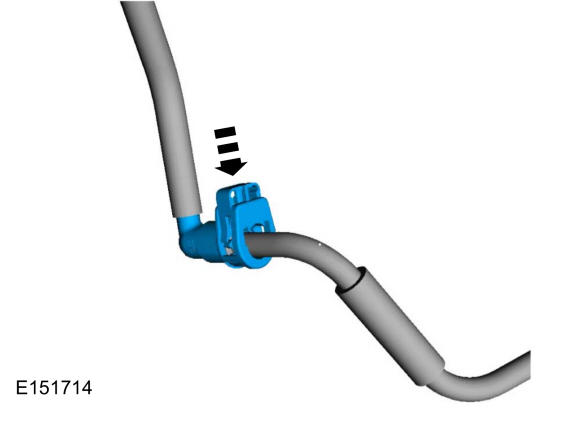

    GFD409626Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    GFD409627Courtesy of FORD MOTOR COMPANY
    GFD409628Courtesy of FORD MOTOR COMPANY

    Connect

    GFD409629Courtesy of FORD MOTOR COMPANY
    GFD409630Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    GFD409631Courtesy of FORD MOTOR COMPANY

    Connect

    GFD409632Courtesy of FORD MOTOR COMPANY
    GFD409633Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

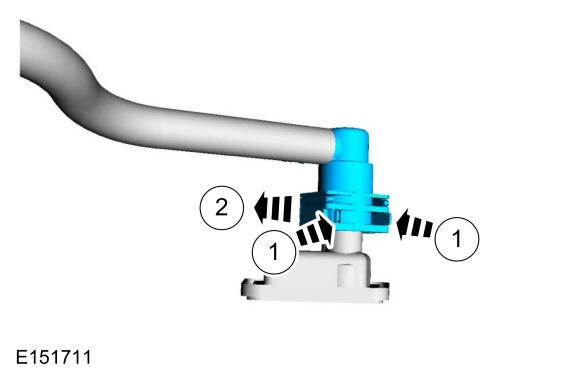

    GFD409634Courtesy of FORD MOTOR COMPANY
    GFD409635Courtesy of FORD MOTOR COMPANY

    Connect

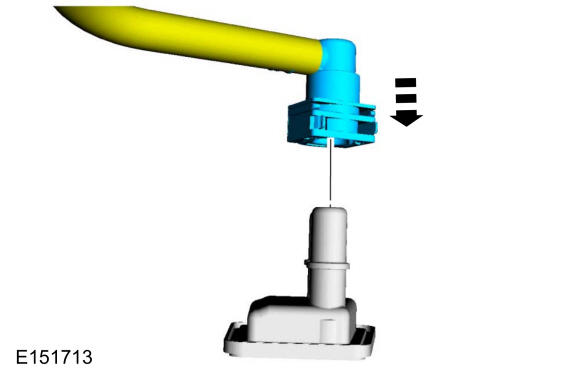

    GFD409636Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    GFD409637Courtesy of FORD MOTOR COMPANY
    GFD409638Courtesy of FORD MOTOR COMPANY

    Connect

    GFD409639Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.
GFD409640Courtesy of FORD MOTOR COMPANY
GFD409641Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD409642Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
GFD409643Courtesy of FORD MOTOR COMPANY
GFD409644Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD409645Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    GFD409637Courtesy of FORD MOTOR COMPANY
    GFD409638Courtesy of FORD MOTOR COMPANY

    Connect

    GFD409639Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.

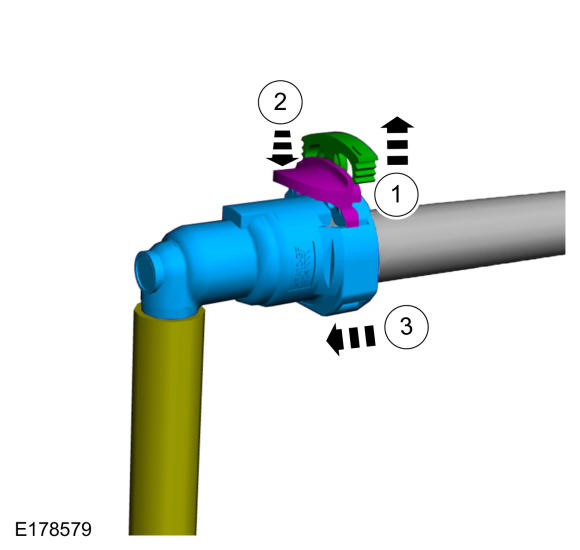

GFD409646Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

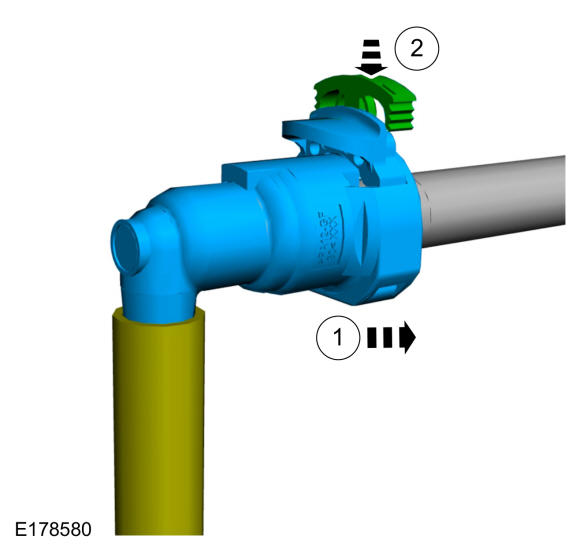

    GFD409647Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    1. Push on the locking tab.
    2. Lift the clip.

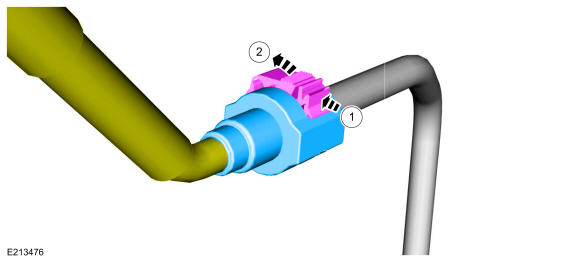

    GFD409648Courtesy of FORD MOTOR COMPANY
    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.

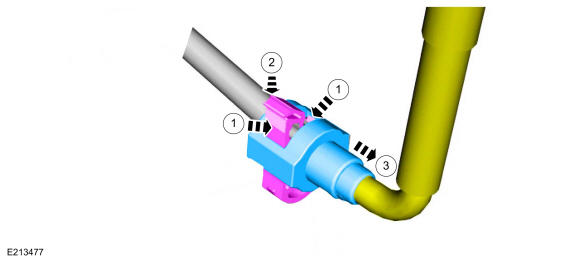

GFD409649Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

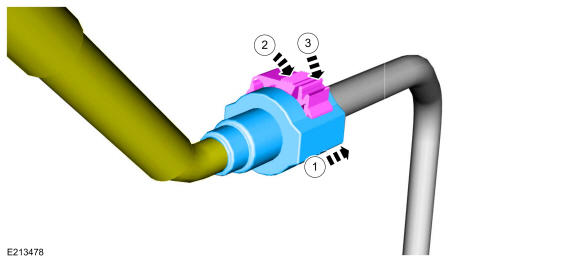

    GFD409650Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

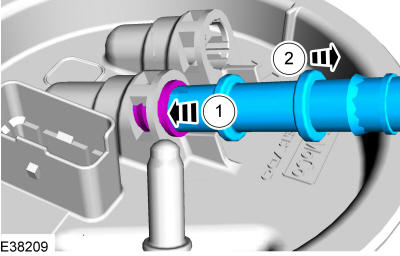

GFD409651Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409651Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

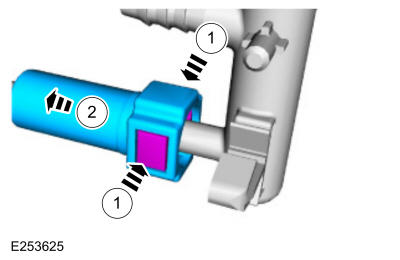

GFD409652Courtesy of FORD MOTOR COMPANY
GFD409653Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409654Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
GFD409655Courtesy of FORD MOTOR COMPANY

Connect

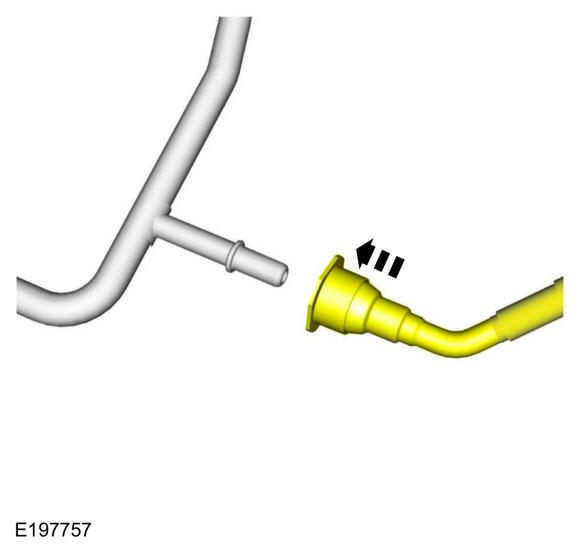

  1. GFD409656Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    GFD409657Courtesy of FORD MOTOR COMPANY

    Connect

    GFD409658Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
GFD409659Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD409660Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
GFD409661Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409661Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
GFD409662Courtesy of FORD MOTOR COMPANY

Connect

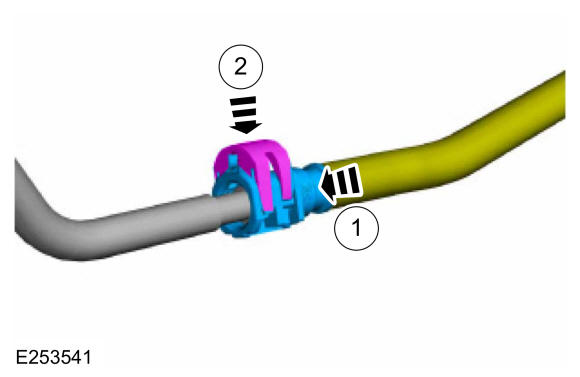

  1. GFD409663Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

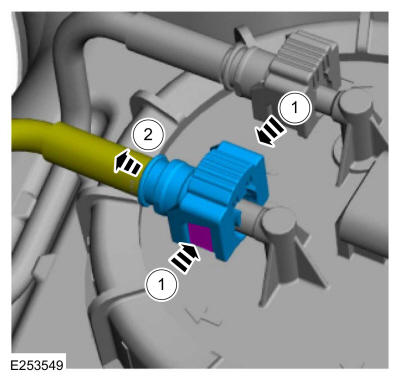

GFD409664Courtesy of FORD MOTOR COMPANY

Connect

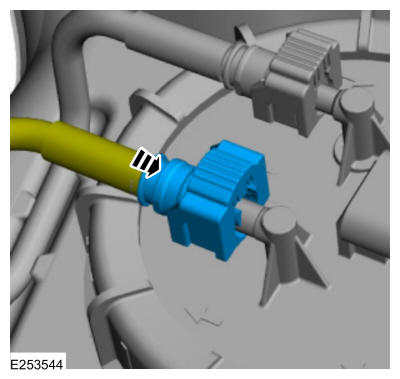

  1. GFD409665Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

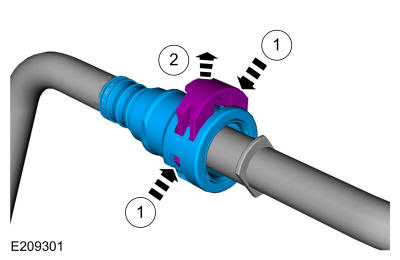

GFD409666Courtesy of FORD MOTOR COMPANY

Connect

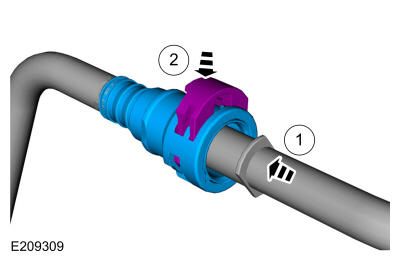

  1. GFD409667Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

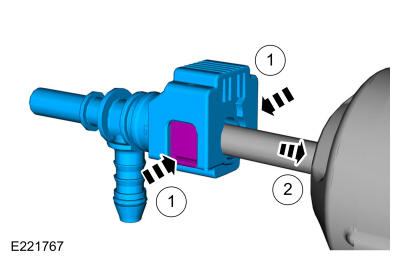

GFD409668Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409669Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

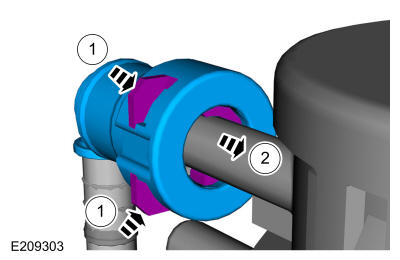

GFD409670Courtesy of FORD MOTOR COMPANY

Connect

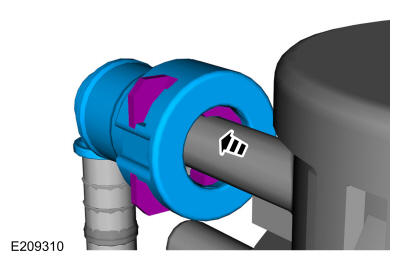

  1. GFD409671Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

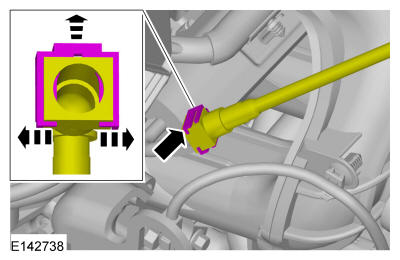

    GFD409672Courtesy of FORD MOTOR COMPANY

    Connect

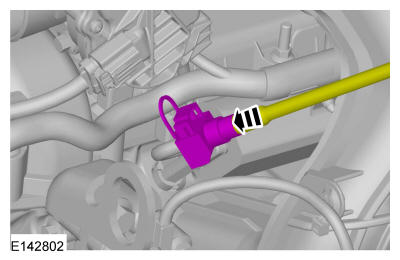

    GFD409673Courtesy of FORD MOTOR COMPANY

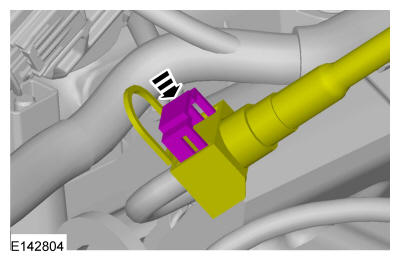

  3. GFD409674Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only neccessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

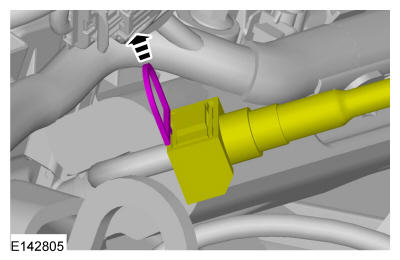

    GFD409675Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

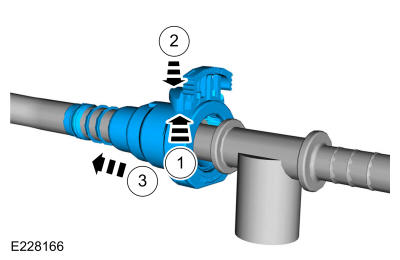

GFD409676Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD409677Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
GFD409678Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409679Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.

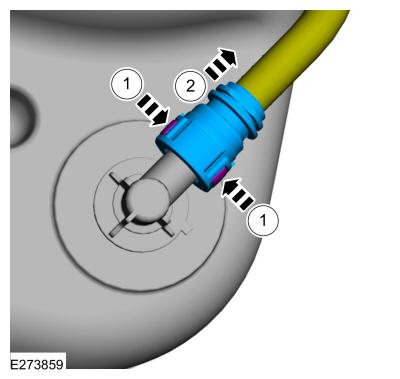

GFD409680Courtesy of FORD MOTOR COMPANY

Connect

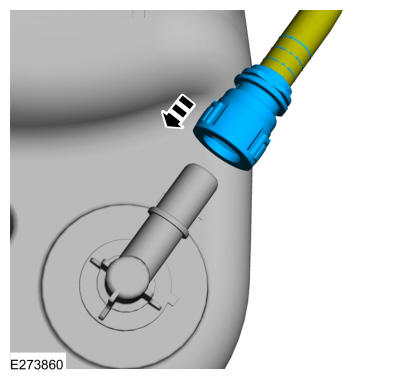

  1. GFD409681Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
    1. Remove the quick release coupling from the tube.

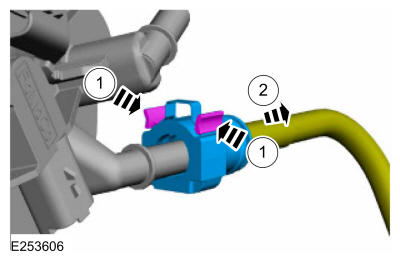

GFD409682Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD409683Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 6.2L V8 .
About FixVault
