Engine Ignition - Component Location

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

6.2L V8

Courtesy of FORD MOTOR COMPANY

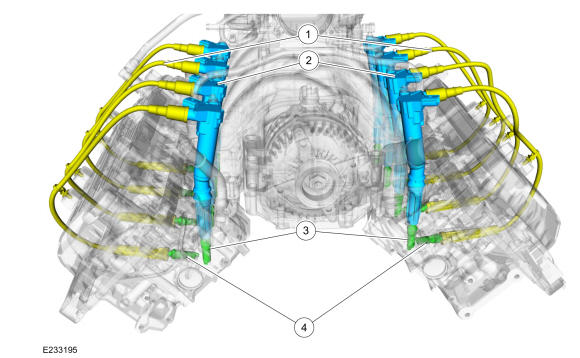

Item	Description
1	Spark plug wires
2	Ignition coil-on-plugs
3	Spark plugs - upper
4	Spark plugs - lower
