Transfer Case Shift Motor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the transfer case skid plate.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the harness connector.

Courtesy of FORD MOTOR COMPANY

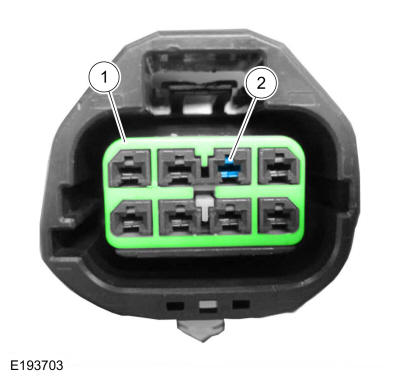

Remove the coil wire pin from the electrical connector.
1. Remove the inner retainer from the wire connector.
2. Press the release tab and remove the coil wire pin.
Courtesy of FORD MOTOR COMPANY

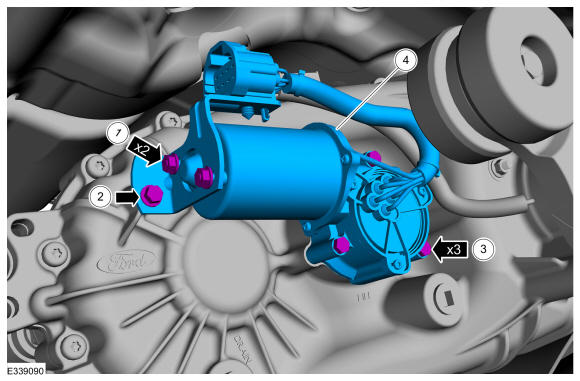

1. Loosen the transfer case shift motor bracket nuts.
2. Remove the transfer case shift motor bracket bolt.
3. Remove the transfer case shift motor bolts.
4. Remove the transfer case shift motor.
