Front Seat: Installation

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
Install the front seat bolts in the following sequence.
1. Install the front inboard bolt.
  Torque: 30 lb.ft (40 Nm)
2. Install the front outboard bolt.
  Torque: 30 lb.ft (40 Nm)
3. Install the rear inboard bolt.
  Torque: 30 lb.ft (40 Nm)
4. Install the rear outboard bolt.
  Torque: 30 lb.ft (40 Nm)

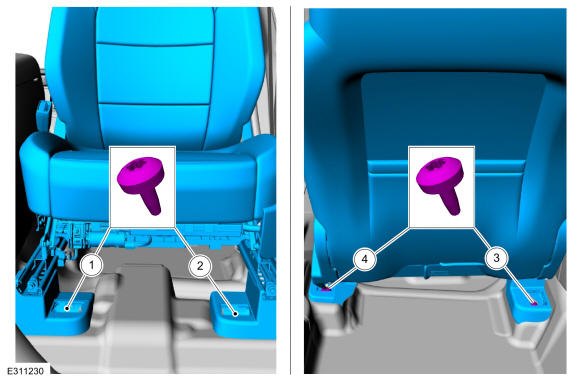

Fig 1: Front Seat Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
