Adjustable Steering Column

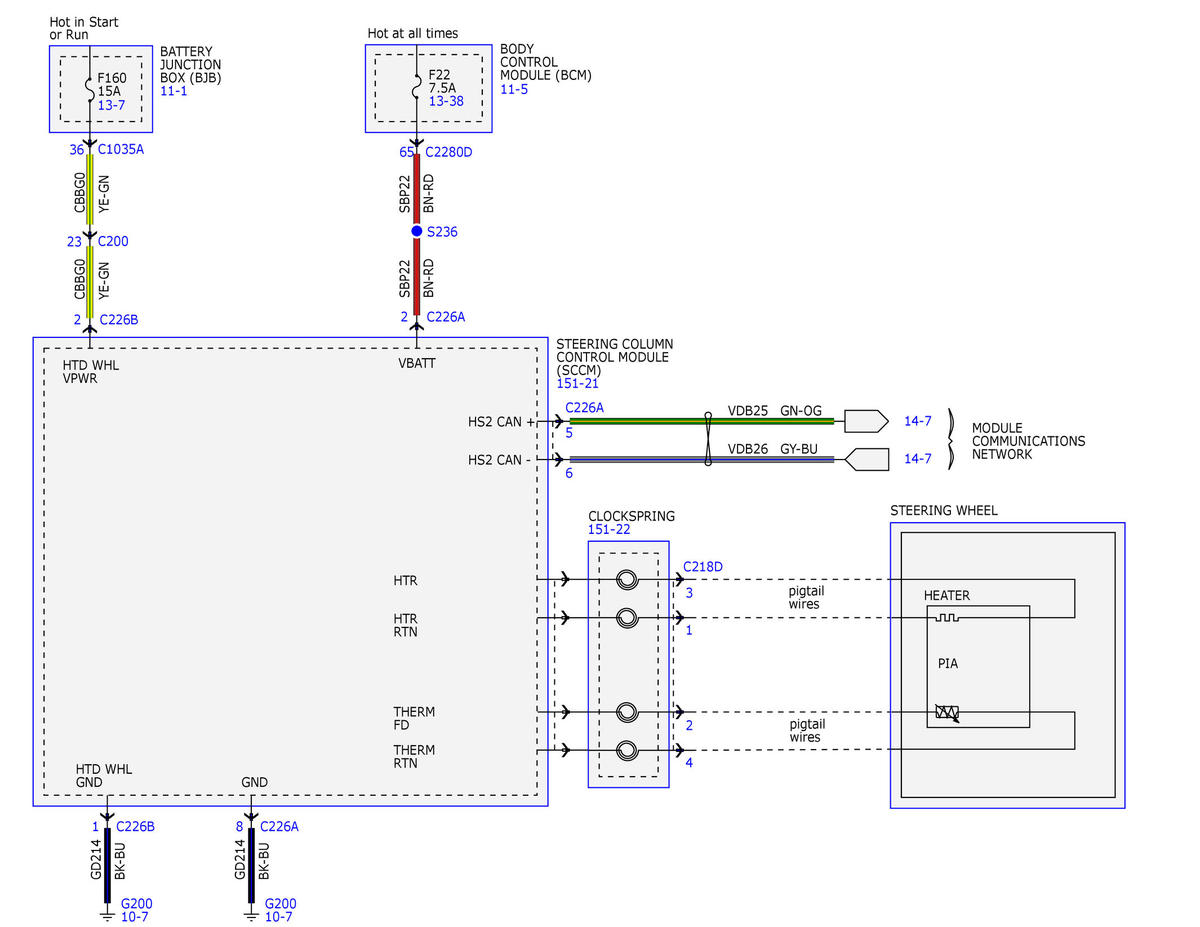

Fig 1: Adjustable Steering Column Wiring Diagram

GFDWR197839

Courtesy of FORD MOTOR COMPANY
