Cruise Control

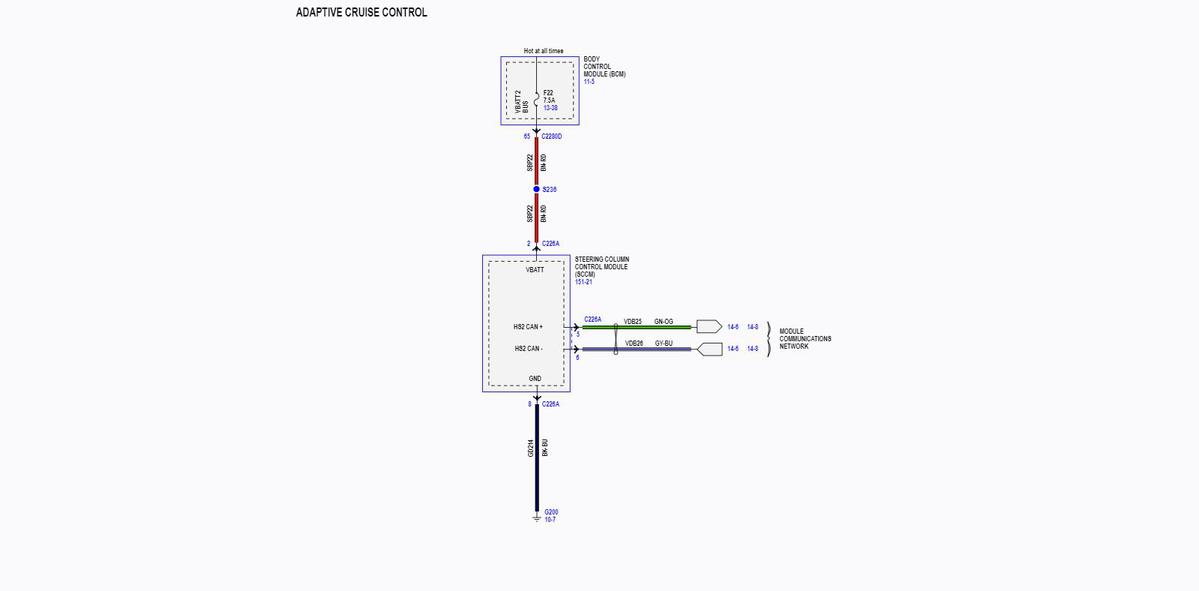

Fig 1: Cruise Control Wiring Diagram (1 Of 6)
GFDWR197887Courtesy of FORD MOTOR COMPANY

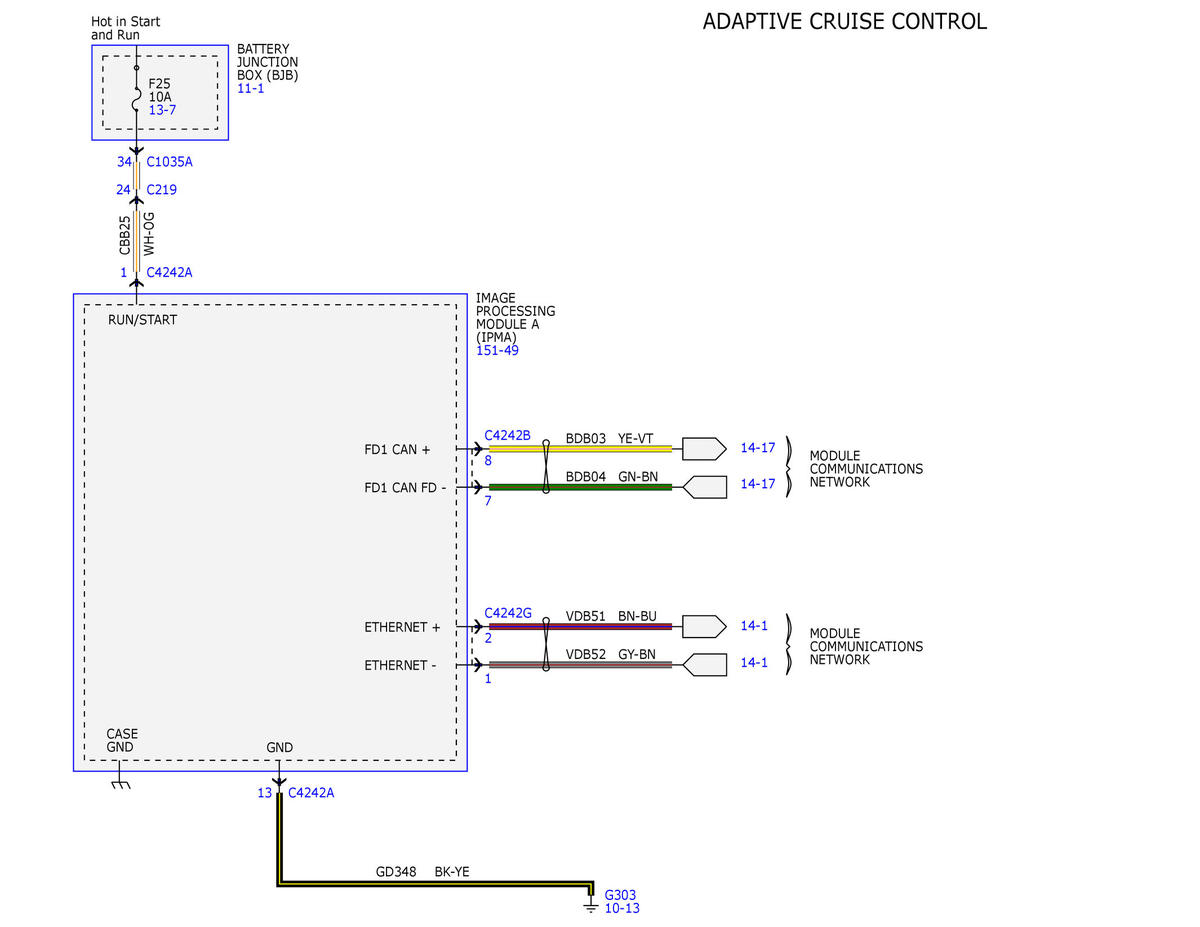

Fig 2: Cruise Control Wiring Diagram (2 Of 6)
GFDWR197888Courtesy of FORD MOTOR COMPANY
Fig 3: Cruise Control Wiring Diagram (3 Of 6)
GFDWR197889Courtesy of FORD MOTOR COMPANY
Fig 4: Cruise Control Wiring Diagram (4 Of 6)
GFDWR197890Courtesy of FORD MOTOR COMPANY
Fig 5: Cruise Control Wiring Diagram (5 Of 6)
GFDWR197891Courtesy of FORD MOTOR COMPANY
Fig 6: Cruise Control Wiring Diagram (6 Of 6)
GFDWR197892Courtesy of FORD MOTOR COMPANY
