Manual Climate Control System

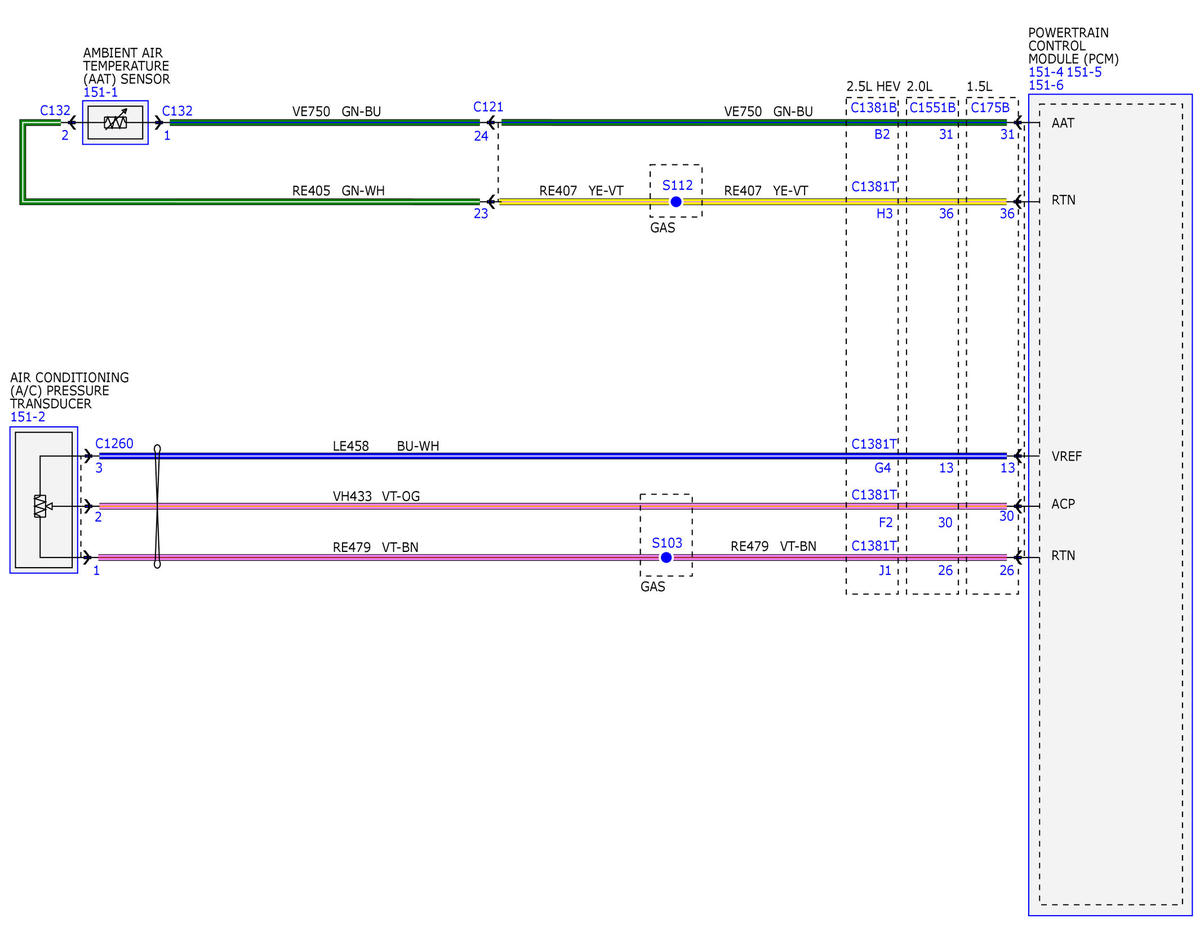

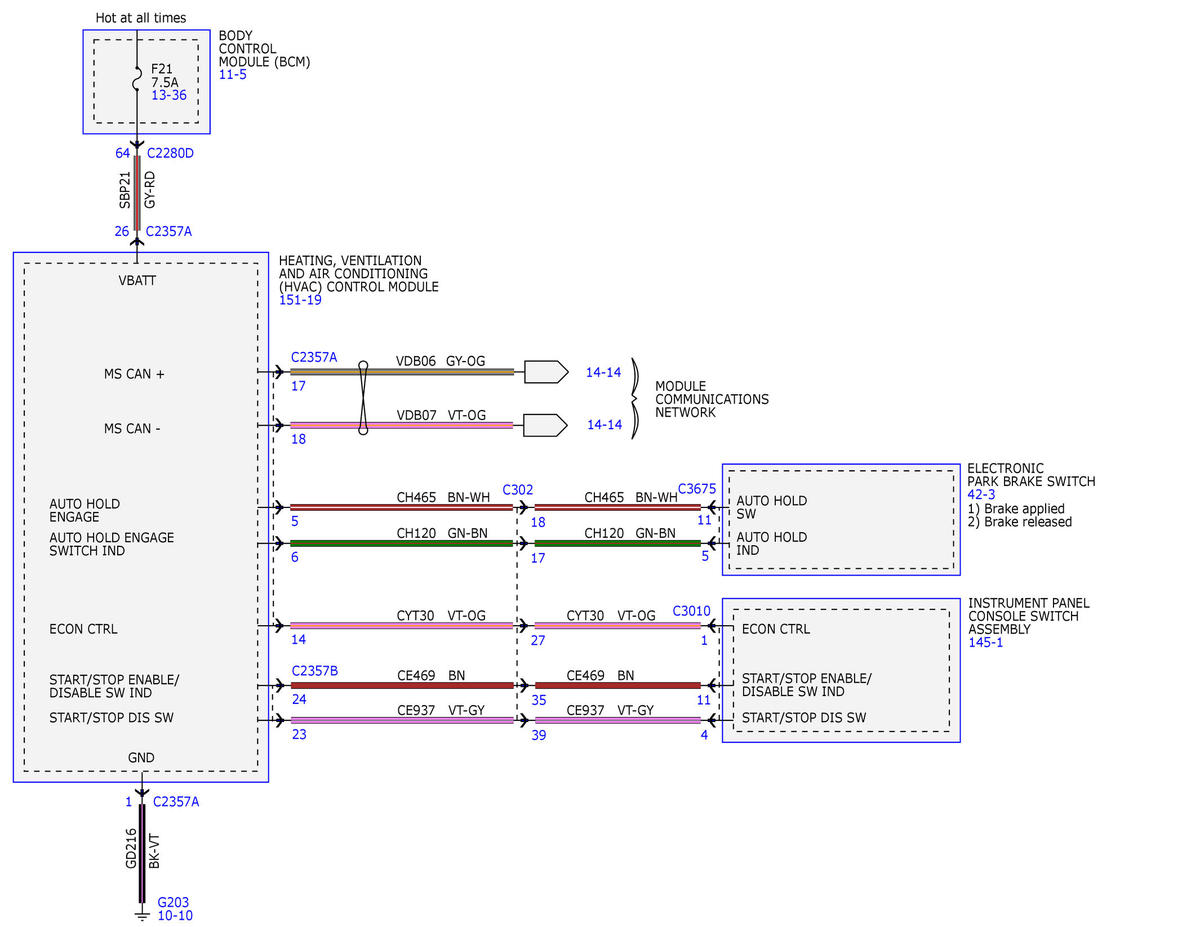

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 13)

Courtesy of FORD MOTOR COMPANY

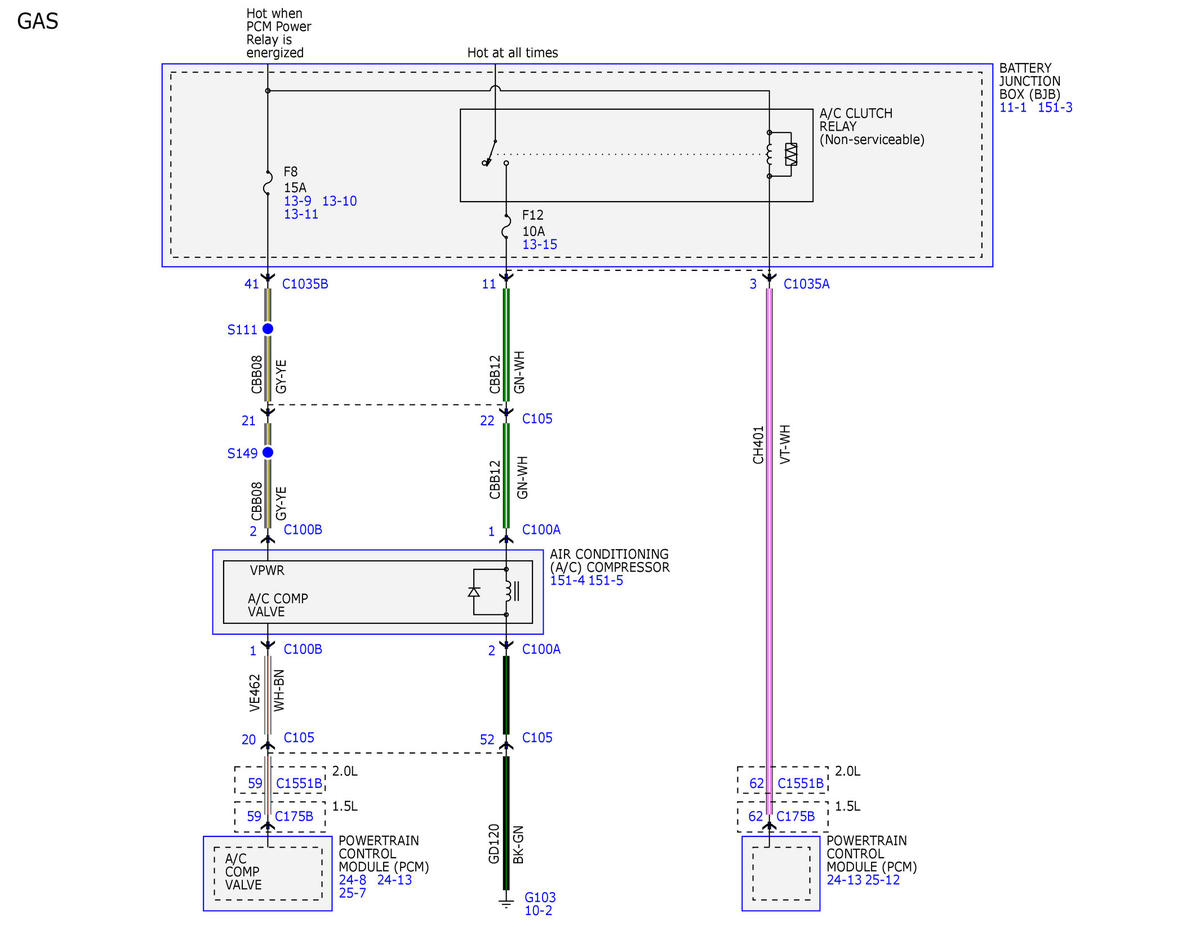

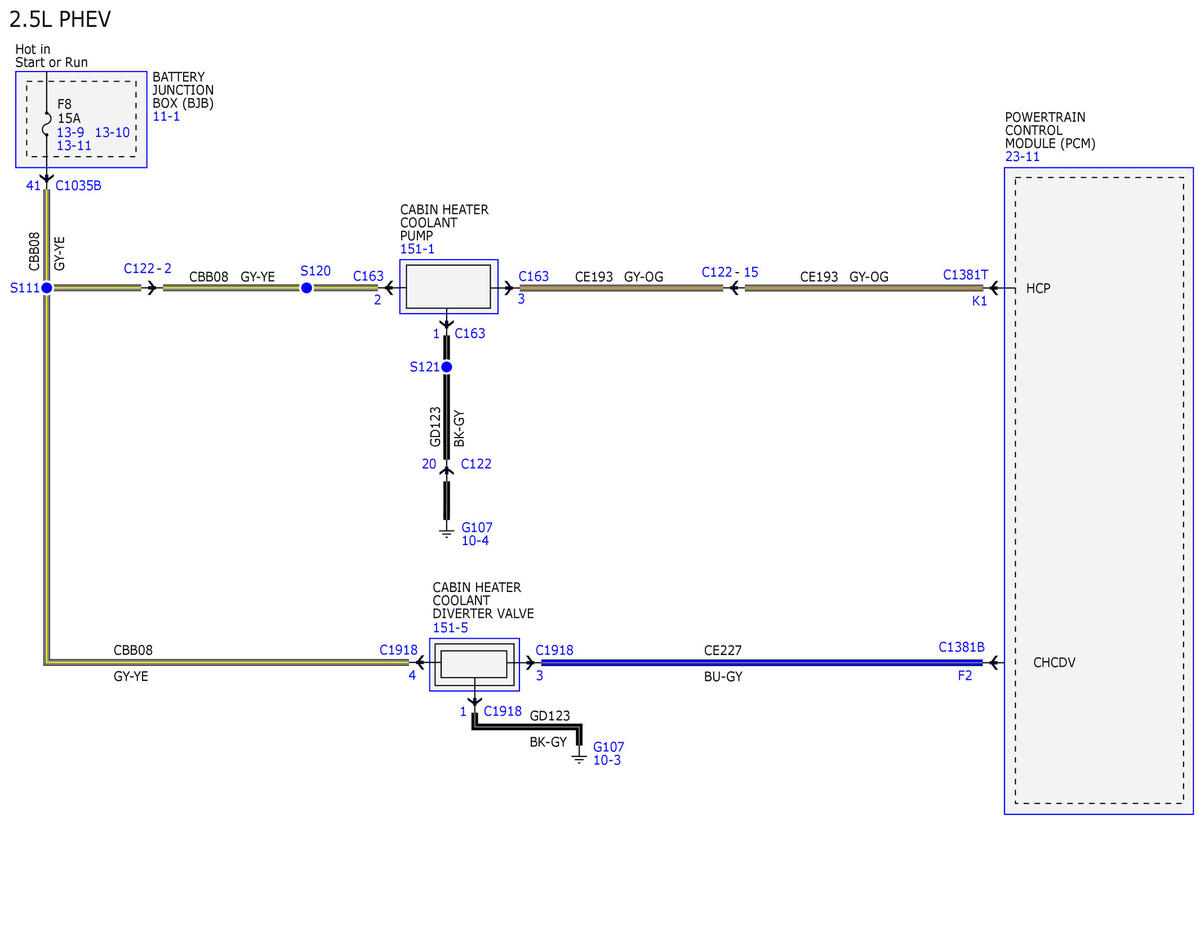

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 13)

Courtesy of FORD MOTOR COMPANY

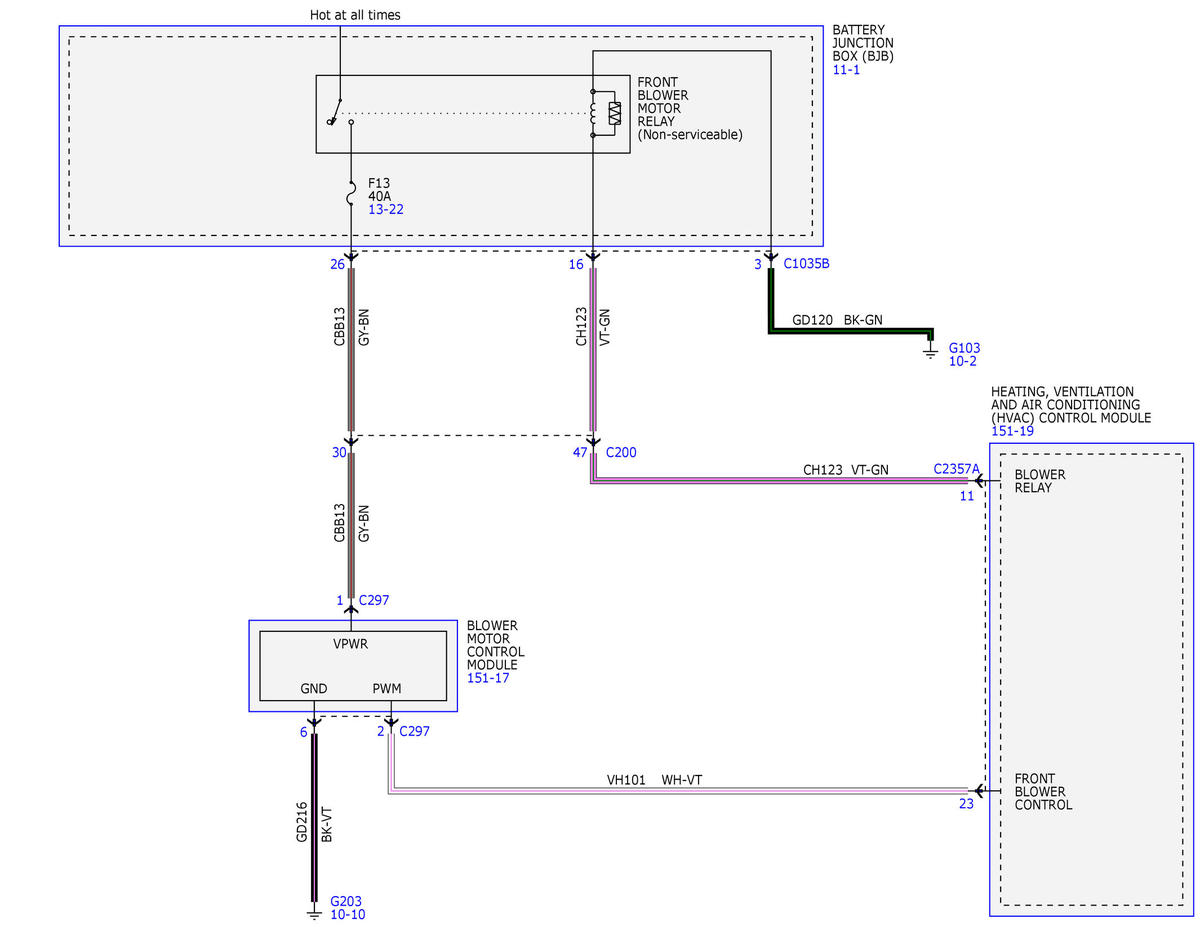

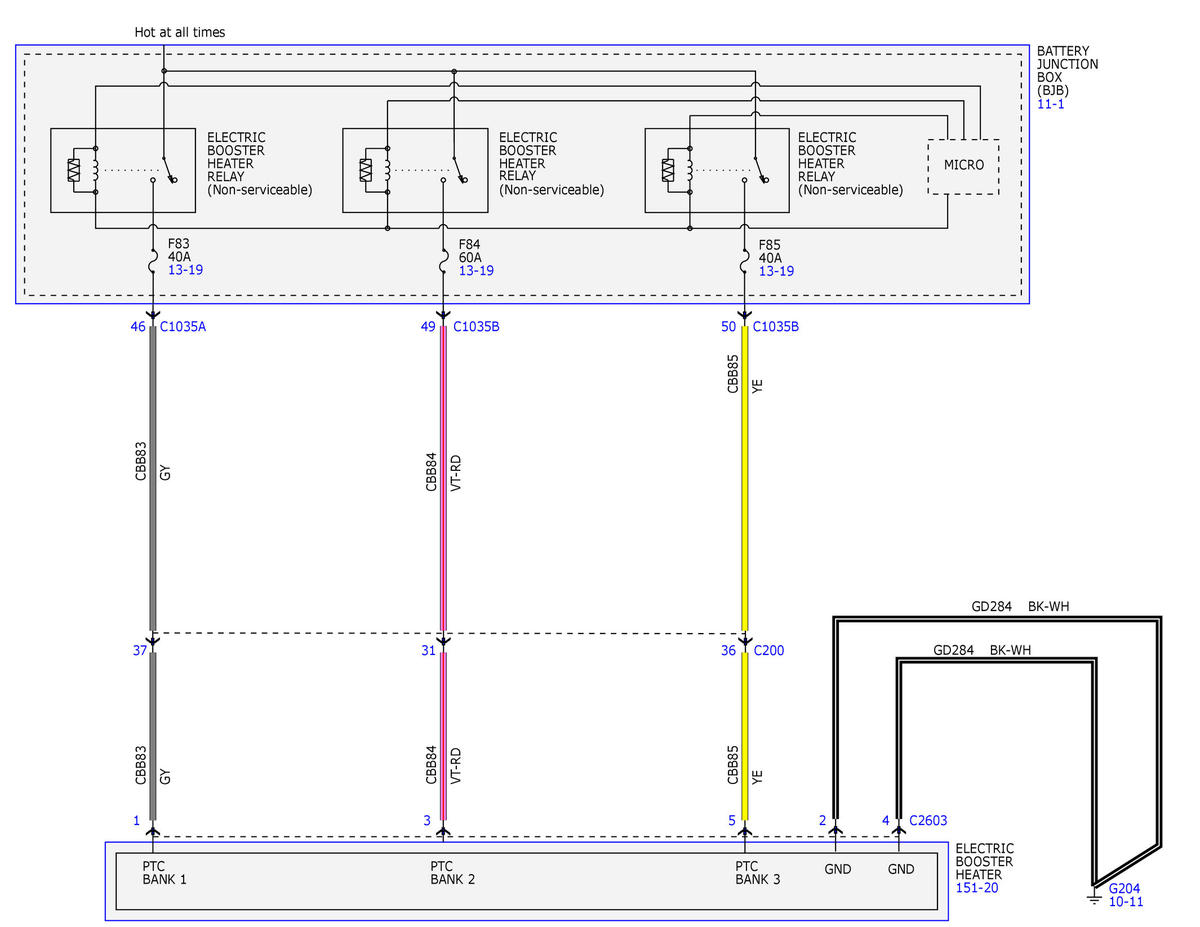

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 13)

Courtesy of FORD MOTOR COMPANY

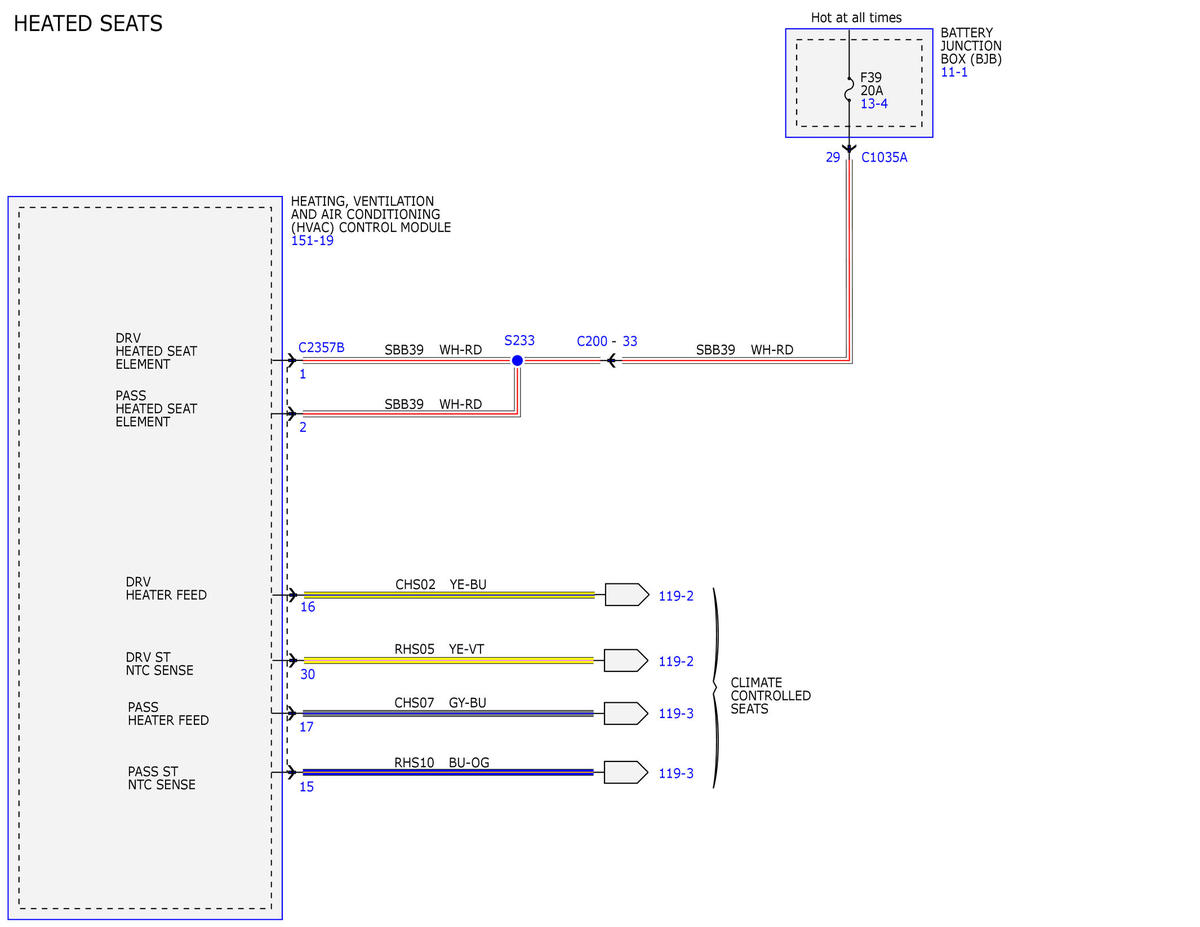

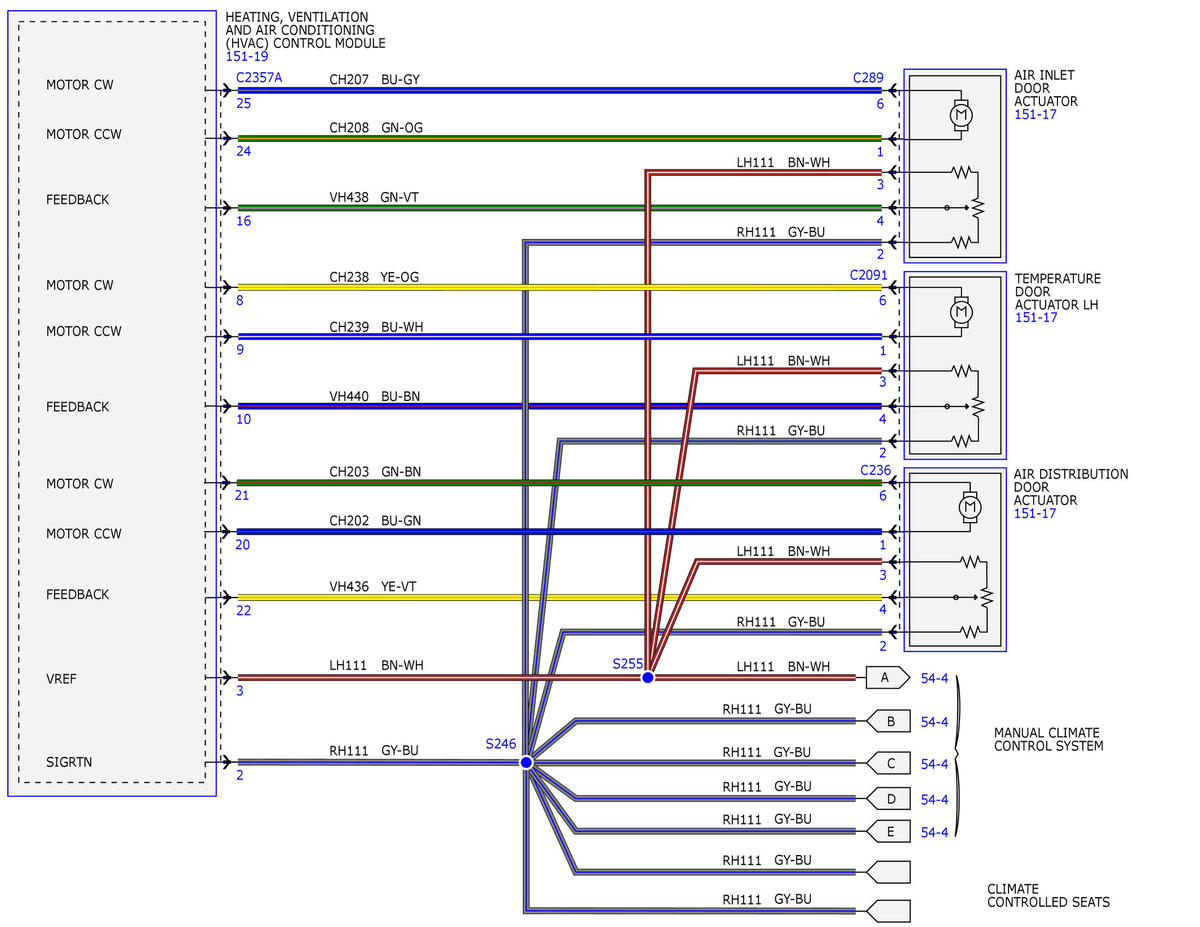

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 13)

Courtesy of FORD MOTOR COMPANY

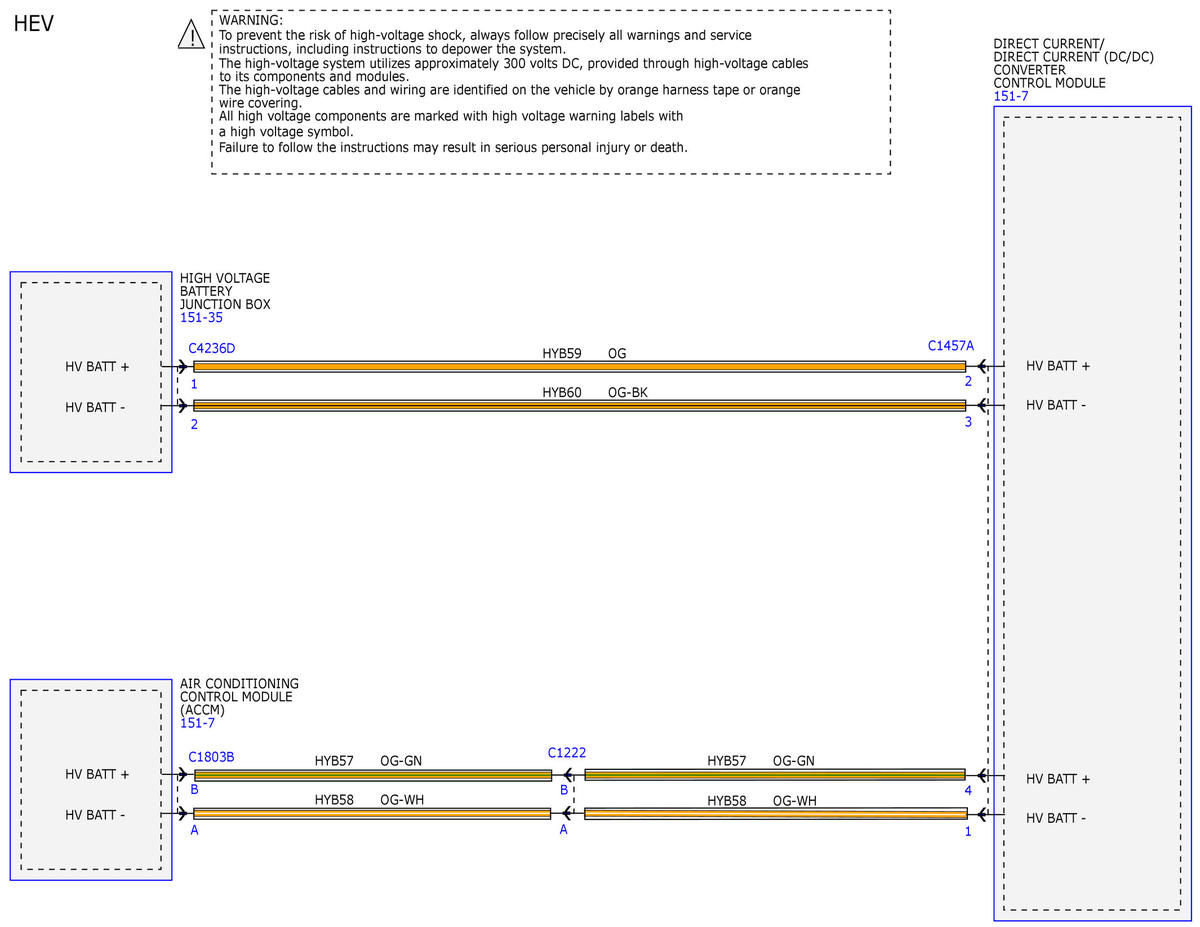

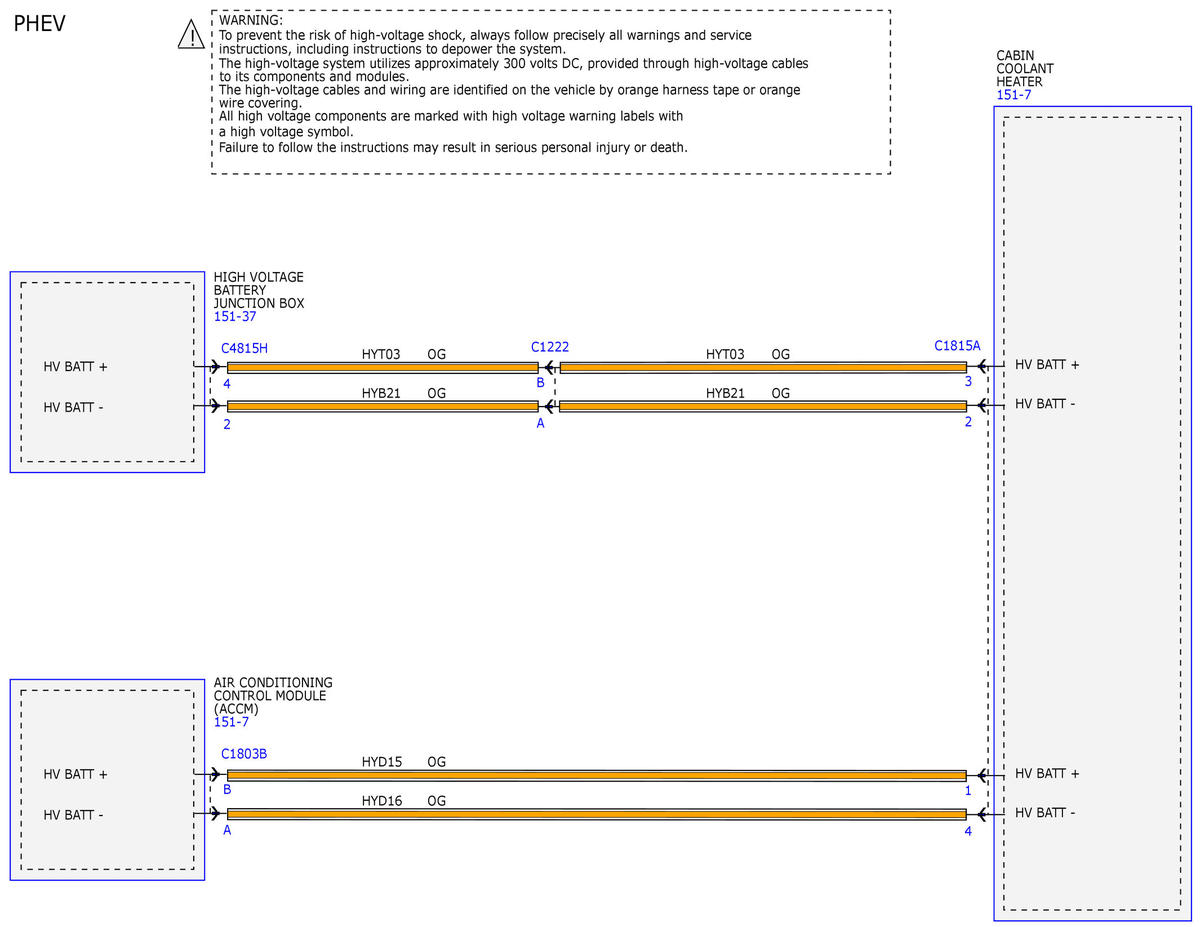

Fig 5: Manual Climate Control System Wiring Diagram (5 Of 13)

Courtesy of FORD MOTOR COMPANY

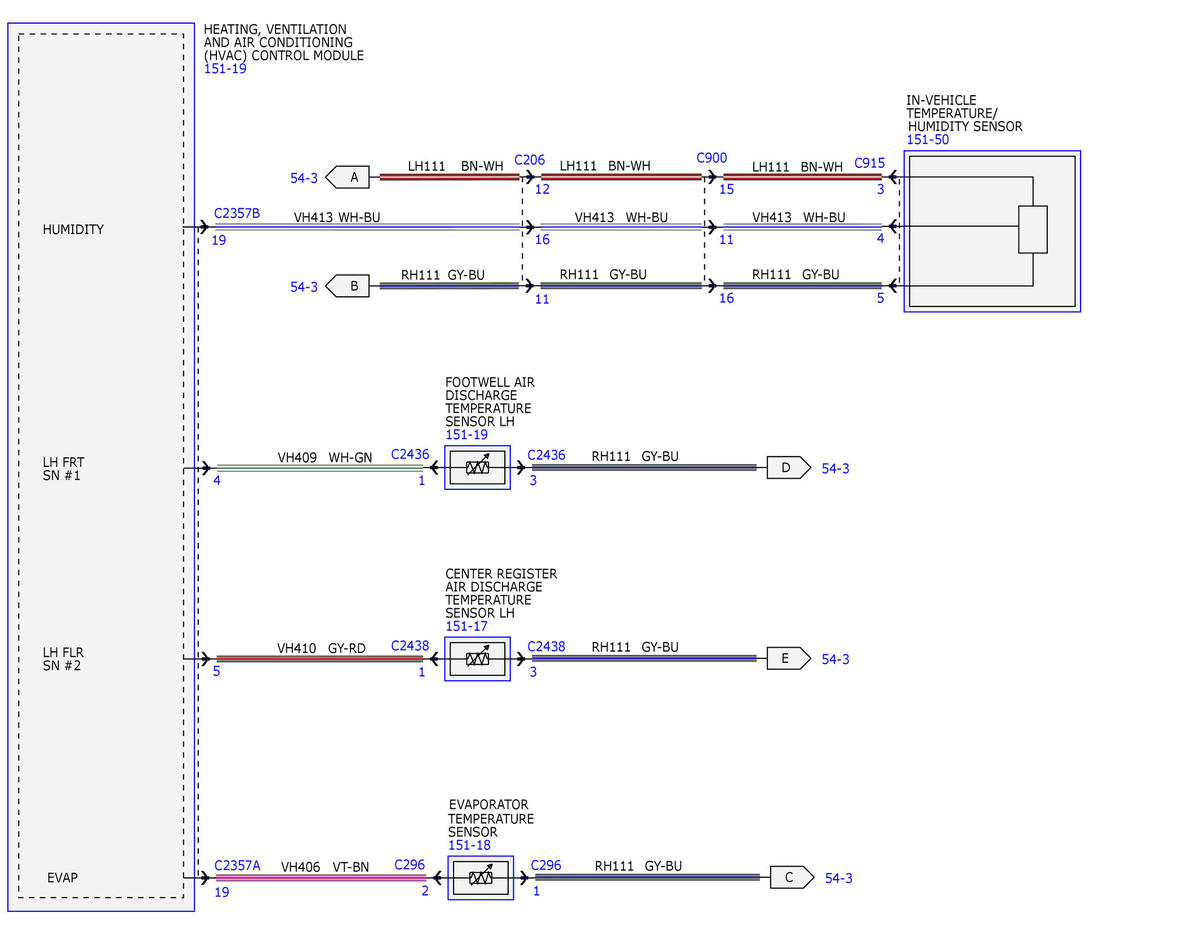

Fig 6: Manual Climate Control System Wiring Diagram (6 Of 13)

Courtesy of FORD MOTOR COMPANY

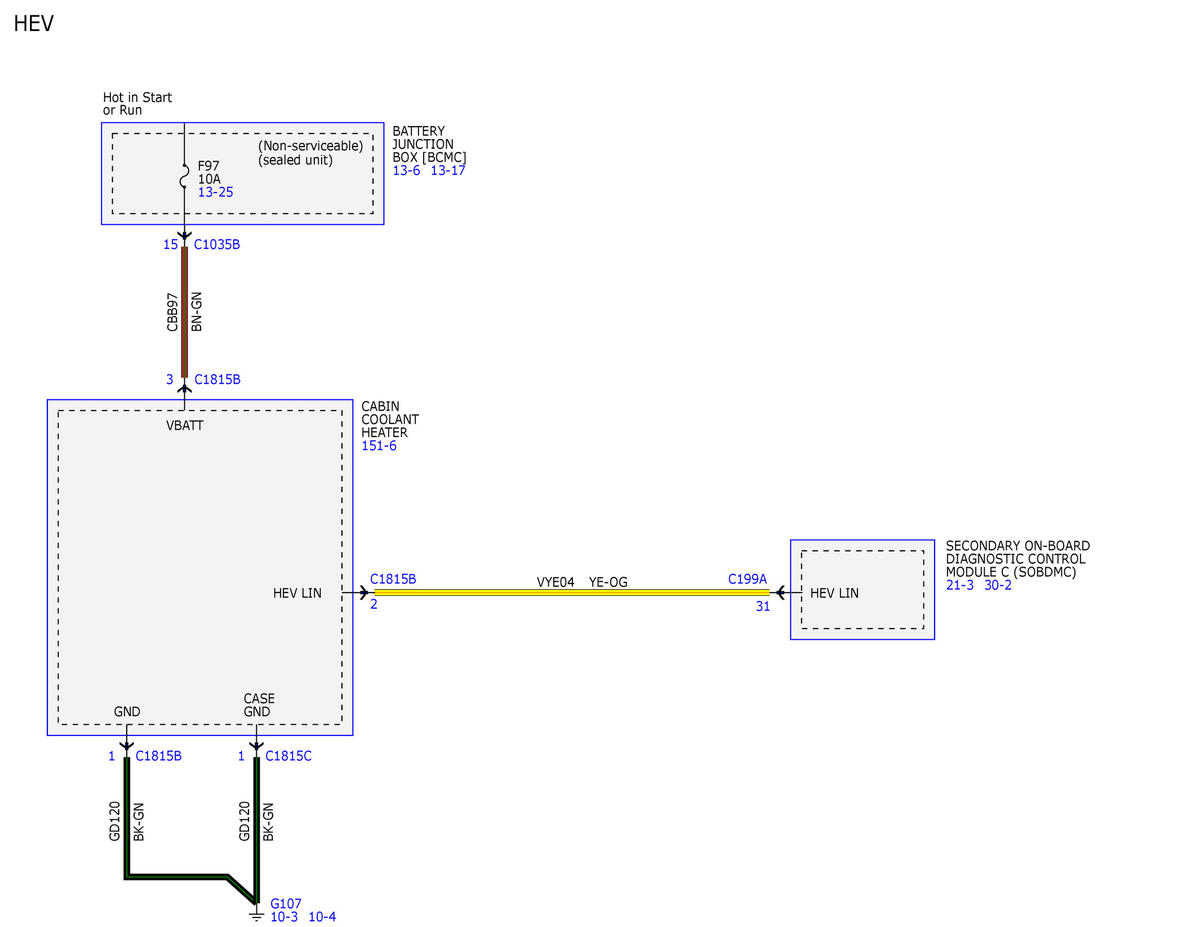

Fig 7: Manual Climate Control System Wiring Diagram (7 Of 13)

Courtesy of FORD MOTOR COMPANY

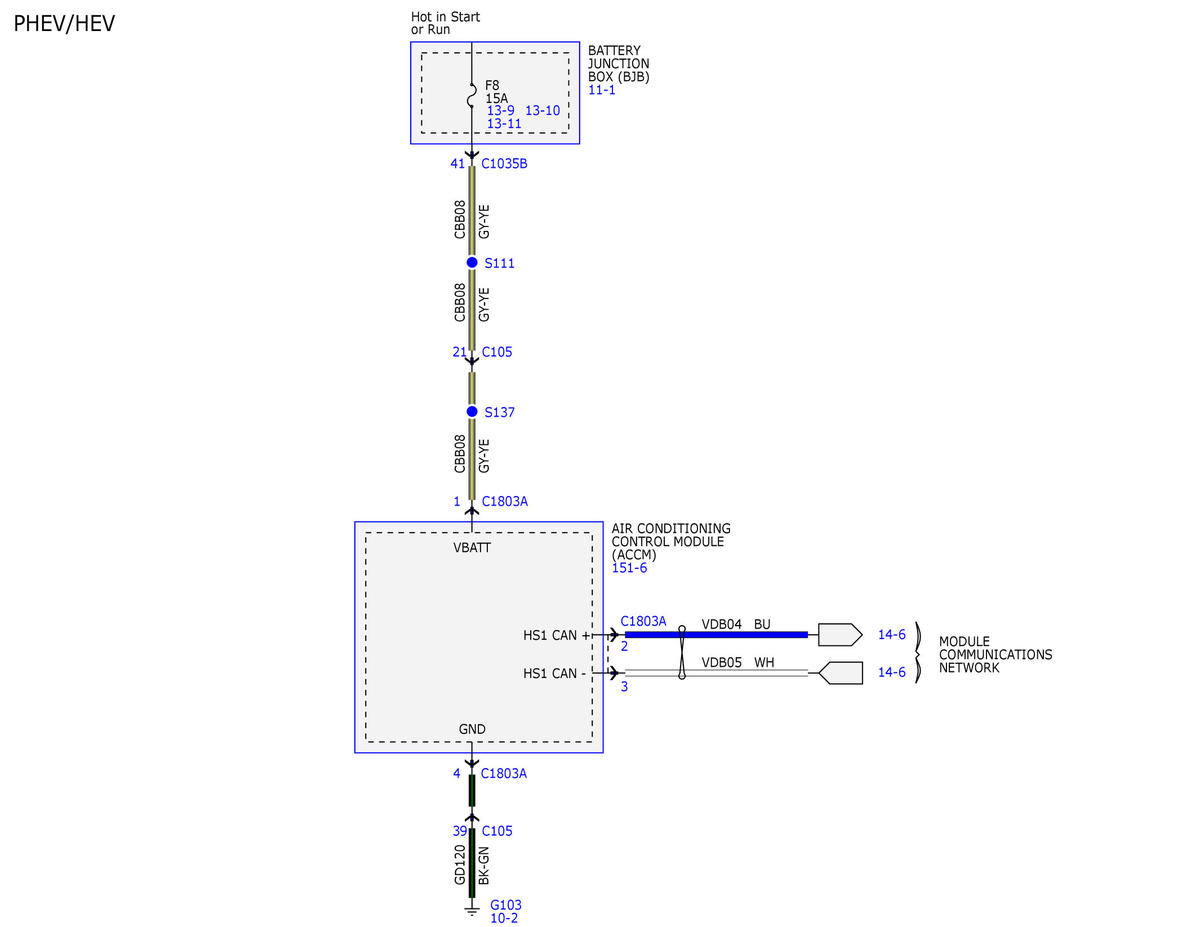

Fig 8: Manual Climate Control System Wiring Diagram (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Manual Climate Control System Wiring Diagram (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Manual Climate Control System Wiring Diagram (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Manual Climate Control System Wiring Diagram (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Manual Climate Control System Wiring Diagram (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Manual Climate Control System Wiring Diagram (13 Of 13)

Courtesy of FORD MOTOR COMPANY
