Power Liftgate

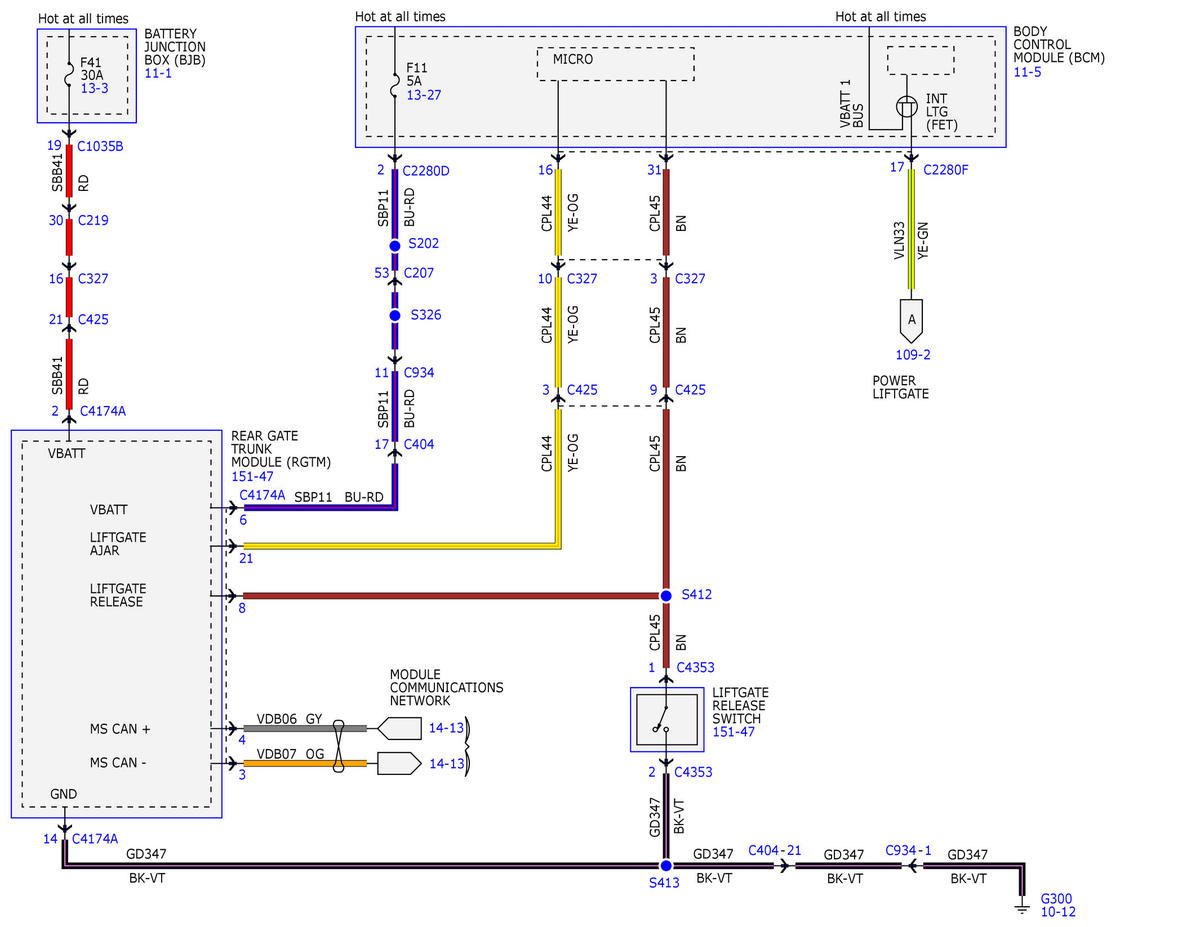

Fig 1: Power Liftgate Wiring Diagram (1 Of 5)
GFDWR198072Courtesy of FORD MOTOR COMPANY

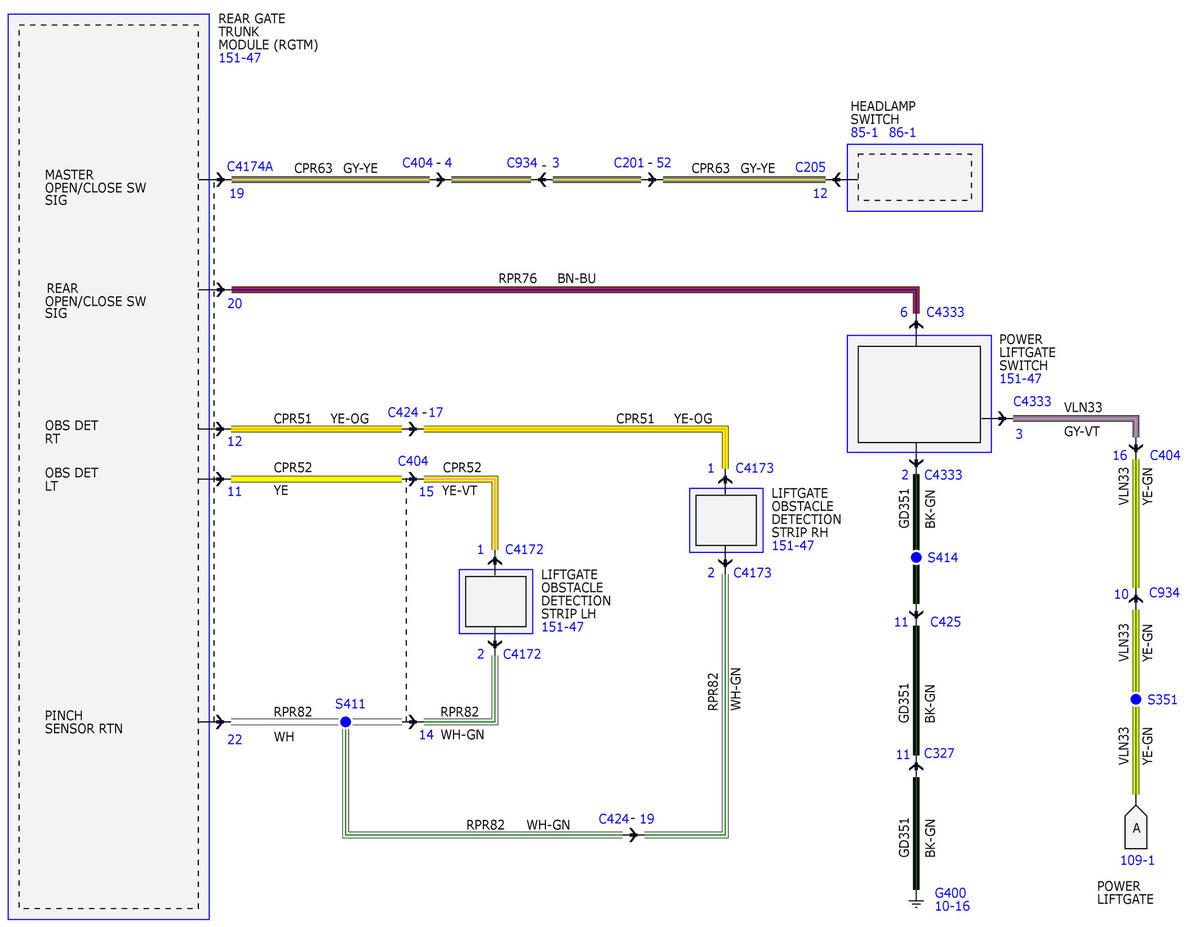

Fig 2: Power Liftgate Wiring Diagram (2 Of 5)
GFDWR198073Courtesy of FORD MOTOR COMPANY

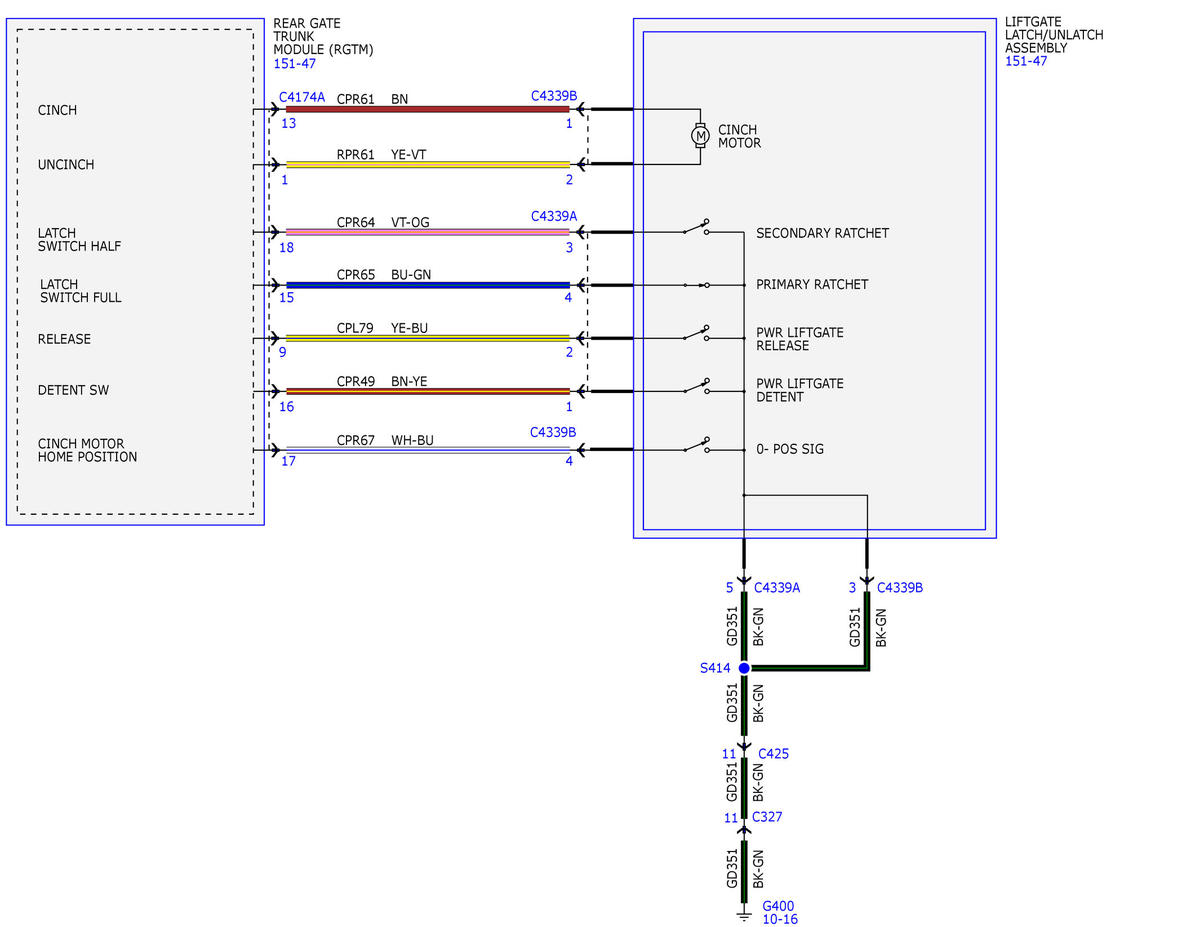

Fig 3: Power Liftgate Wiring Diagram (3 Of 5)
GFDWR198074Courtesy of FORD MOTOR COMPANY

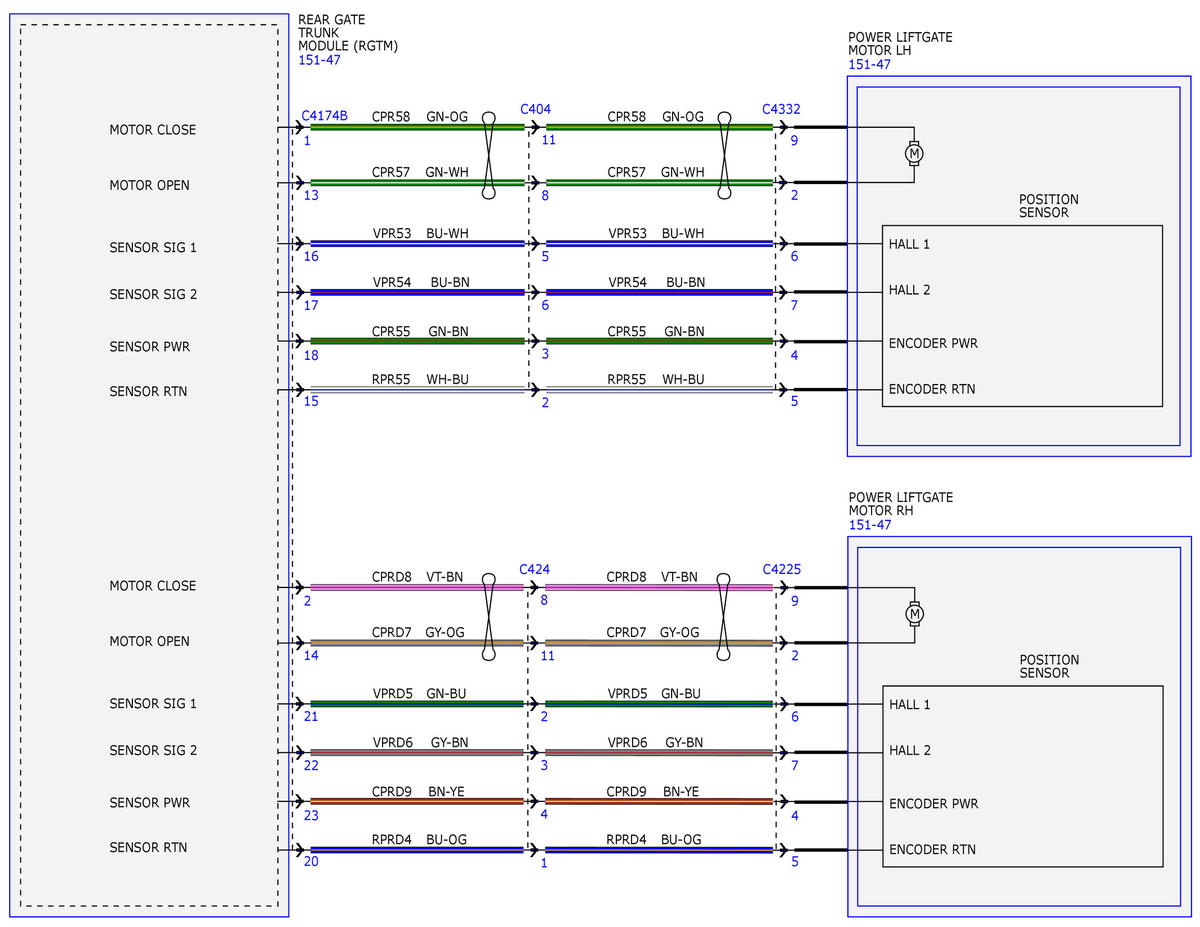

Fig 4: Power Liftgate Wiring Diagram (4 Of 5)
GFDWR198075Courtesy of FORD MOTOR COMPANY

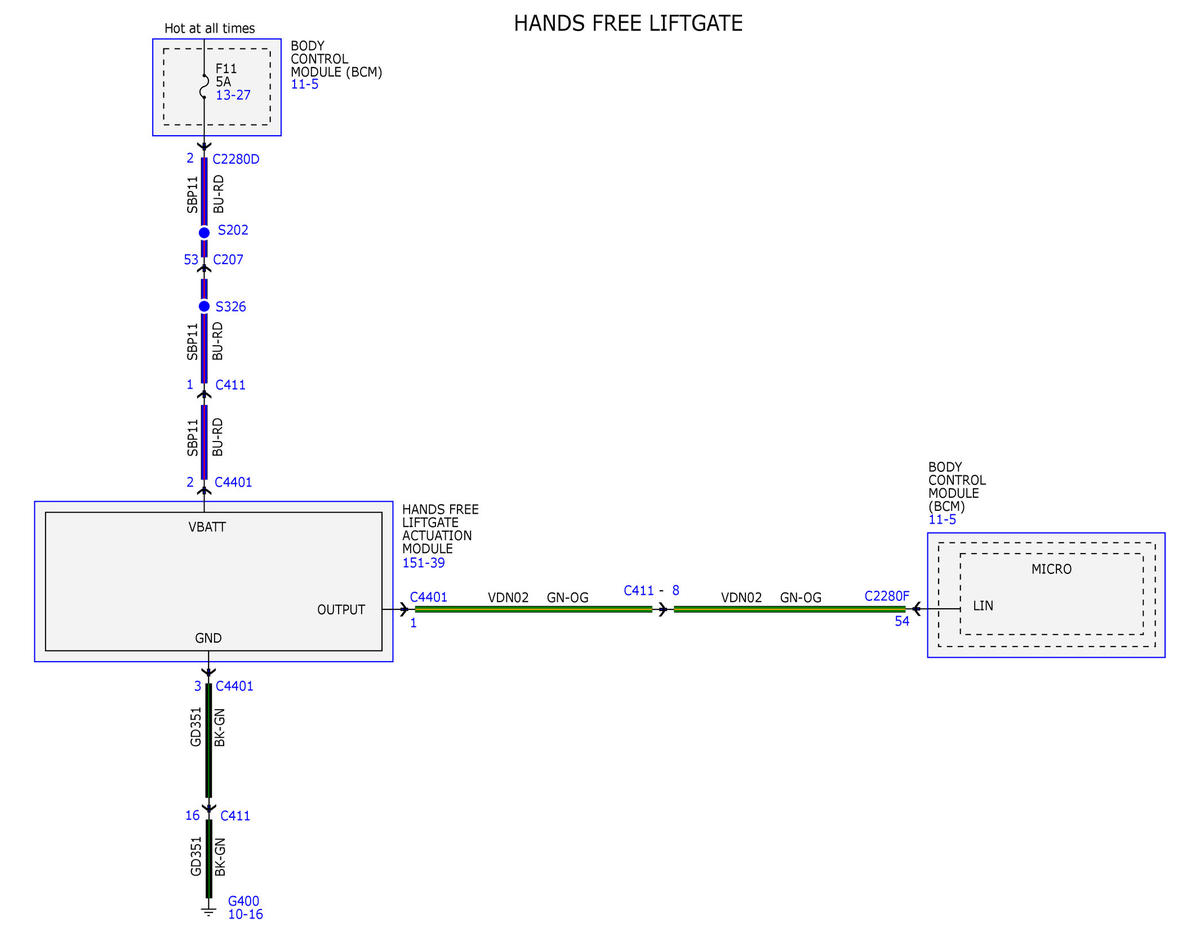

Fig 5: Power Liftgate Wiring Diagram (5 Of 5)
GFDWR198076Courtesy of FORD MOTOR COMPANY
