Axle Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation instructions.
- Remove the rear halfshafts. Refer to: Rear Halfshaft .
- Remove the fuel tank. Refer to: Fuel Tank - FWD - 1.5L EcoBoost (132kW/180PS) . Refer to: Fuel Tank - 4WD - 1.5L EcoBoost (132kW/180PS) . Refer to: Fuel Tank - 2.0L EcoBoost (184kW/250PS) . Refer to: Fuel Tank - 2.5L Duratec - Hybrid (121kW/164PS) .

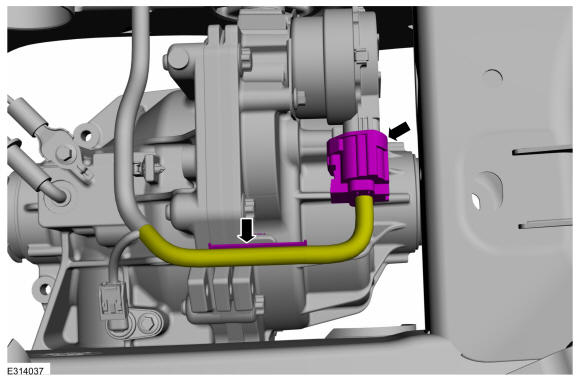

- Disconnect the RDU actuator motor electrical connector and detach wiring harness retainer.

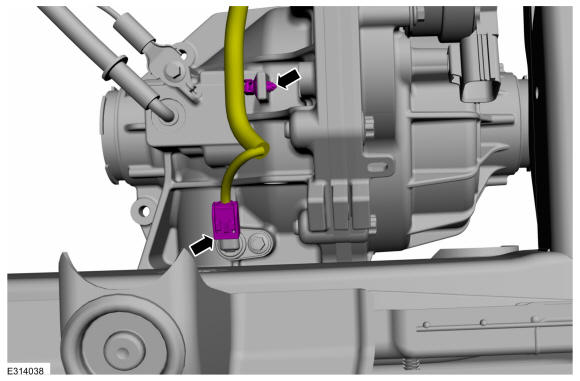

- Disconnect the RDU speed sensor electrical connector and detach wiring harness retainer.
-

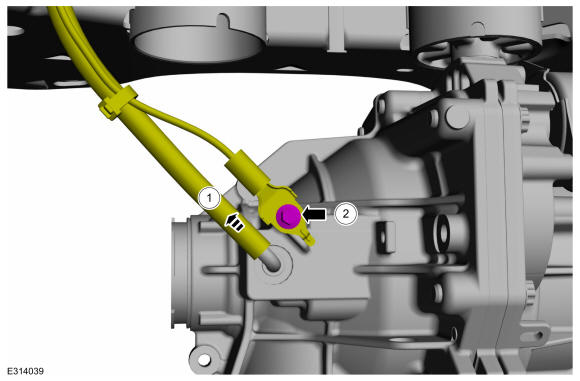

- Remove the rear differential vent hose from RDU and position aside.
- Remove the bolt and position the ground cable aside.
Torque: 106 lb.in (12 Nm)

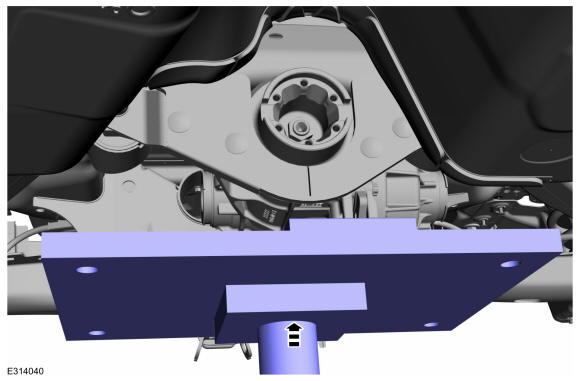

- Position a transmission jack and wooden block to secure the RDU.Use the General Equipment: Transmission JackUse the General Equipment: Wooden Block

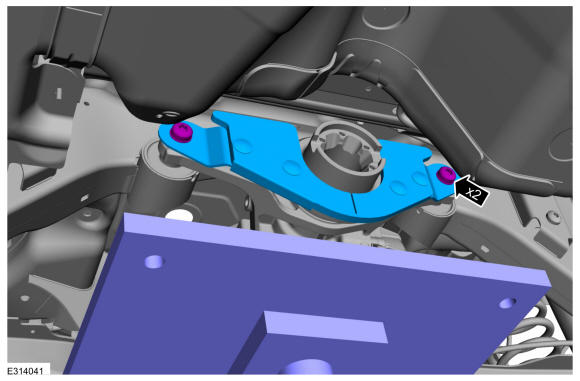

- Remove the front RDU mounting bolts and the RDU protection shield.Use the General Equipment: Transmission JackUse the General Equipment: Wooden Block
Torque: 76 lb.ft (103 Nm)

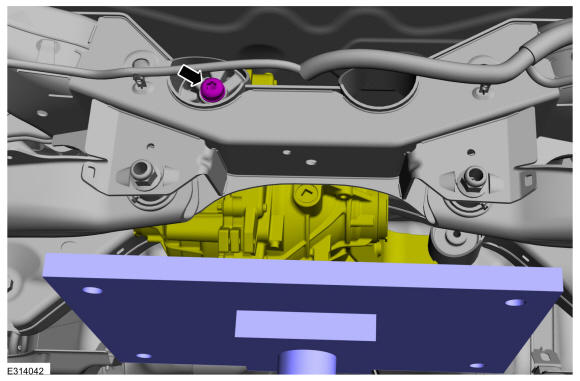

- Remove the rear RDU mounting bolt.
Torque: 76 lb.ft (103 Nm)

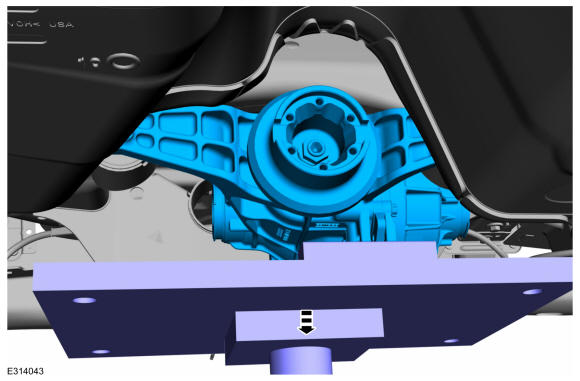

- Lower the transmission jack and remove the rear axle assembly.Use the General Equipment: Transmission Jack
