Image Processing Module A (IPMA): Removal
- If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

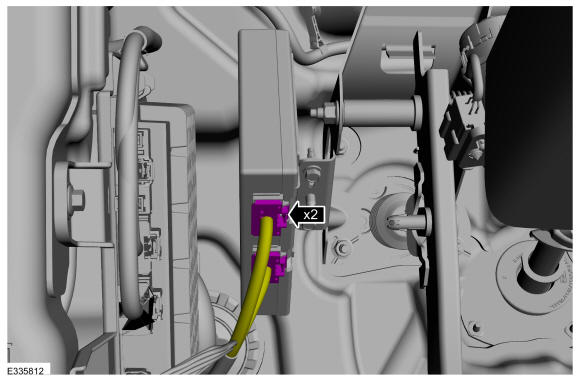

- Disconnect the trailer tow lighting module electrical connectors.

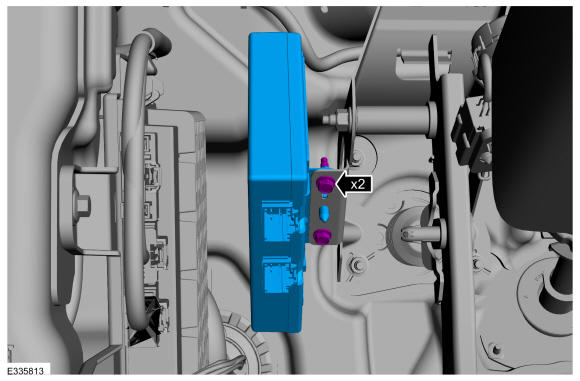

- Remove the bolts and trailer tow lighting module.
Torque: 62 lb.in (7 Nm)

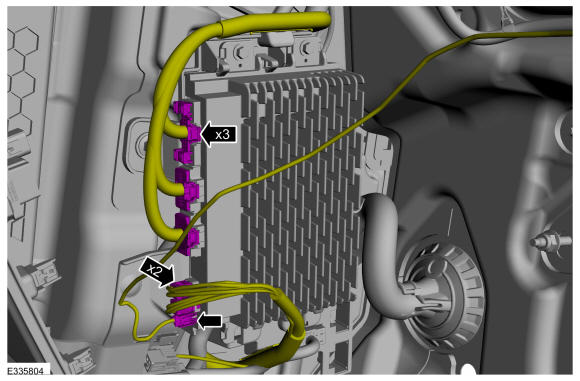

- Disconnect the IPMA electrical connectors.

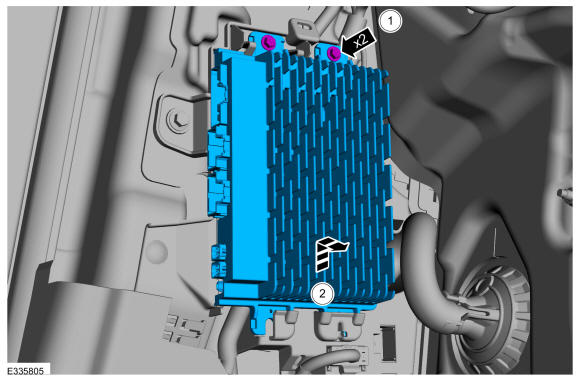

- Remove the bolts and IPMA
Torque: 36 lb.in (4.1 Nm)
