Component Testing

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

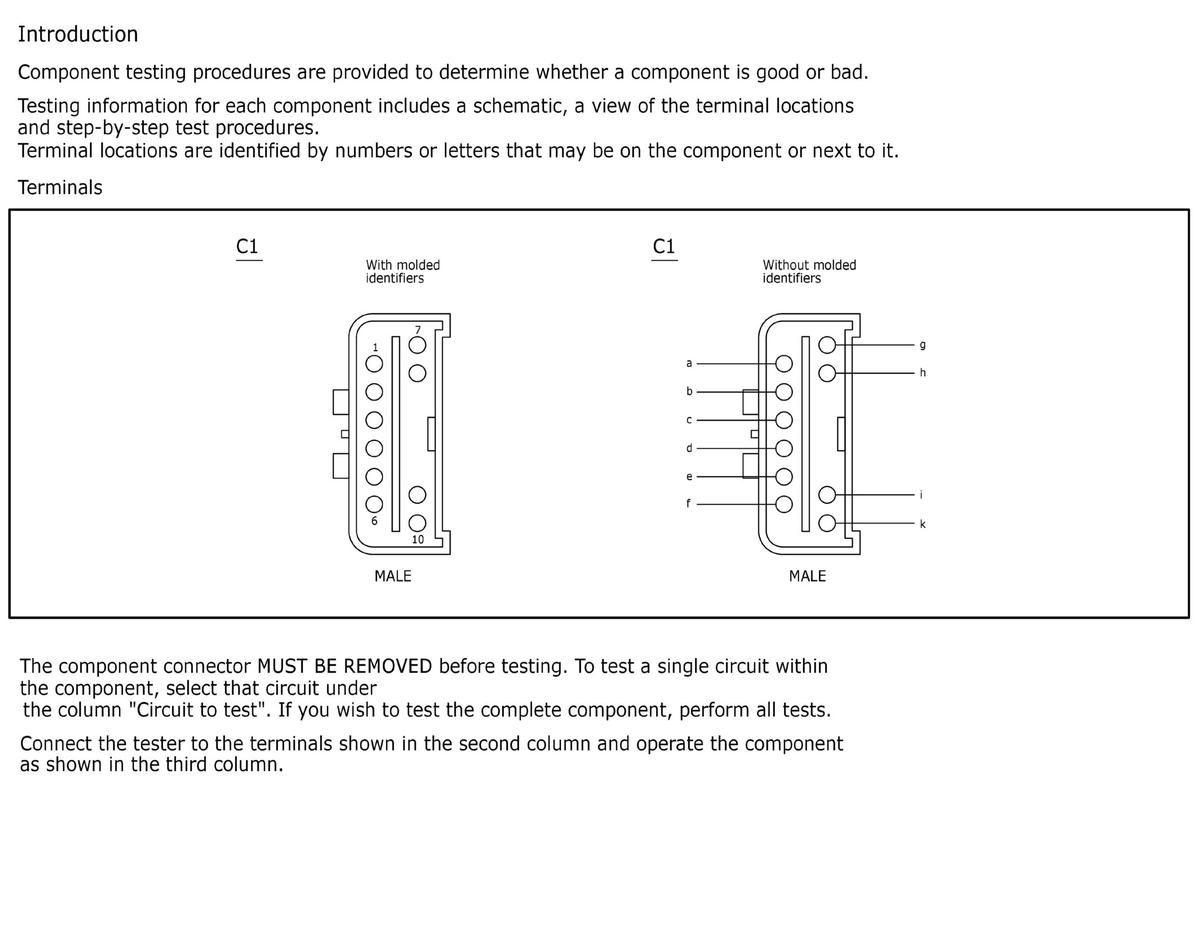

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

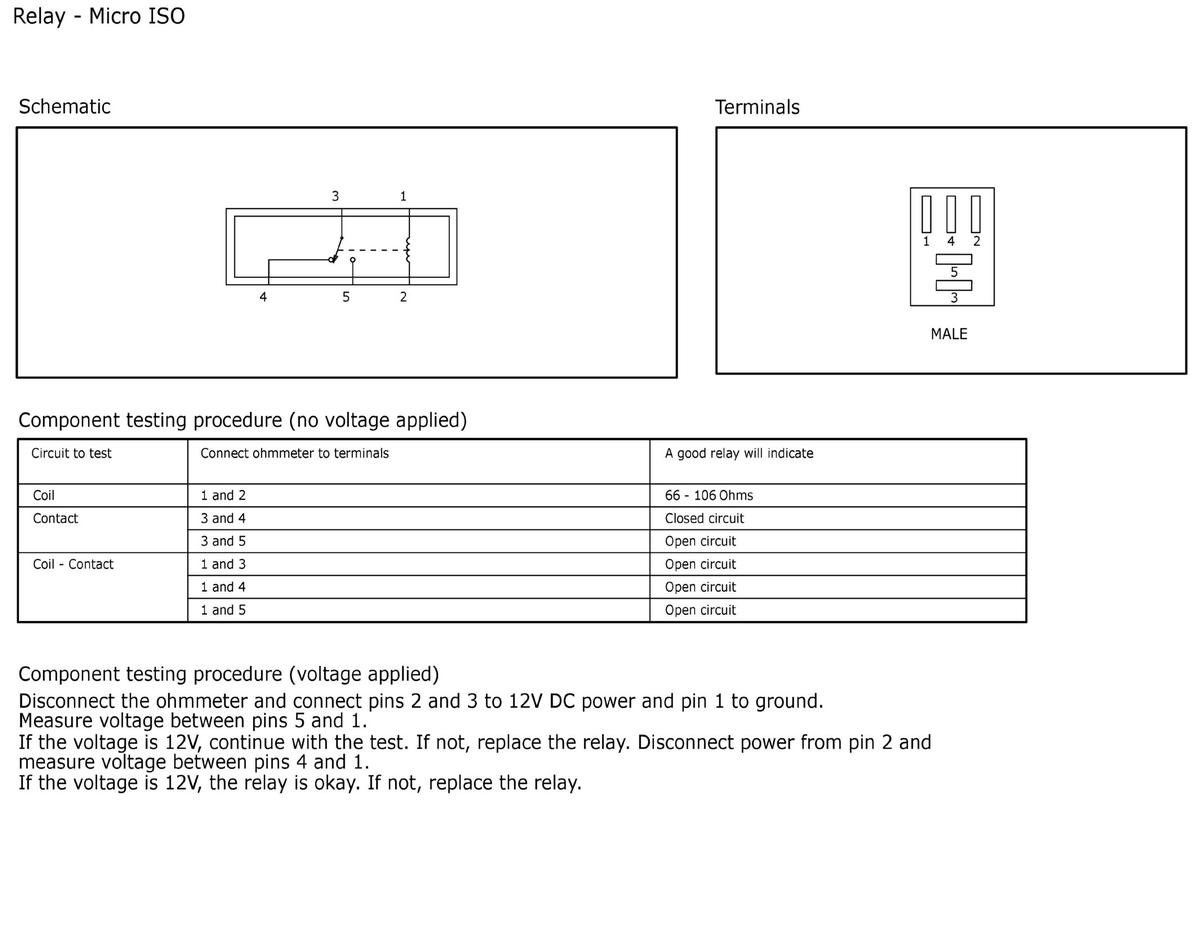

Fig 2: Component Testing Relay - Micro ISO

Courtesy of FORD MOTOR COMPANY

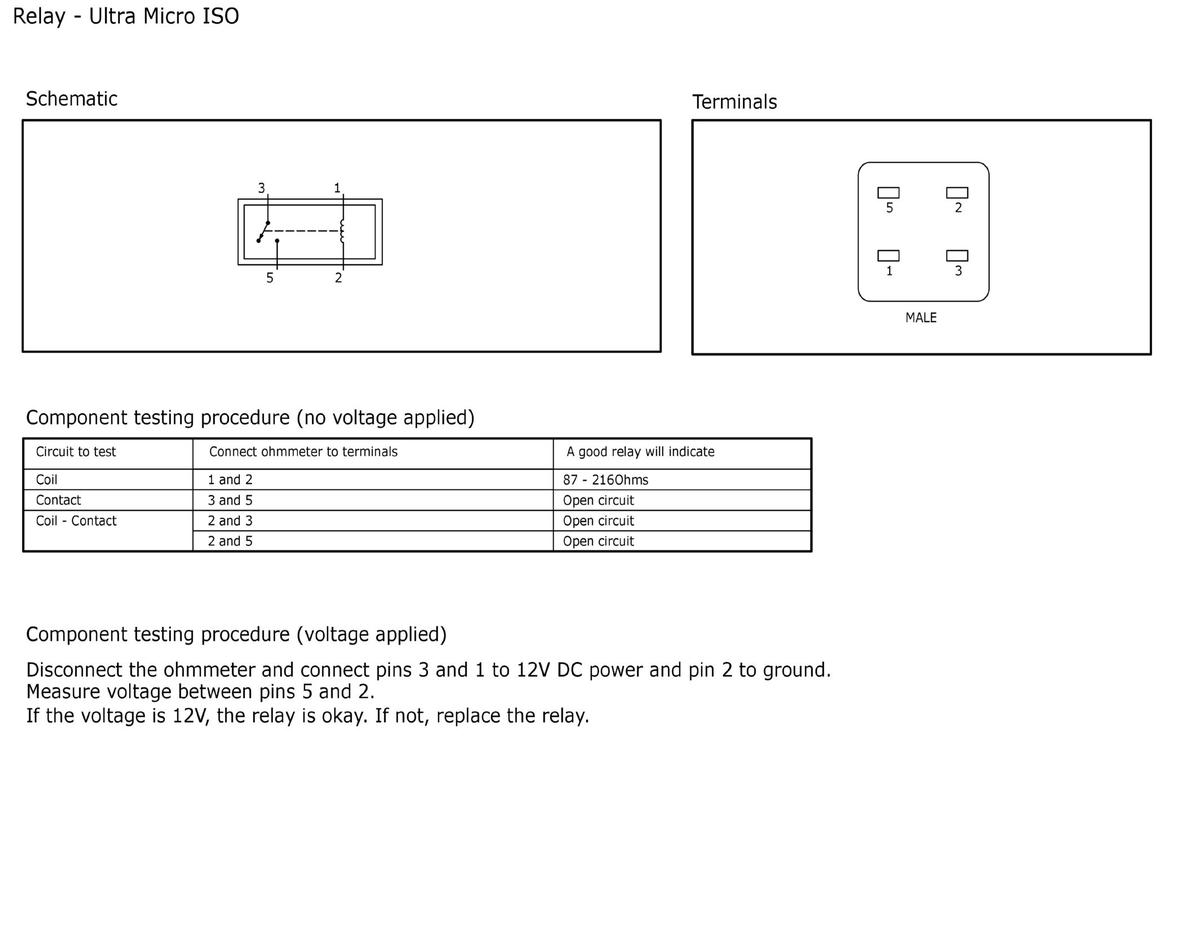

Fig 3: Component Testing Relay - Ultra Micro ISO

Courtesy of FORD MOTOR COMPANY

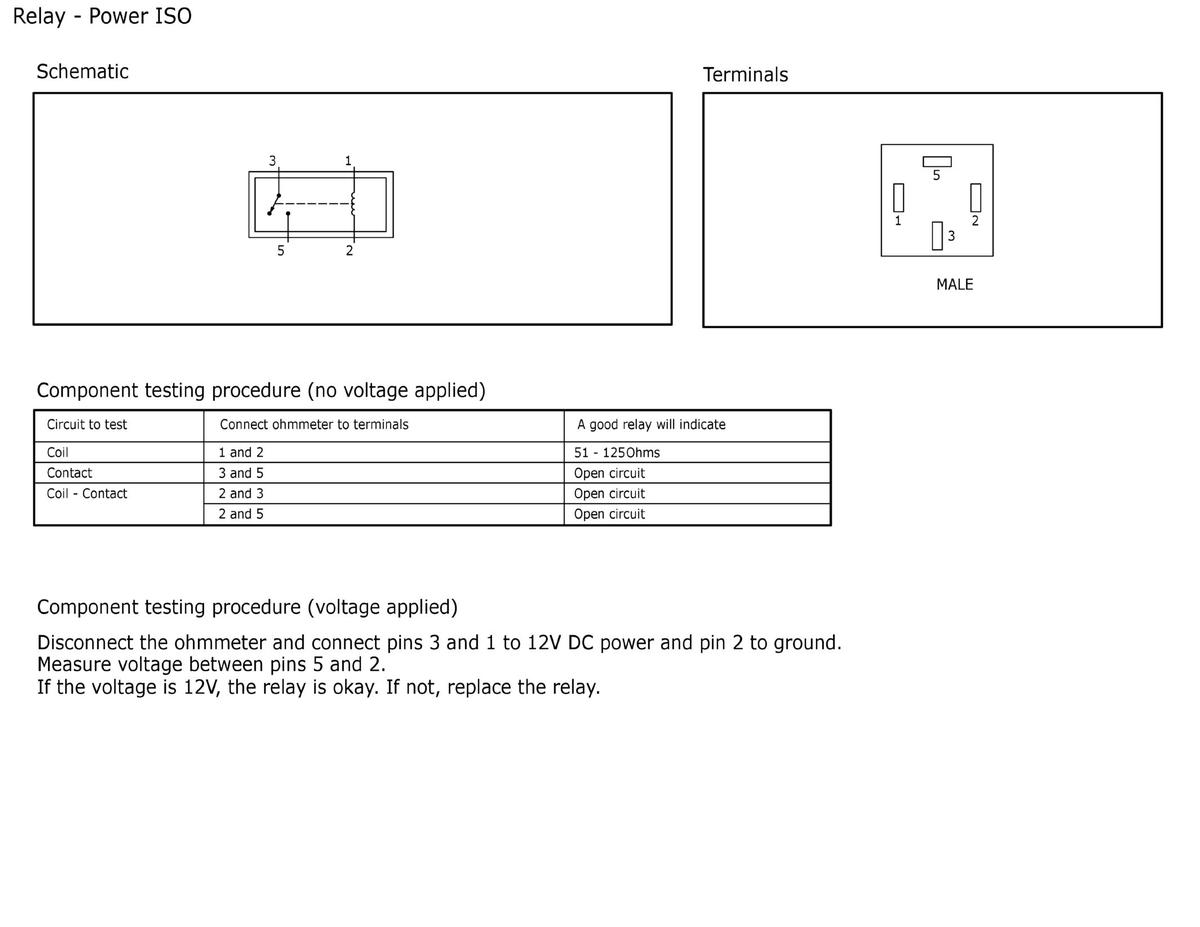

Fig 4: Component Testing Relay - Power ISO

Courtesy of FORD MOTOR COMPANY
