Image Processing Module A (IPMA) Camera: Removal

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

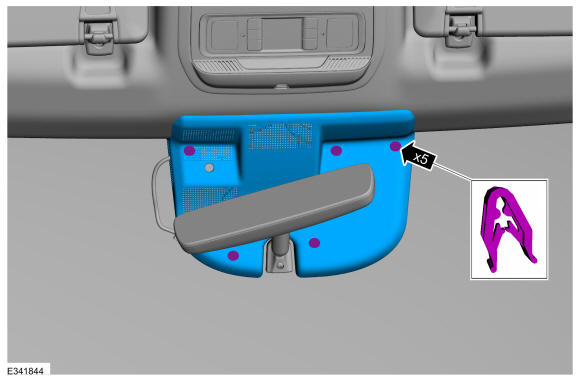

  1. Remove the rain sensor cover.
    GFD768794Courtesy of FORD MOTOR COMPANY

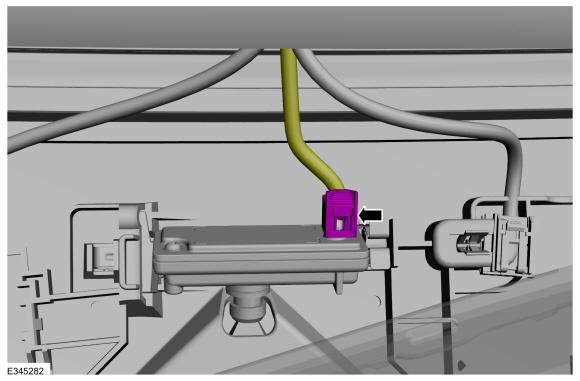

  2. Disconnect the IPMA camera electrical connector.
    GFD768795Courtesy of FORD MOTOR COMPANY

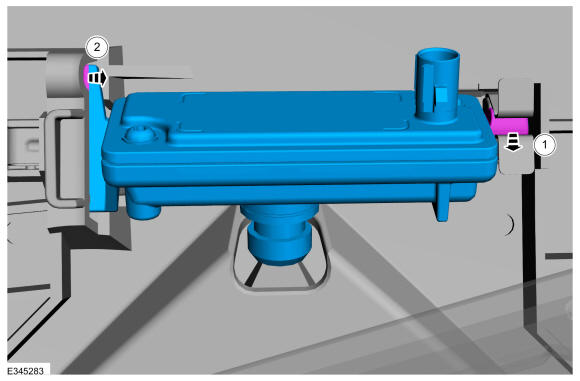

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD768796Courtesy of FORD MOTOR COMPANY
