Section 1047 (MULTIFUNCTION Electronic Modules)
›
Description And Operation
›

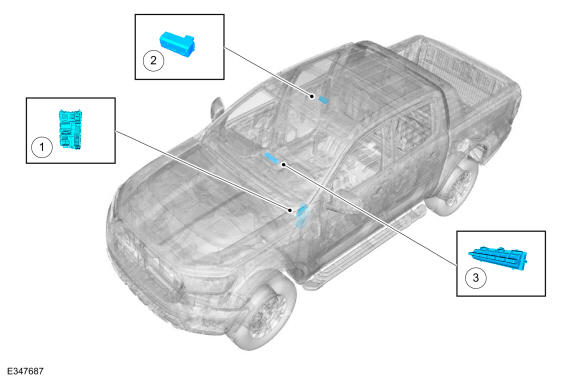

Module Controlled Functions - Component Location
Module Controlled Functions - Component Location
WARNING:
This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
RTM
3
Auxiliary switches
