Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

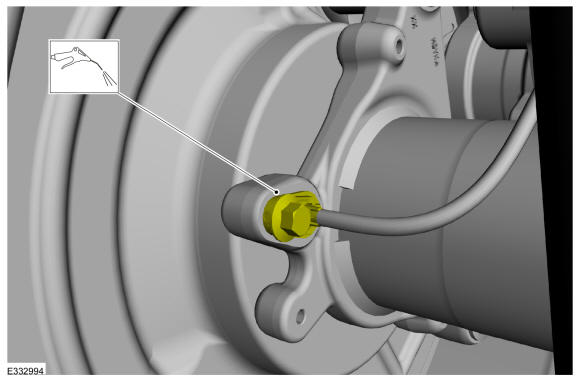

  2. On both sides. Using compressed air, clean the area surrounding the rear wheel speed sensor.
    GFD728843Courtesy of FORD MOTOR COMPANY

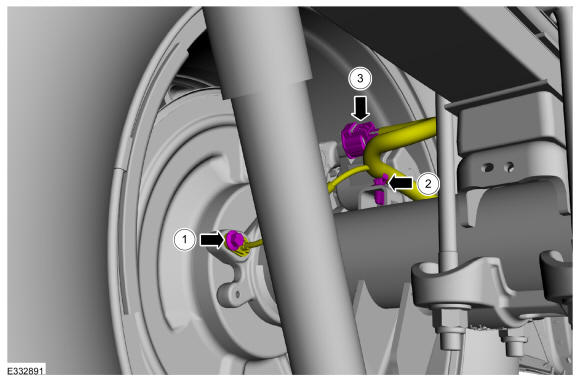

    1. On both sides. Remove the rear wheel speed sensor bolt and detach the sensor.

      Torque: 133 lb.in (15 Nm)

    2. On both sides. Detach the harness retainer.
    3. On both sides. Disconnect the parking brake actuator motor electrical connector.
    GFD728844Courtesy of FORD MOTOR COMPANY

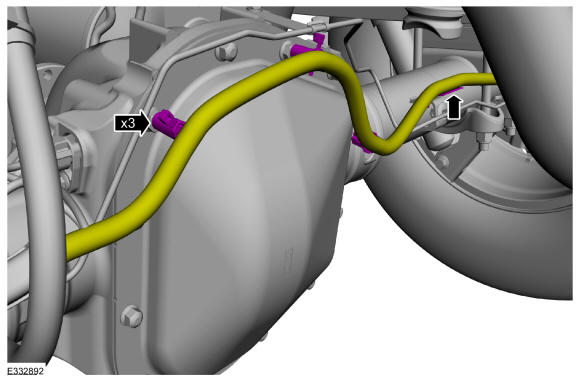

  4. Detach the harness retainers from the rear axle.
    GFD728845Courtesy of FORD MOTOR COMPANY

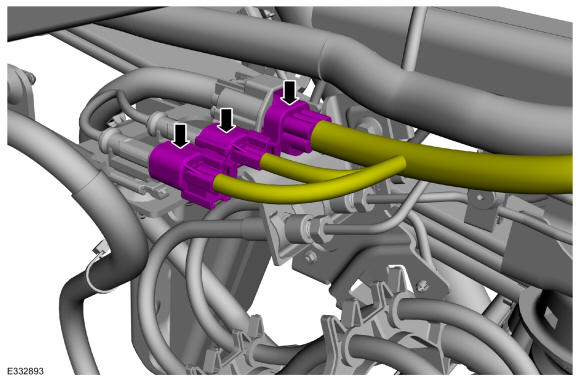

  5. Disconnect the EPB and rear wheel speed sensor electrical connectors.
    GFD728846Courtesy of FORD MOTOR COMPANY

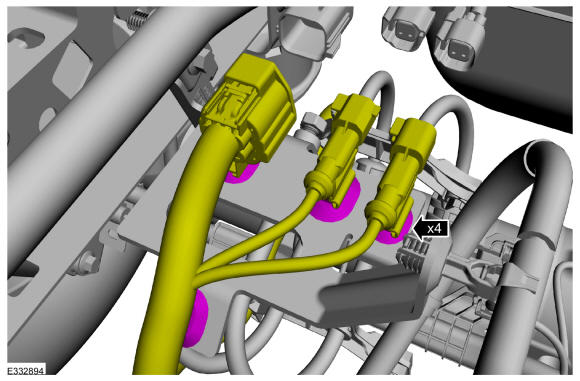

  6. Detach the EPB and rear wheel speed sensor electrical connector retainers.
    GFD728847Courtesy of FORD MOTOR COMPANY

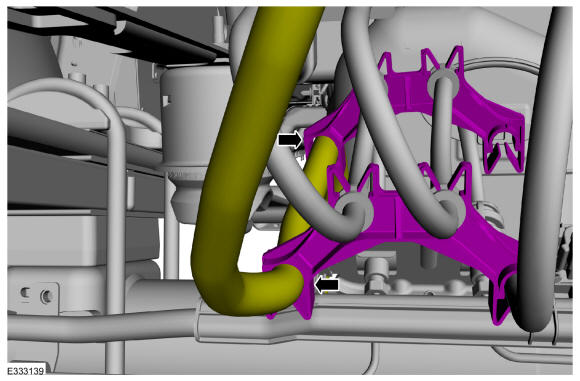

  7. Detach the harness.
    GFD728848Courtesy of FORD MOTOR COMPANY

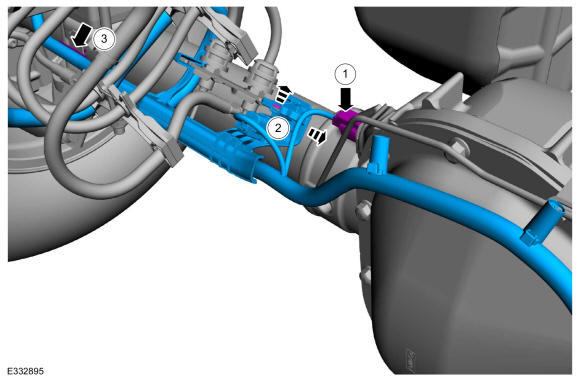

    1. Disconnect the rear differential electrical connector.
    2. Push the locking tab up and detach the harness routing bracket.
    3. Detach the harness retainer and remove the rear wheel speed sensor and EPB harness assembly.
GFD728849Courtesy of FORD MOTOR COMPANY


NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

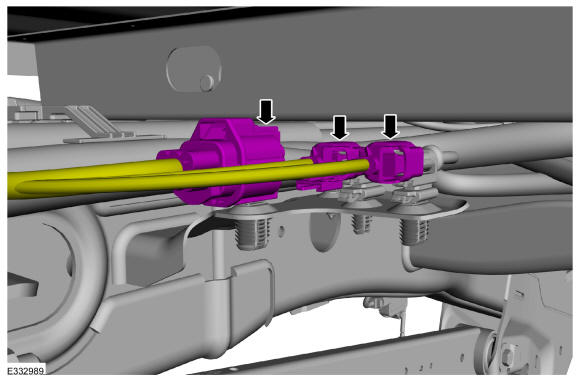

  2. Disconnect the EPB and rear wheel speed sensor electrical connectors.
    GFD728855Courtesy of FORD MOTOR COMPANY

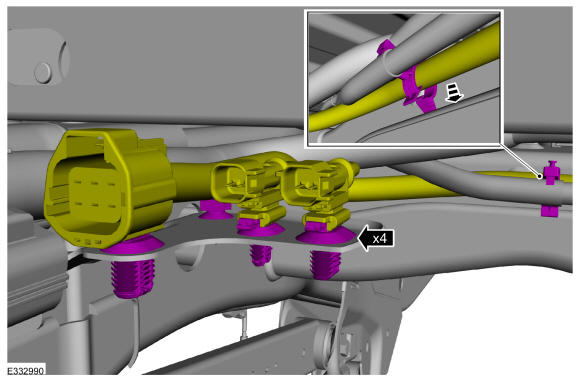

  3. Detach the EPB and rear wheel speed sensor electrical connector retainers and detach the harness.
    GFD728856Courtesy of FORD MOTOR COMPANY

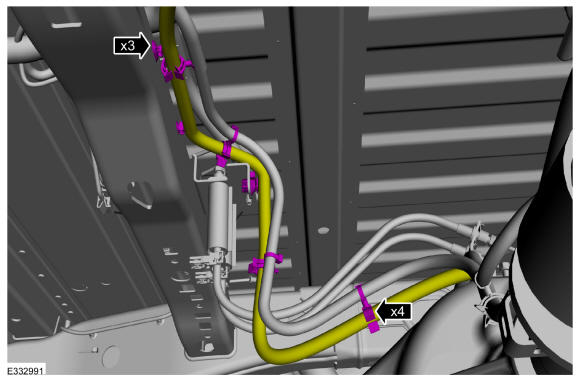

  4. Detach the wiring harness.
    GFD728857Courtesy of FORD MOTOR COMPANY

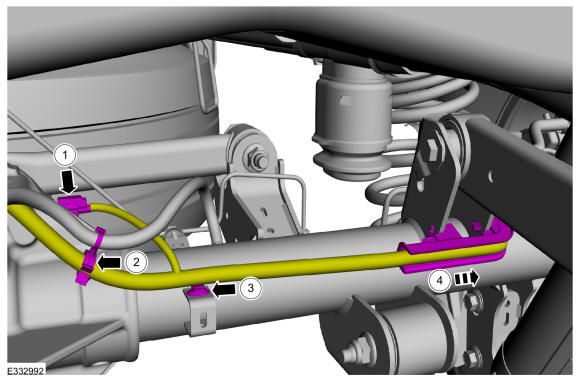

    1. Disconnect the rear differential electrical connector.
    2. Detach the harness from the axle vent hose.
    3. Detach the harness retainer from the rear axle.
    4. Detach the harness routing bracket.
    GFD728858Courtesy of FORD MOTOR COMPANY

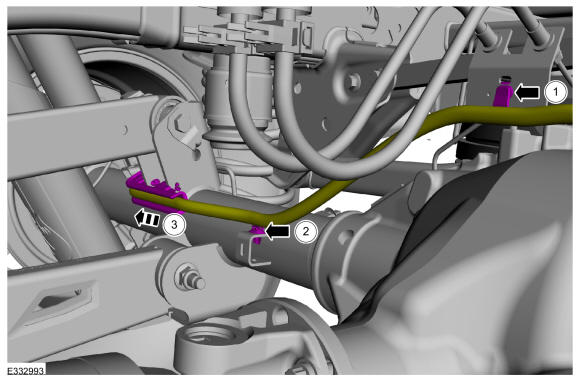

    1. Detach the harness retainer from the brake hose bracket.
    2. Detach the harness retainer from the rear axle.
    3. Detach the harness routing bracket.
    GFD728859Courtesy of FORD MOTOR COMPANY

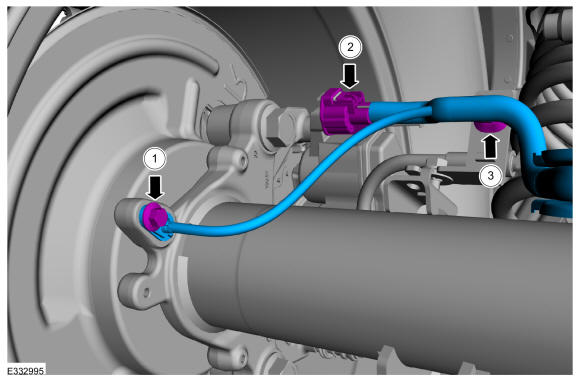

    1. Remove the rear wheel speed sensor bolt and detach the sensor.

      Torque: 133 lb.in (15 Nm)

    2. Disconnect the parking brake actuator motor electrical connector.
    3. Detach the harness retainer and remove the wheel speed sensor and EPB harness assembly.
GFD728860Courtesy of FORD MOTOR COMPANY
