Wheel Speed Sensor Ring: Removal

1. Remove the axle shaft. Refer to: Axle Shaft - 8.8 Inch Ring Gear . Refer to: Axle Shaft - 9.75 Inch Ring Gear .

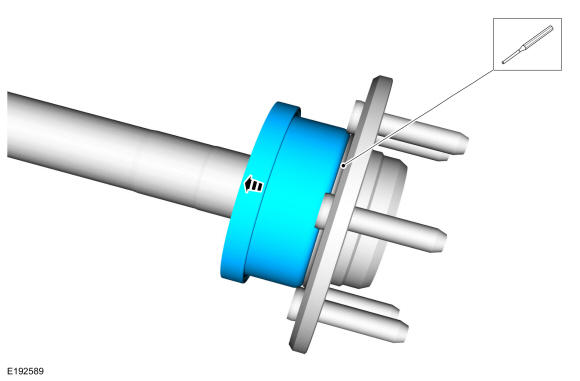

2. Using a suitable driver, remove the wheel speed sensor ring. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY
