Connector Repair Procedures

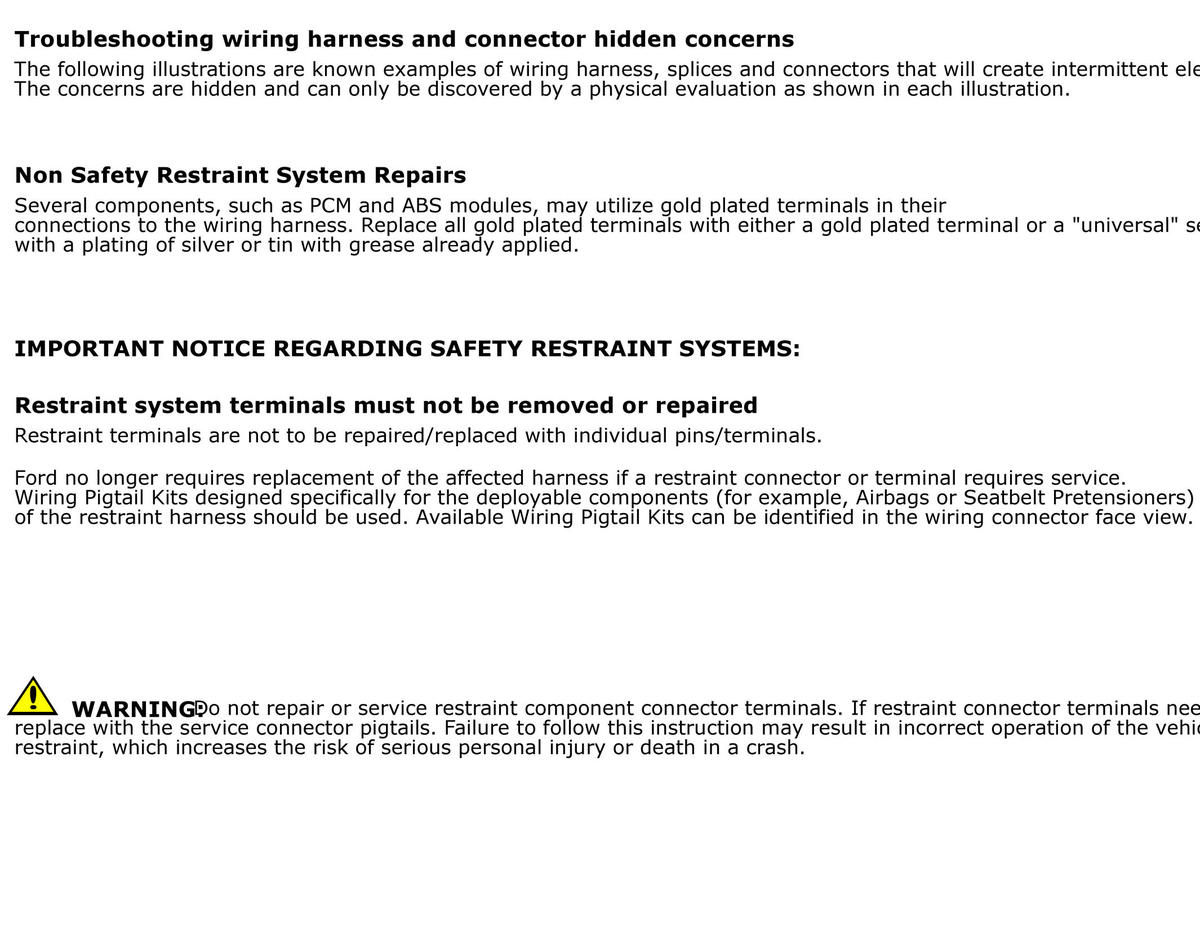

GFDWR193294Courtesy of FORD MOTOR COMPANY

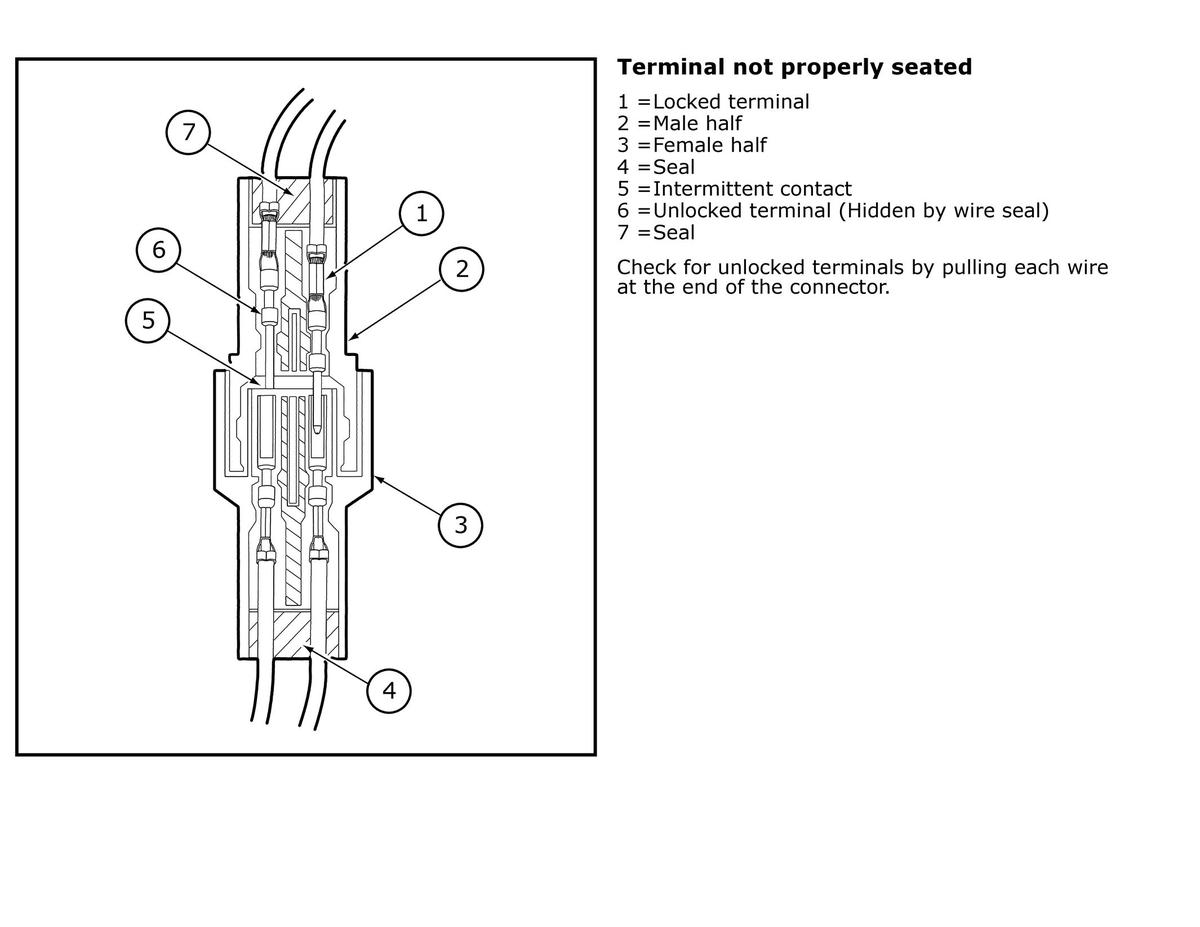

GFDWR193295Courtesy of FORD MOTOR COMPANY

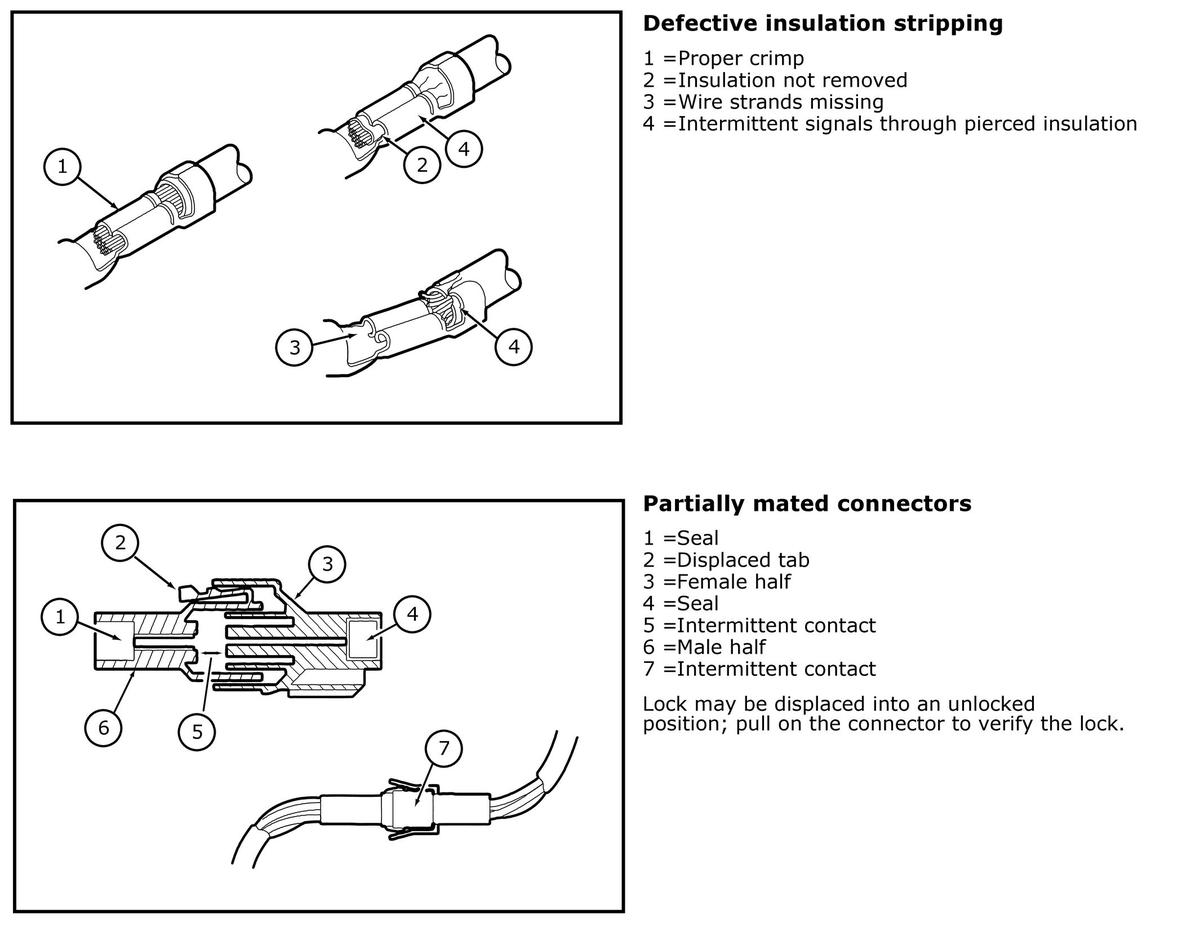

GFDWR193296Courtesy of FORD MOTOR COMPANY

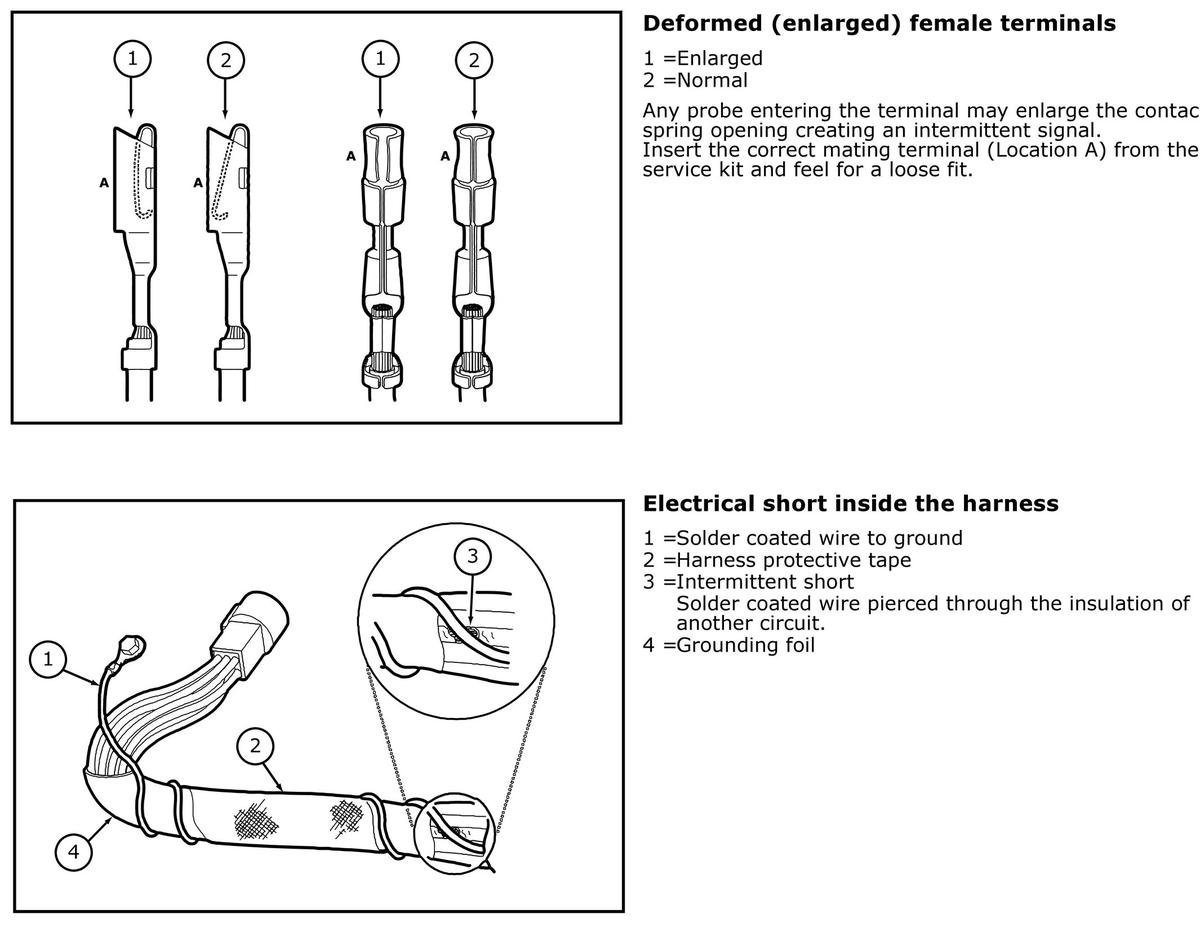

GFDWR193297Courtesy of FORD MOTOR COMPANY

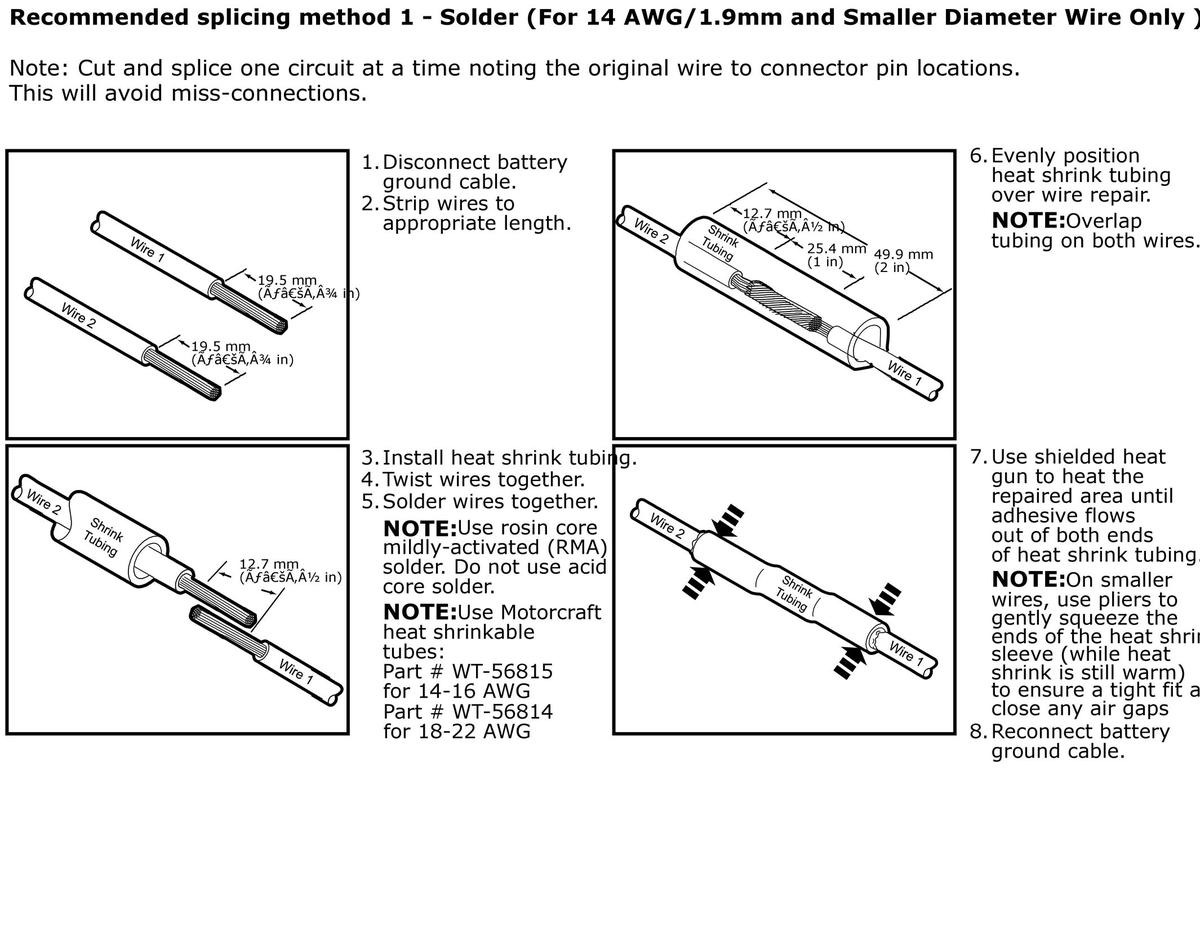

GFDWR193298Courtesy of FORD MOTOR COMPANY

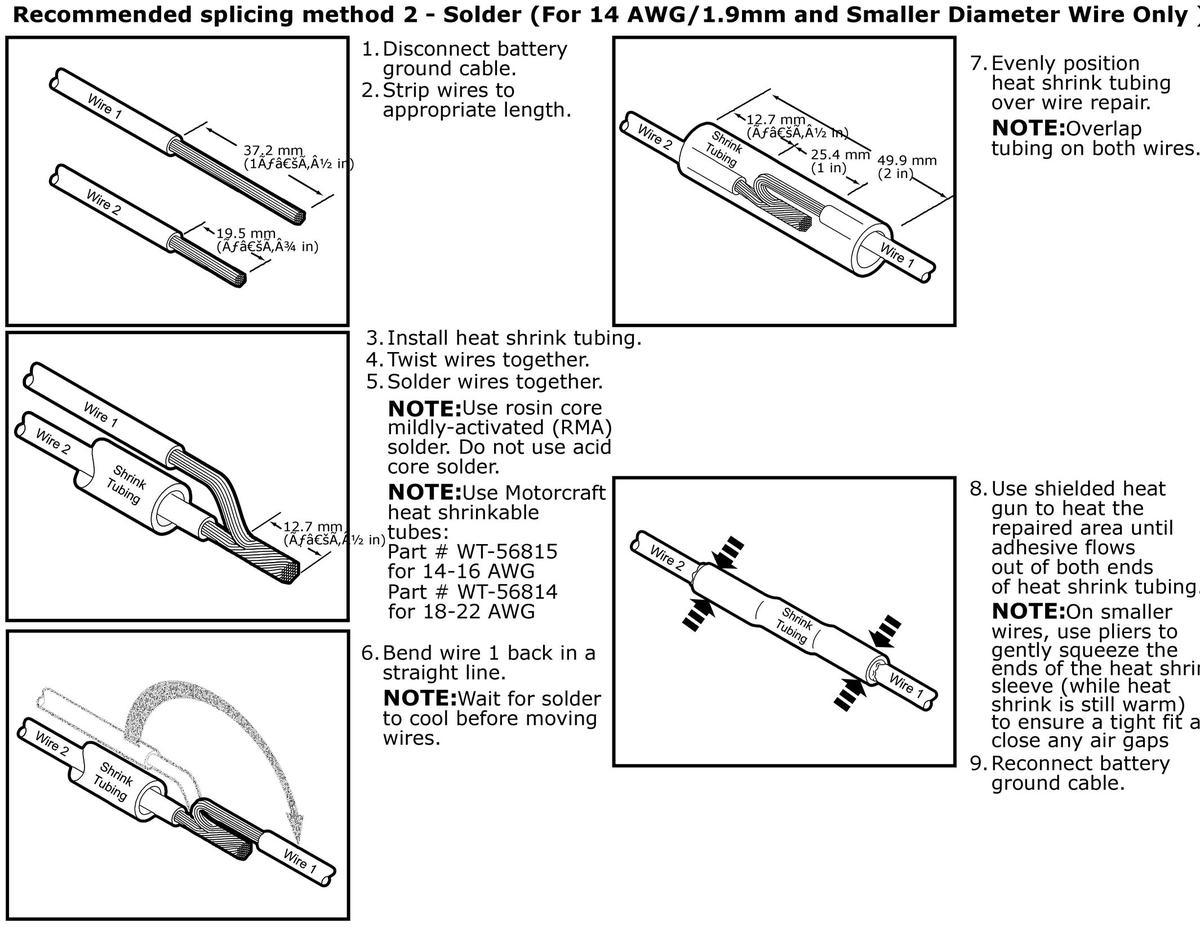

GFDWR193299Courtesy of FORD MOTOR COMPANY

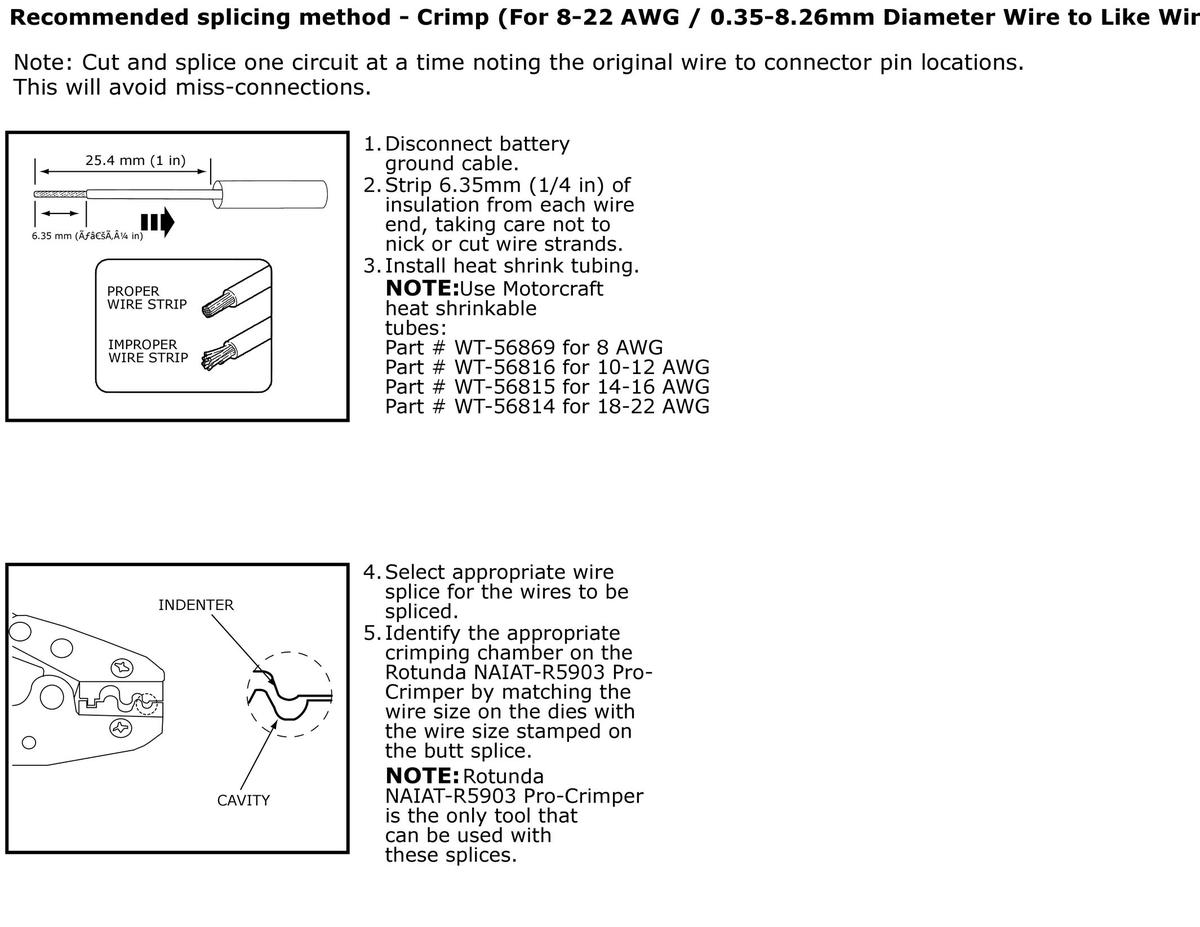

GFDWR193300Courtesy of FORD MOTOR COMPANY

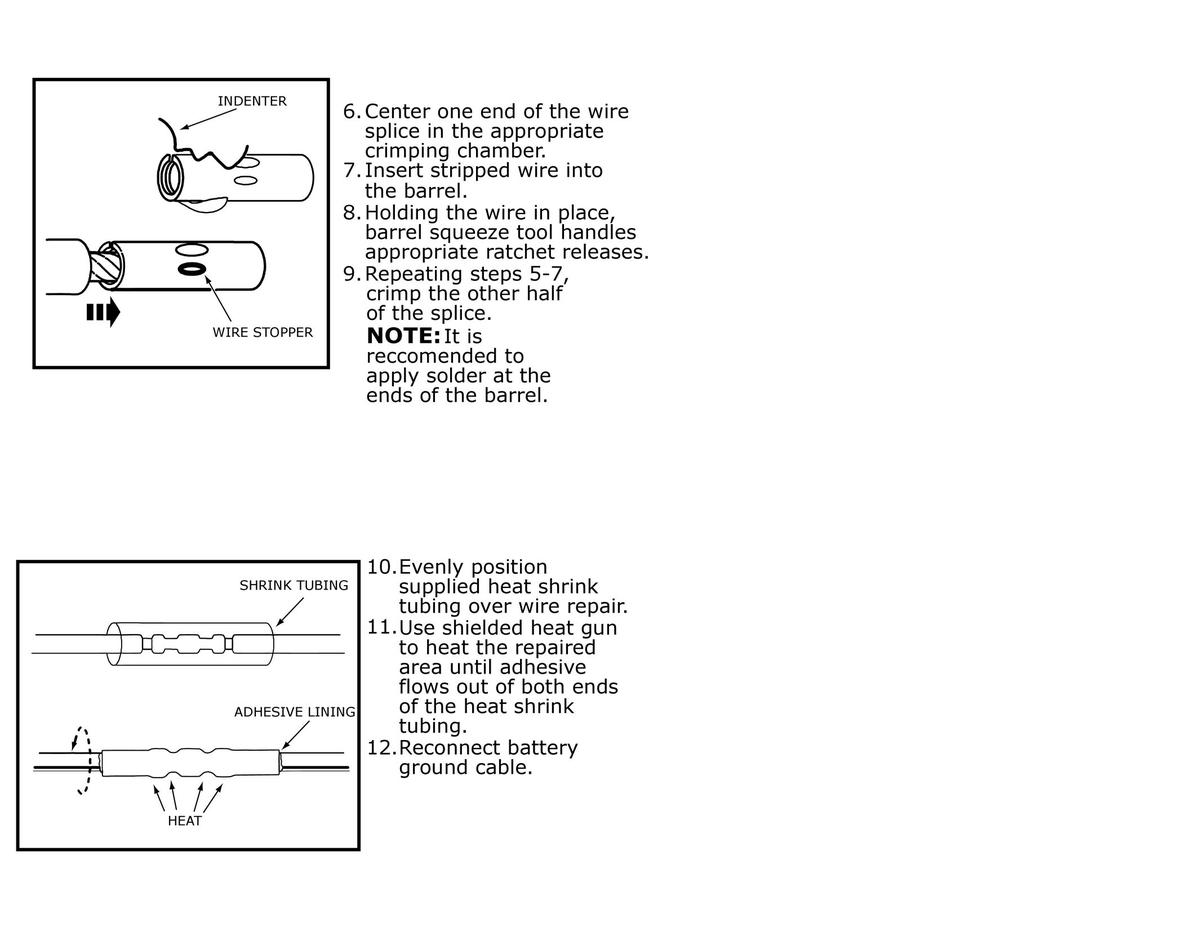

GFDWR193301Courtesy of FORD MOTOR COMPANY

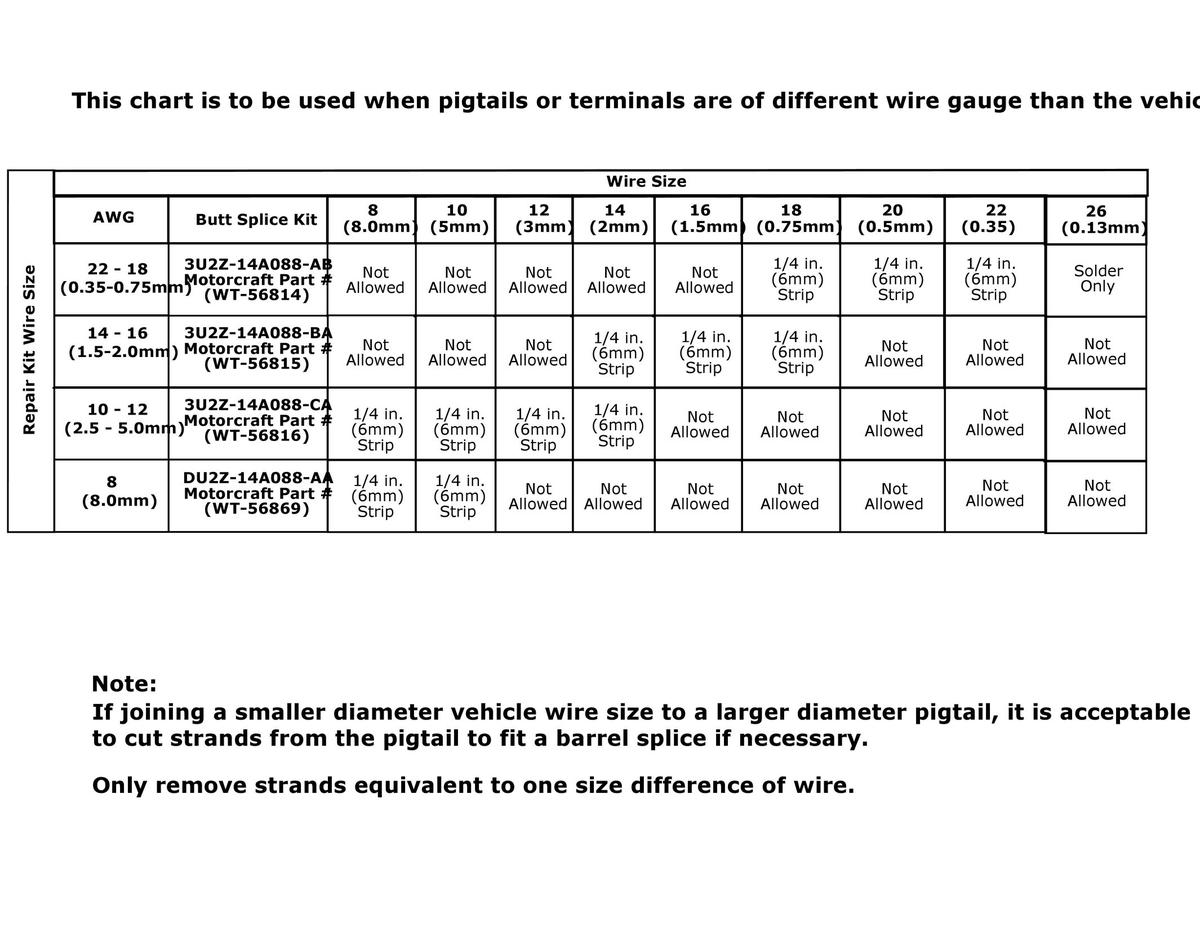

GFDWR193302Courtesy of FORD MOTOR COMPANY
