OEM Ground Distribution: Grounds

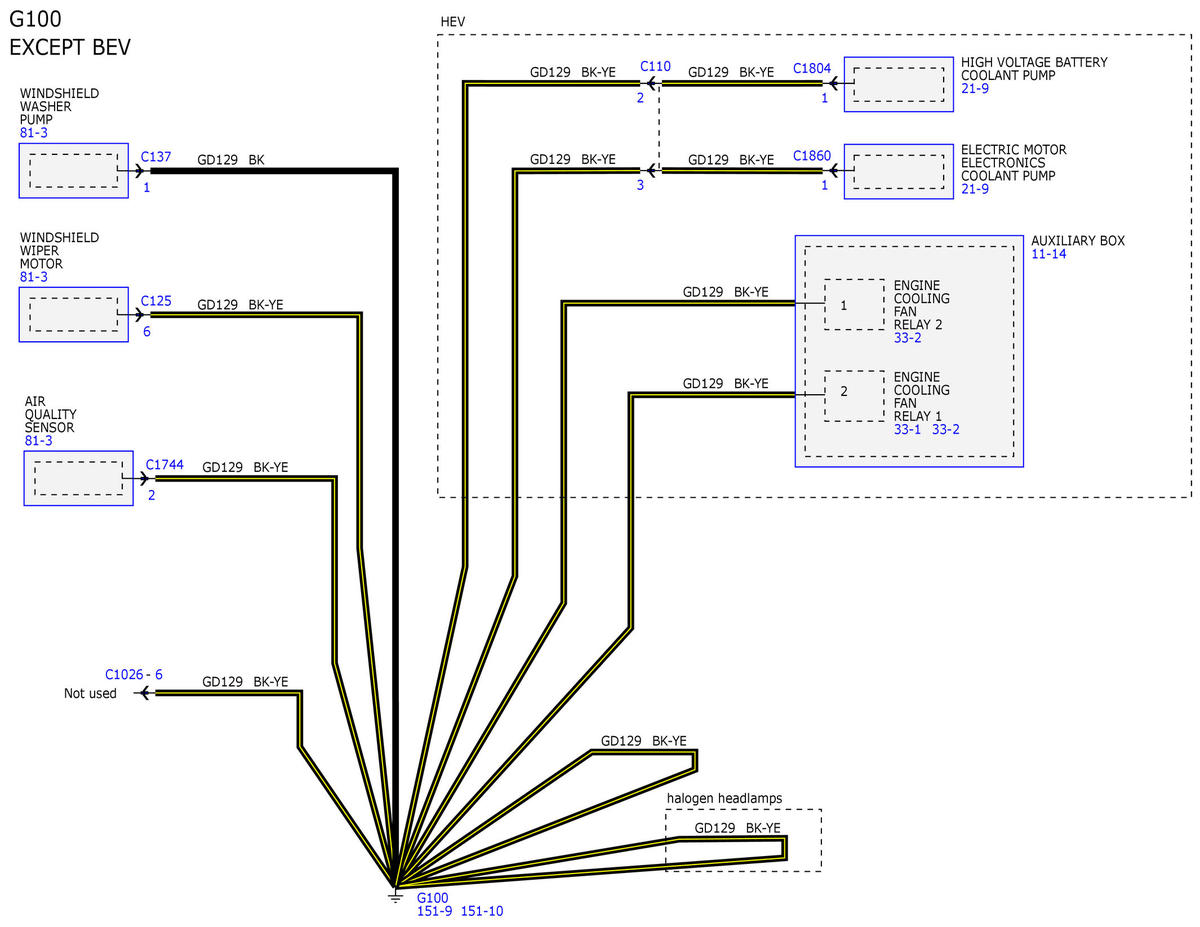

GFDWR193322Courtesy of FORD MOTOR COMPANY

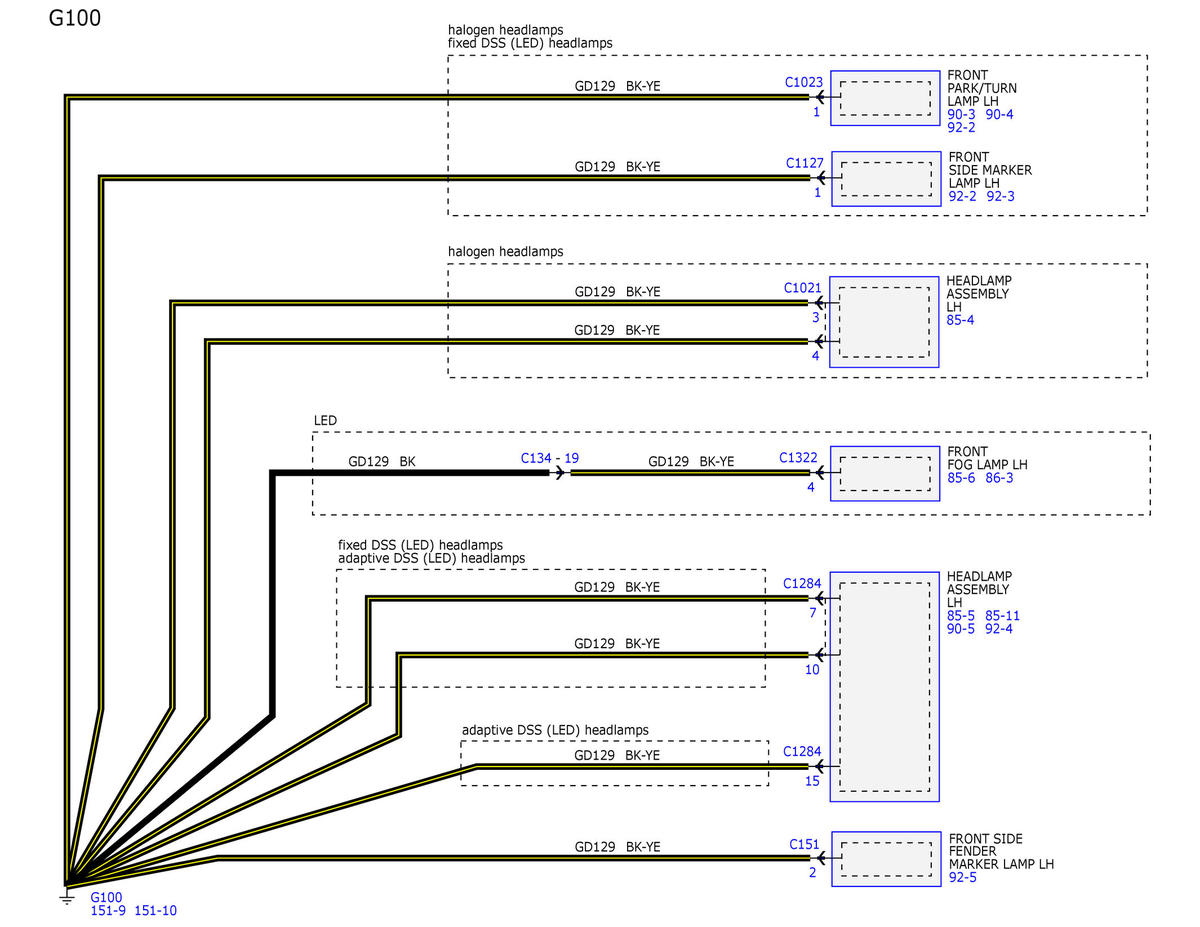

GFDWR193333Courtesy of FORD MOTOR COMPANY

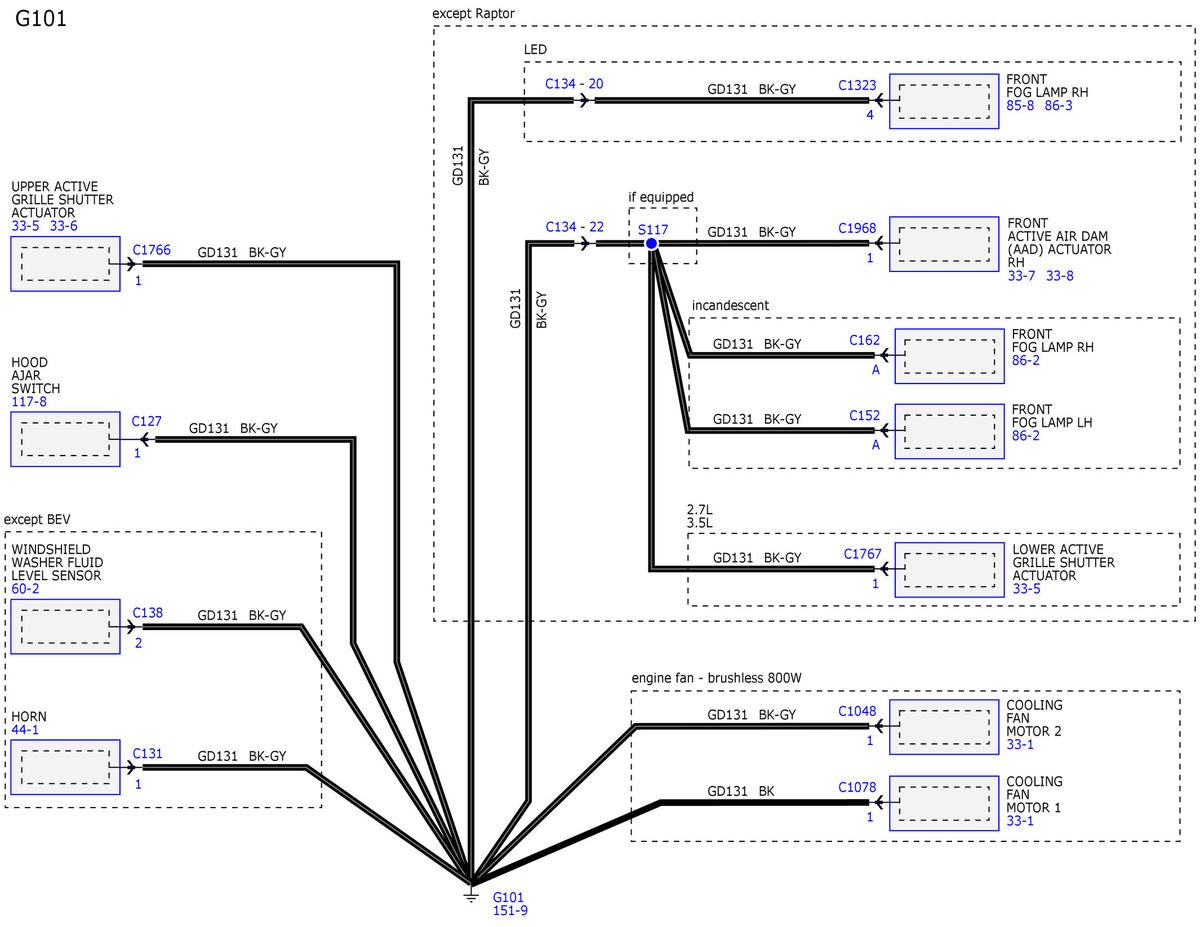

GFDWR193344Courtesy of FORD MOTOR COMPANY

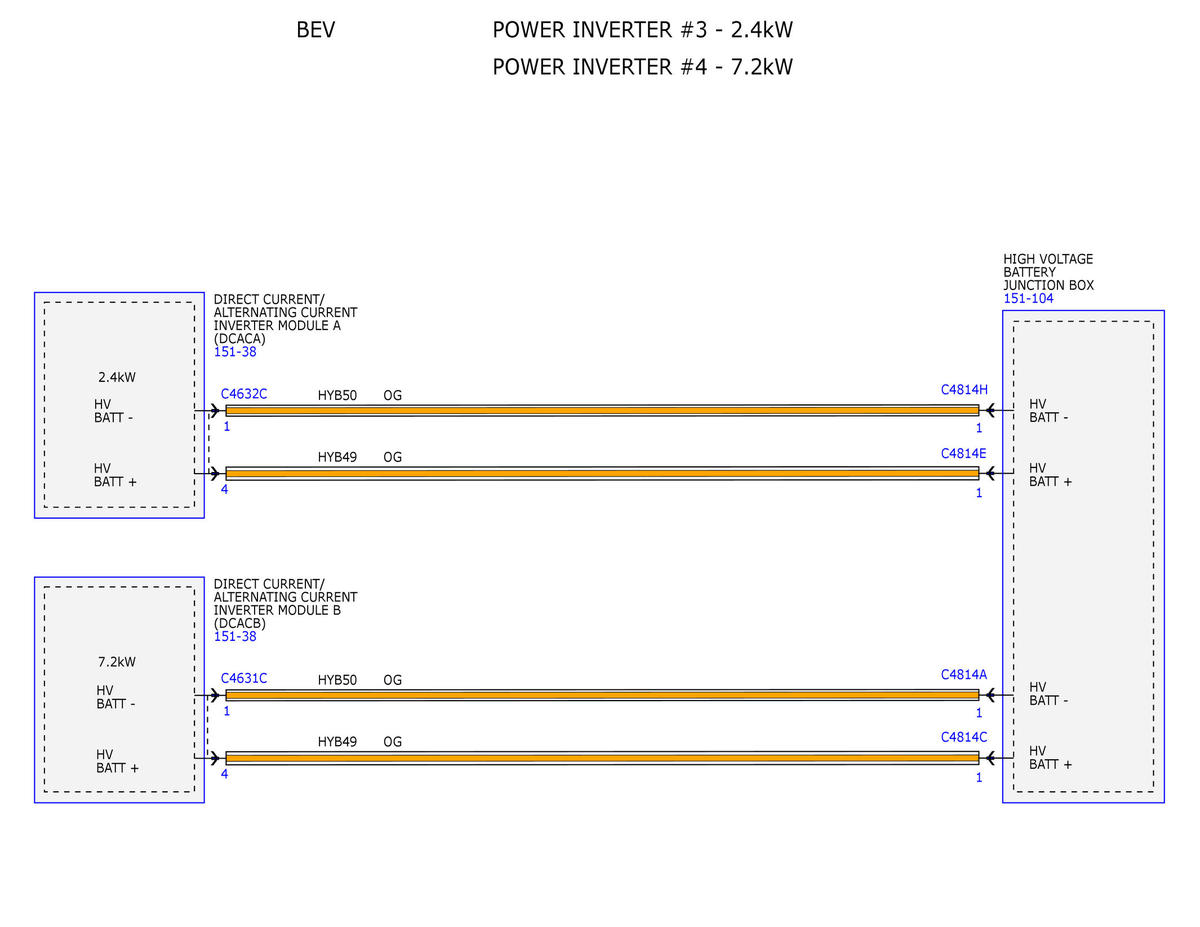

GFDWR193355Courtesy of FORD MOTOR COMPANY

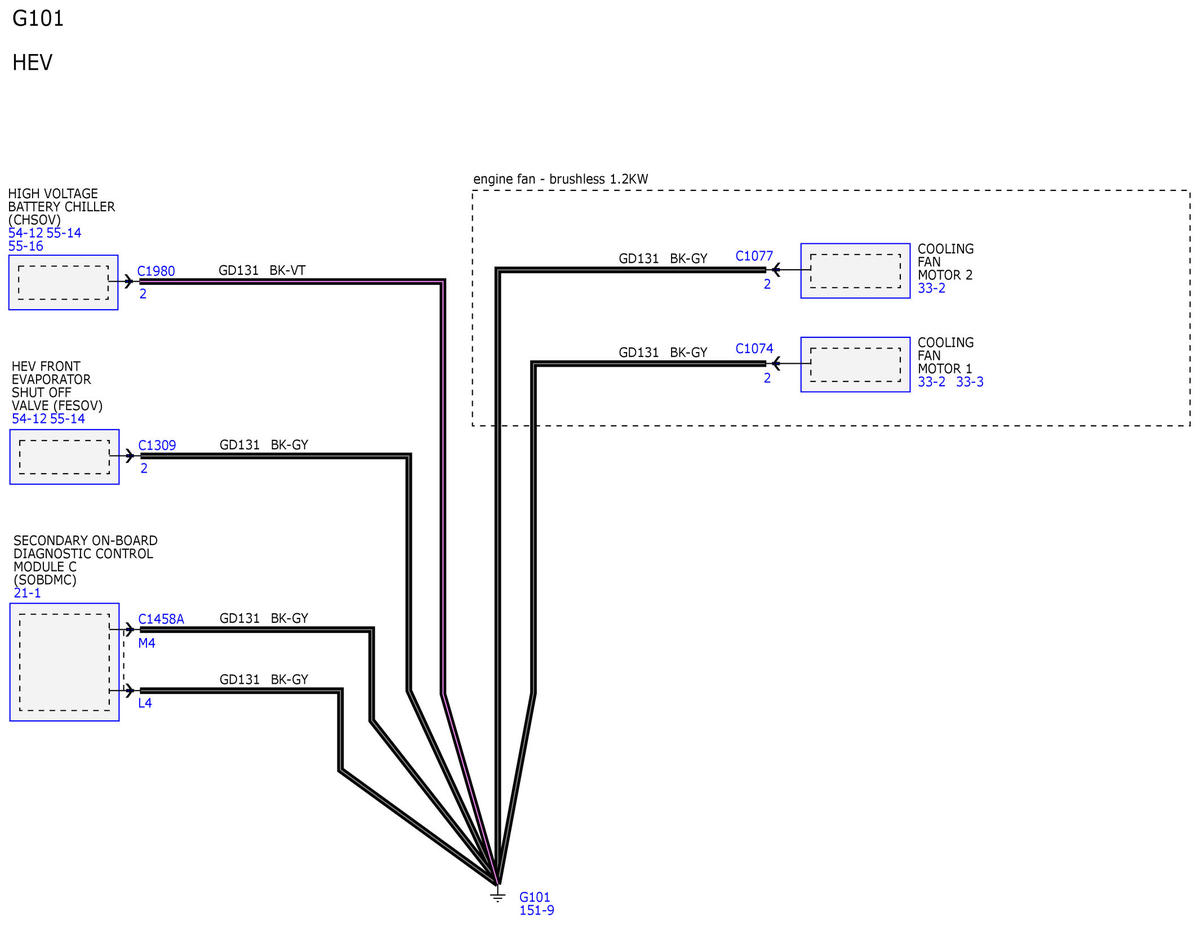

GFDWR193358Courtesy of FORD MOTOR COMPANY

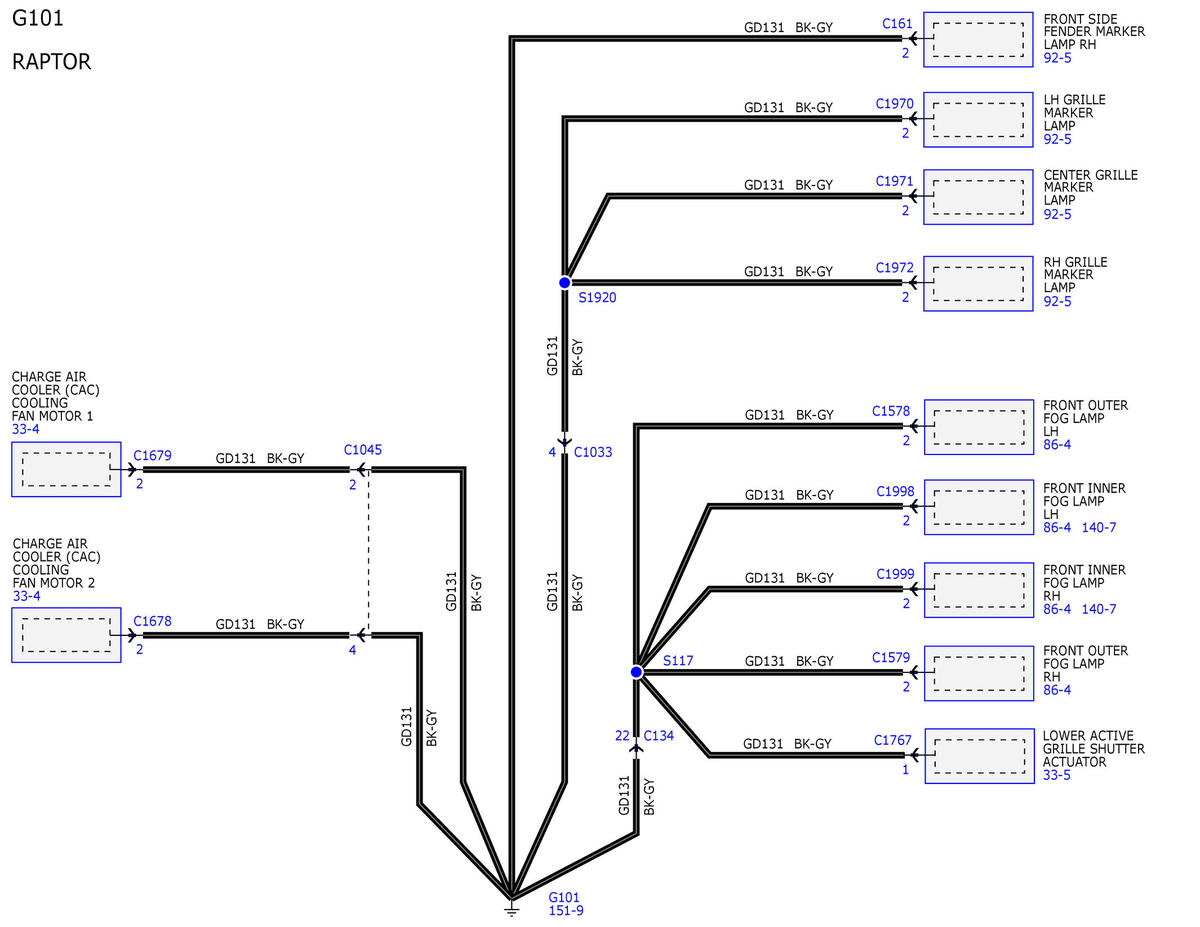

GFDWR193359Courtesy of FORD MOTOR COMPANY

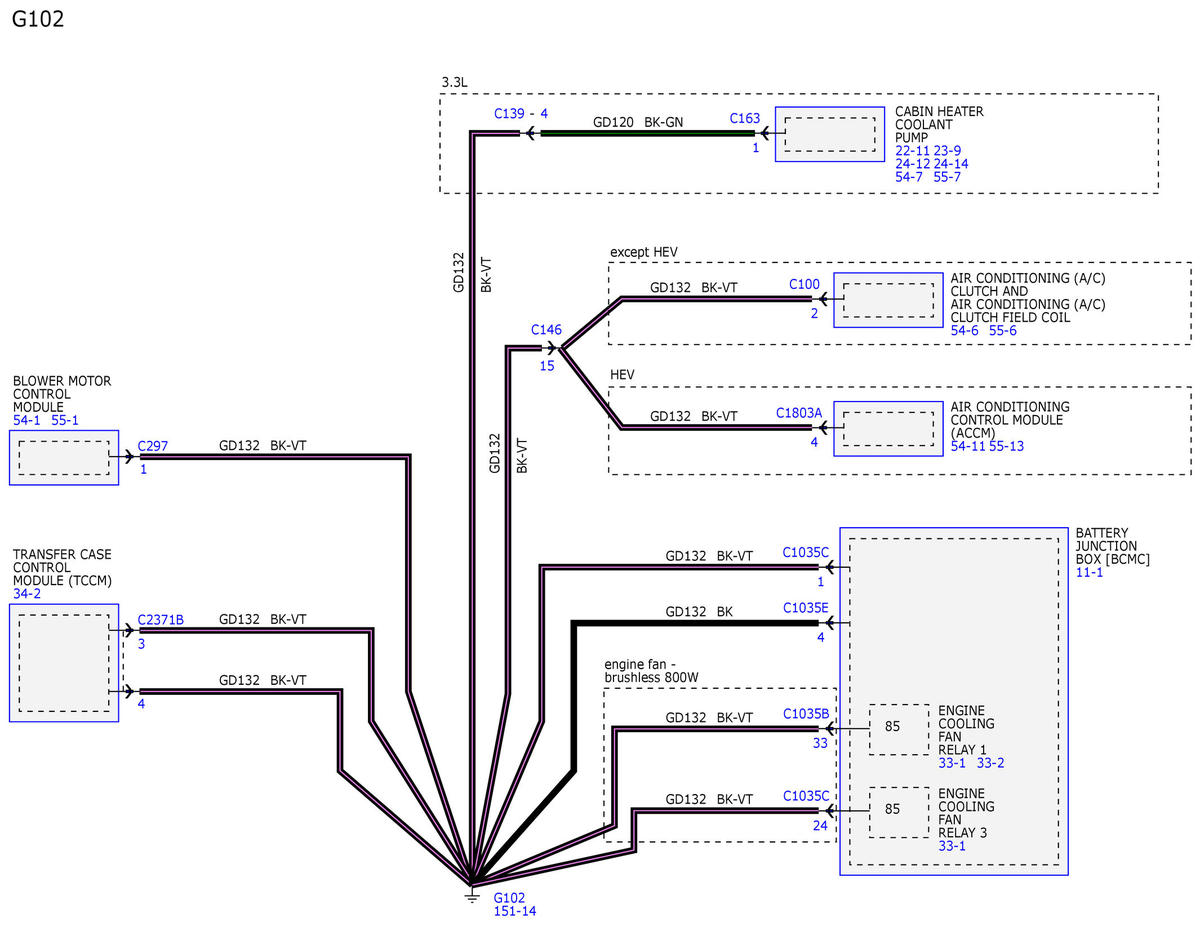

GFDWR193360Courtesy of FORD MOTOR COMPANY

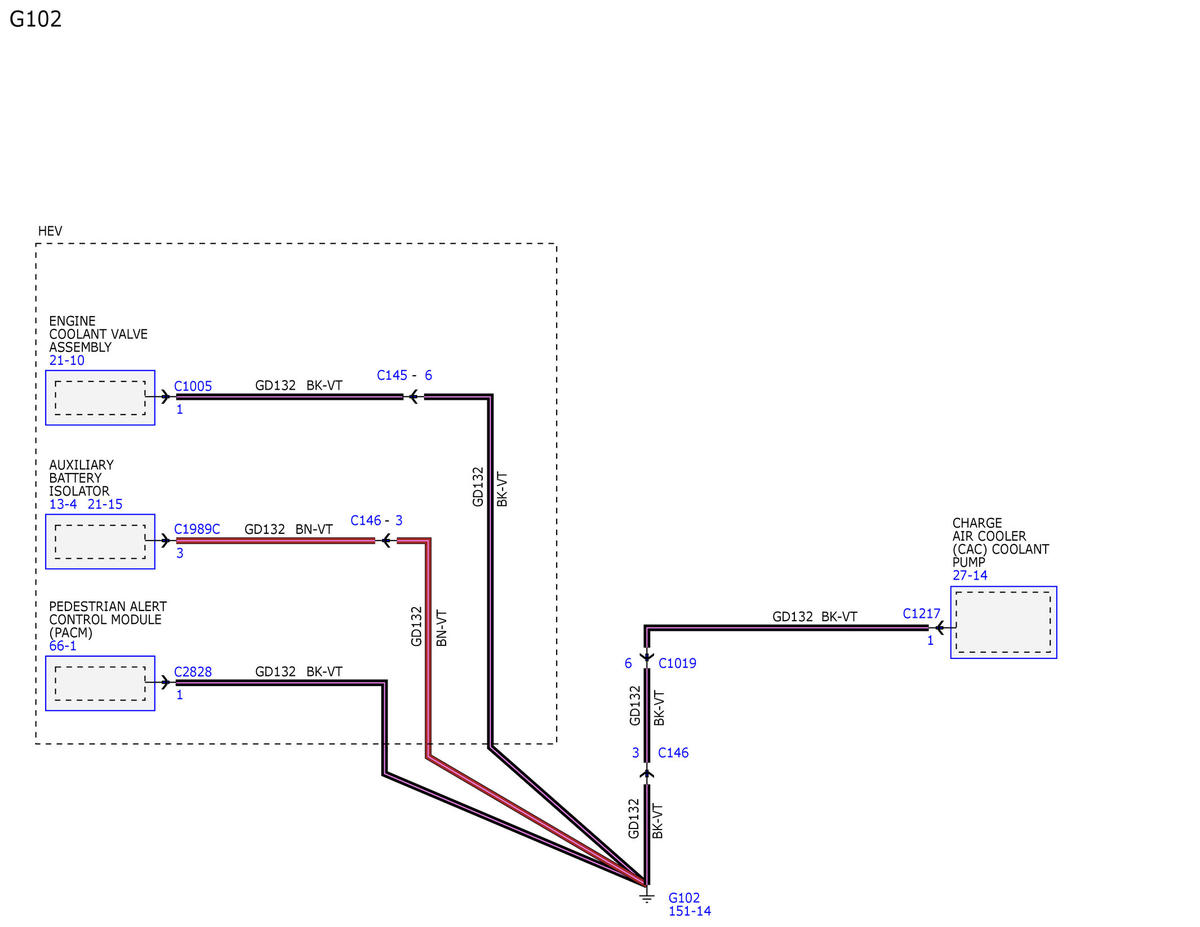

GFDWR193361Courtesy of FORD MOTOR COMPANY
GFDWR193362Courtesy of FORD MOTOR COMPANY

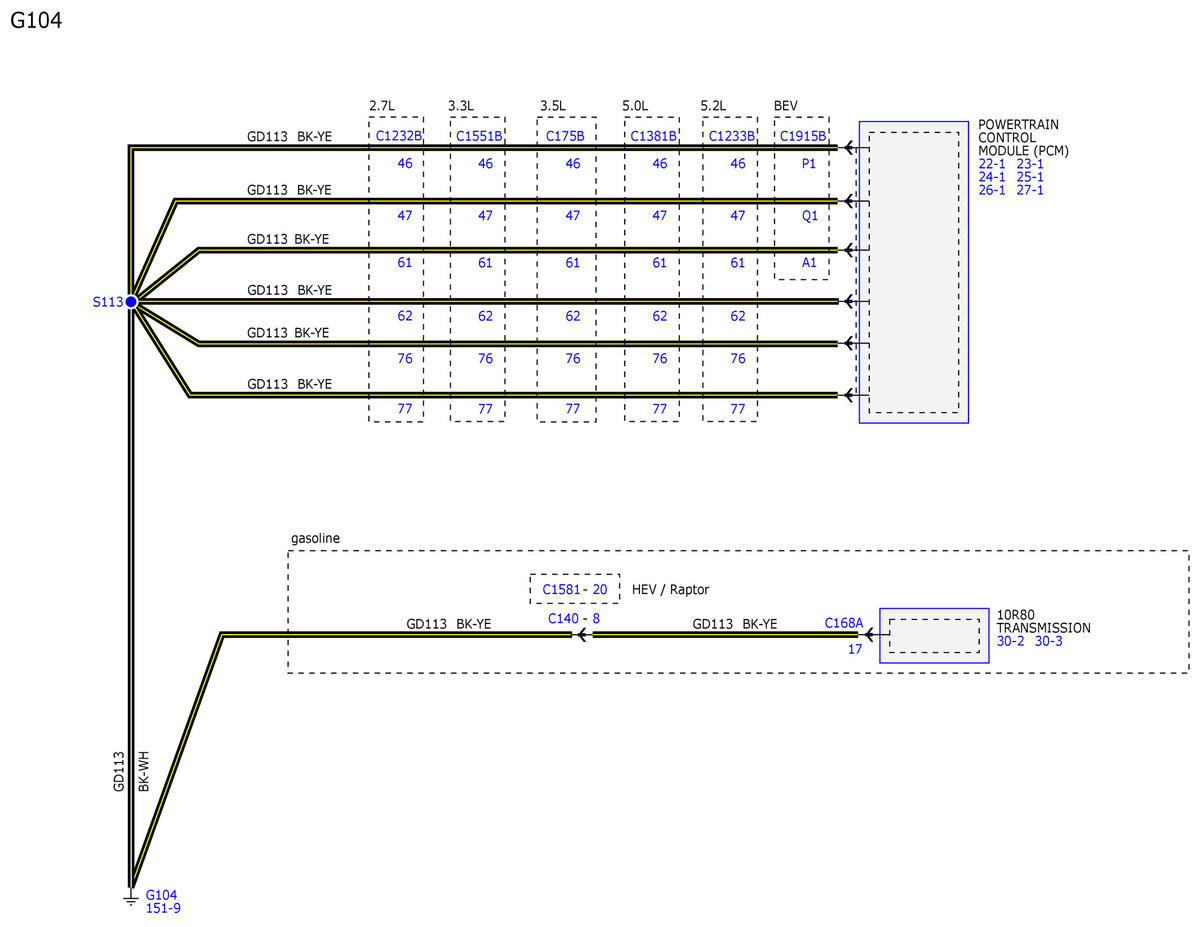

GFDWR193323Courtesy of FORD MOTOR COMPANY

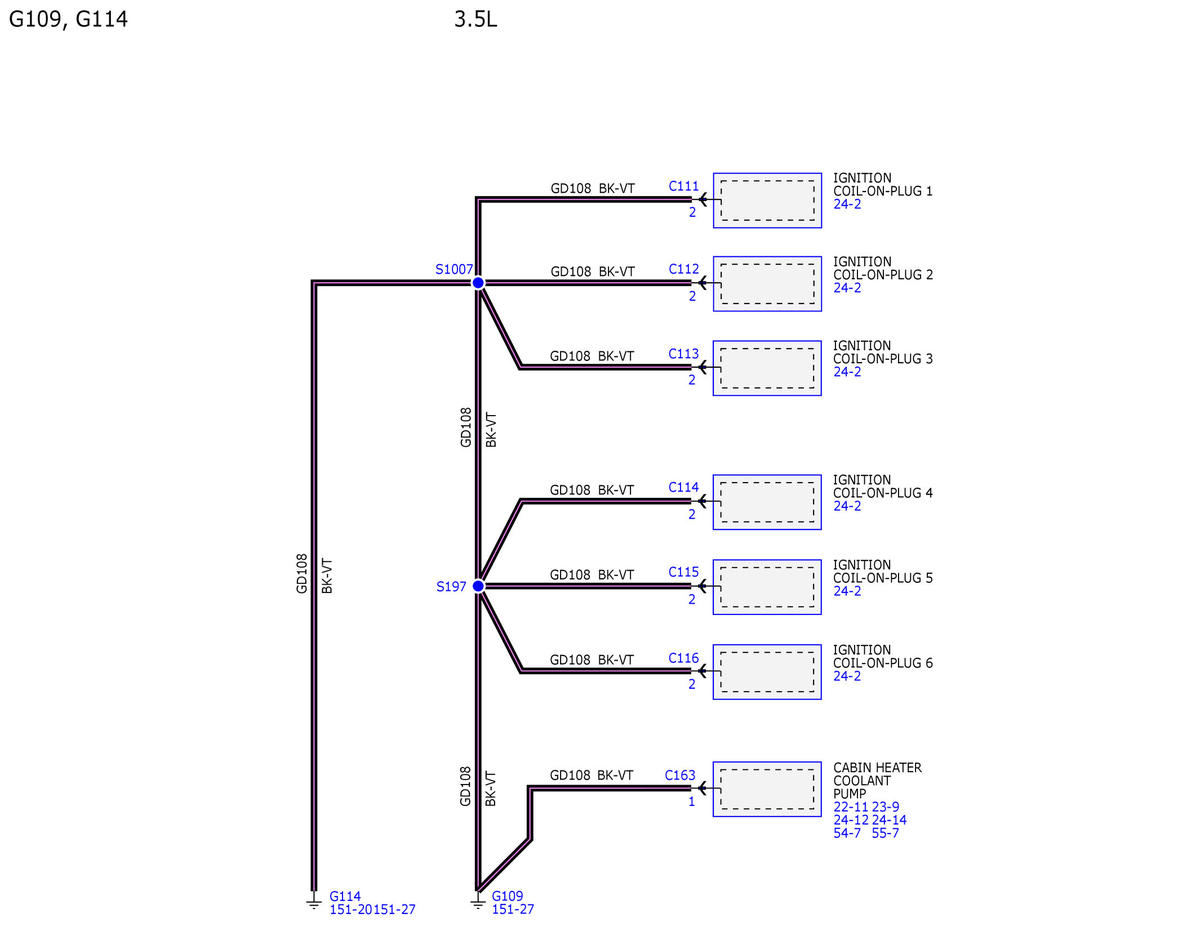

GFDWR193324Courtesy of FORD MOTOR COMPANY

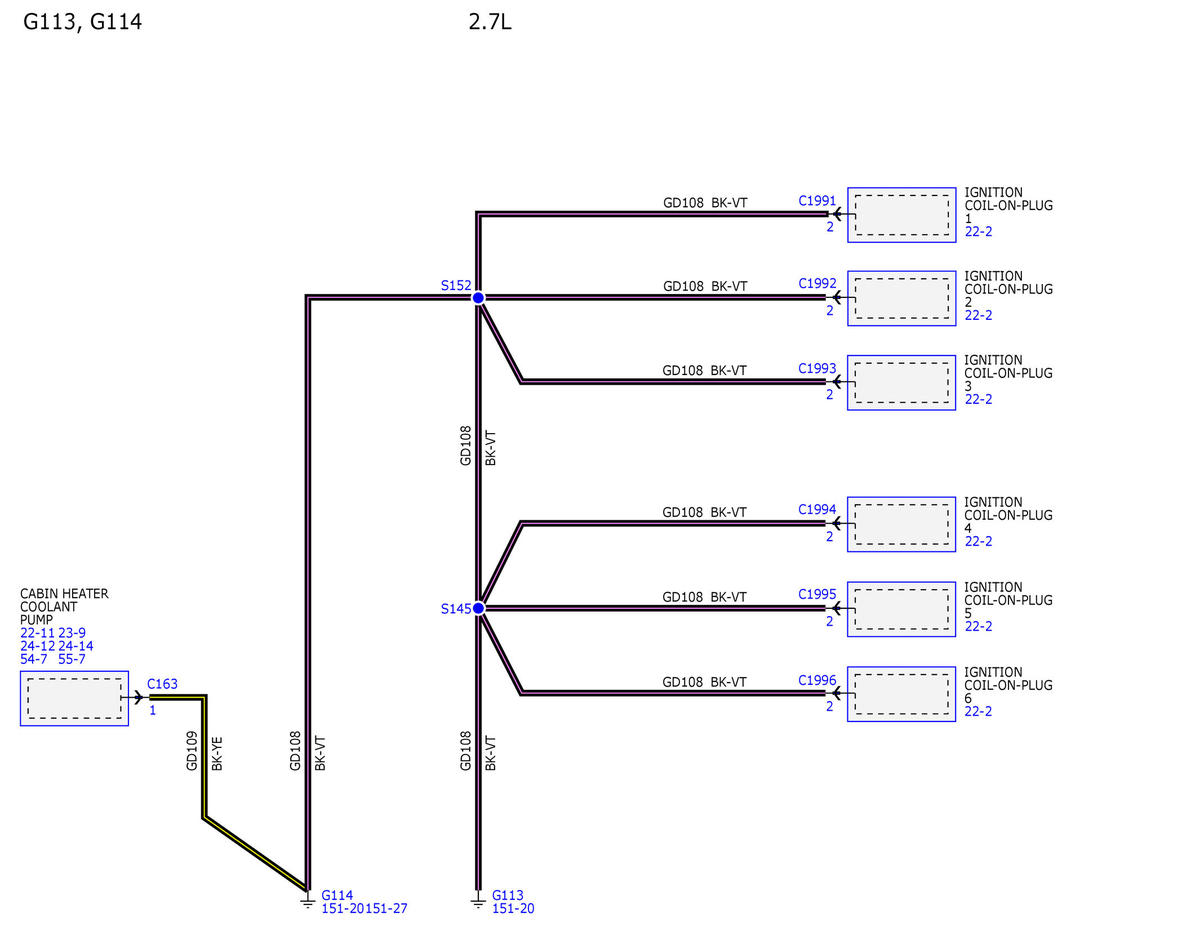

GFDWR193325Courtesy of FORD MOTOR COMPANY

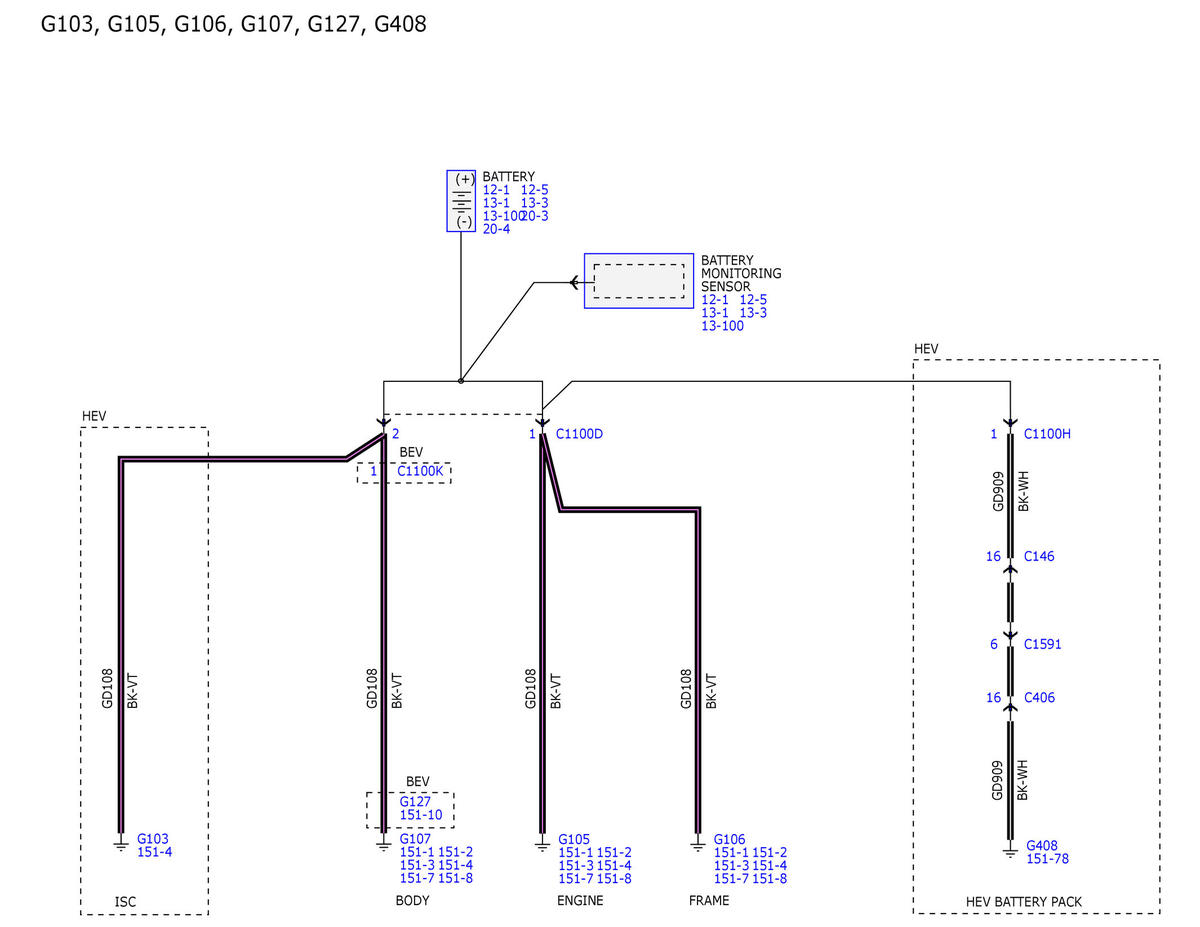

GFDWR193326Courtesy of FORD MOTOR COMPANY

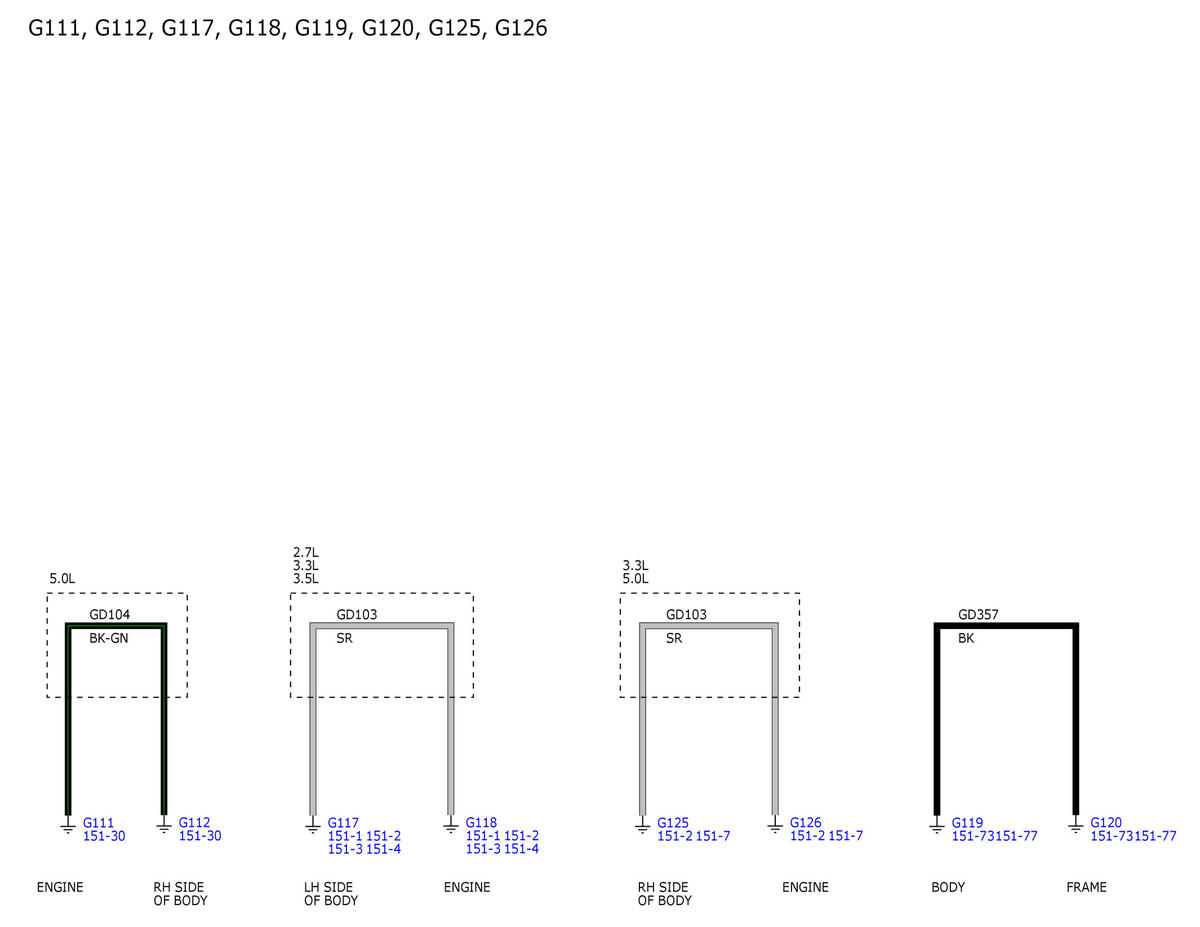

GFDWR193327Courtesy of FORD MOTOR COMPANY

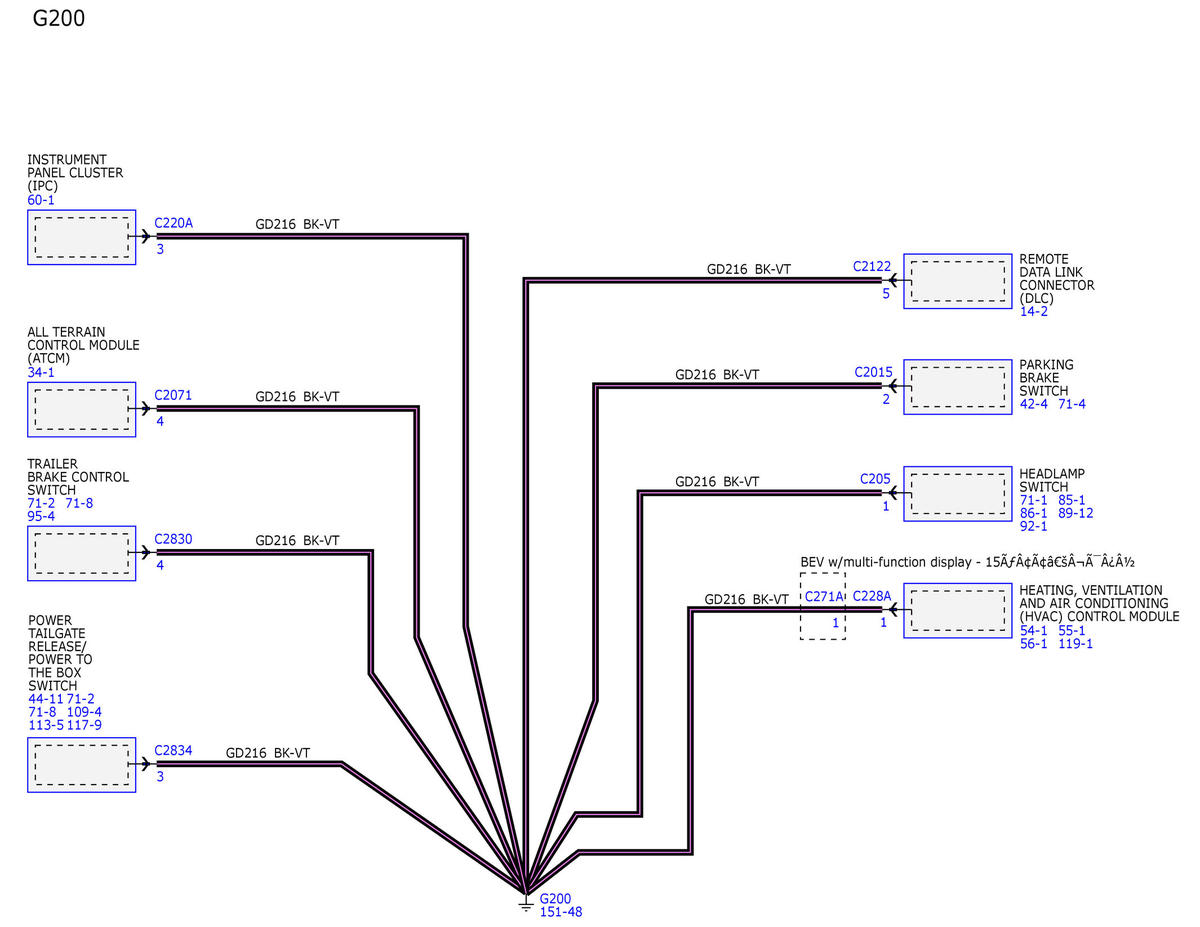

GFDWR193328Courtesy of FORD MOTOR COMPANY

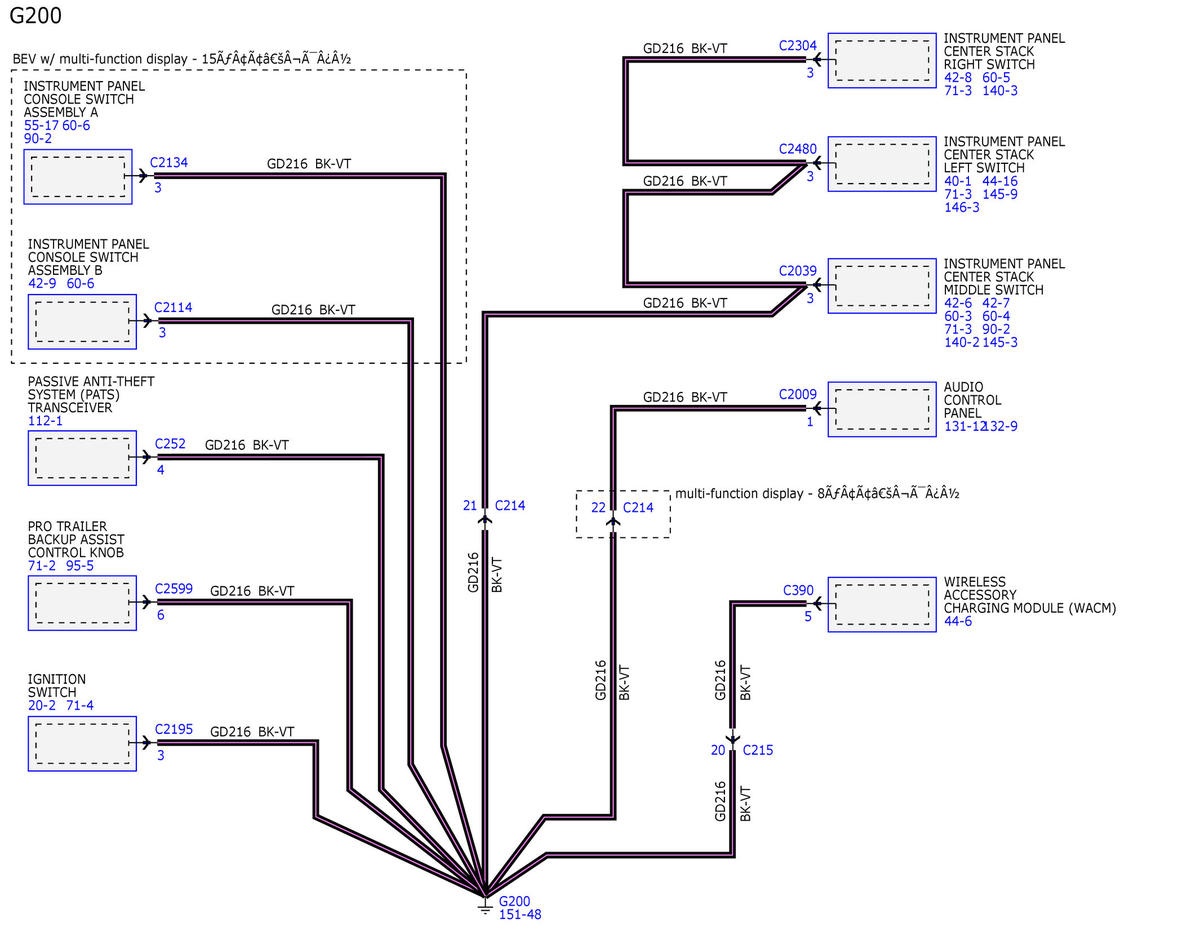

GFDWR193329Courtesy of FORD MOTOR COMPANY

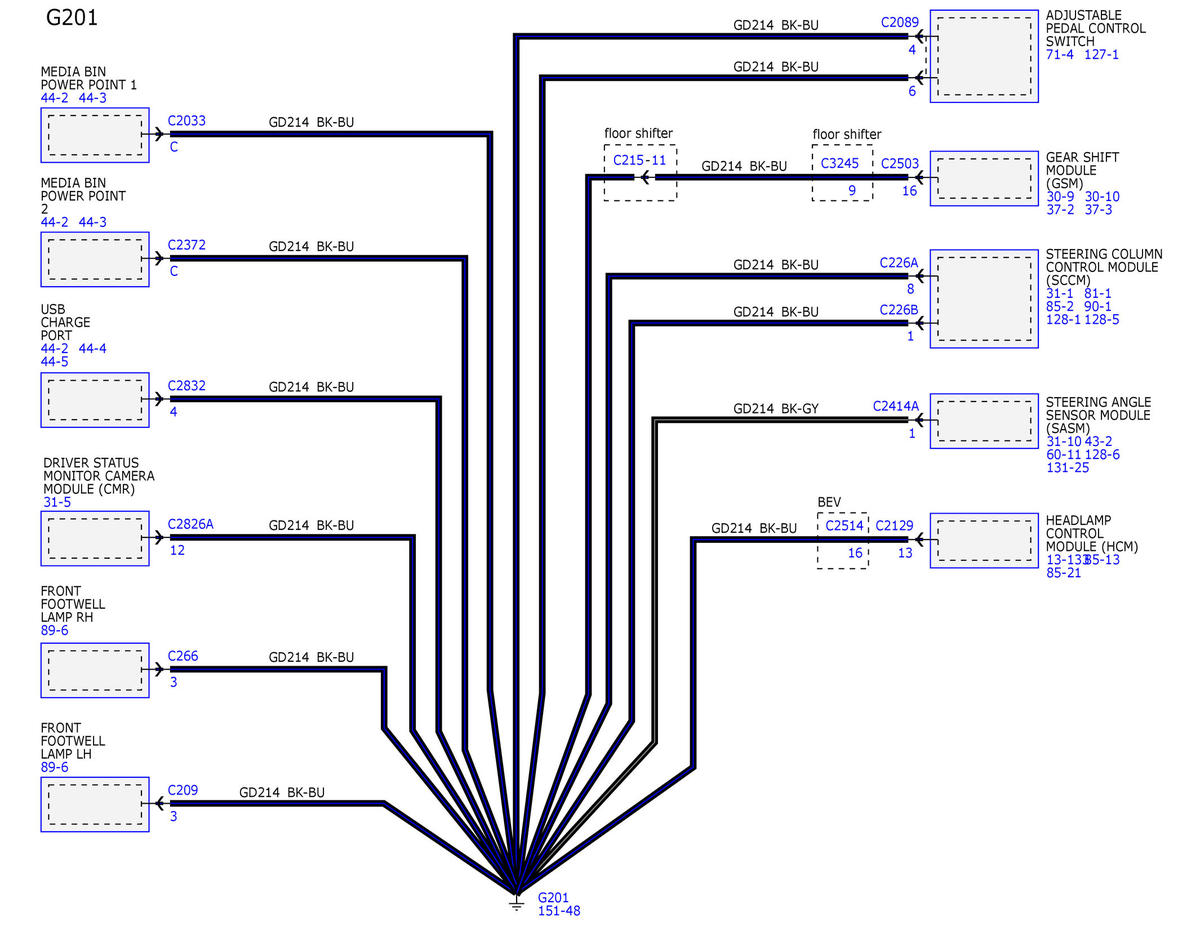

GFDWR193330Courtesy of FORD MOTOR COMPANY

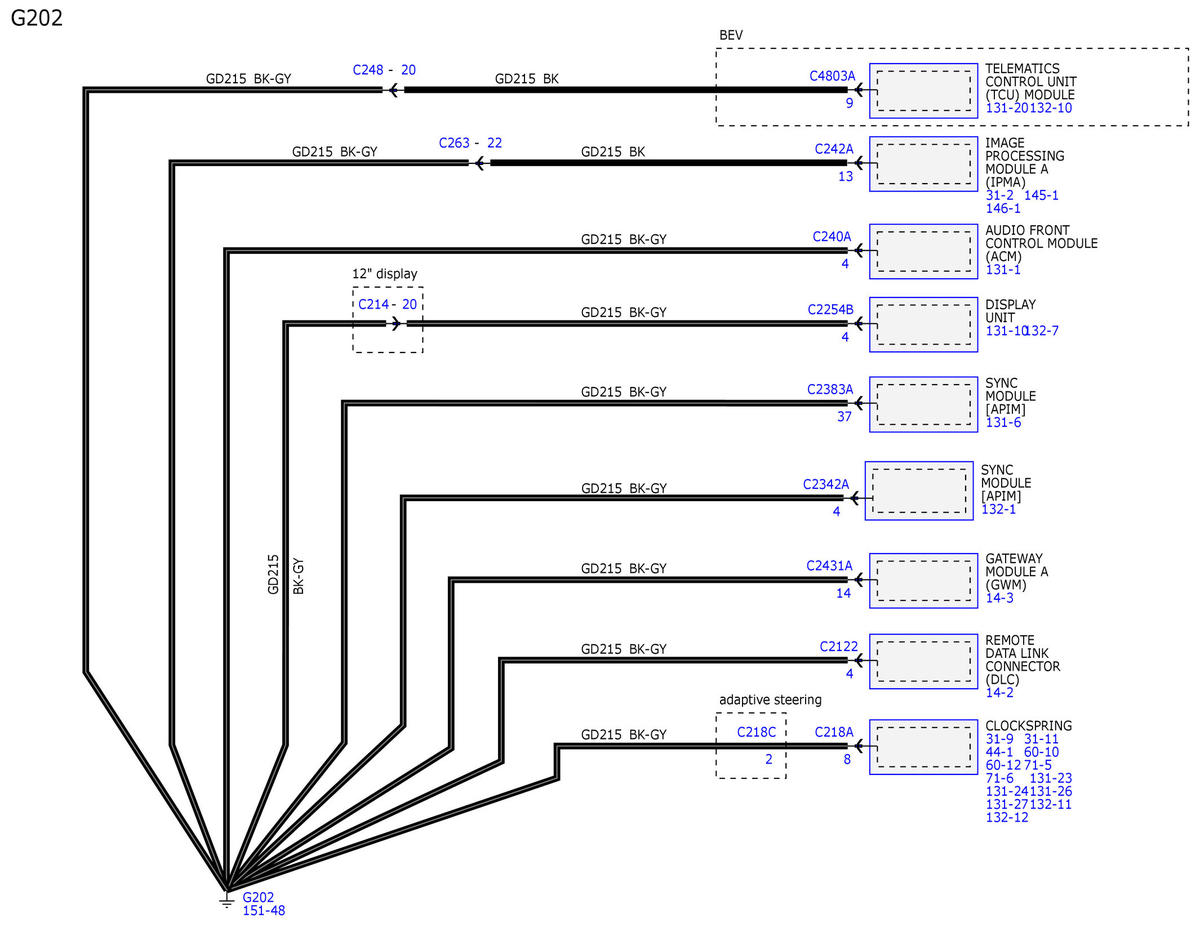

GFDWR193331Courtesy of FORD MOTOR COMPANY

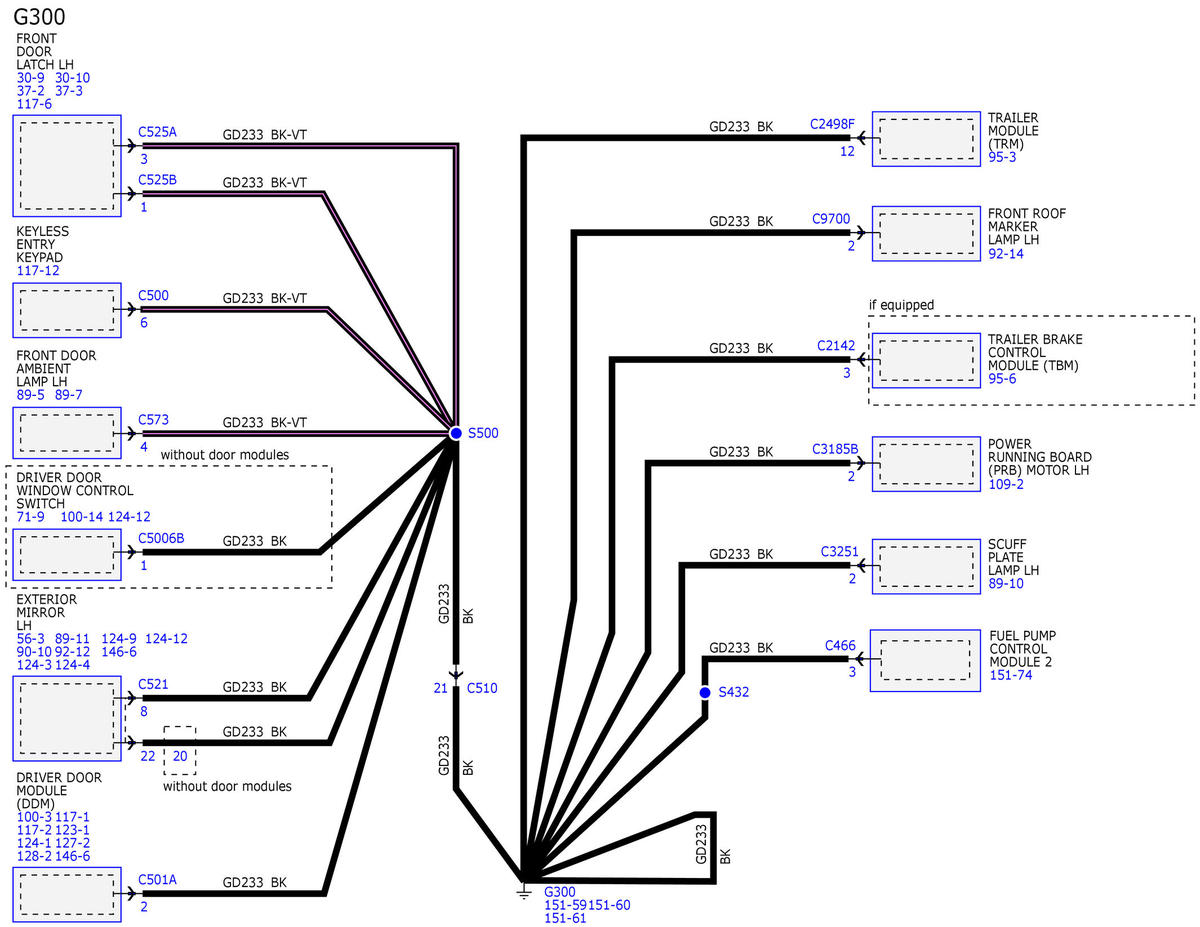

GFDWR193332Courtesy of FORD MOTOR COMPANY

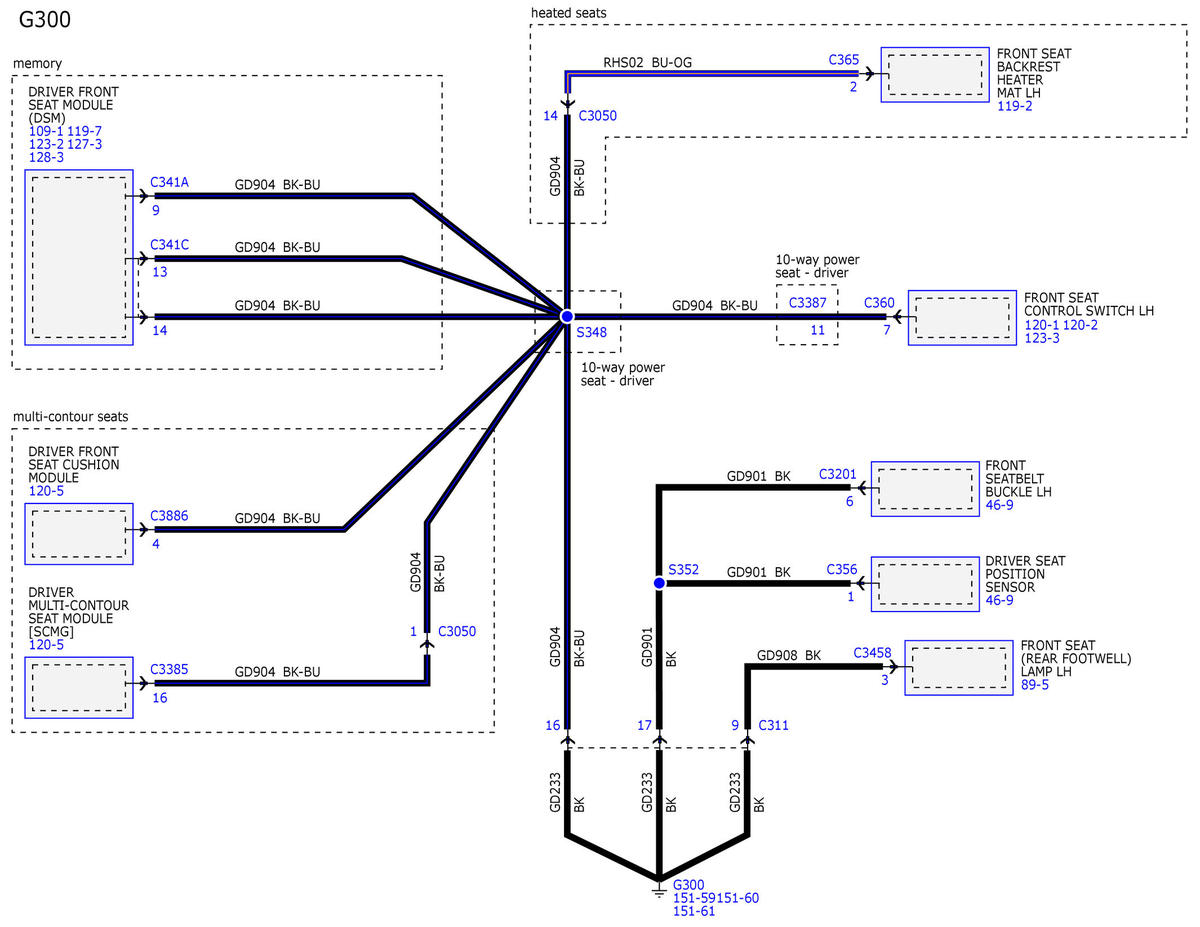

GFDWR193334Courtesy of FORD MOTOR COMPANY

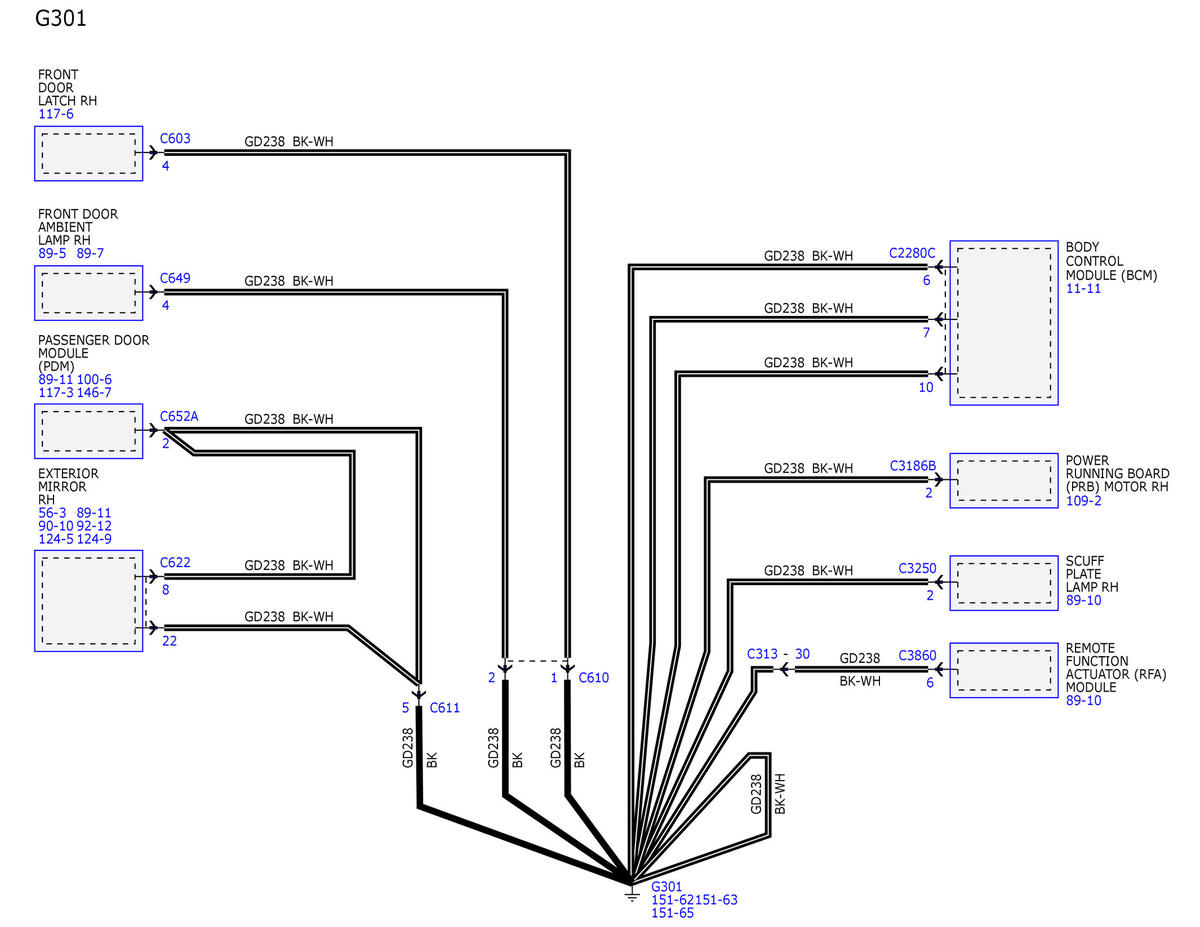

GFDWR193335Courtesy of FORD MOTOR COMPANY

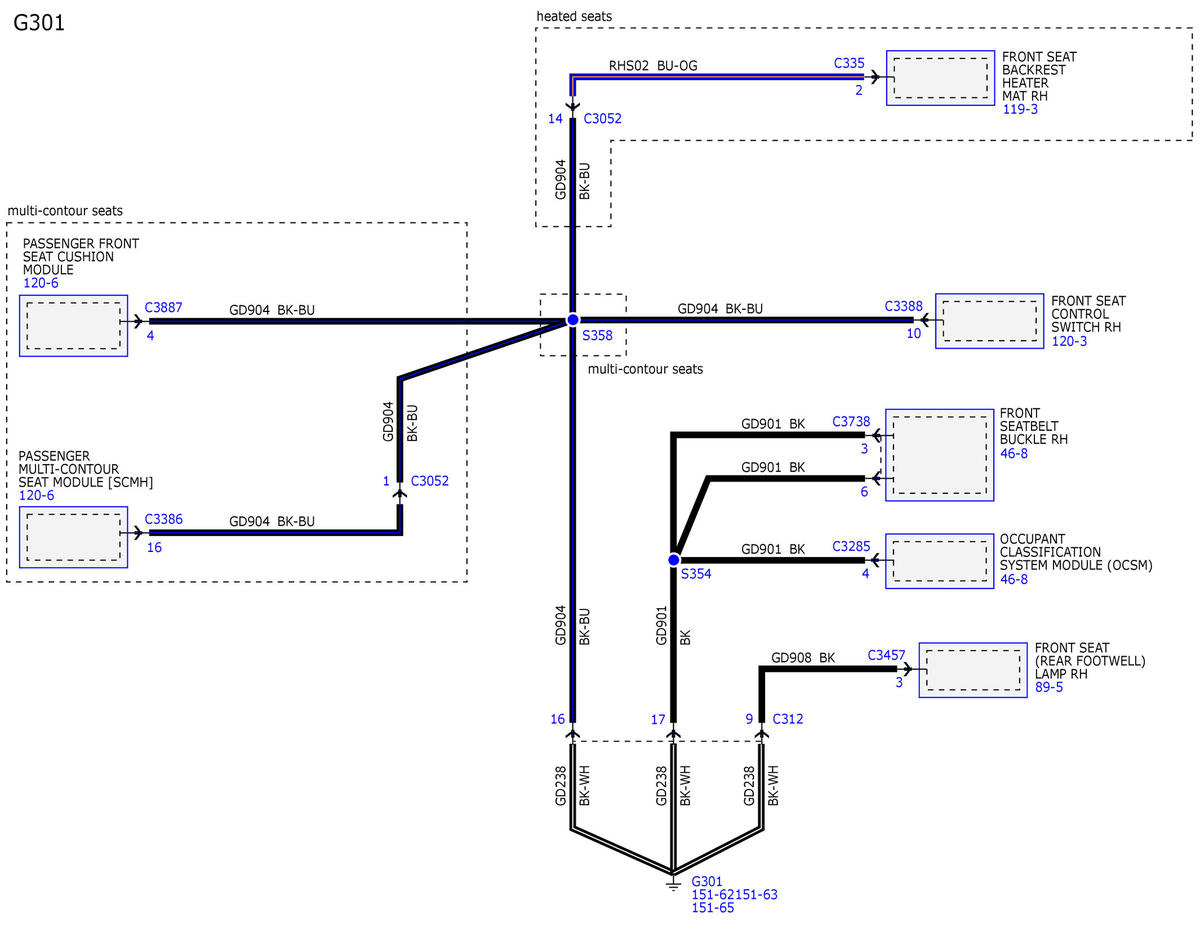

GFDWR193336Courtesy of FORD MOTOR COMPANY

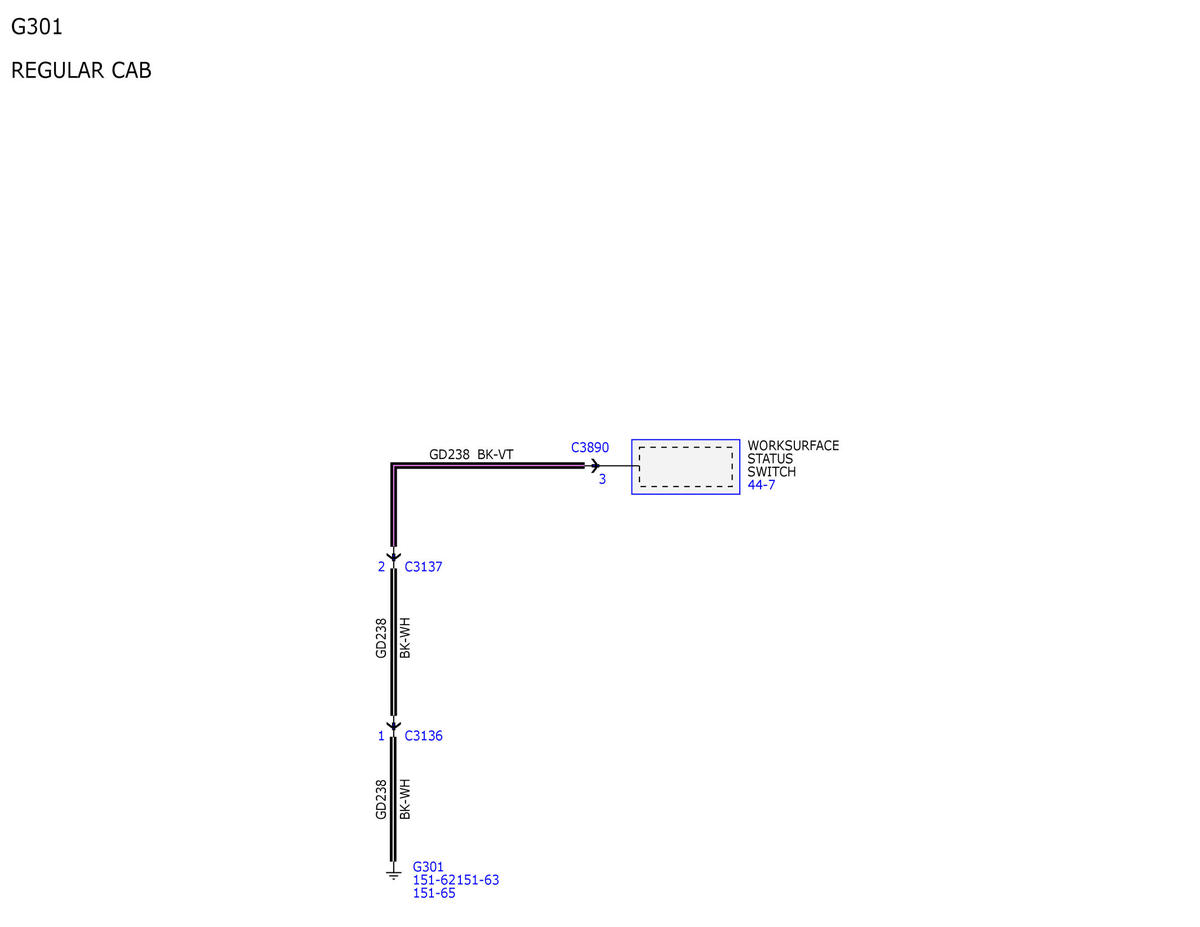

GFDWR193337Courtesy of FORD MOTOR COMPANY

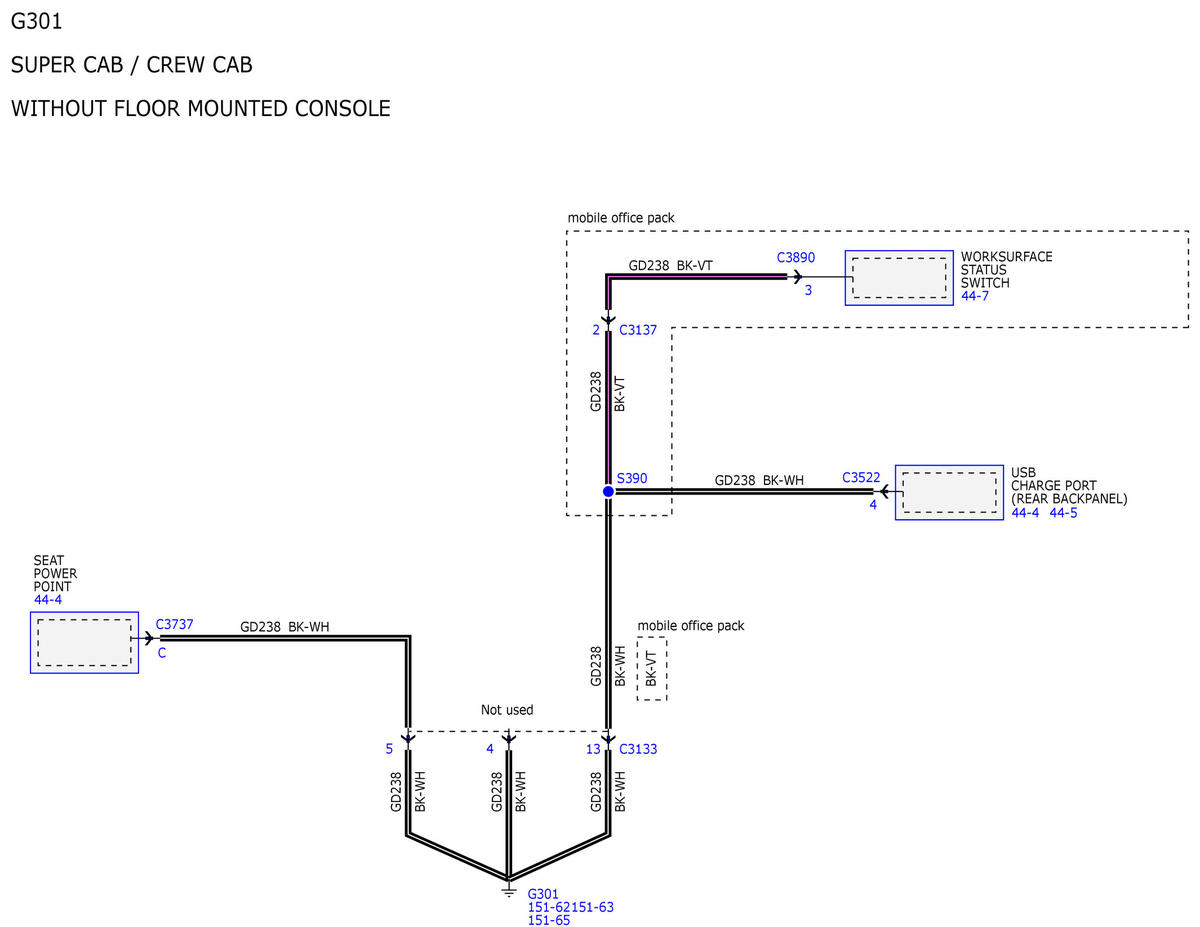

GFDWR193338Courtesy of FORD MOTOR COMPANY

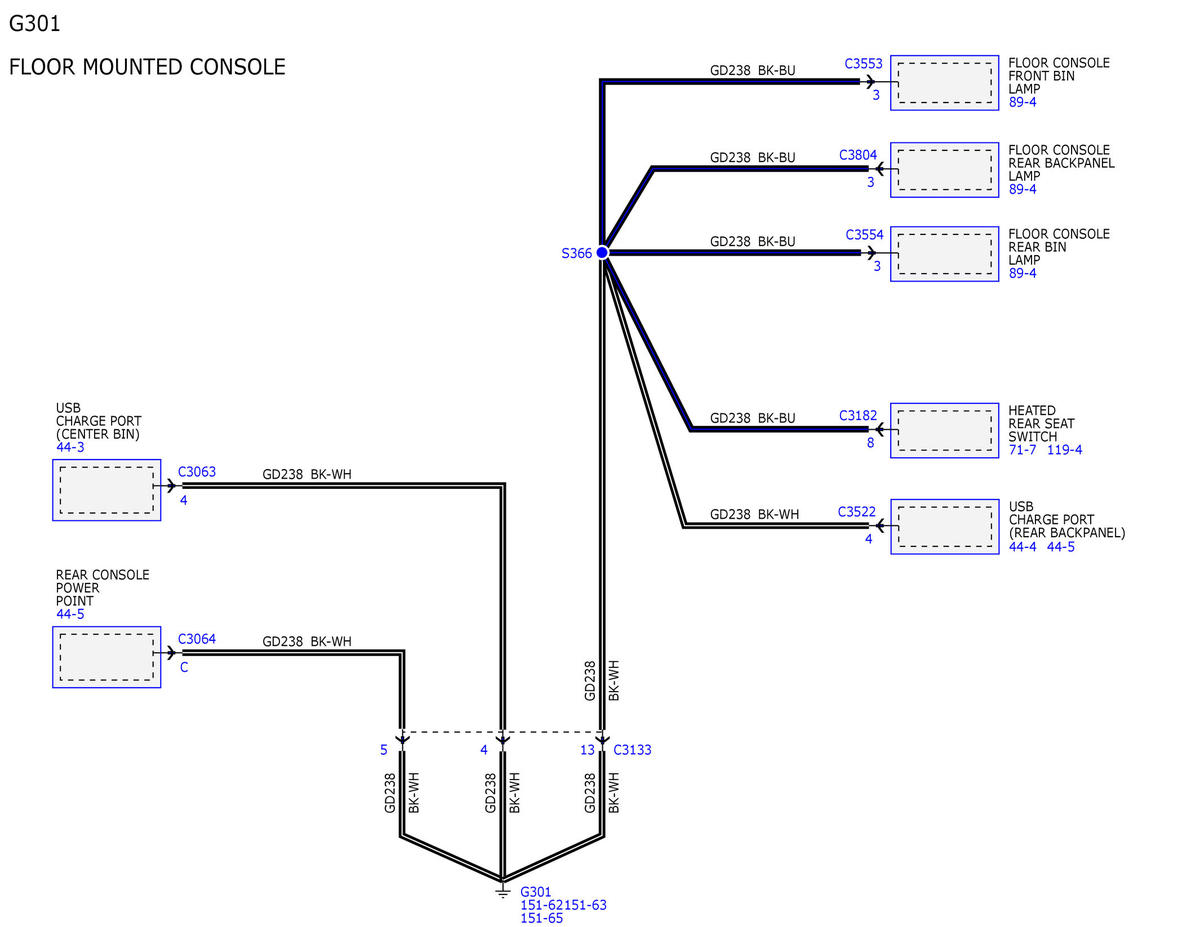

GFDWR193339Courtesy of FORD MOTOR COMPANY

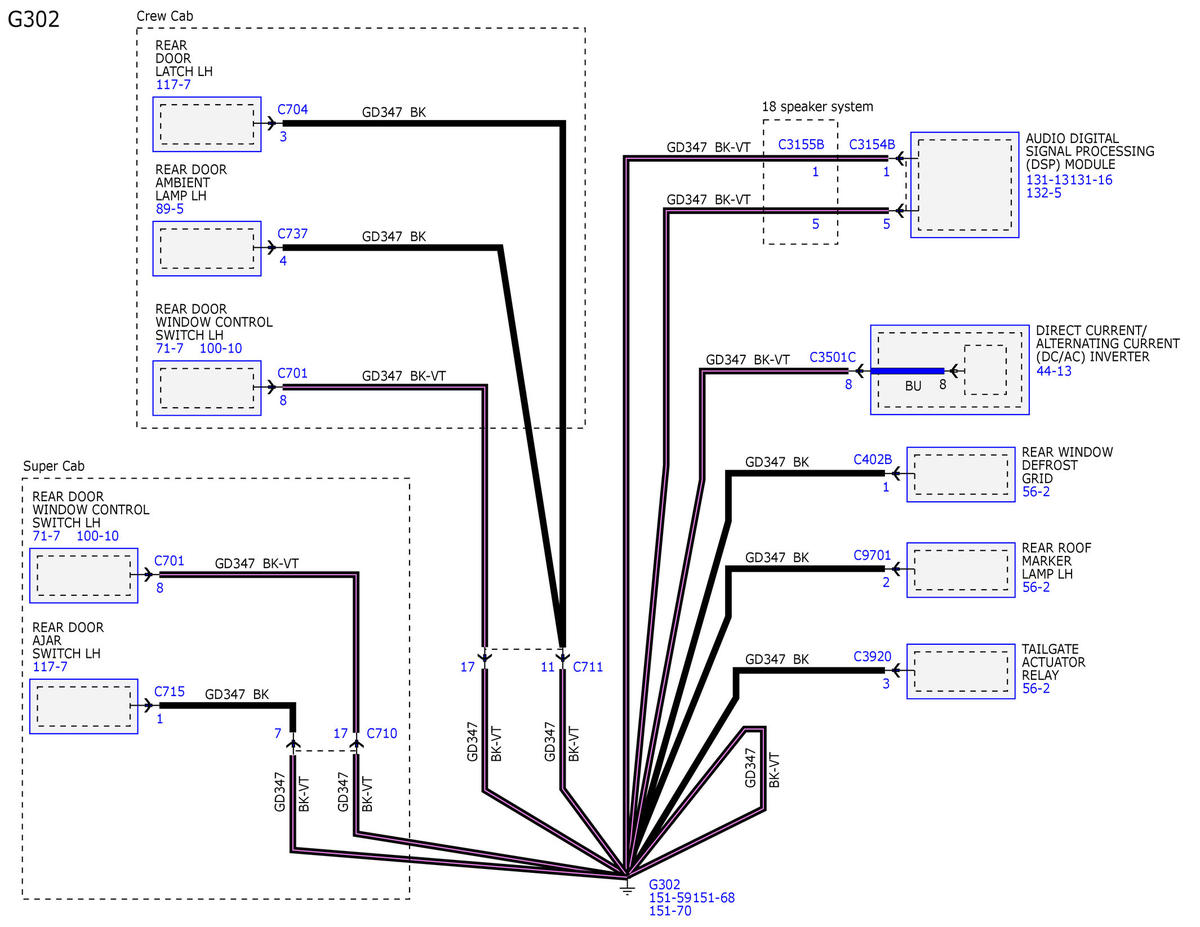

GFDWR193340Courtesy of FORD MOTOR COMPANY

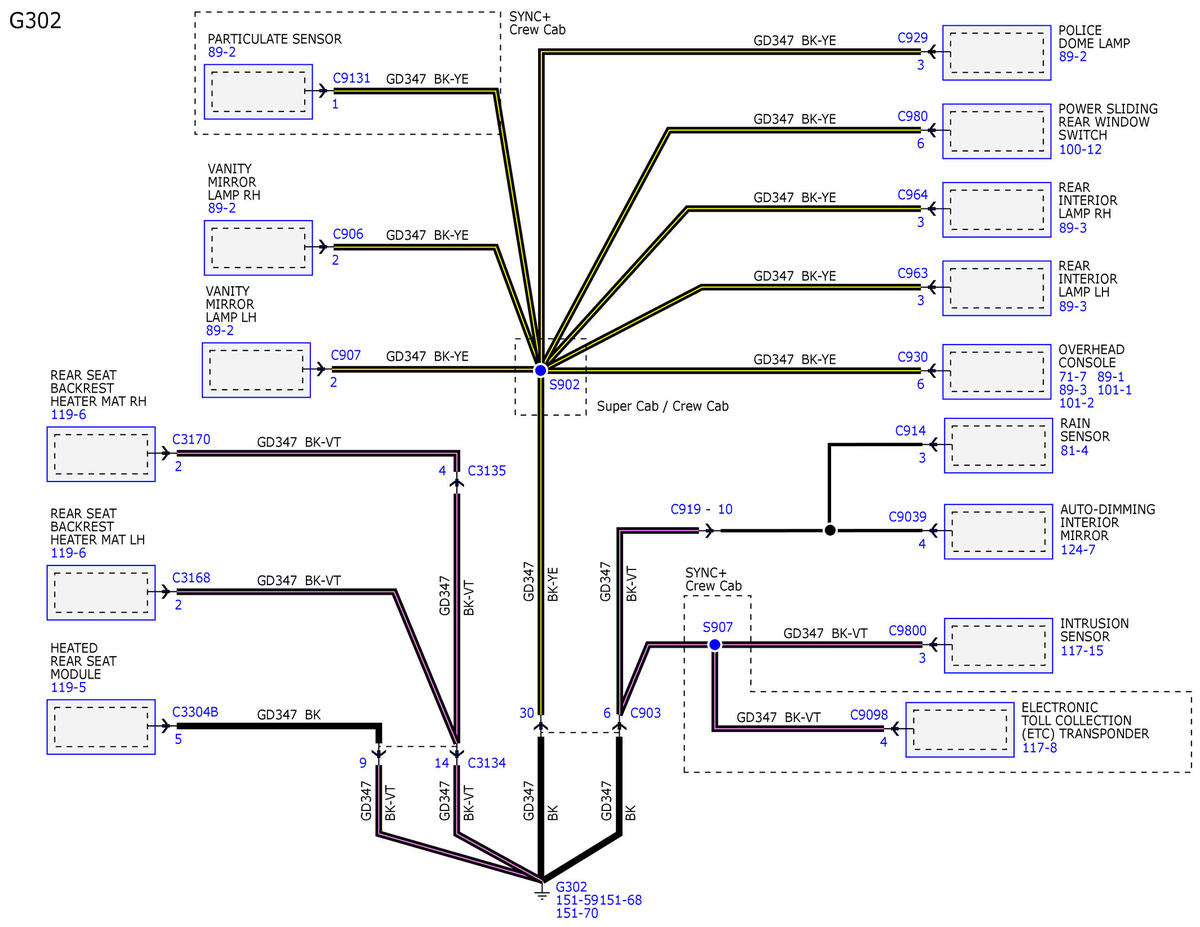

GFDWR193341Courtesy of FORD MOTOR COMPANY

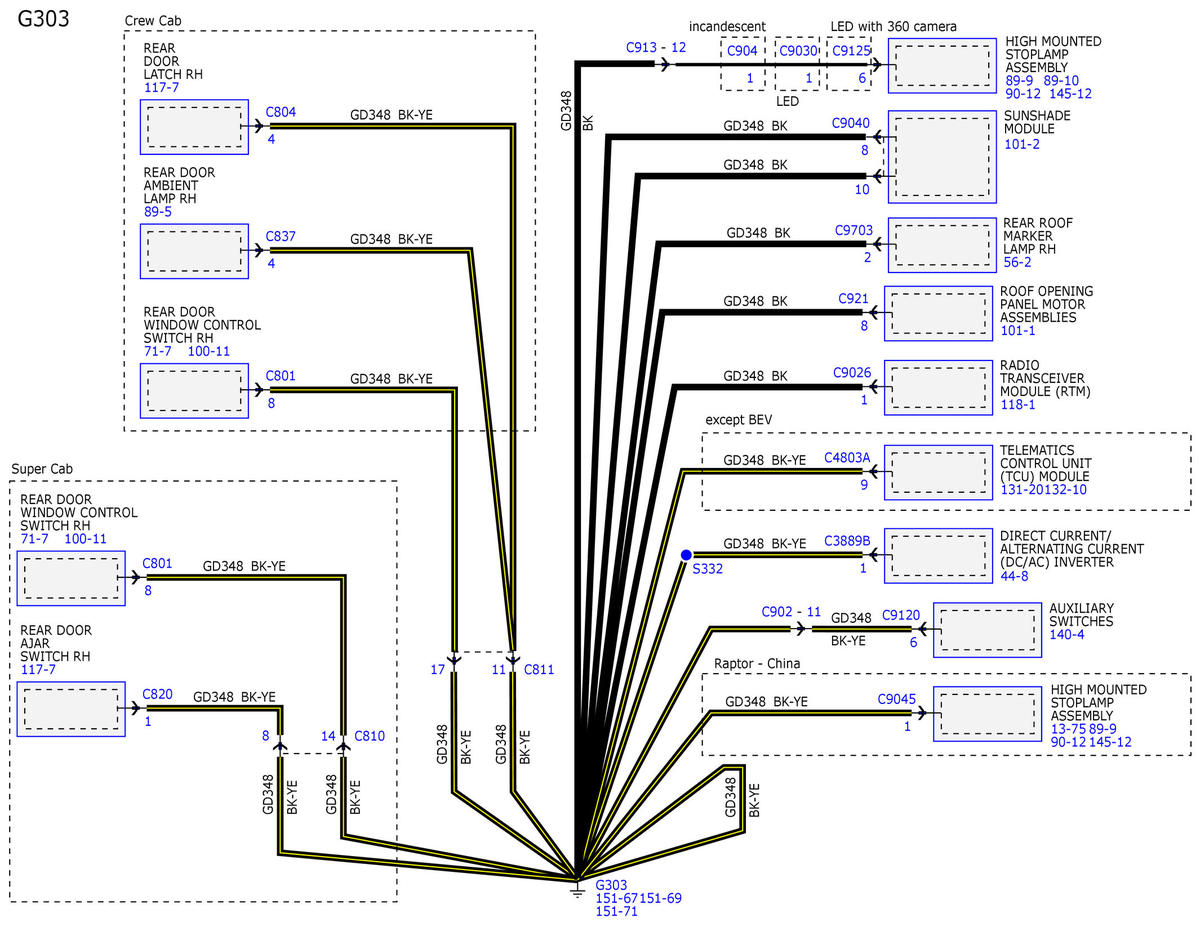

GFDWR193342Courtesy of FORD MOTOR COMPANY

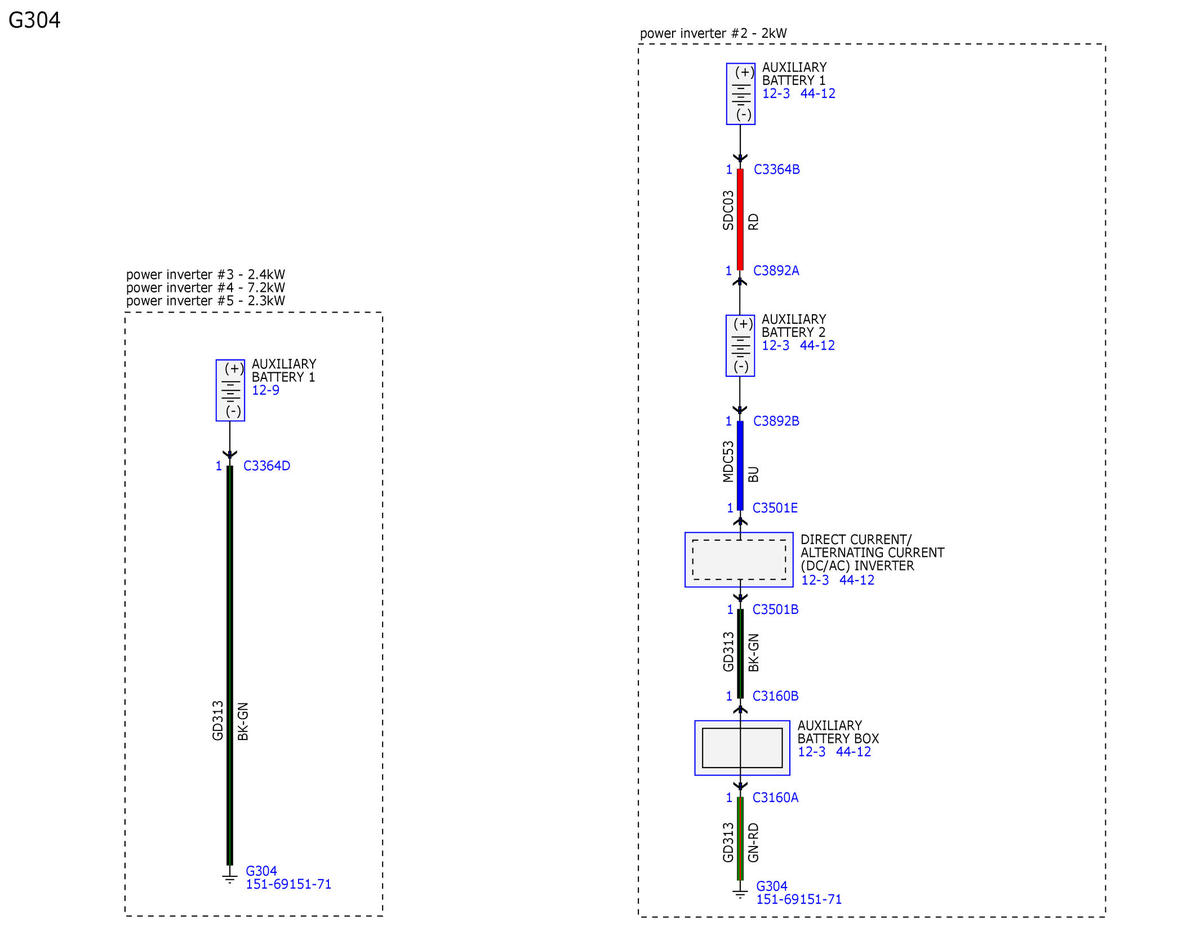

GFDWR193343Courtesy of FORD MOTOR COMPANY

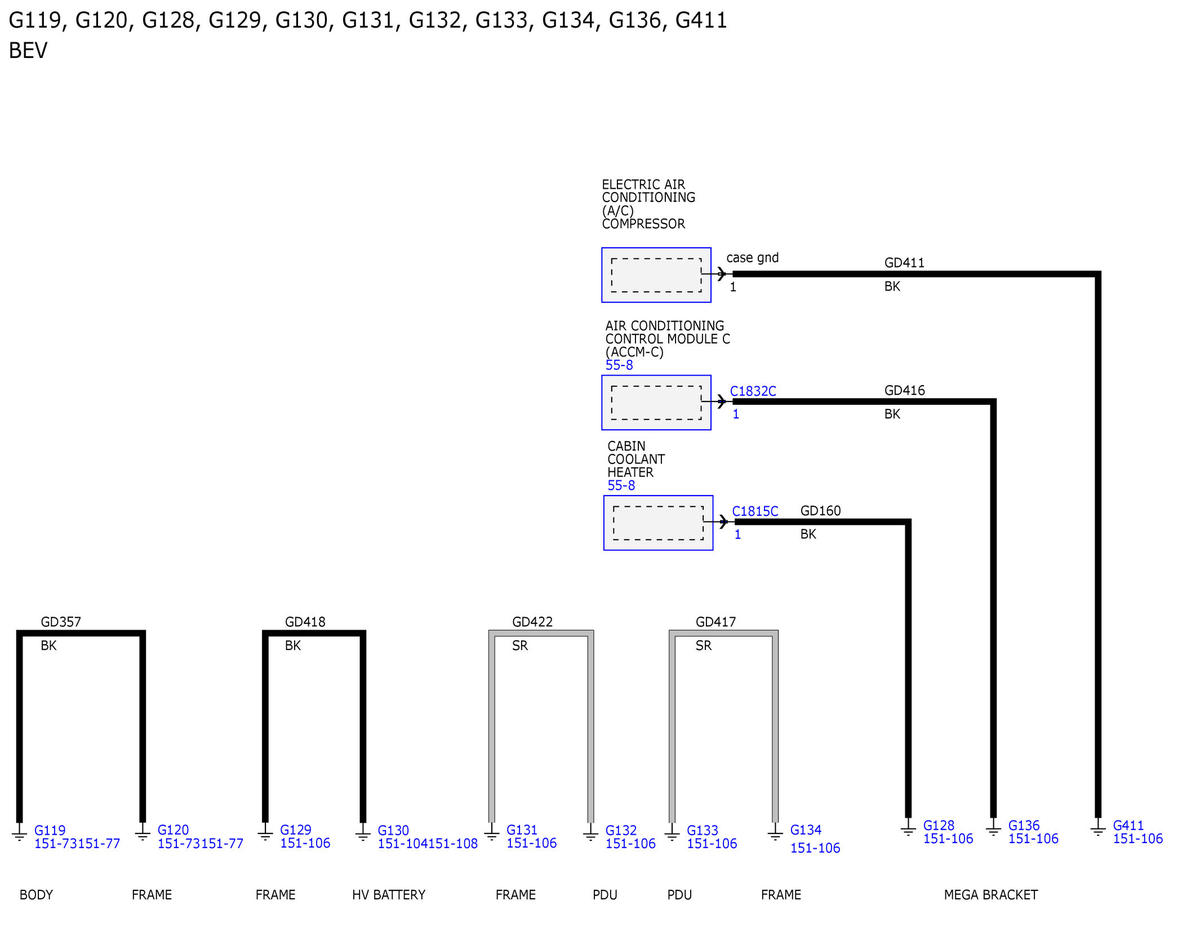

GFDWR193345Courtesy of FORD MOTOR COMPANY

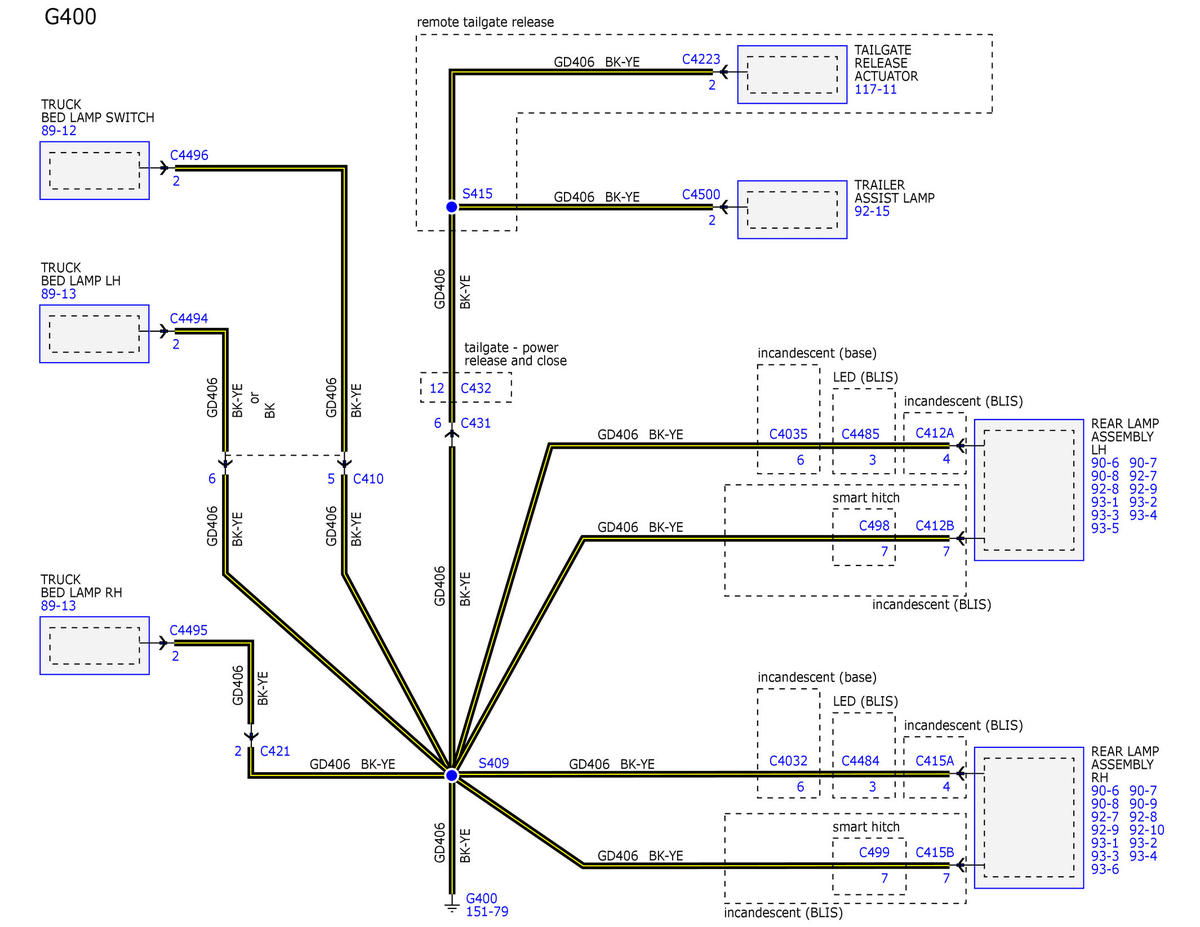

GFDWR193346Courtesy of FORD MOTOR COMPANY

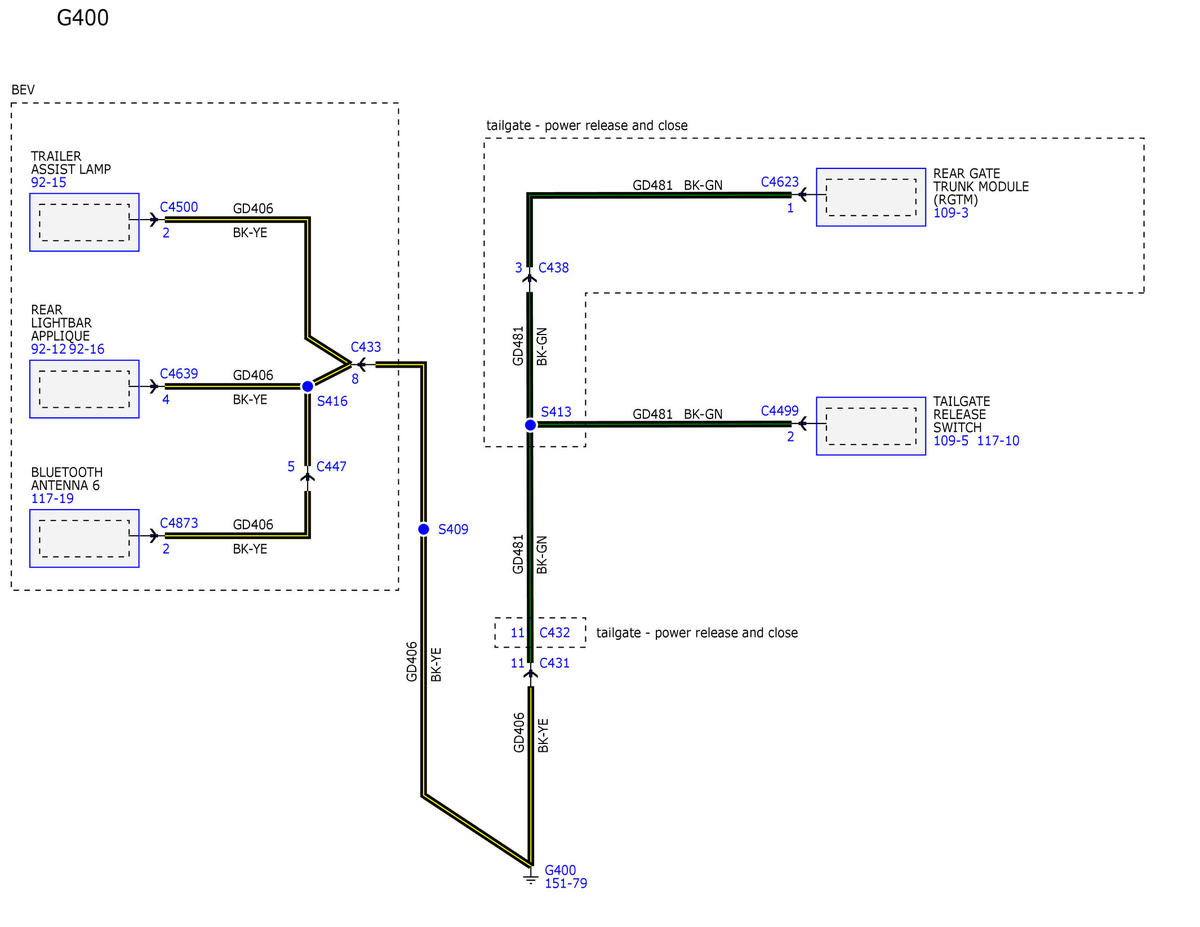

GFDWR193347Courtesy of FORD MOTOR COMPANY

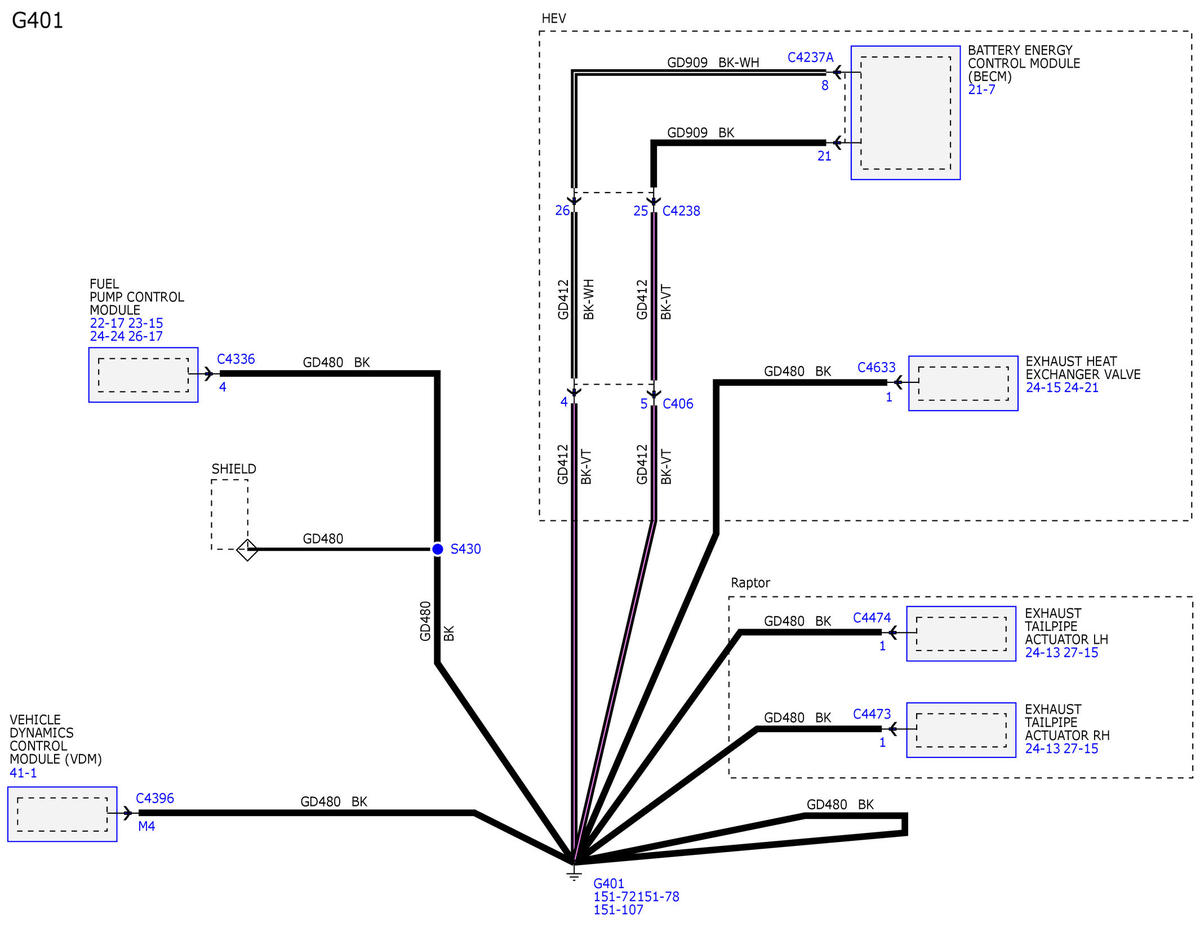

GFDWR193348Courtesy of FORD MOTOR COMPANY

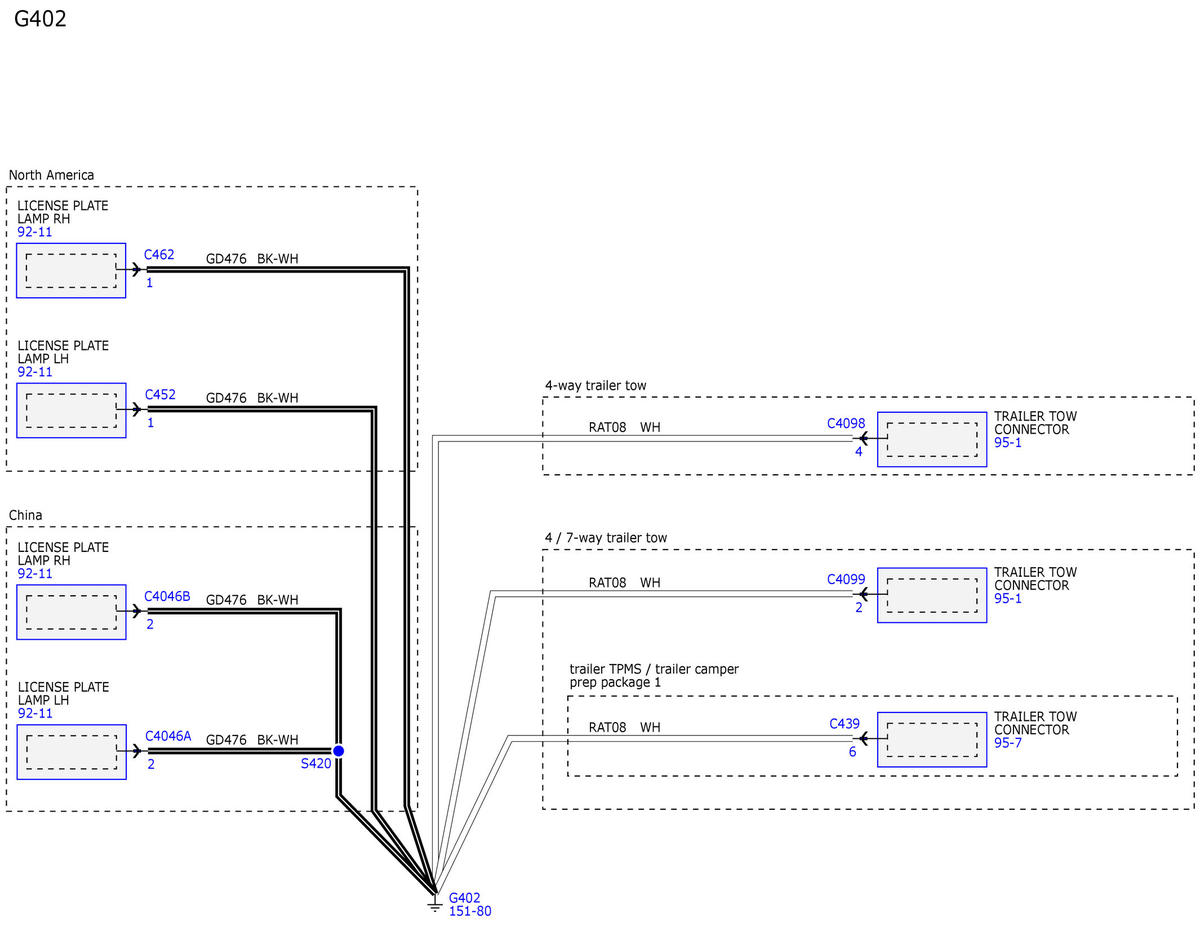

GFDWR193349Courtesy of FORD MOTOR COMPANY

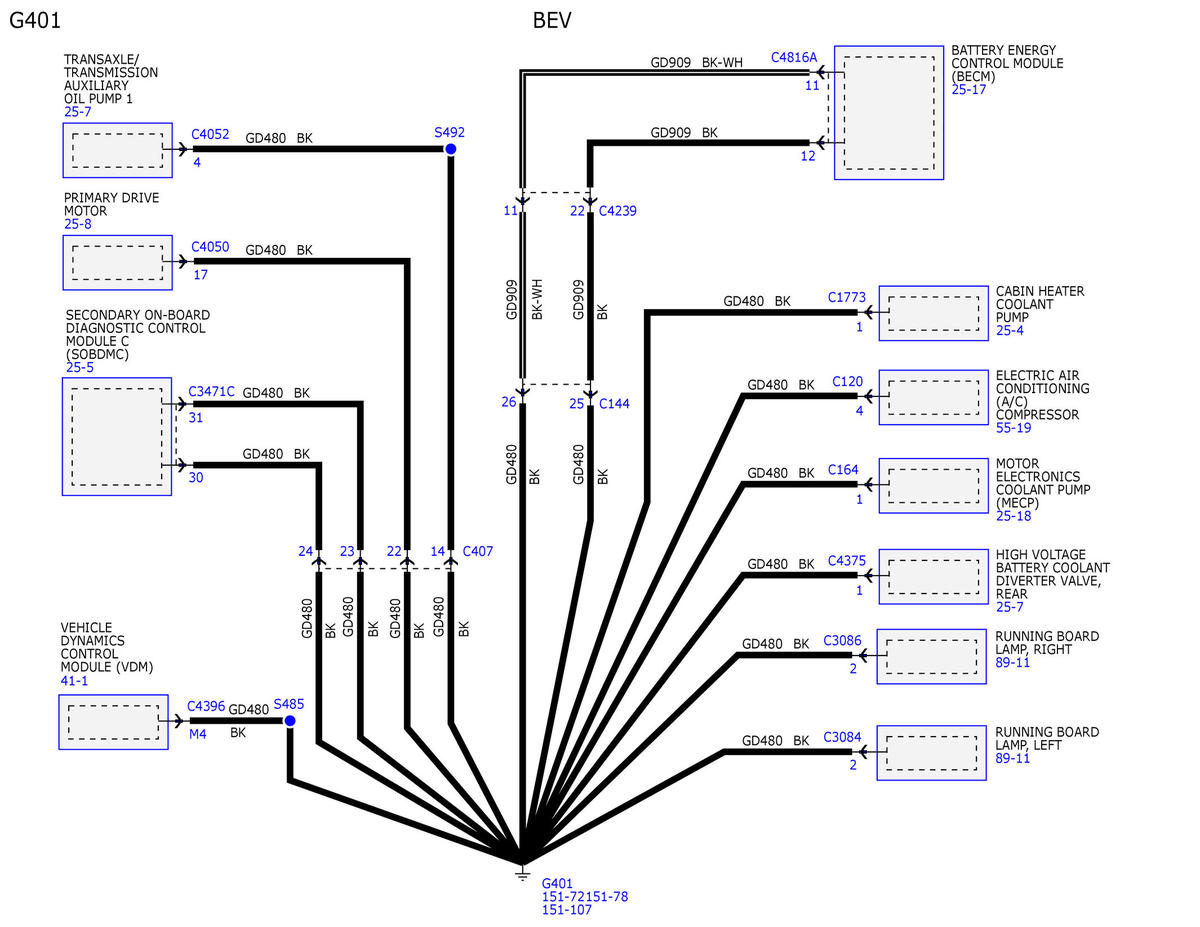

GFDWR193350Courtesy of FORD MOTOR COMPANY

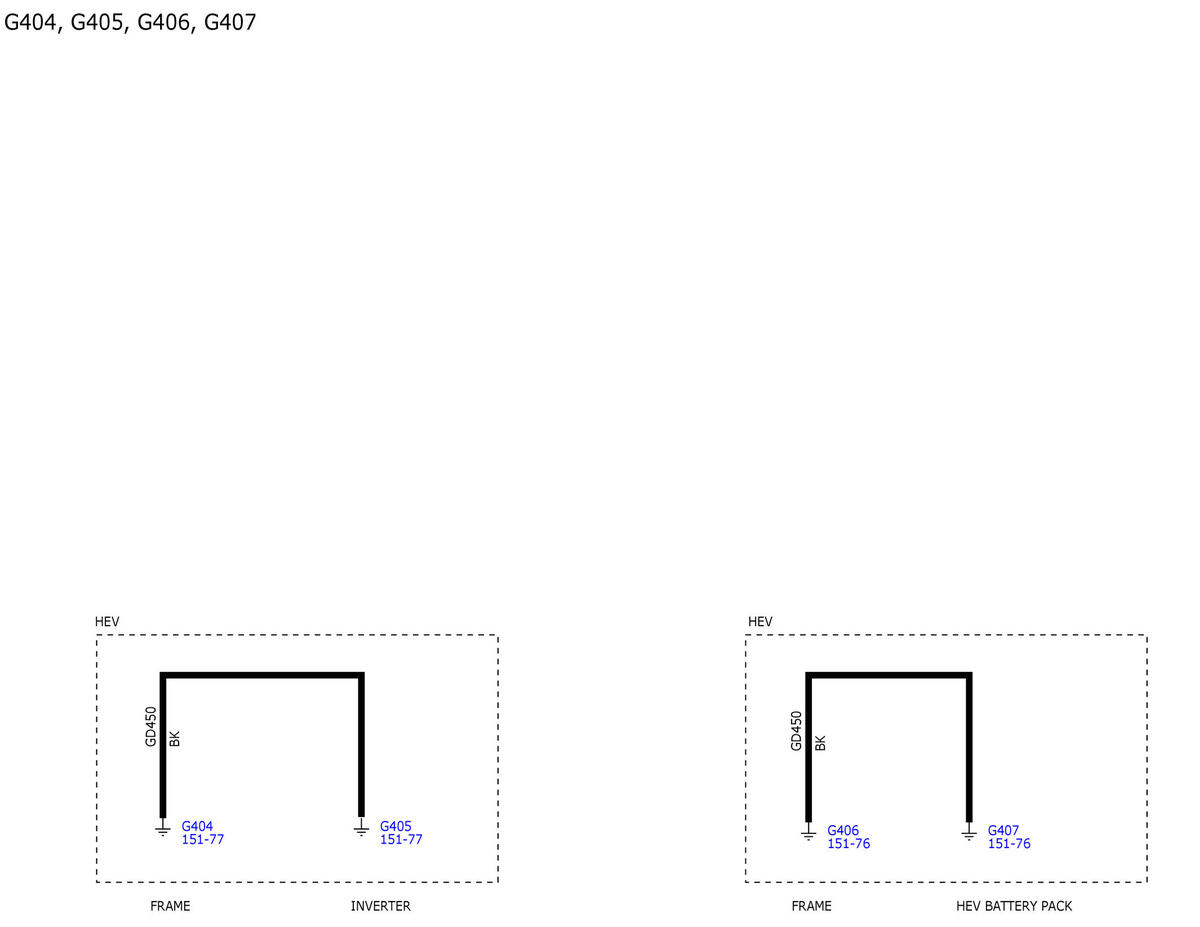

GFDWR193351Courtesy of FORD MOTOR COMPANY

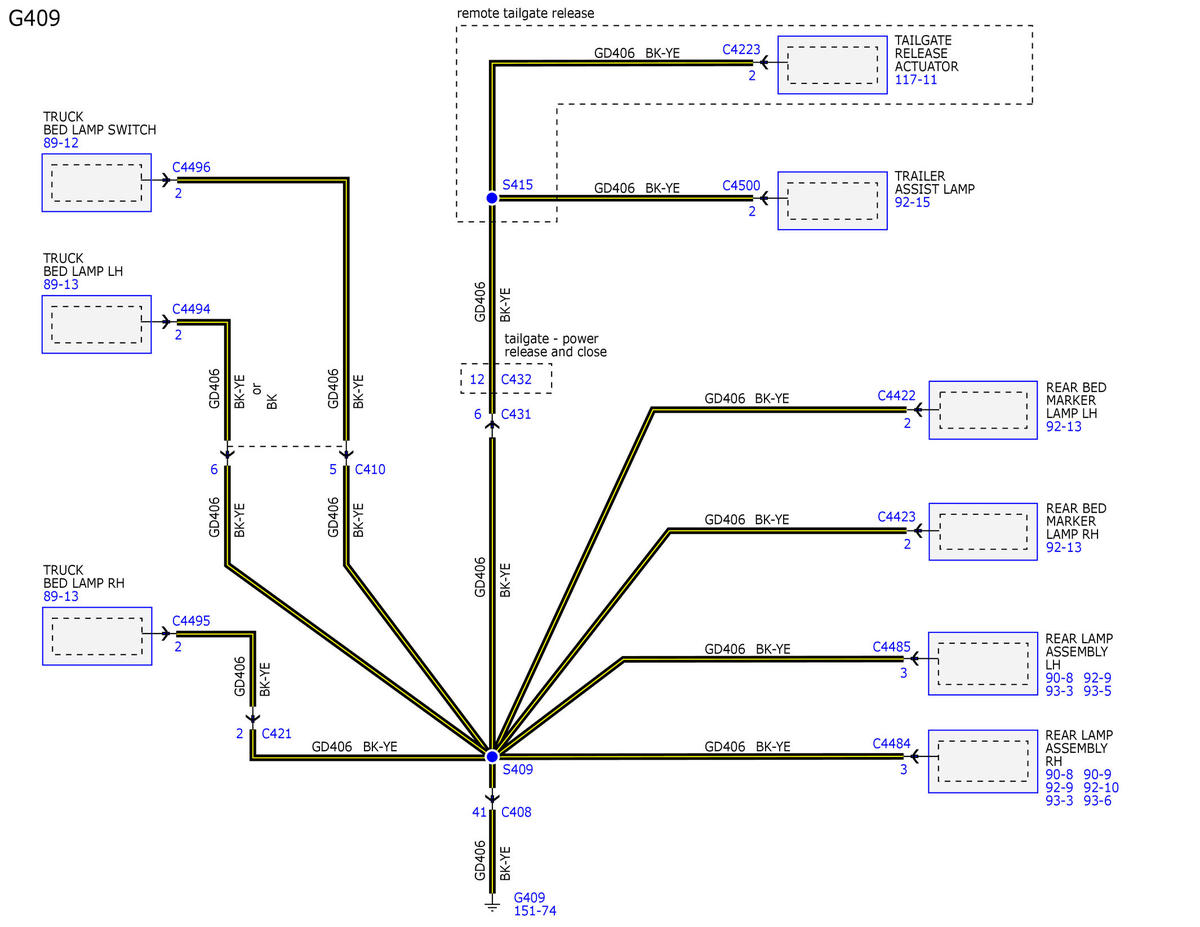

GFDWR193352Courtesy of FORD MOTOR COMPANY

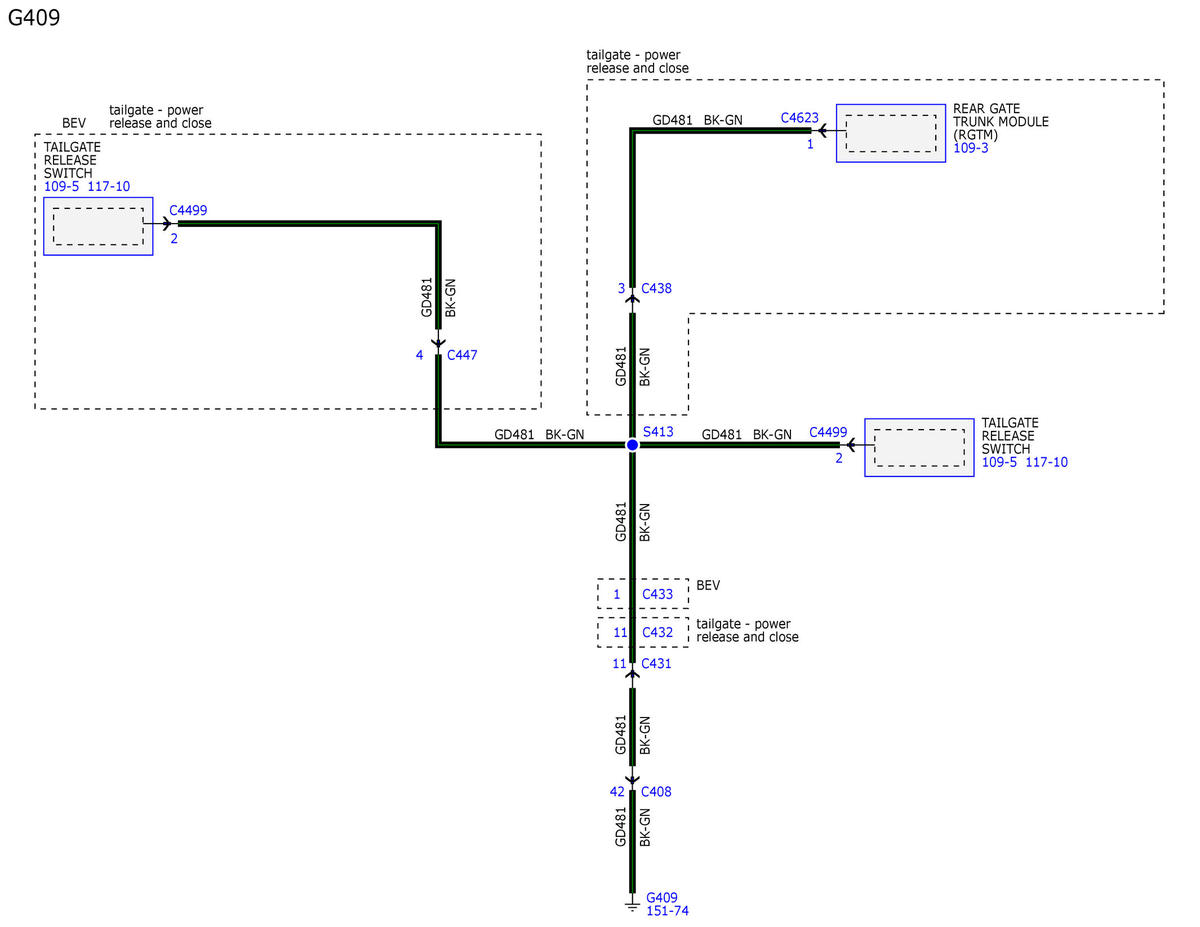

GFDWR193353Courtesy of FORD MOTOR COMPANY

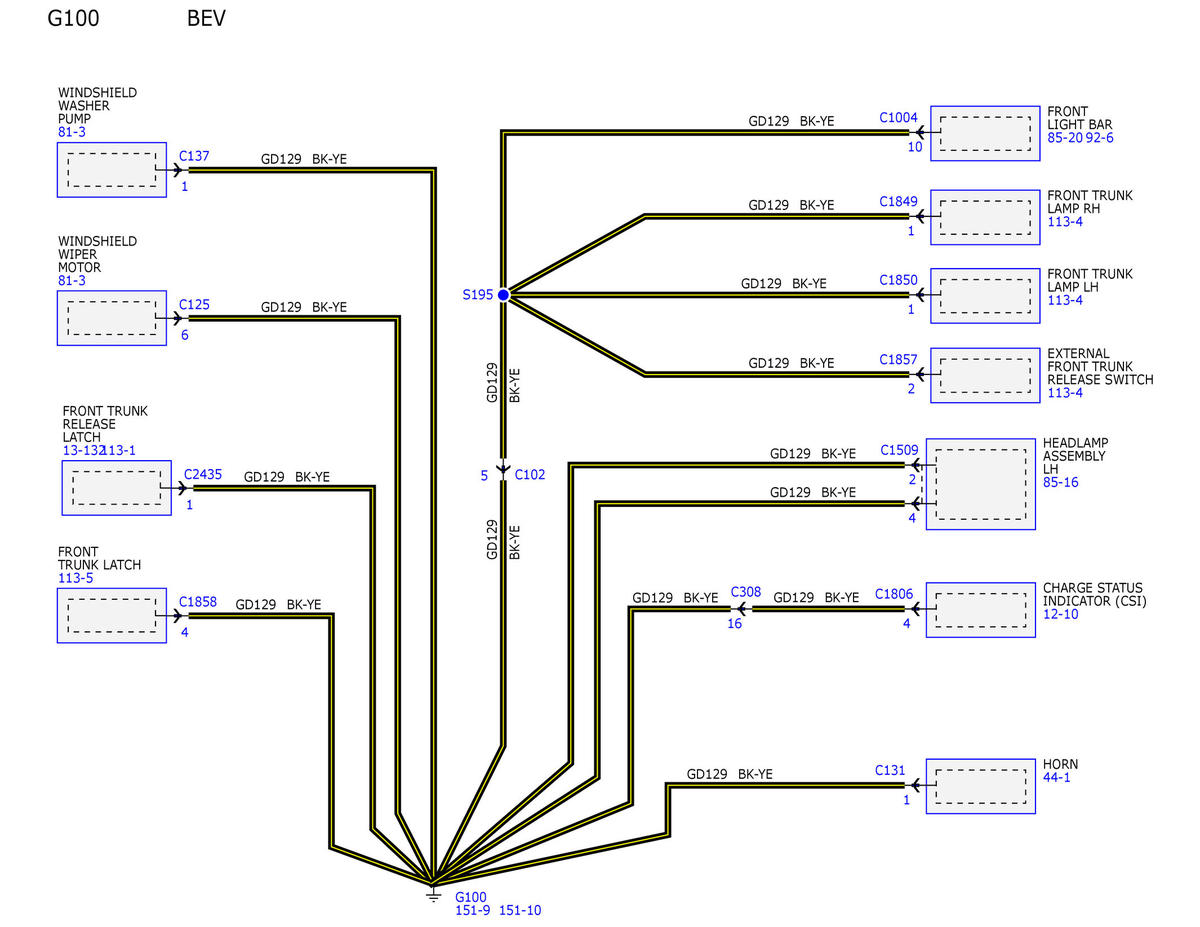

GFDWR193354Courtesy of FORD MOTOR COMPANY

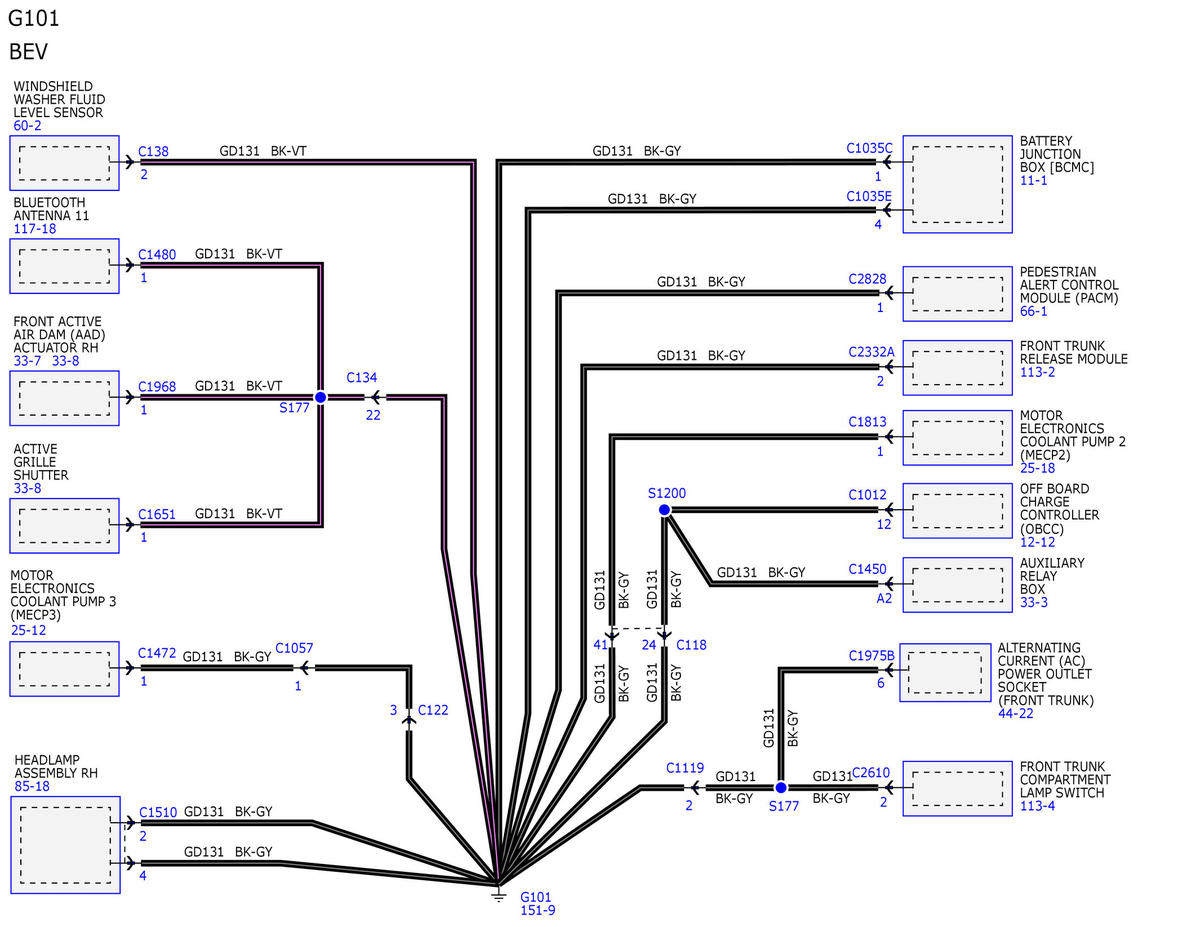

GFDWR193356Courtesy of FORD MOTOR COMPANY

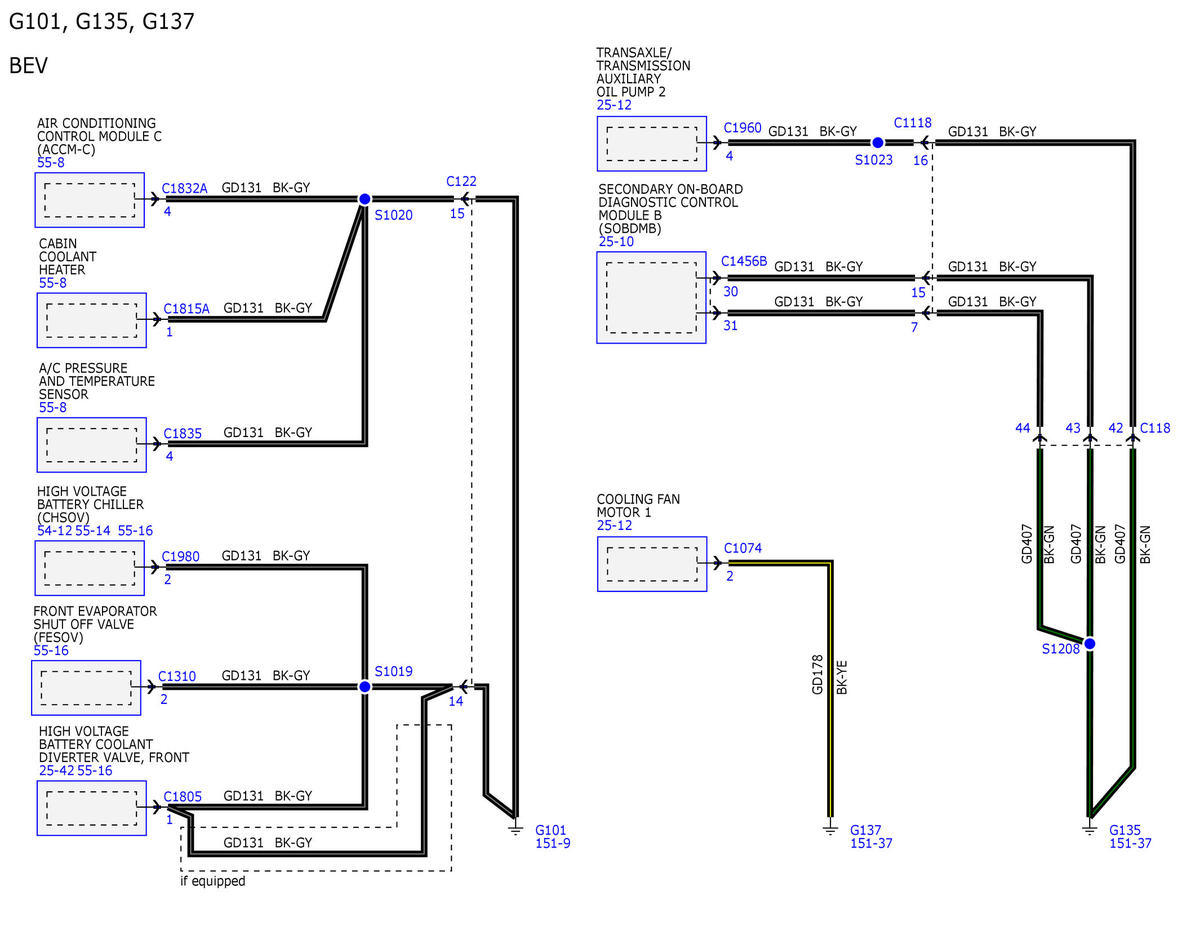

GFDWR193357Courtesy of FORD MOTOR COMPANY
