Ignition Switch Component Testing

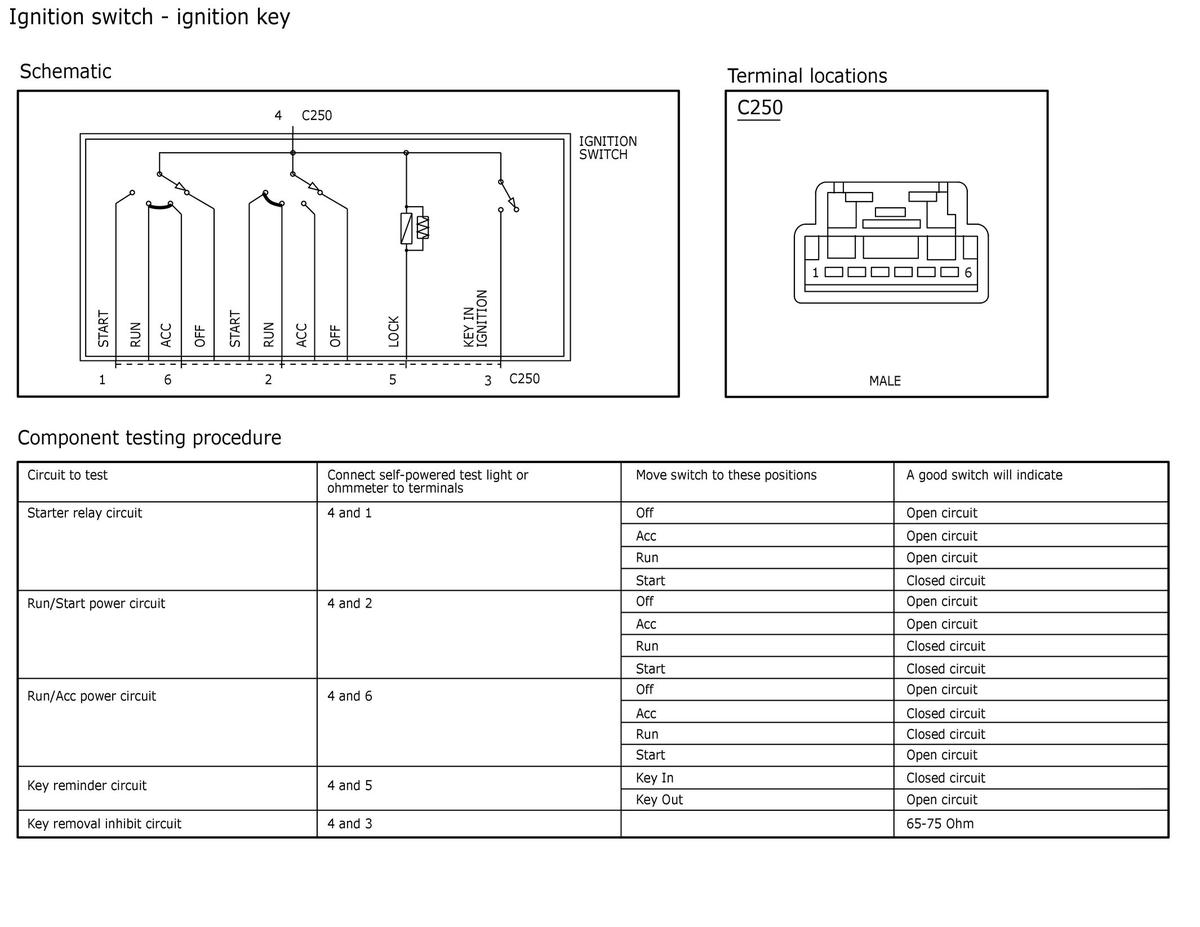

Fig 1: Ignition Switch - Ignition Key Component Testing
GFDWR194128Courtesy of FORD MOTOR COMPANY
