Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

De-energize the high voltage system. Refer to: High Voltage System De-energizing - Full Hybrid Electric Vehicle (FHEV) .
NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming

(418-01A Module Configuration, General Procedures). Use the General Equipment: Ford Diagnostic Equipment
Disconnect the battery negative terminal. Refer to: Battery Disconnect and Connect .

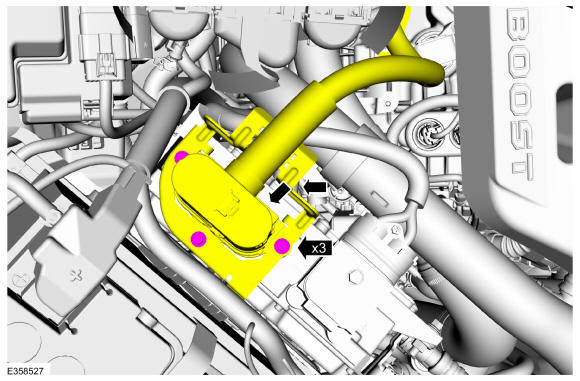

Remove the bolts and disconnect the high voltage cable, and position harness aside.
Torque

: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

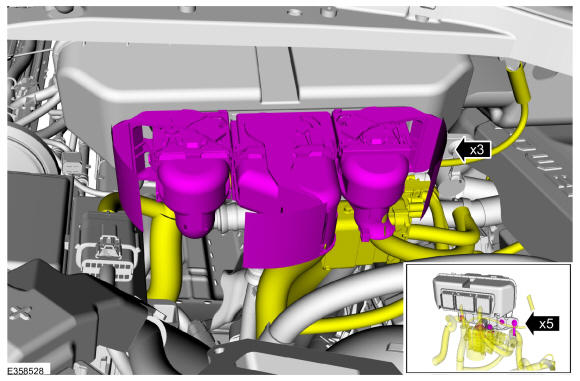

Disconnect the PCM electrical connectors. Release the harness retainers from the lower PCM cover to position aside the harnesses.

Courtesy of FORD MOTOR COMPANY

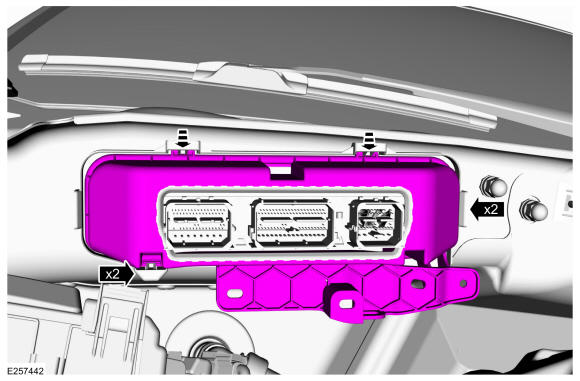

Release the retaining clips and remove the PCM cover.

Courtesy of FORD MOTOR COMPANY

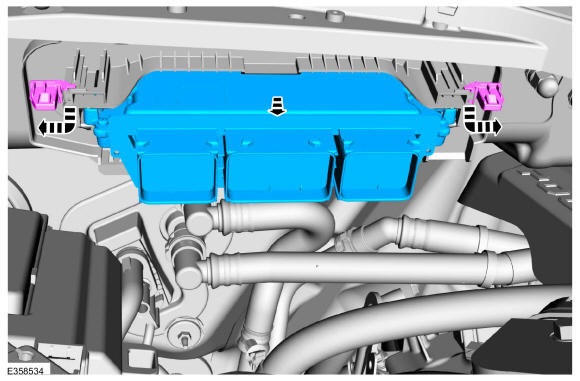

Release the retainer clips and remove the PCM.

Courtesy of FORD MOTOR COMPANY
