Powertrain Drivetrain Mount Neutralizing: Adjustment

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Remove the fasteners and rear undershield.

   Courtesy of FORD MOTOR COMPANY

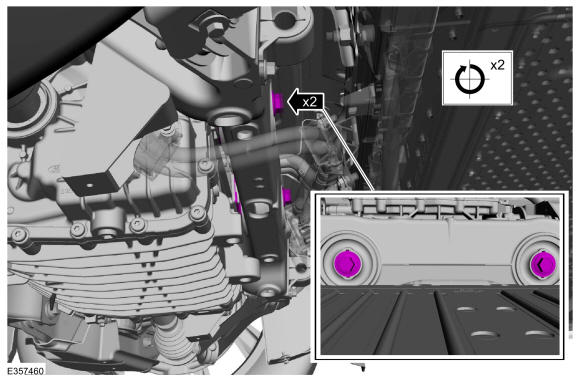

3. Loosen, but do not remove the rear electric drive assembly fasteners.

   Courtesy of FORD MOTOR COMPANY

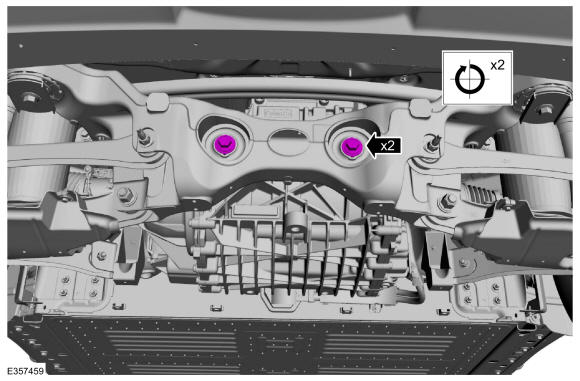

4. Loosen, but do not remove the rear electric drive assembly fasteners.

   Courtesy of FORD MOTOR COMPANY

   LHD AWD/RHD AWD

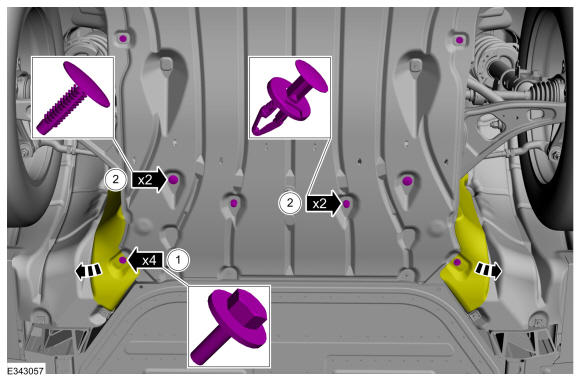

5. 1. Remove the bolts and position aside the fender splash shield.
   2. Remove the pin type retainers.

   Courtesy of FORD MOTOR COMPANY

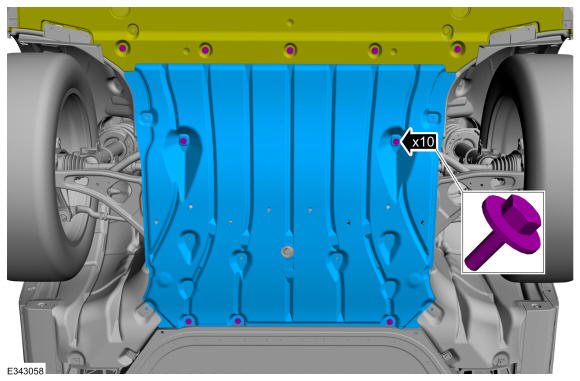

6. Remove the bolts and front undershield.

   Courtesy of FORD MOTOR COMPANY

   LHD AWD/RHD AWD

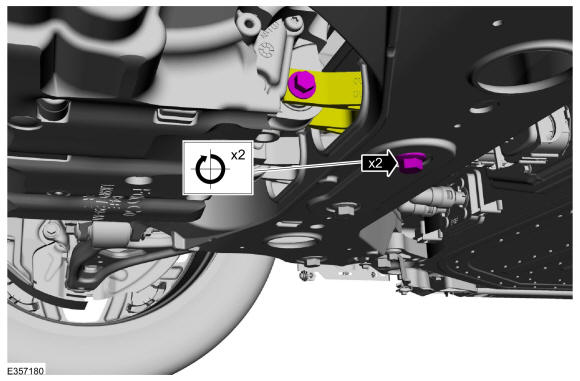

7. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

   GT

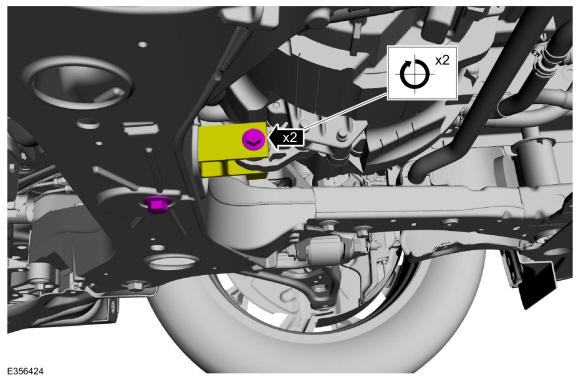

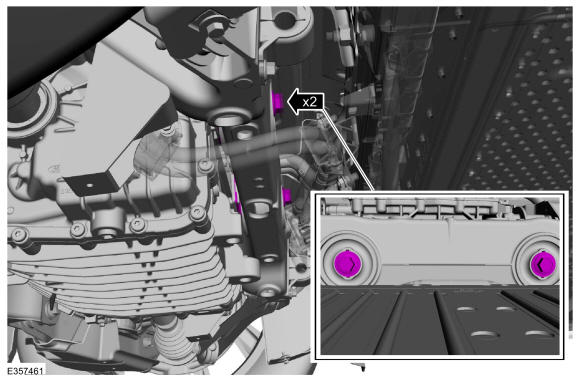

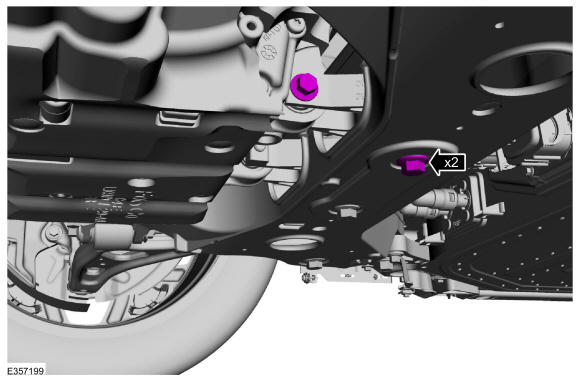

8. Loosen, but do not remove the roll RH restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

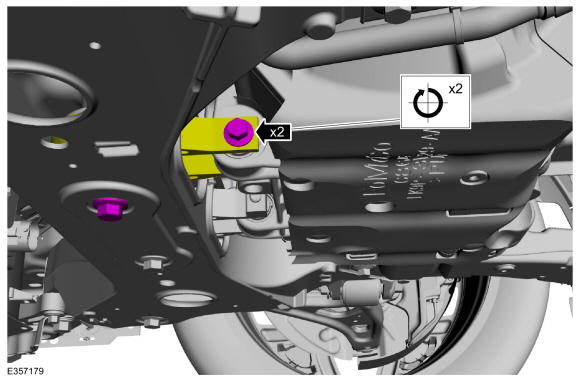

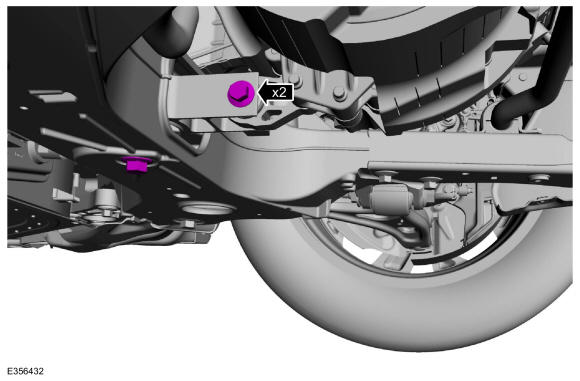

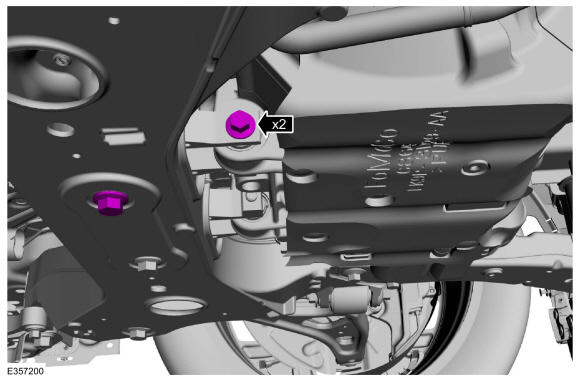

9. Loosen, but do not remove the roll LH restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

   LHD AWD/RHD AWD

10. Remove the SOBDM. Refer to: Secondary On-Board Diagnostic Control Module A (SOBDM) .

    Base

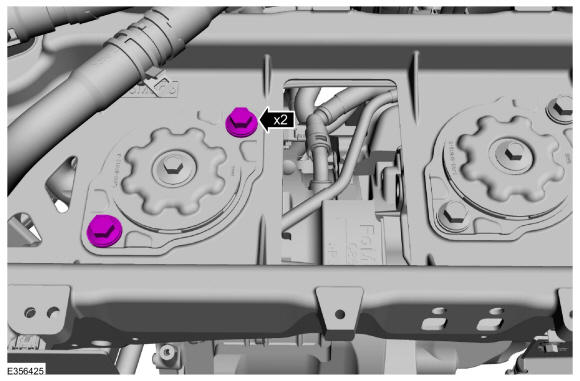

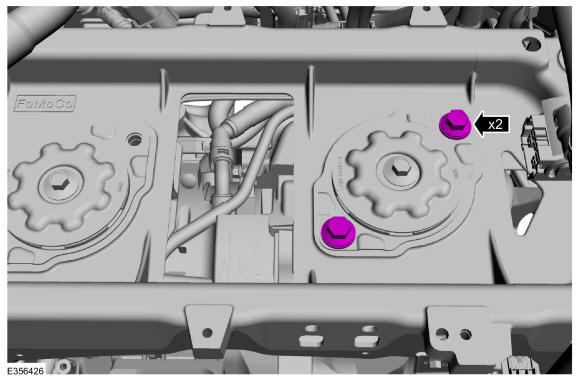

11. Remove the RH mount bolts.

    Courtesy of FORD MOTOR COMPANY

12. Remove the LH mount bolts.

    Courtesy of FORD MOTOR COMPANY

    GT

13. Remove the RH mount bolts.

    Courtesy of FORD MOTOR COMPANY

14. Remove the LH mount bolts.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/RHD AWD

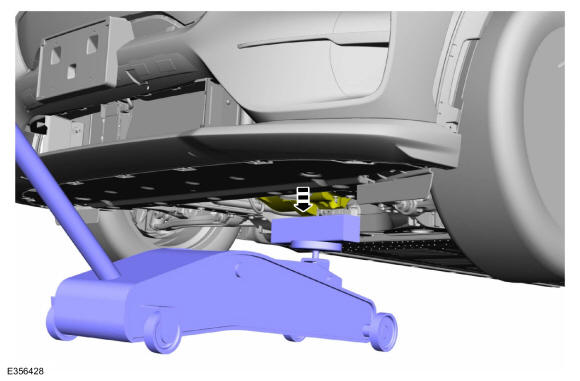

15. Gently raise the powertrain and lift the motor mounts from the body. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

16. Gently lower the powertrain and motor mounts back down onto the body. Remove the jack.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

17. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

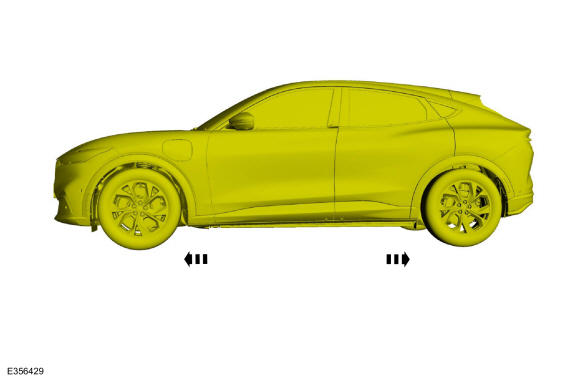

    Rest the vehicle on the ground. Rock the vehicle on the parking pawl to neutralize the mounts.

    Courtesy of FORD MOTOR COMPANY

    GT

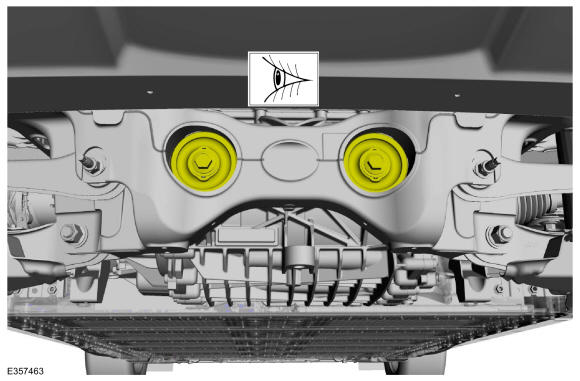

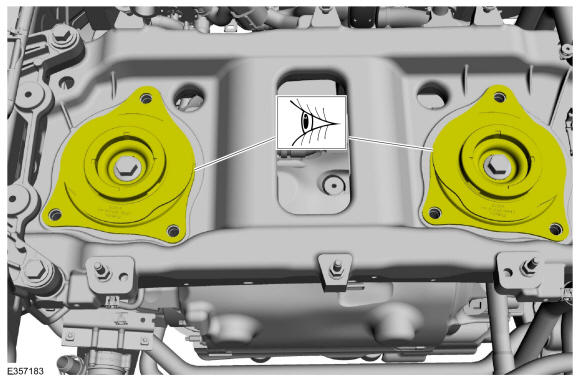

18. Inspect the mounts for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

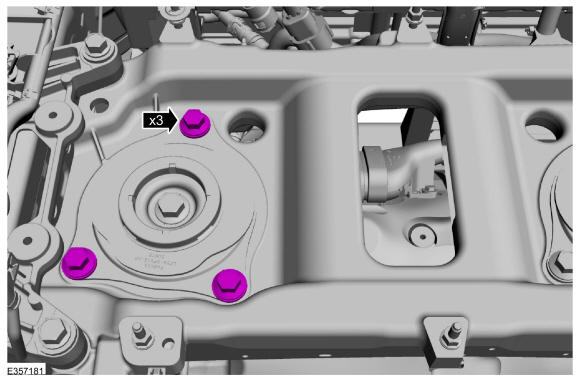

19. Install the LH mount bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

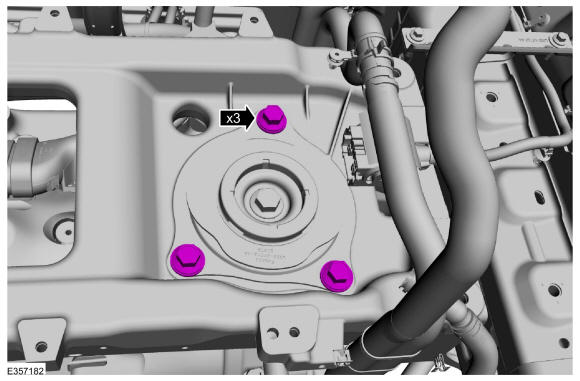

20. Install the RH mount bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

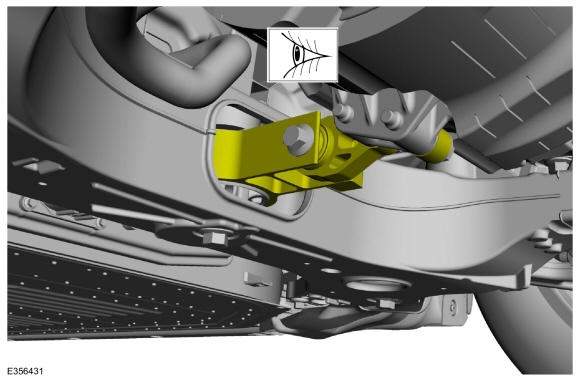

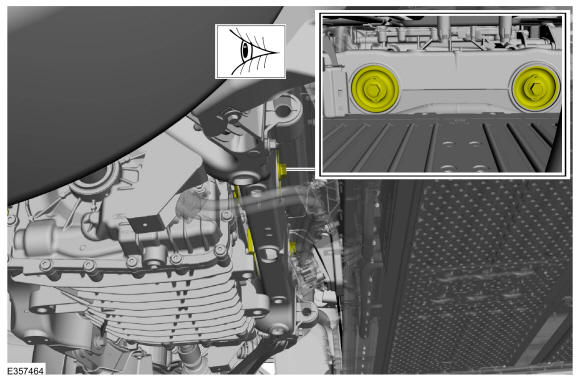

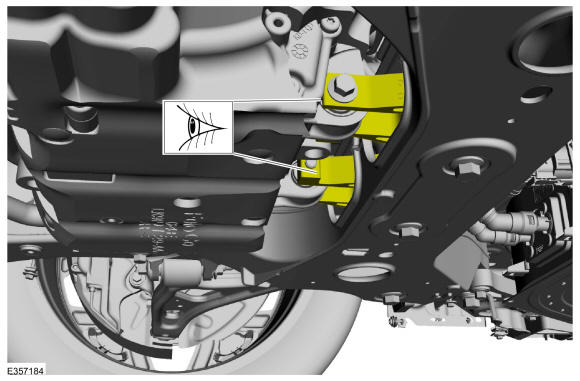

21. Inspect the roll restrictor for preloading or binding around the clevis. The roll restrictor should be straight.

    Courtesy of FORD MOTOR COMPANY

22. Tighten the roll restrictor fasteners.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Tighten the roll restrictor fasteners.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/RHD AWD

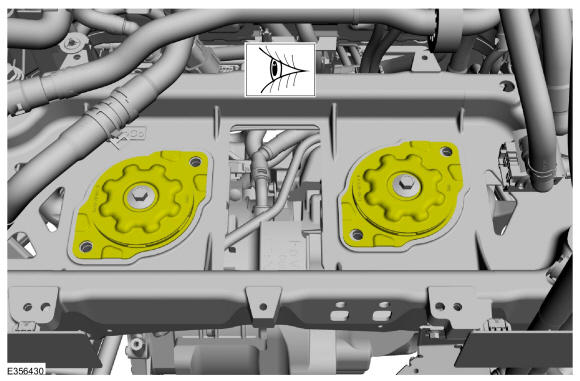

24. Inspect the mounts for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

25. Install the LH mount bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the RH mount bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Inspect the roll restrictor for preloading or binding around the clevis. The roll restrictor should be straight.

    Courtesy of FORD MOTOR COMPANY

28. Tighten the roll restrictor fasteners.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

29. Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

30. Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

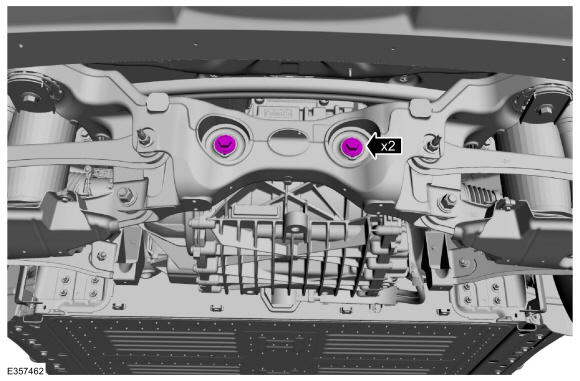

31. Tighten the rear electric drive assembly fasteners.

    Torque

    : 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Tighten the rear electric drive assembly fasteners.

    Torque

    : 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Install the rear undershield and fasteners.

    Torque

    : 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/RHD AWD

34. Install the front undershield and bolts.

    Torque

    : 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

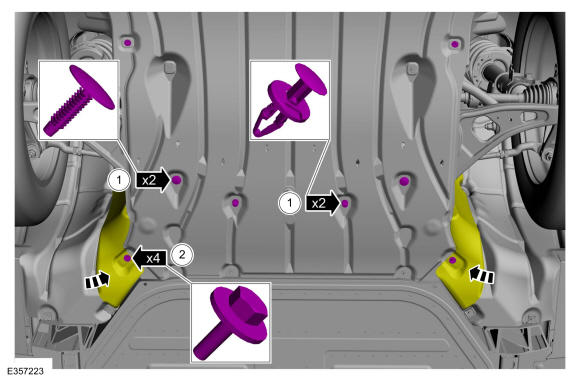

35. 1. Install the pin type retainers.
    2. Position back the fender splash shield and install the bolts.

       Torque

       : 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

36. Install the SOBDM. Refer to: Secondary On-Board Diagnostic Control Module A (SOBDM) .
