Steering Gear Boot: Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.
  1. Remove the tie rod end. Refer to: Tie Rod End .
  2. NOTE: Count and record the number of turns required to remove the tie rod end jam nut for reference during installation.

    Remove the tie rod end jam nut.

    GFD767396Courtesy of FORD MOTOR COMPANY

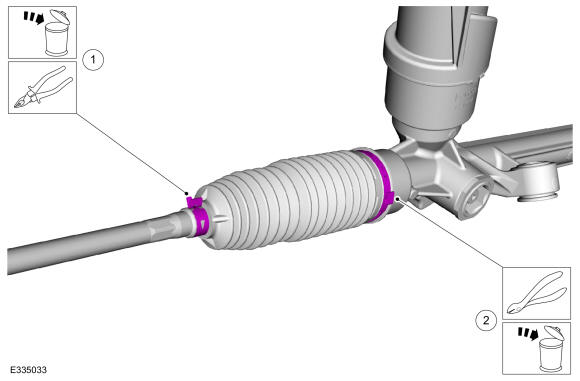

  3. Remove and discard the steering gear boot clamps.

    1. Remove and discard the outer steering gear boot clamp.
    2. Remove and discard the inner steering gear boot clamp.

    GFD767397Courtesy of FORD MOTOR COMPANY

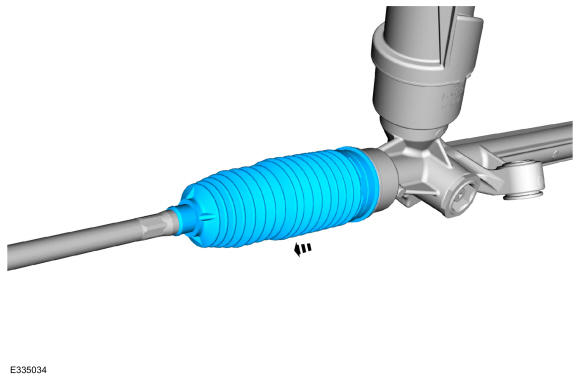

  4. Remove the steering gear boot.
GFD767398Courtesy of FORD MOTOR COMPANY
