Image Processing Module A (IPMA): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. If a new IPMA (image processing module A) is being installed, using a diagnostic scan tool, begin the PMI (programmable module installation) process for the IPMA following the on-screen instructions.

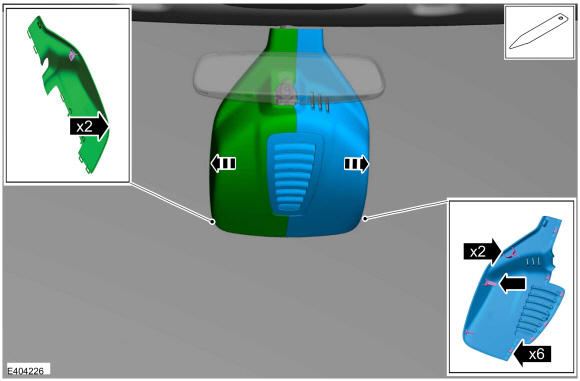

2. Remove the clips and the IPMA covers.Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

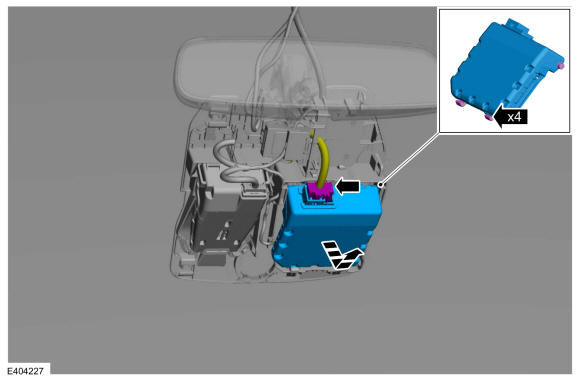

3. • Disconnect the electrical connector.
   • Release the tabs and remove the IPMA.

Courtesy of FORD MOTOR COMPANY
