Front Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

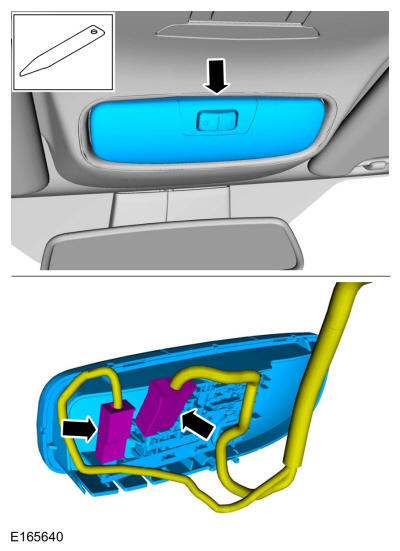

  1. Remove the dome lamp and disconnect the electrical connectors.Use the General Equipment: Interior Trim Remover
    GFD773551Courtesy of FORD MOTOR COMPANY

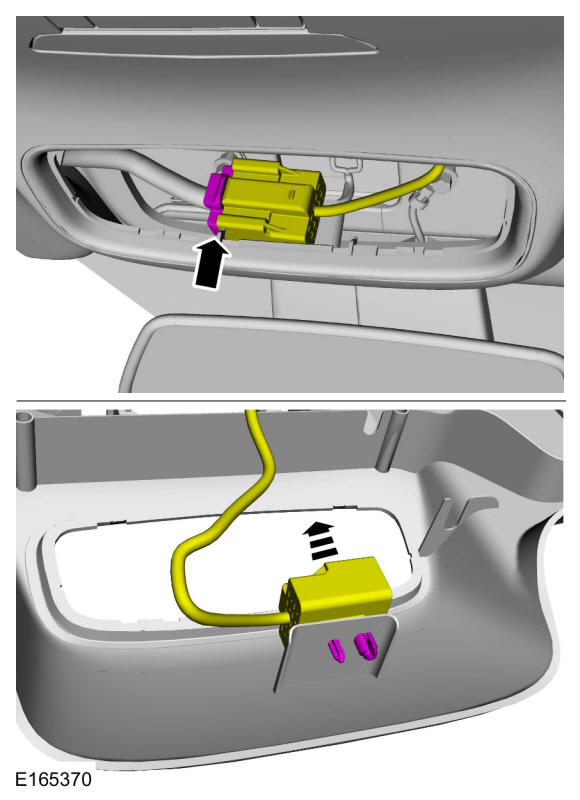

  2. Disconnect the electrical connector and then disengage the connector clips.
    GFD773552Courtesy of FORD MOTOR COMPANY
    • Disengage the retaining tabs and remove the roof bezel cover.

    • Disconnect the roof bezel cover electrical connectors.

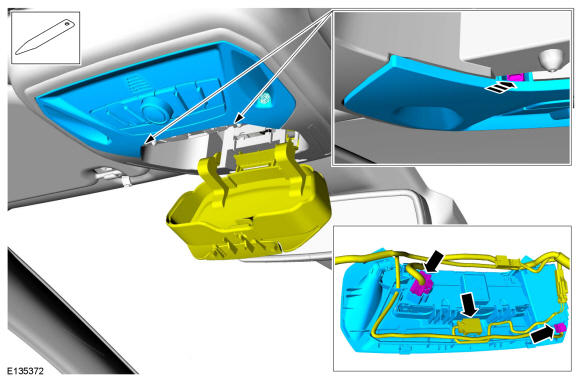

    GFD773553Courtesy of FORD MOTOR COMPANY

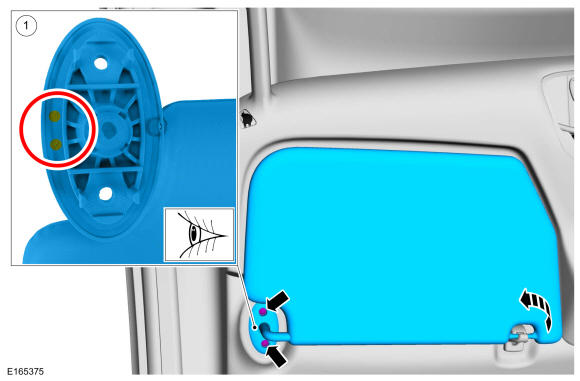

  4. GFD772963Courtesy of FORD MOTOR COMPANY

    1. NOTE: the position of the component before removal.

      Remove the retainers and the LH side sun visor.

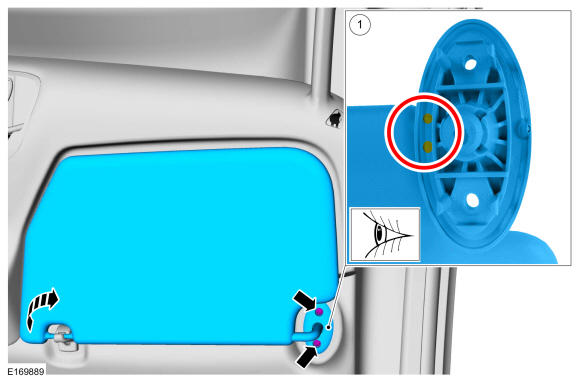

  5. GFD772964Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the RH side sun visor.

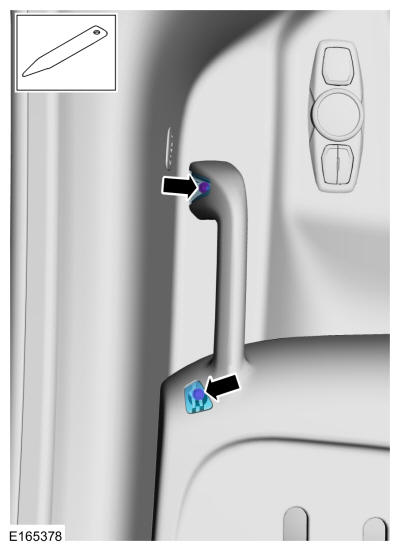

  6. On both sides, remove the grab handle covers and retainers.Use the General Equipment: Interior Trim Remover
    GFD772971Courtesy of FORD MOTOR COMPANY

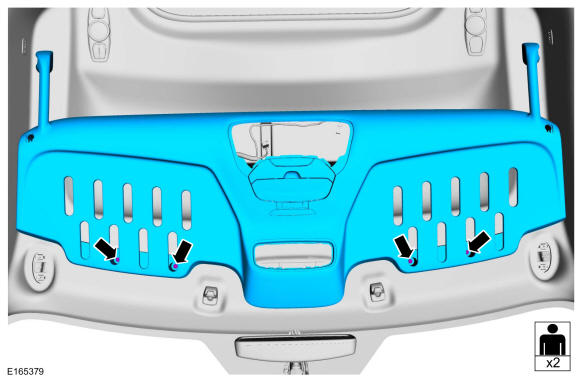

  7. Remove the retainers and the front seat overhead storage compartment assembly.
GFD772972Courtesy of FORD MOTOR COMPANY
