Instrument Panel: Installation

To install, reverse the removal procedure.
NOTE: Make sure that the tolerance absorbers turn without resistance.

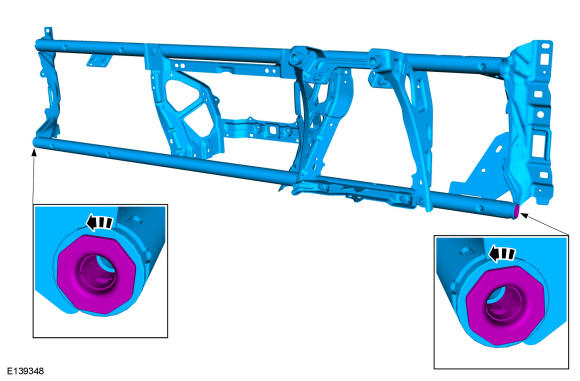

NOTE: In-vehicle cross beam shown without instrument panel for clarity.

Turn on both sides the tolerance absorber to the stop and turn back a half turn.

Courtesy of FORD MOTOR COMPANY
Check on both sides that the tolerance absorber contacts the A-pillar.

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
