Piston Ring End Gap: Check

NOTE: Refer to SPECIFICATIONS .

NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

NOTE: Piston rings should not be transferred from one piston to another.

NOTE: The cylinder bore must be within specification for taper and out-of-round.

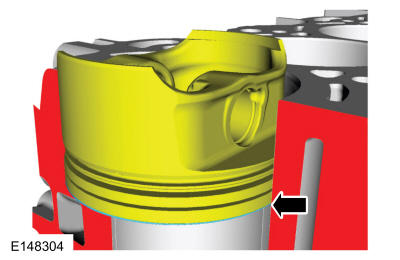

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

Courtesy of FORD MOTOR COMPANY

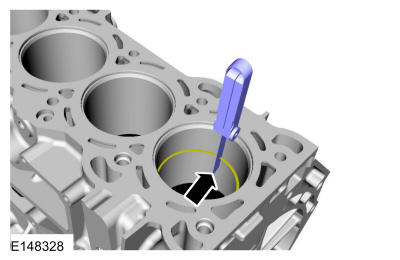

Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gap. Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY
