Electronic Engine Controls - 2.0L DURATEC-He (110KW/150PS) - Mi4
›
Description And Operation
›

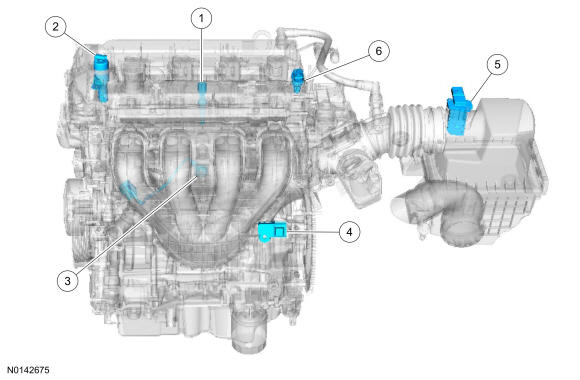

Electronic Engine Controls - Component Location
›
Notes
Electronic Engine Controls - Component Location: Notes
Courtesy of FORD MOTOR COMPANY
Item
Description
1
CHT sensor
2
VCT oil control solenoid
3
KS sensor
4
MAPT sensor
5
MAF sensor
6
CMP sensor
Courtesy of FORD MOTOR COMPANY
