Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH wheel speed sensor shown, RH similar.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

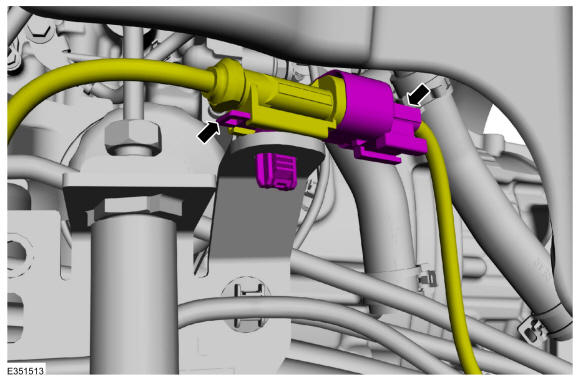

2. Disconnect the wheel speed sensor electrical connector and detach the retainer.

   Courtesy of FORD MOTOR COMPANY

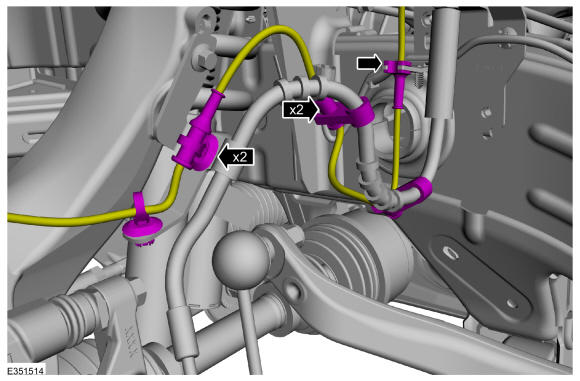

3. Detach the wheel speed sensor harness retainers and routing clips.

   Courtesy of FORD MOTOR COMPANY

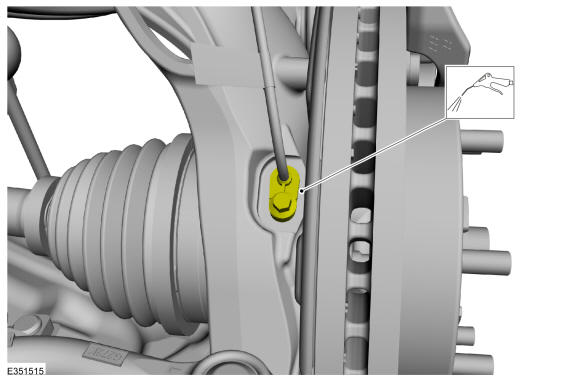

4. Using compressed air, clean the area surrounding the front wheel speed sensor.

   Courtesy of FORD MOTOR COMPANY

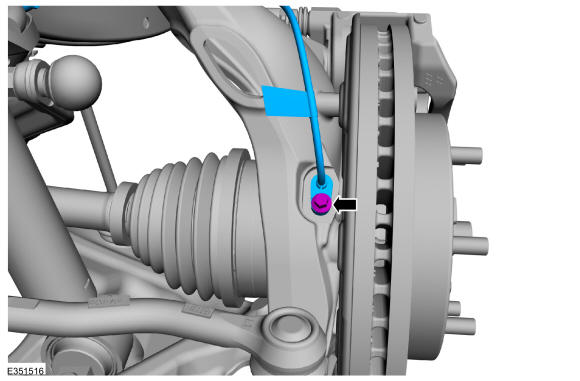

5. Remove the bolt and the front wheel speed sensor.

   Torque

   : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
