Body Control Module C (BCMC): Removal
WARNING: This page is about a different car, the 2023 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

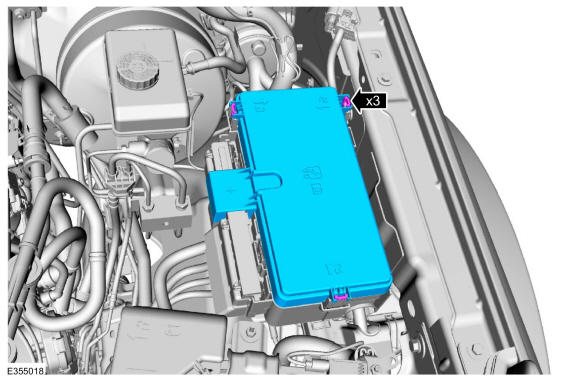

- Release the tabs and remove the BCMC access cover.

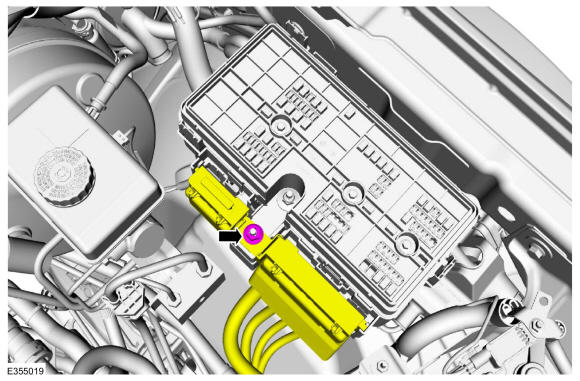

- Remove the nut and position aside the wiring junction block.

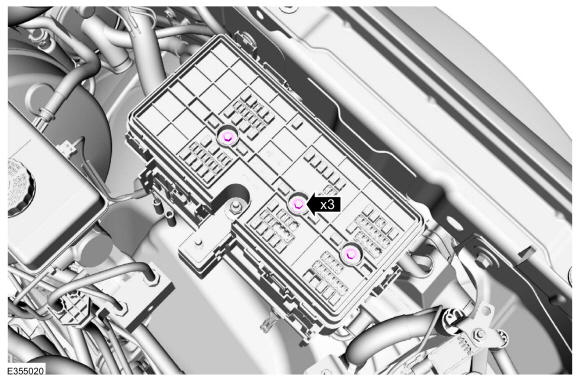

- Loosen the BCMC bolts.

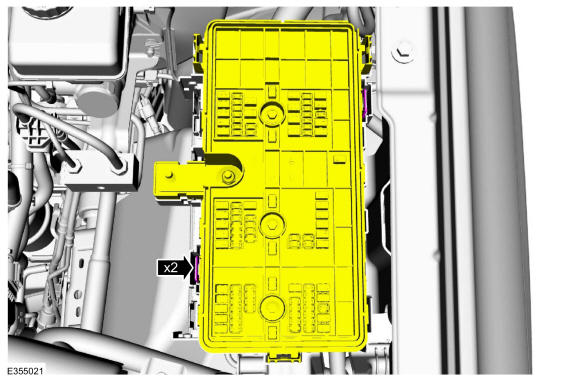

- Release the tabs and position the BCMC up from the bracket.

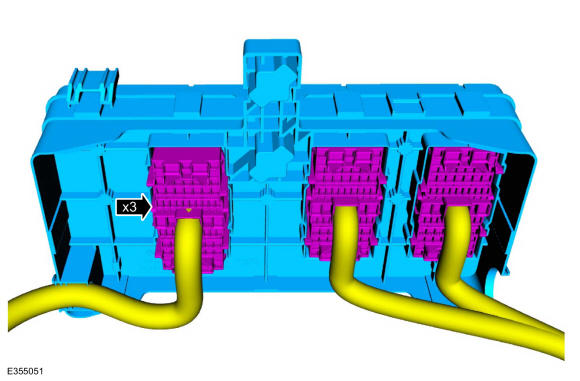

- Remove the electrical connectors and the BCMC.
