Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2023 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .

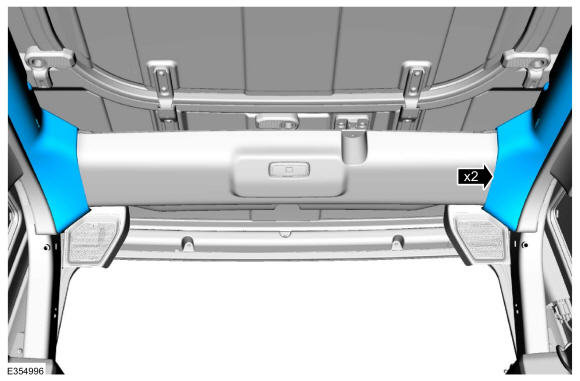

- Remove the outer rear trim panels.
- Position the center rear trim panel down.

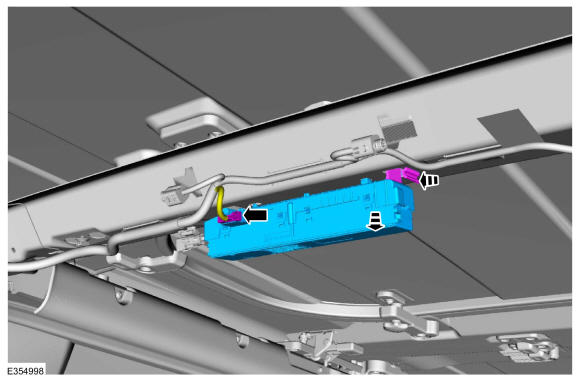

- Release the RTM bracket clip, Disconnect the electrical connector and remove the RTM.
