Ethernet Module Communications Network - Component Location

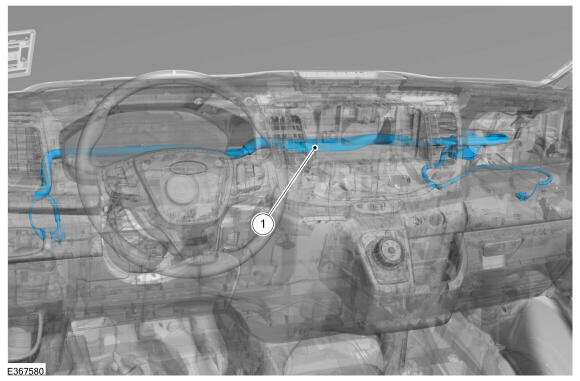

TCU Ethernet Cable routing

GFD841074Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing

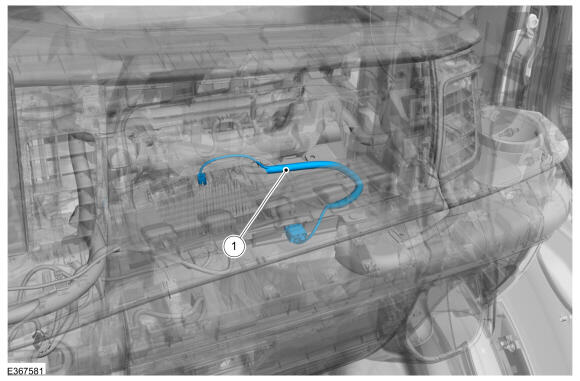

APIM Ethernet Cable routing

GFD841075Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing
