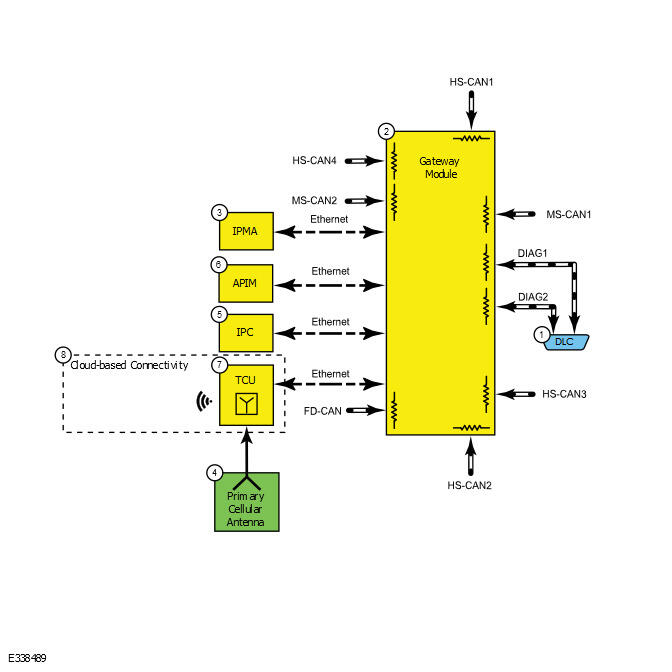

System Diagram
NOTE:
The system diagrams include all component options. Some components may not be equipped on the vehicle.
Over the Air (OTA) Updates
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
DLC |
| 2 |
GWM |
| 3 |
IPMA |
| 4 |
Primary cellular antenna |
| 5 |
IPC |
| 6 |
APIM |
| 7 |
TCU |
| 8 |
Cloud-based connectivity |
